Ignition Control Module: Service and Repair

REMOVAL AND INSTALLATION

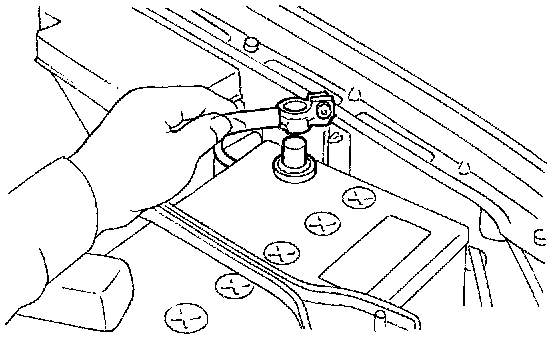

1) Disconnect battery ground cable.

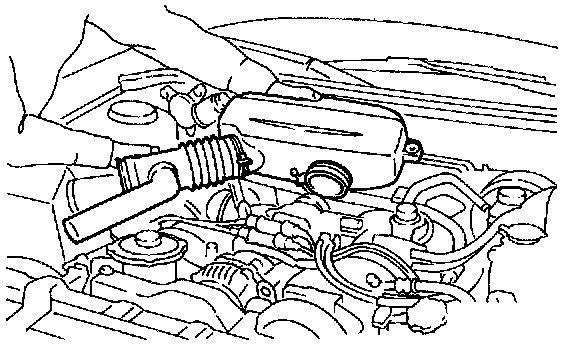

2) Remove air intake chamber.

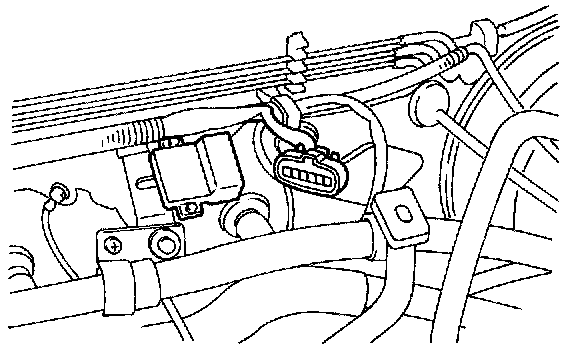

3) Disconnect connector from ignitor.





4) Remove screws which hold ignitor onto body.
5) Installation is in the reverse order of removal.
