Ignition Control Module: Description and Operation

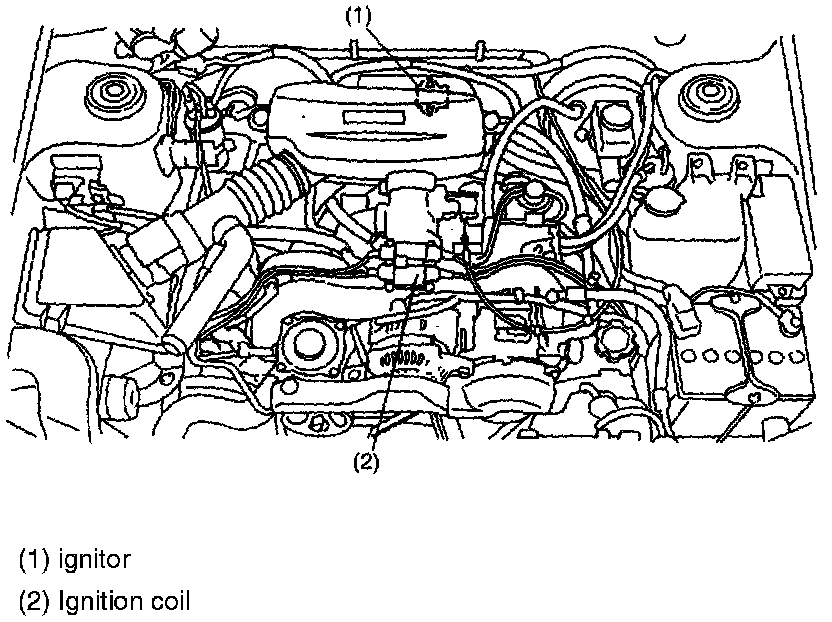

IGNITOR





The ignition system is of a 2-cylinder simultaneous ignition design In response to the signal from the ECM the ignitor supplies another signal to the ignition coil to ignite a pair of cylinders #1 and #2 or #3 and #4 simultaneously
