Engine Control Module

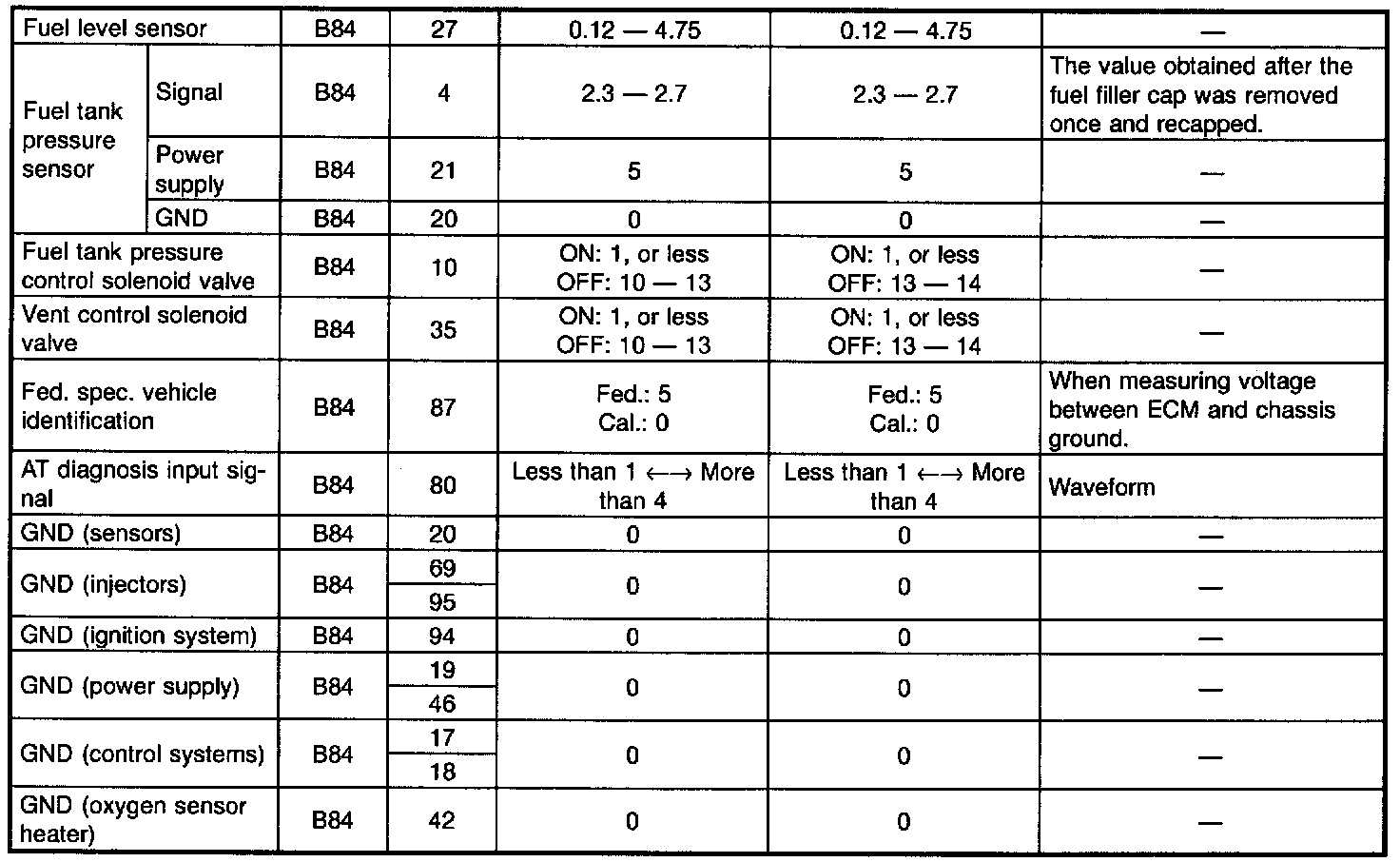

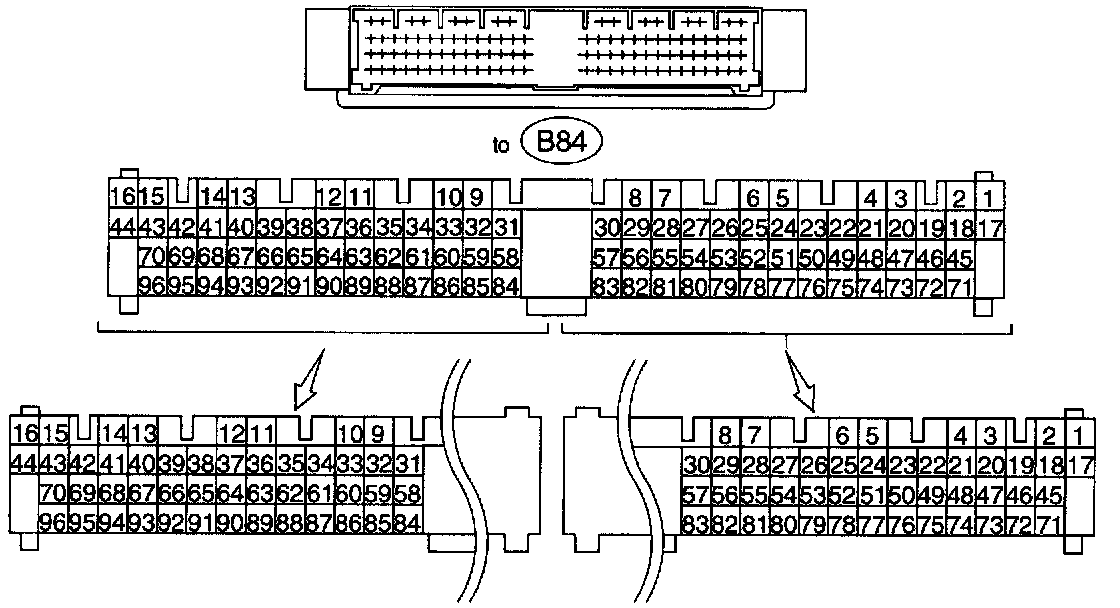

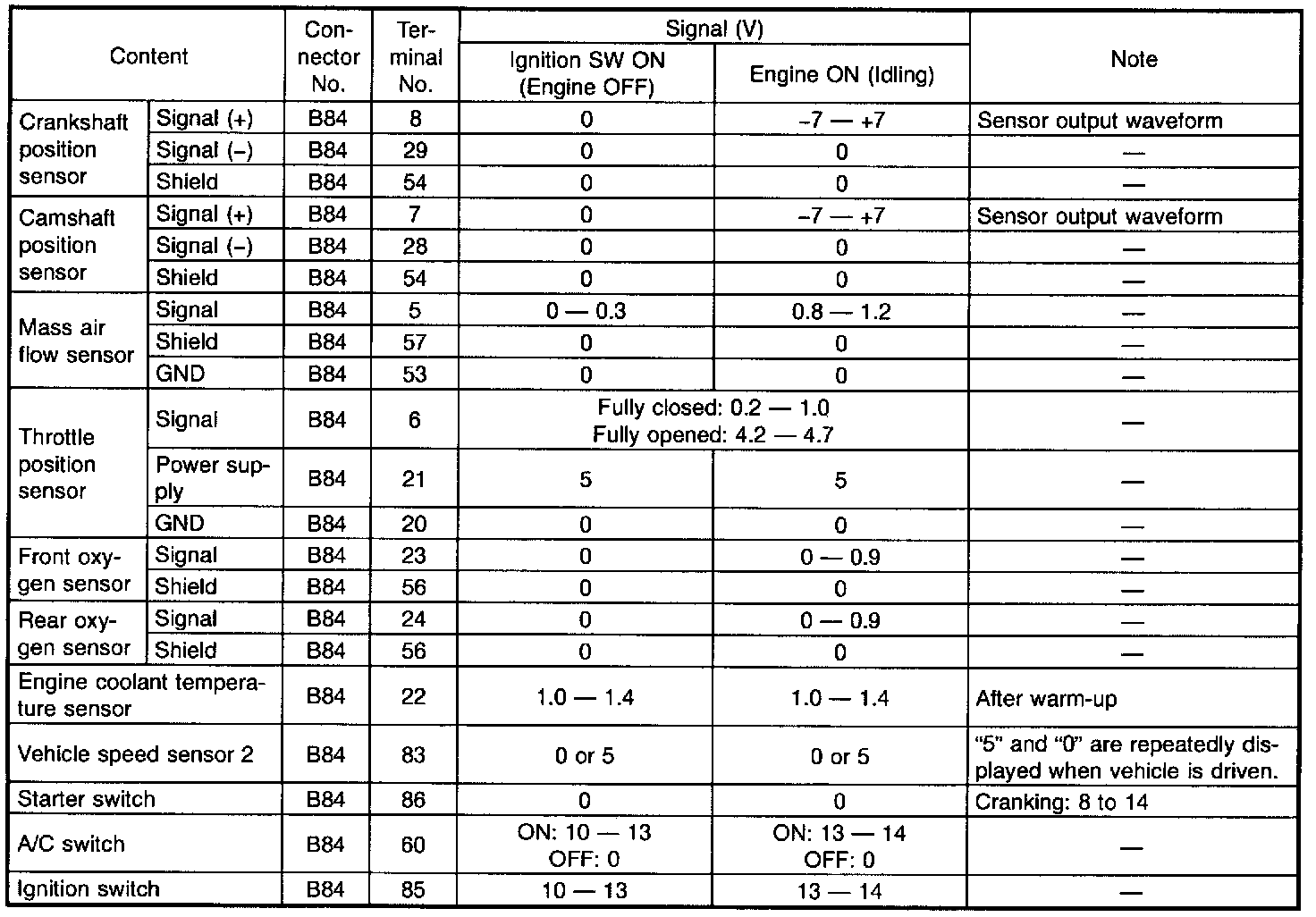

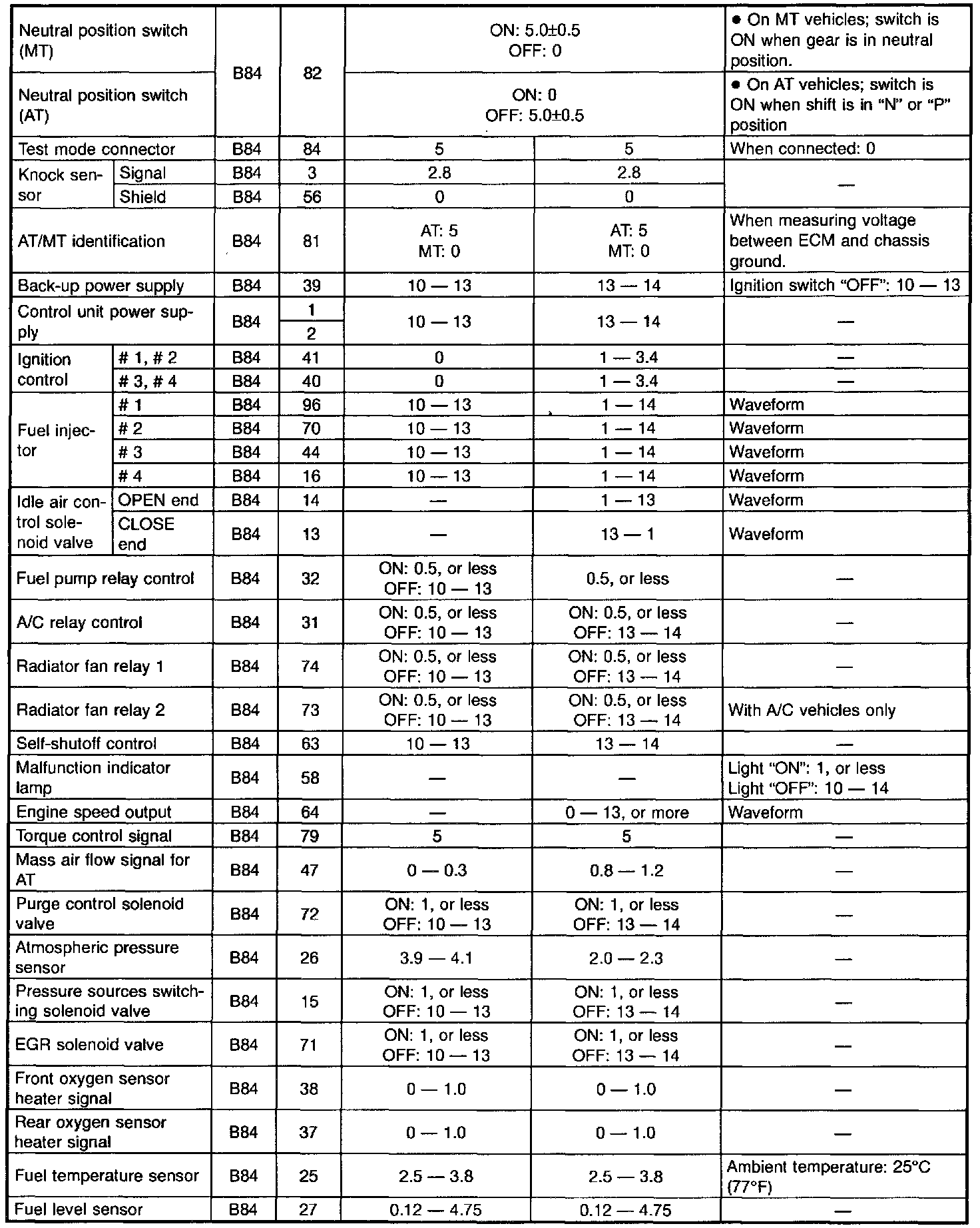

ENGINE CONTROL MODULE (ECM) I/O SIGNAL

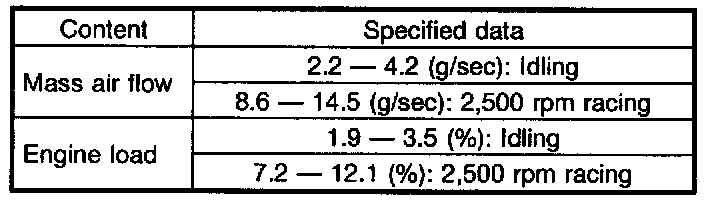

ENGINE CONDITION DATA

Measuring Conditions:
- After warming up the engine.
- Gear position is in N or P.
- A/C is turned OFF.
- All accessory switches are turned OFF.
