Alignment

B: WHEEL ALIGNMENT





NOTE:

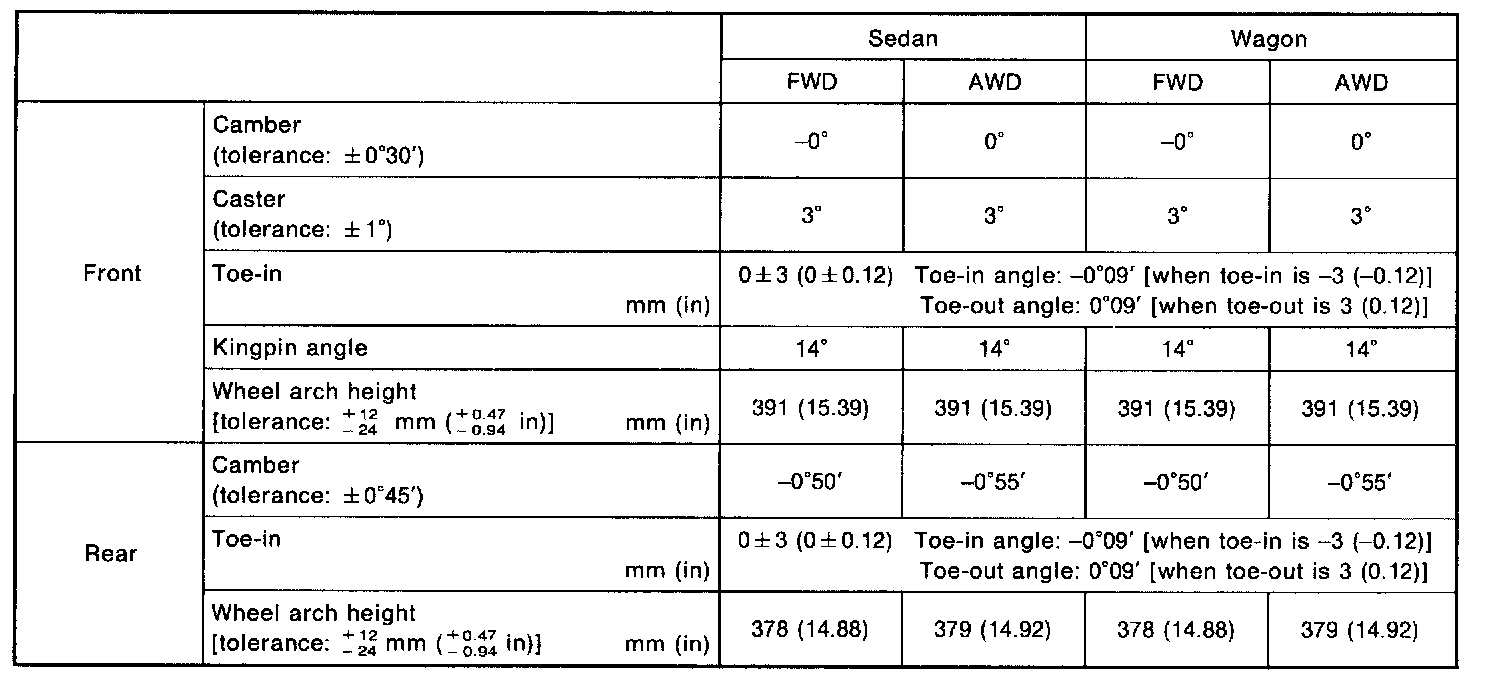

- Front and rear toe-ins and front camber can be adjusted. Adjust toe-in and camber to the middle value specifications.
- Items other than those indicated in the specification table cannot be adjusted. If toe-in or camber tolerance exceeds specifications, check suspension parts and connections for deformities; replace with new ones as required.
