Normal Scan Data Values

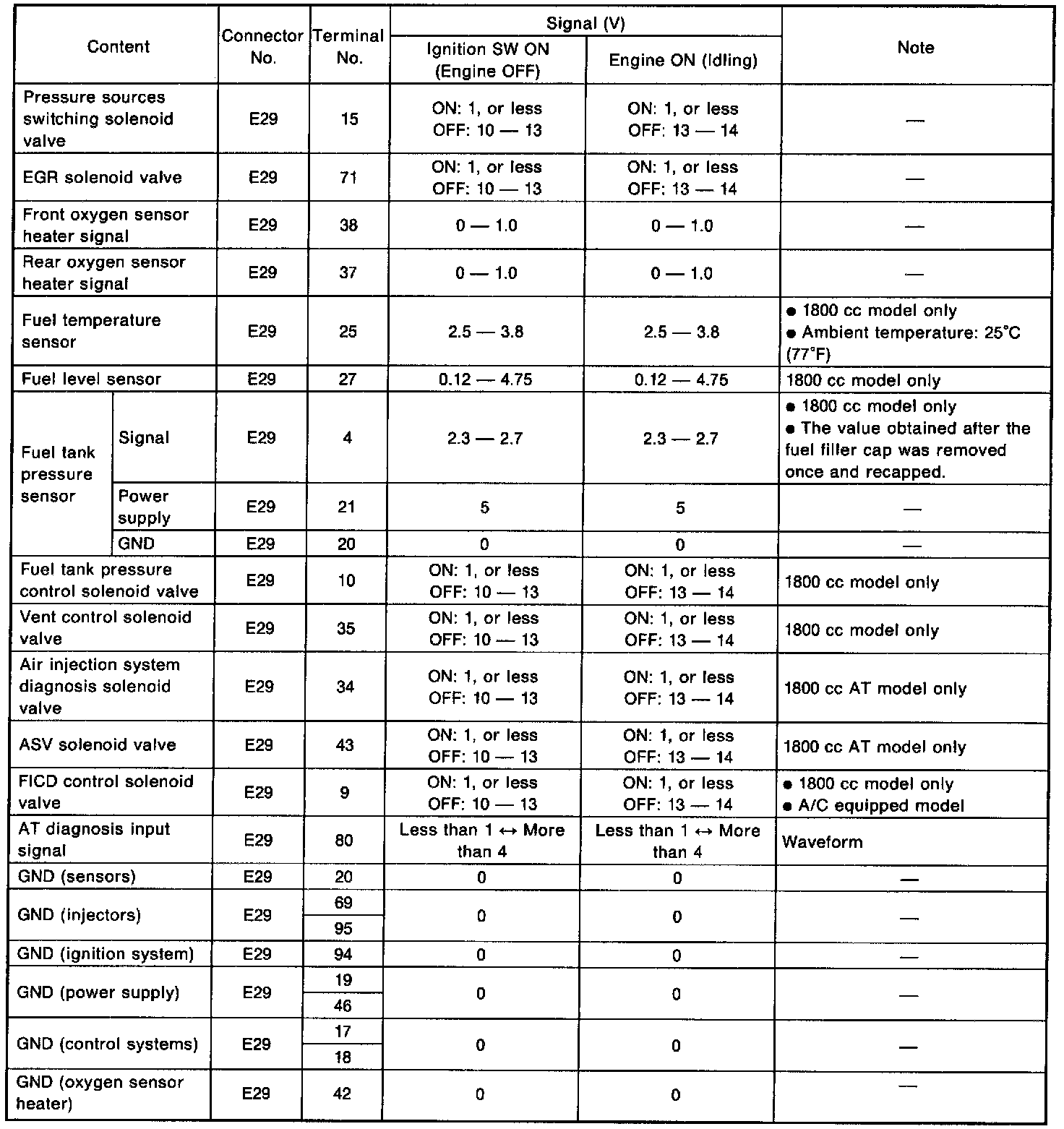

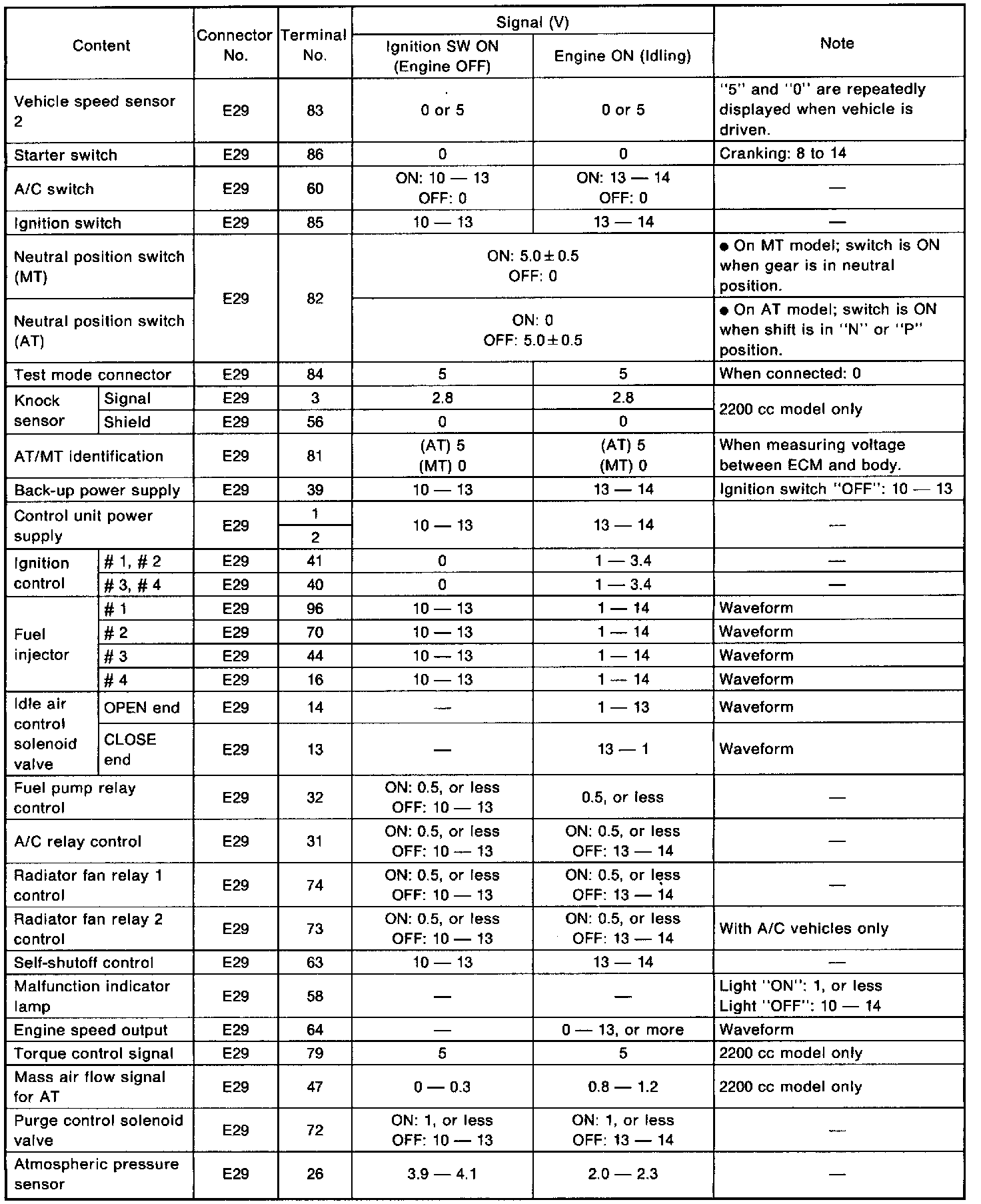

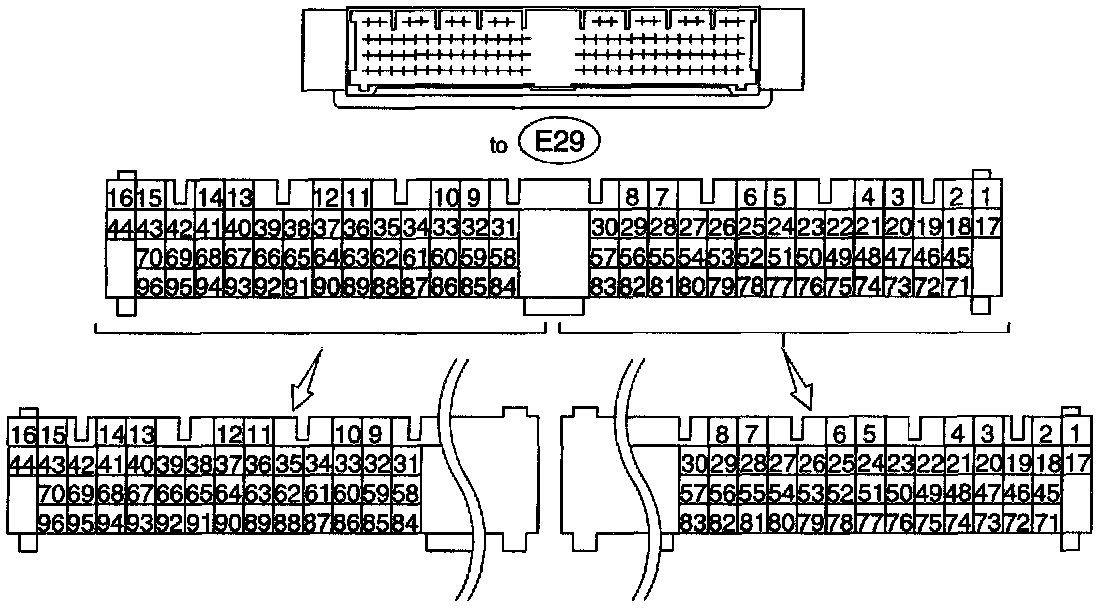

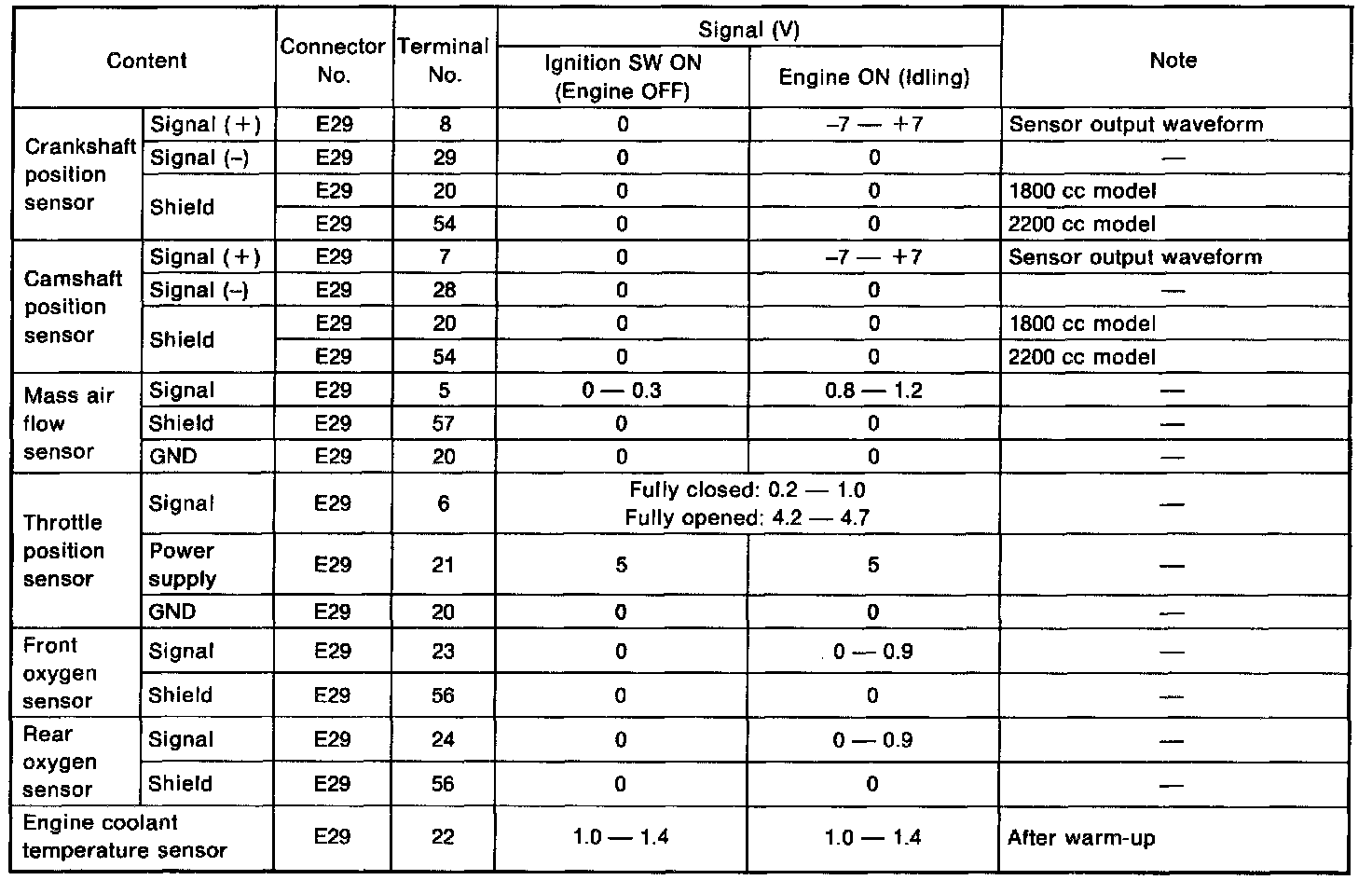

ENGINE CONTROL MODULE (ECM) I/O SIGNAL





ENGINE CONDITION DATA
Measuring condition:
- After warm-up the engine.
- Gear position is in "N" or "P" position.
- A/C is turned OFF.
- All accessory switches are turned OFF.

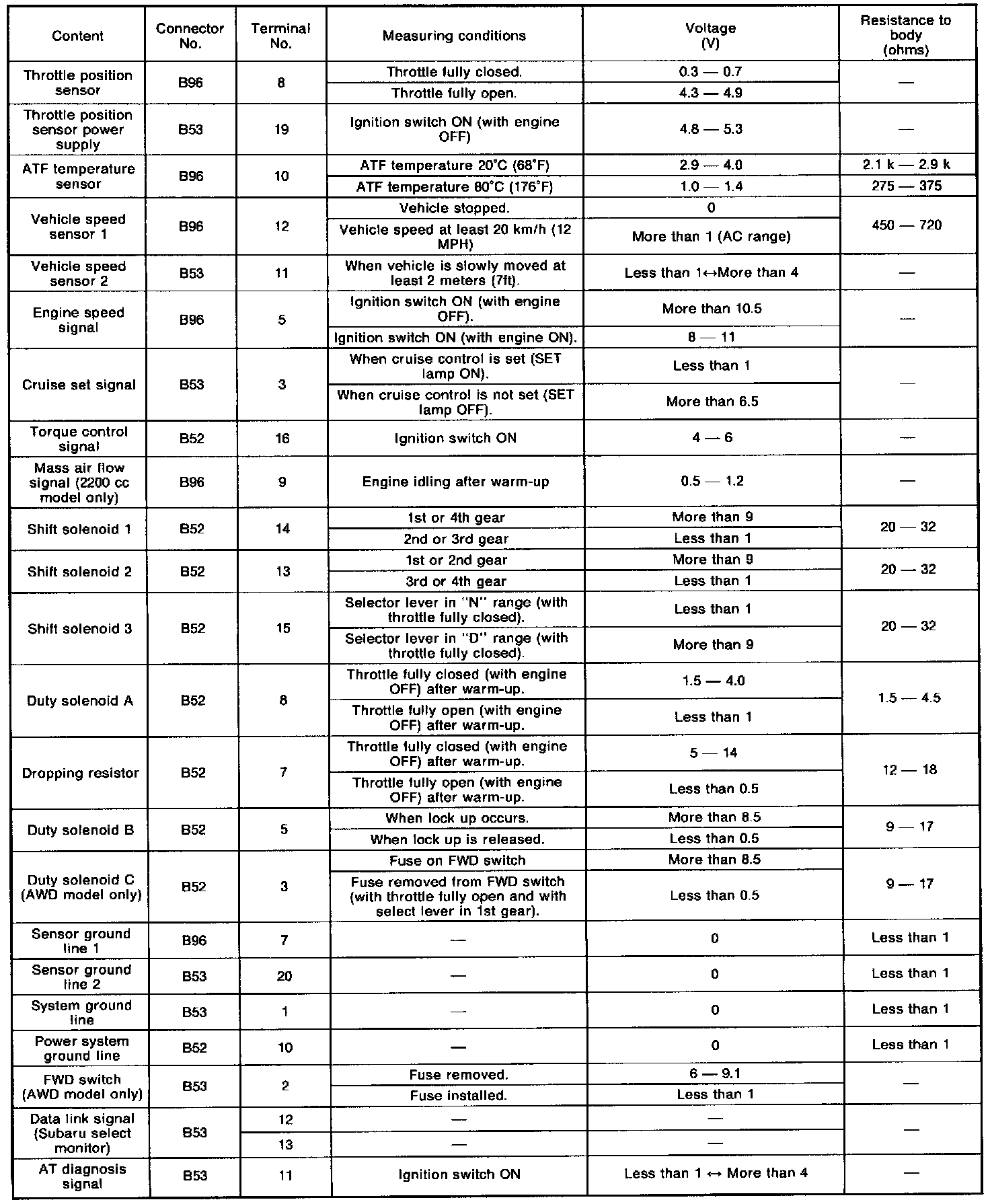

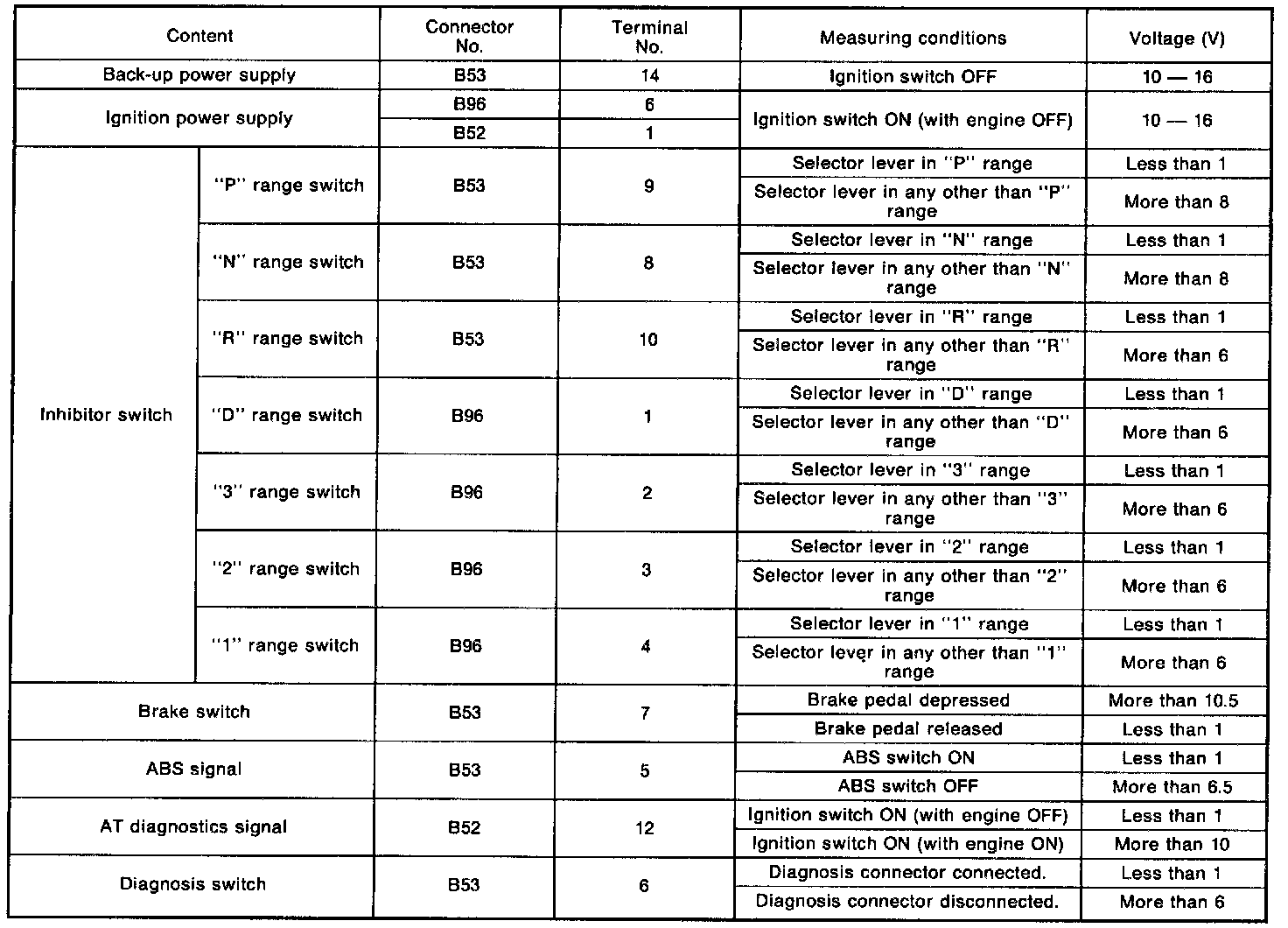

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL
Check with ignition switch ON.
