Home >> Subaru >> 1992 >> SVX L6-3.3L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Specifications

Service Specifications

SPECIFICATIONS AND SERVICE DATA

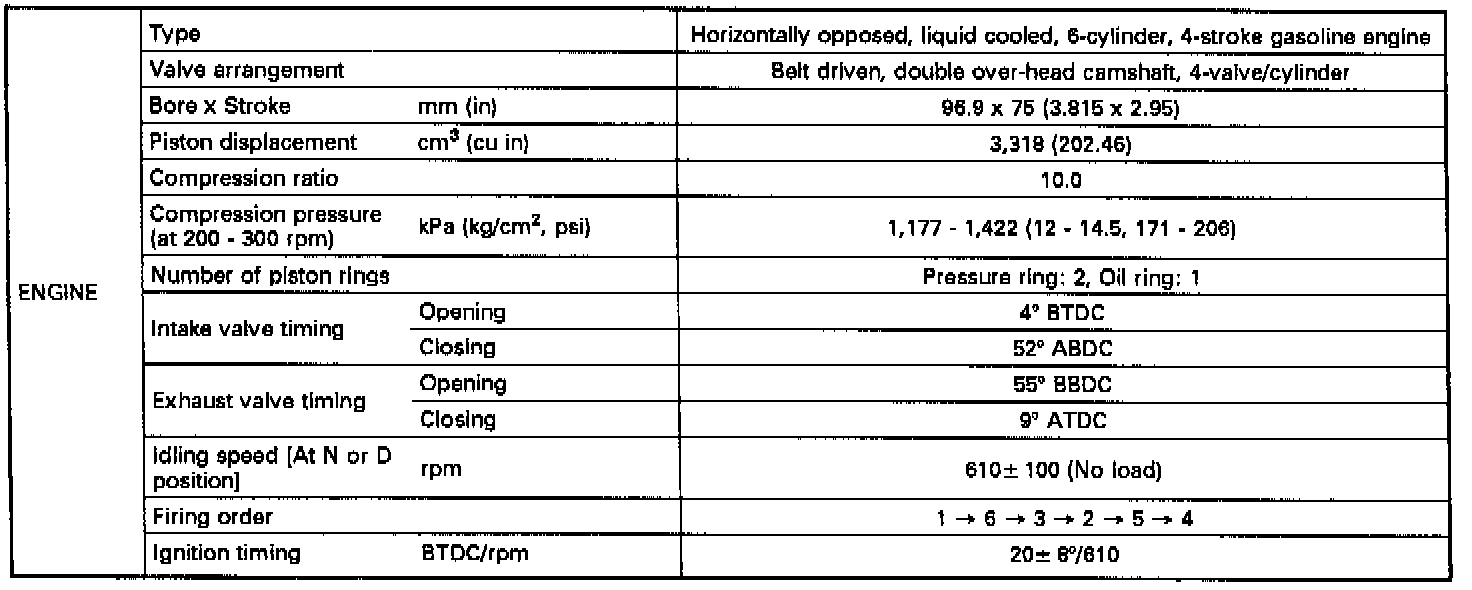

Engine Specifications

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:

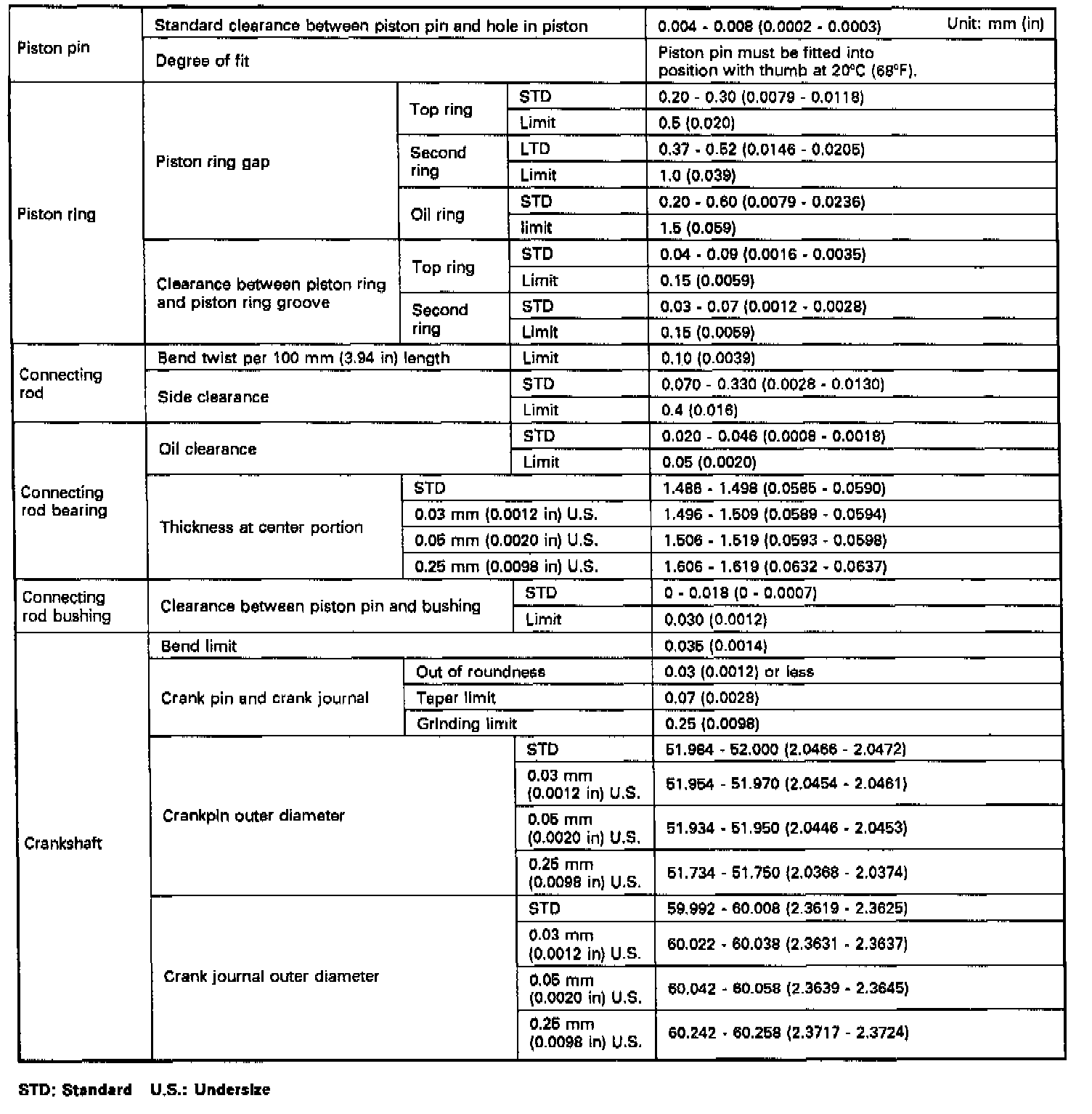

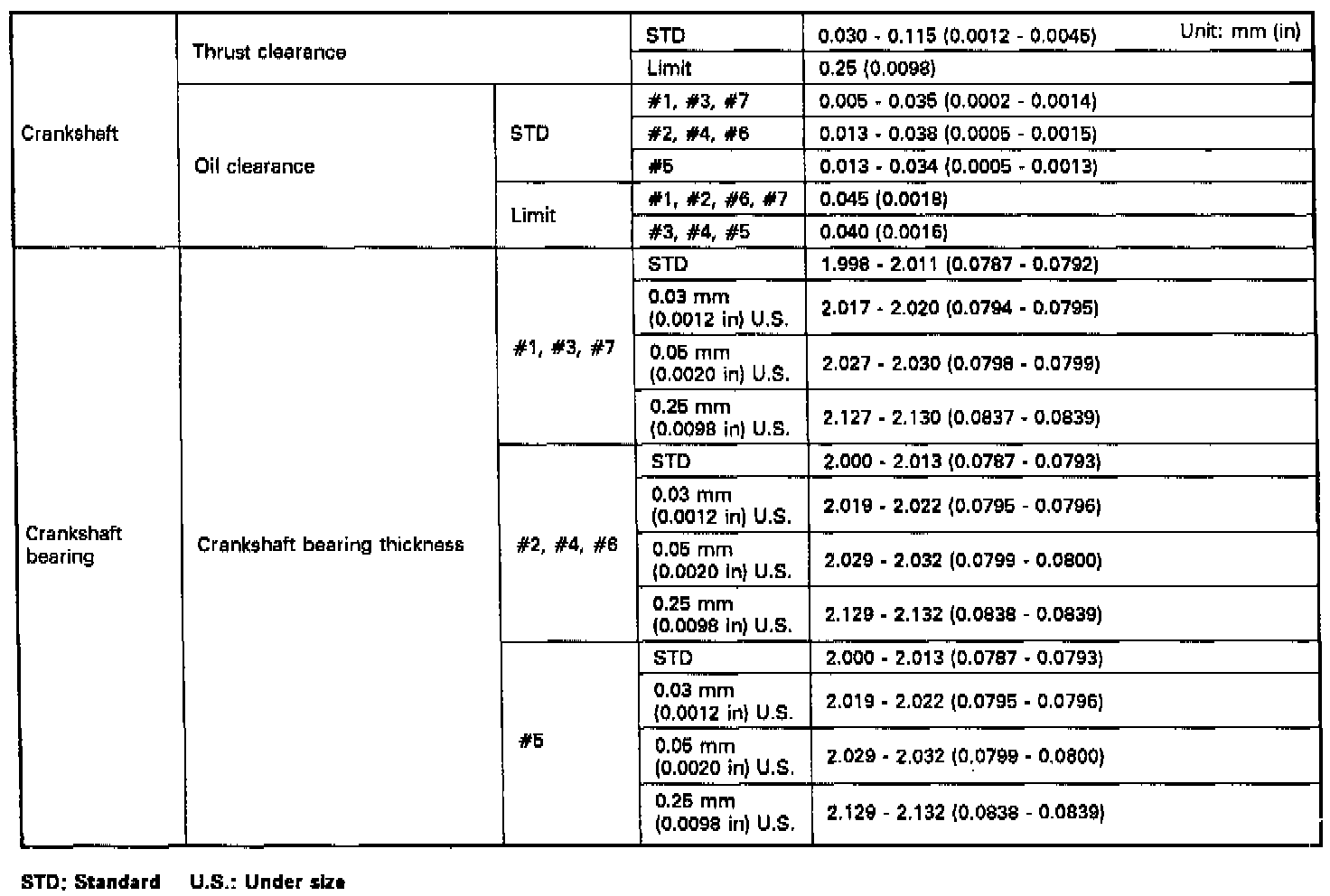

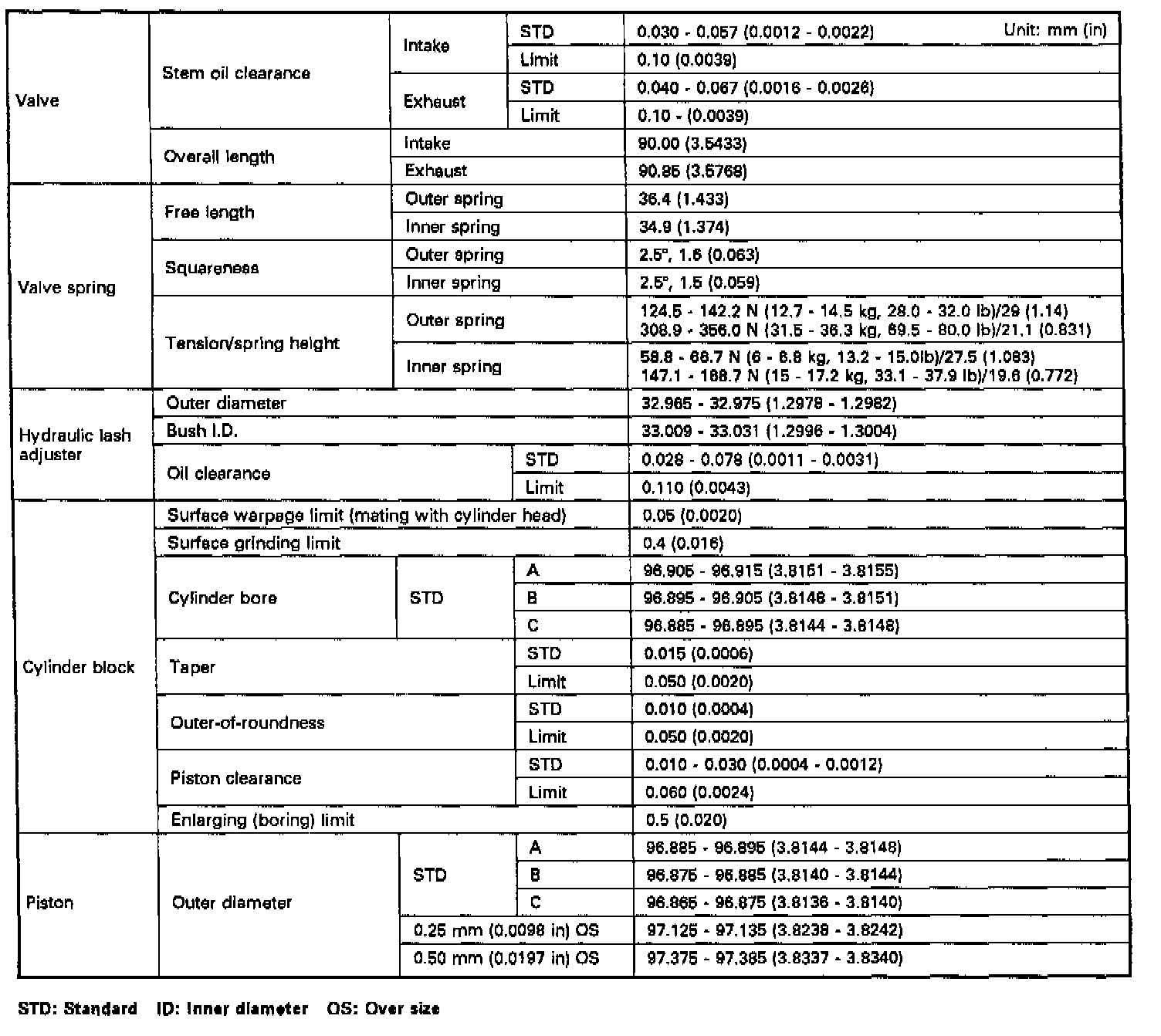

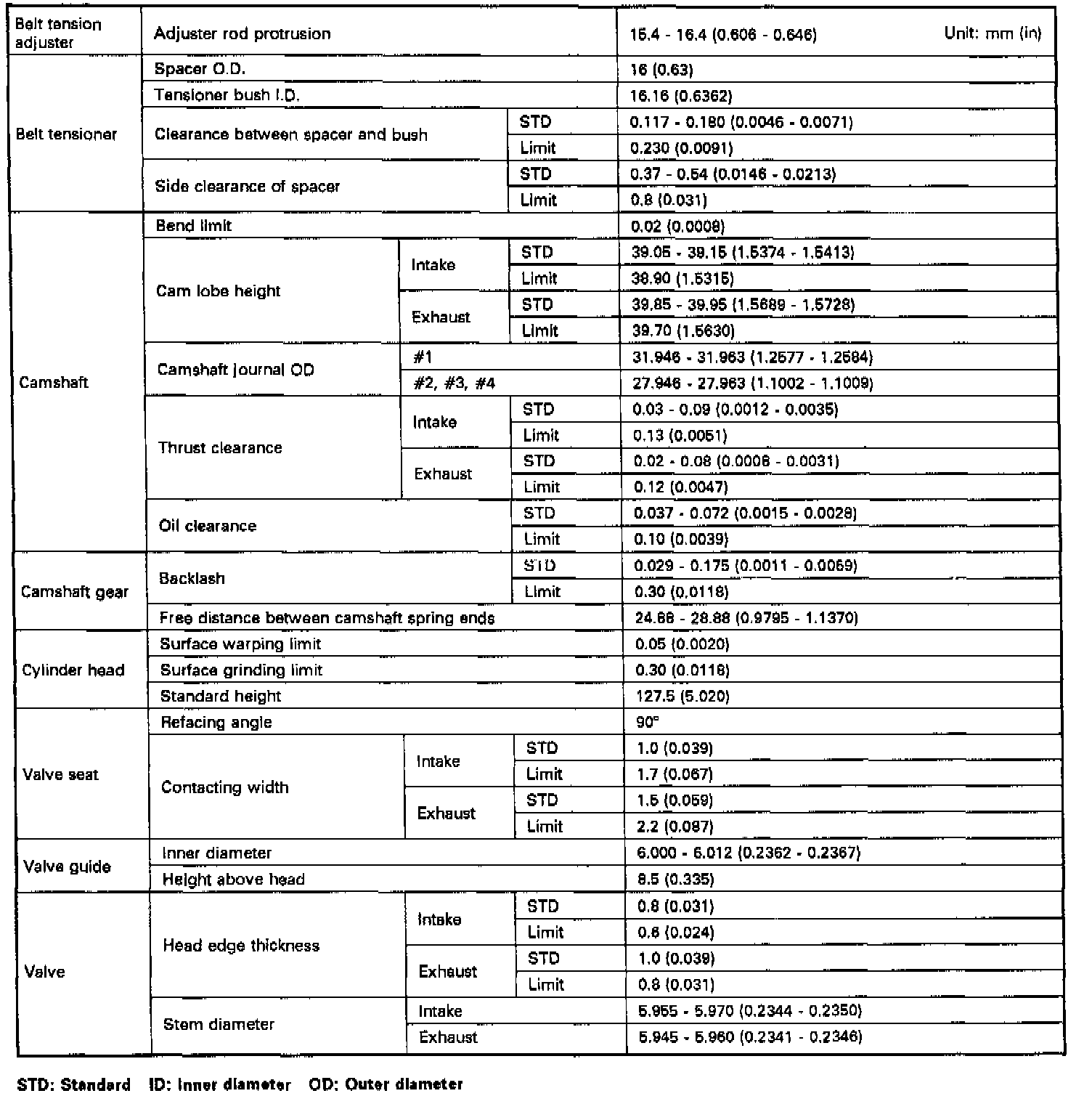

Engine Service Data

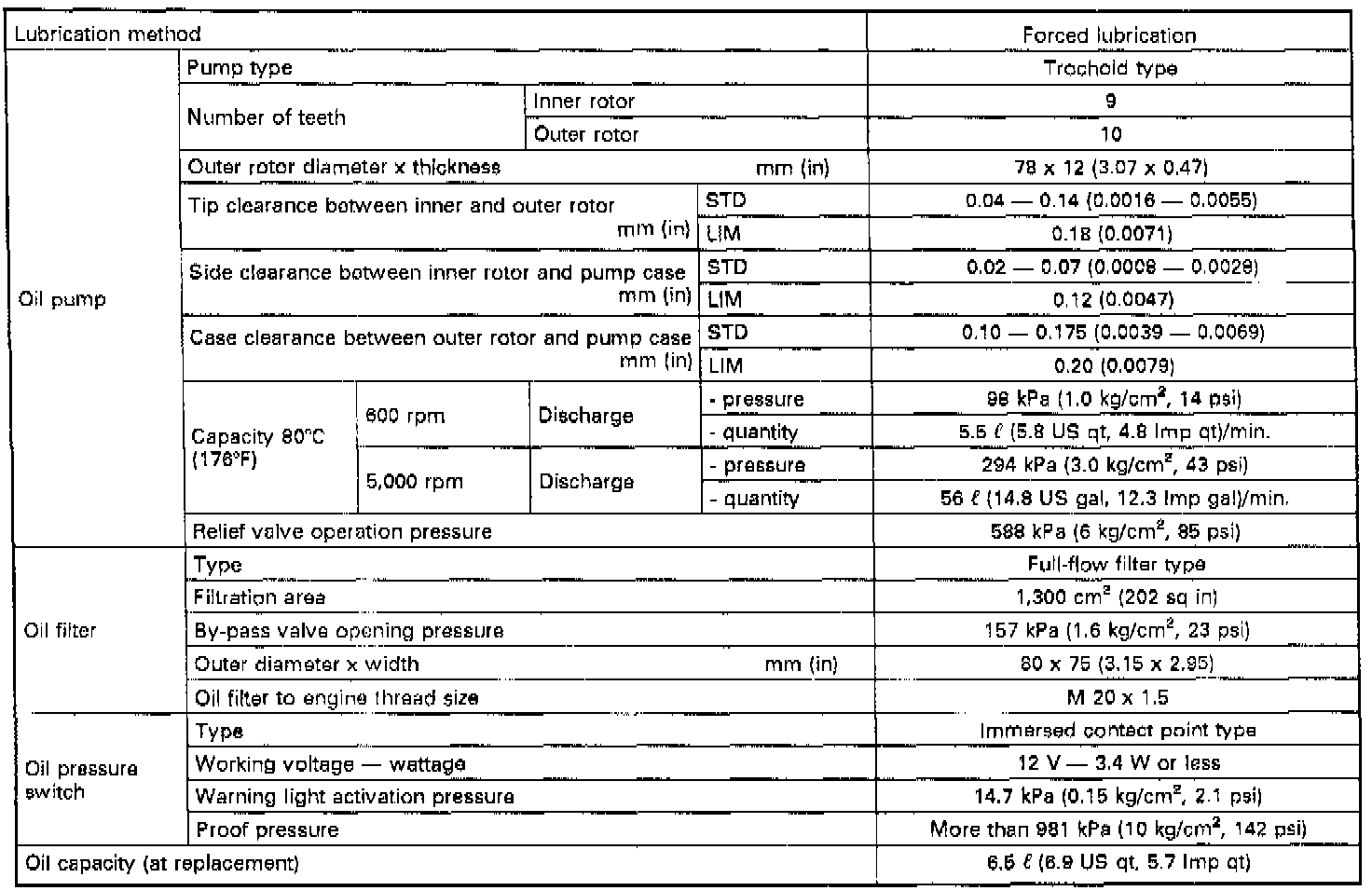

Lubrication System

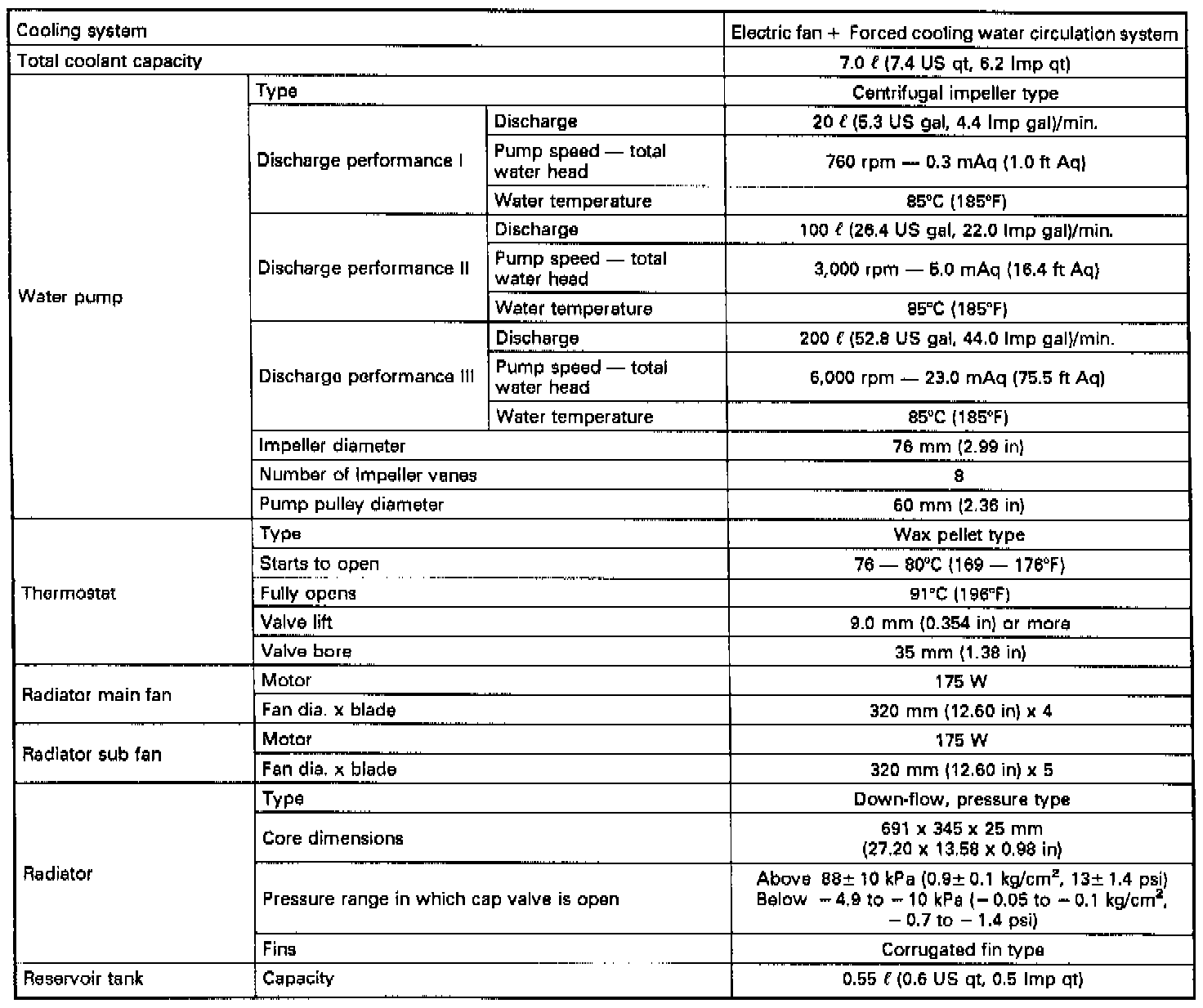

Cooling System
