Cruise Control Module: Testing and Inspection

Control Unit Pin Voltage Test

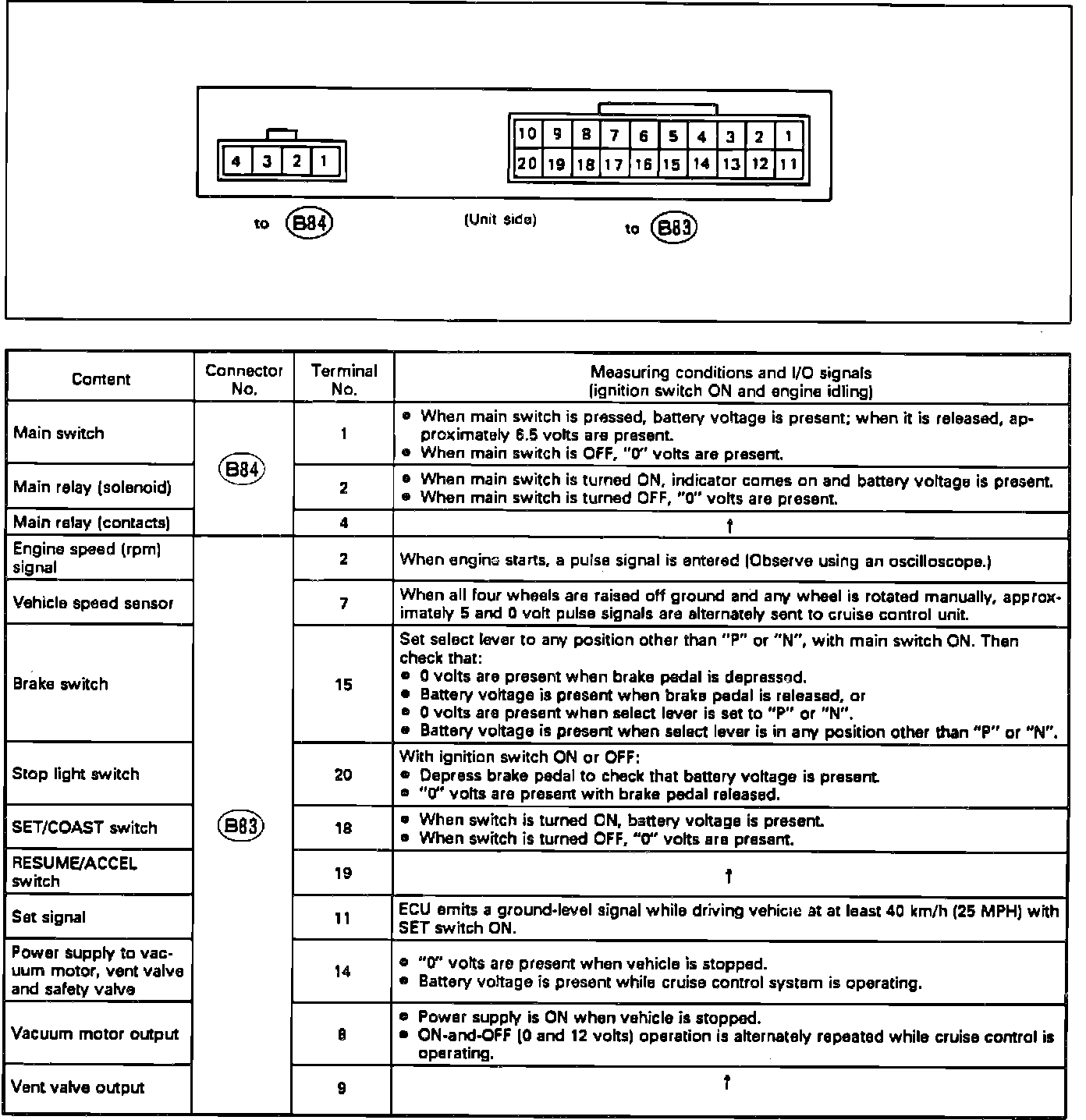

Fig. 17 Control Unit Pin Voltage Test. Legacy:

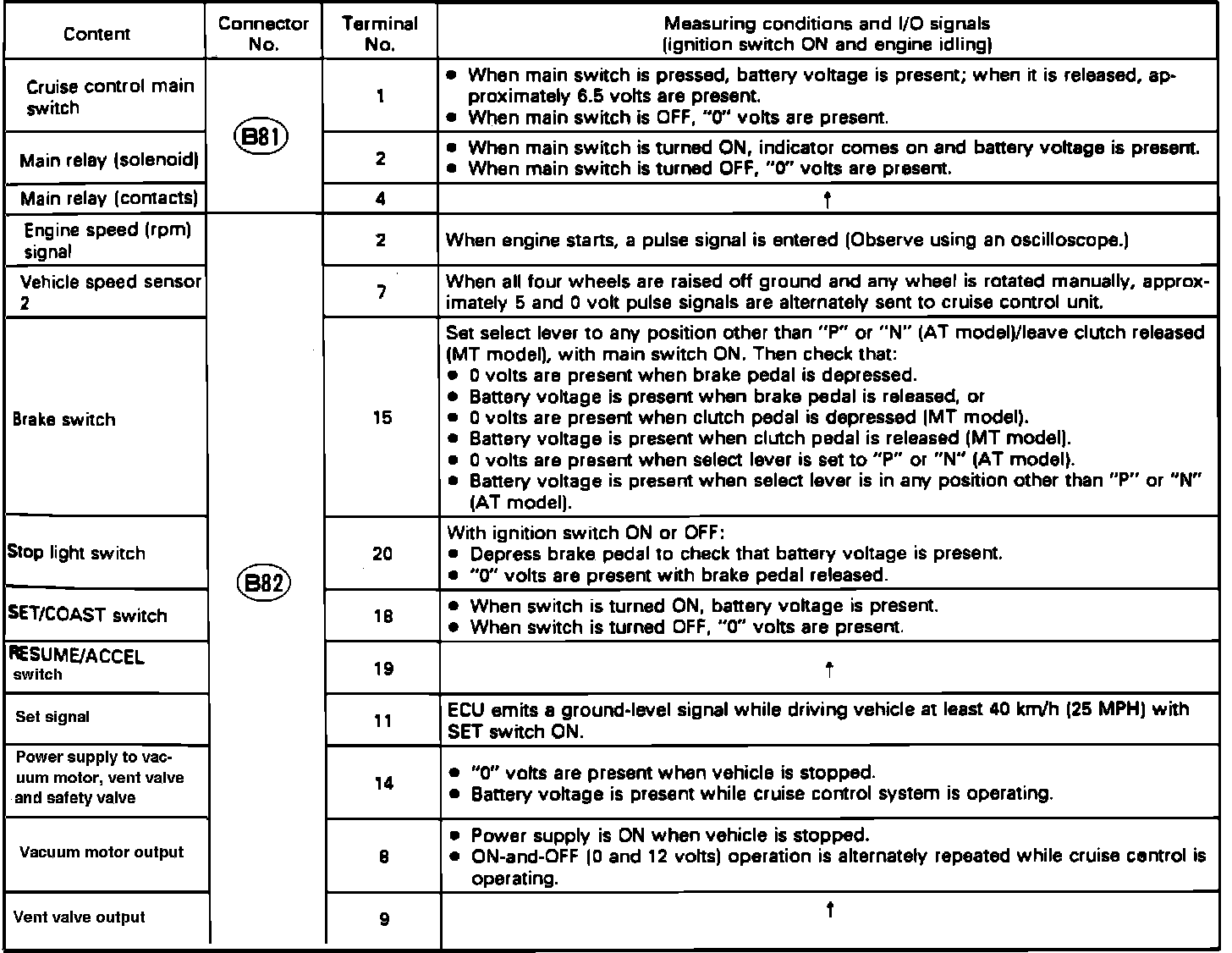

Fig. 18 Control Unit Pin Voltage Test. SVX:

Refer to Figs. 17 and 18, for pin voltage test.
