Home >> Subaru >> 1989 >> Hatchback 2WD F4-1595cc 1.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection >> Hitachi

Hitachi

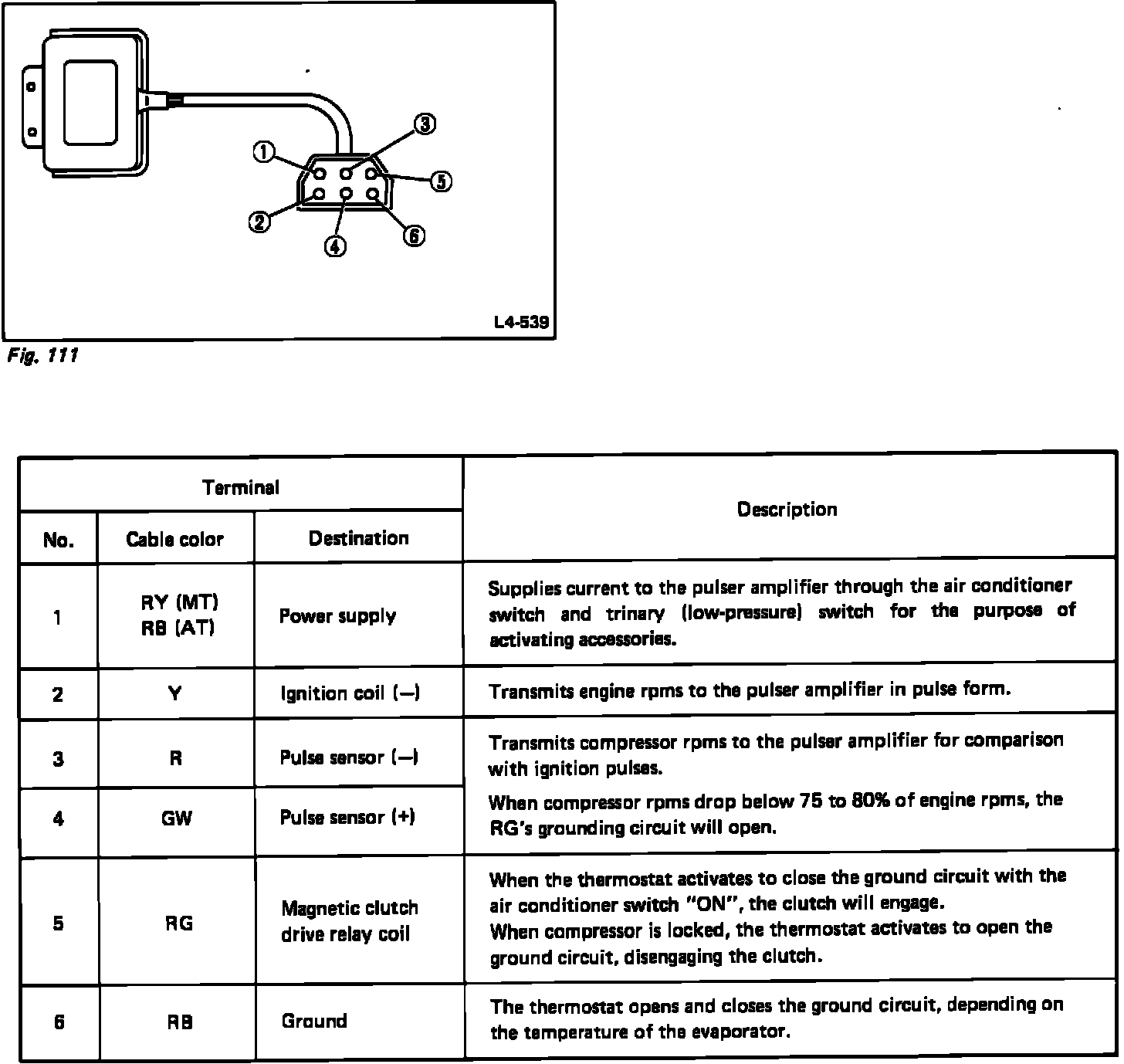

Pulser Amplifier:

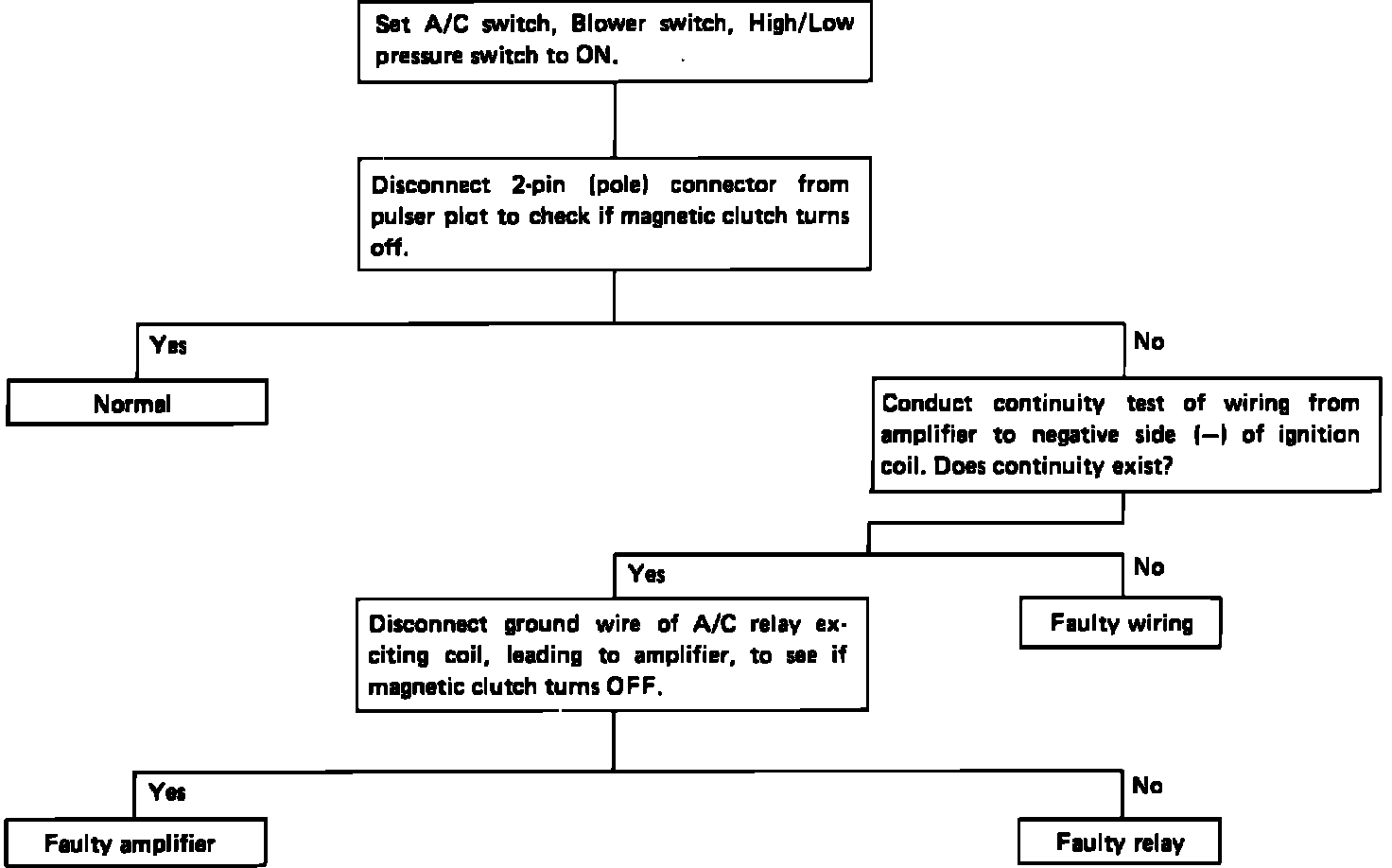

Pulser And Related Circuits (Part 1):

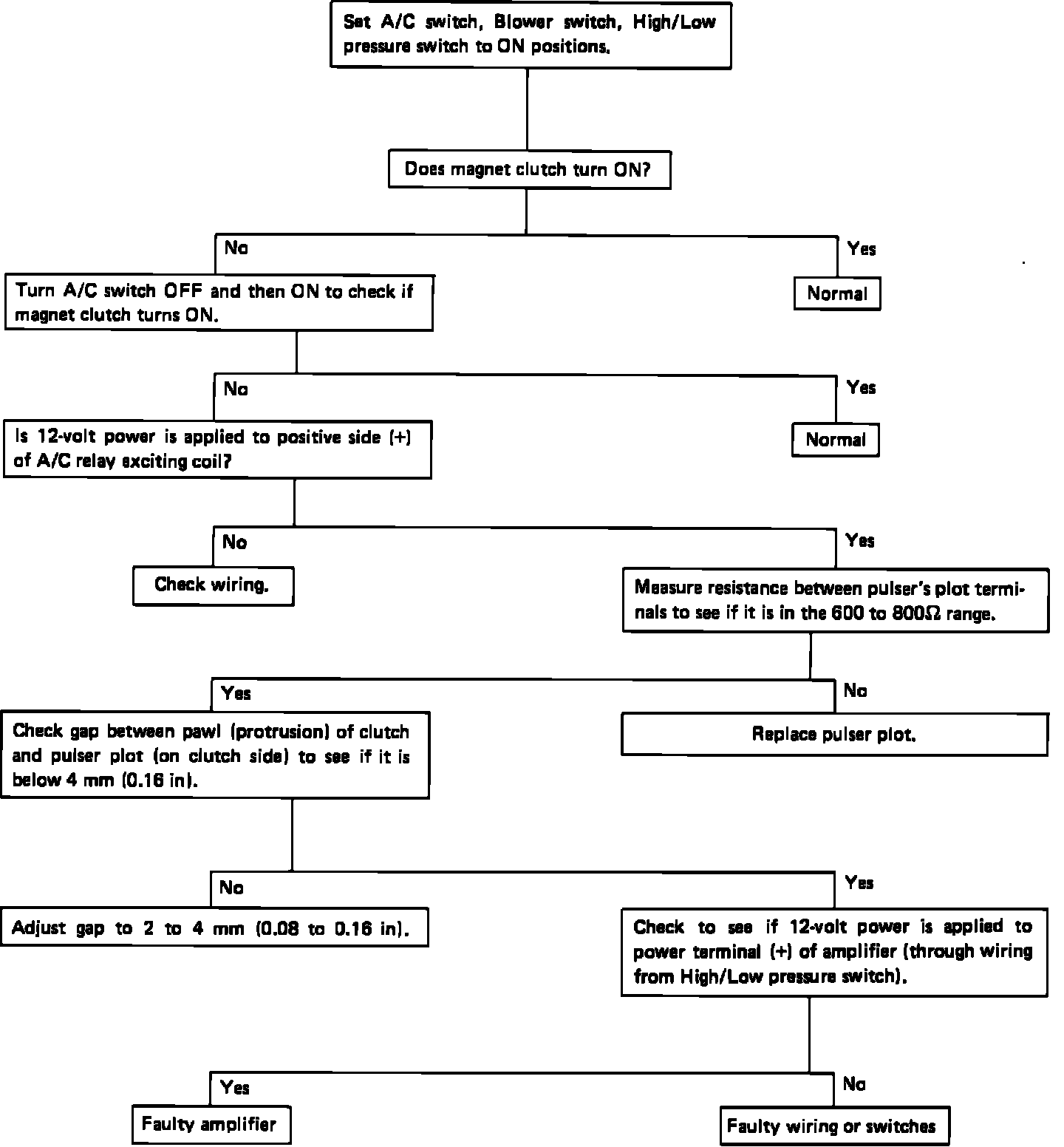

Pulser And Related Circuits (Part 2):
