Home >> Subaru >> 1987 >> Justy L3-1189cc 1.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Testing and Inspection

Vehicle Speed Sensor: Testing and Inspection

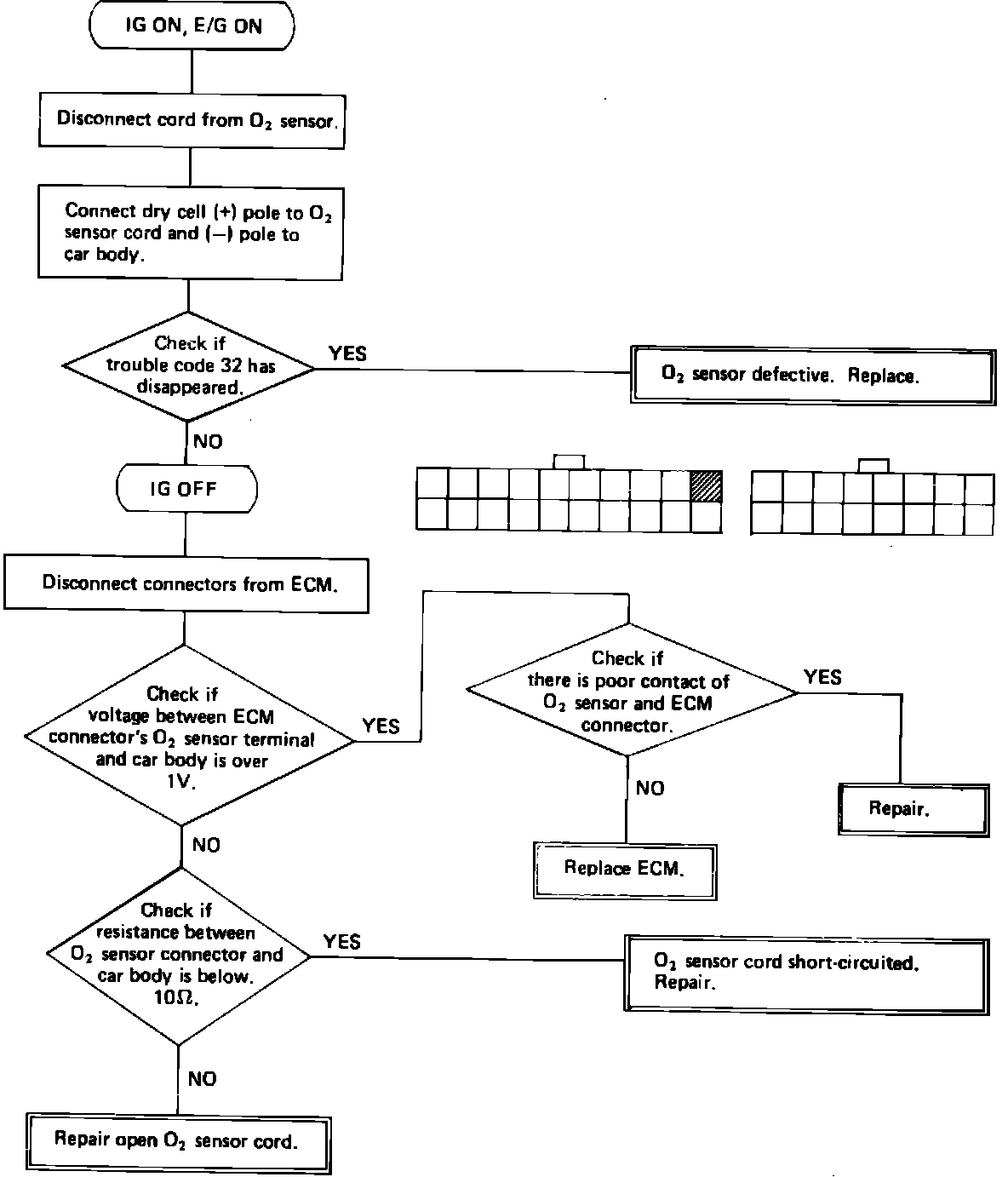

Fig. 33 Electronically controlled carburetor diagnostic chart. Trouble code 32.:

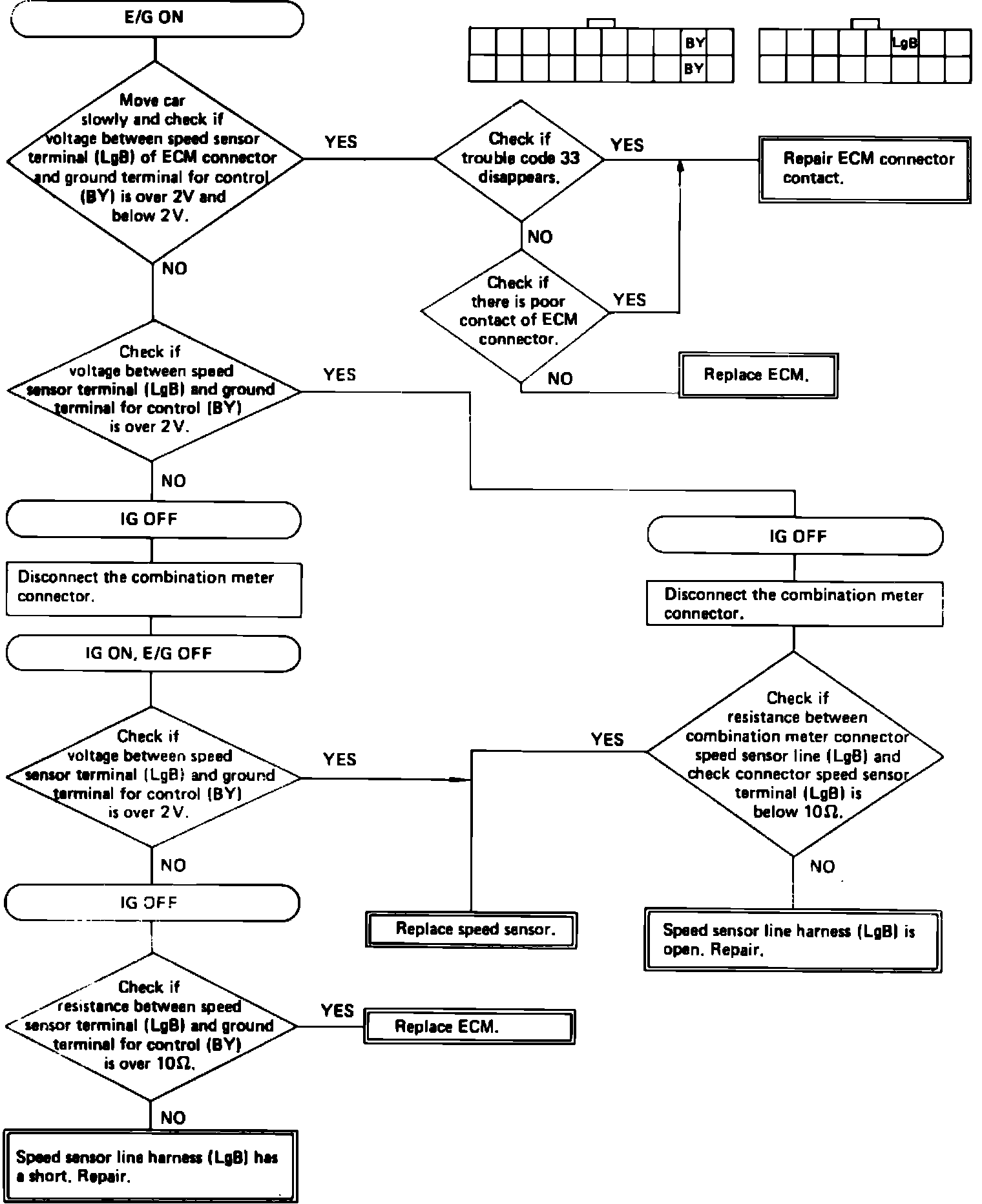

Fig. 34 Electronically controlled carburetor diagnostic chart. Trouble code 33.:
