Torque Specifications

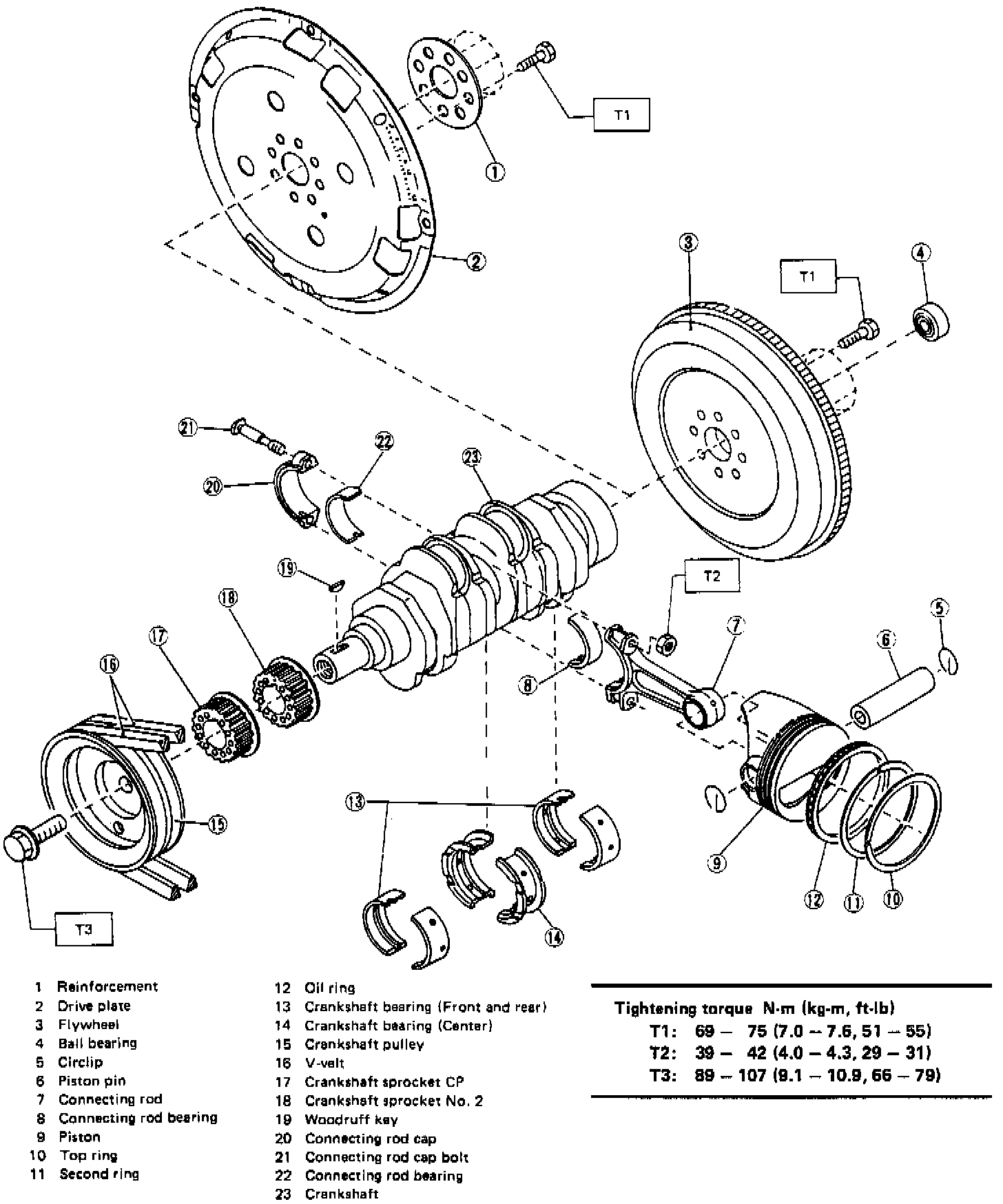

Crankshaft And Piston:

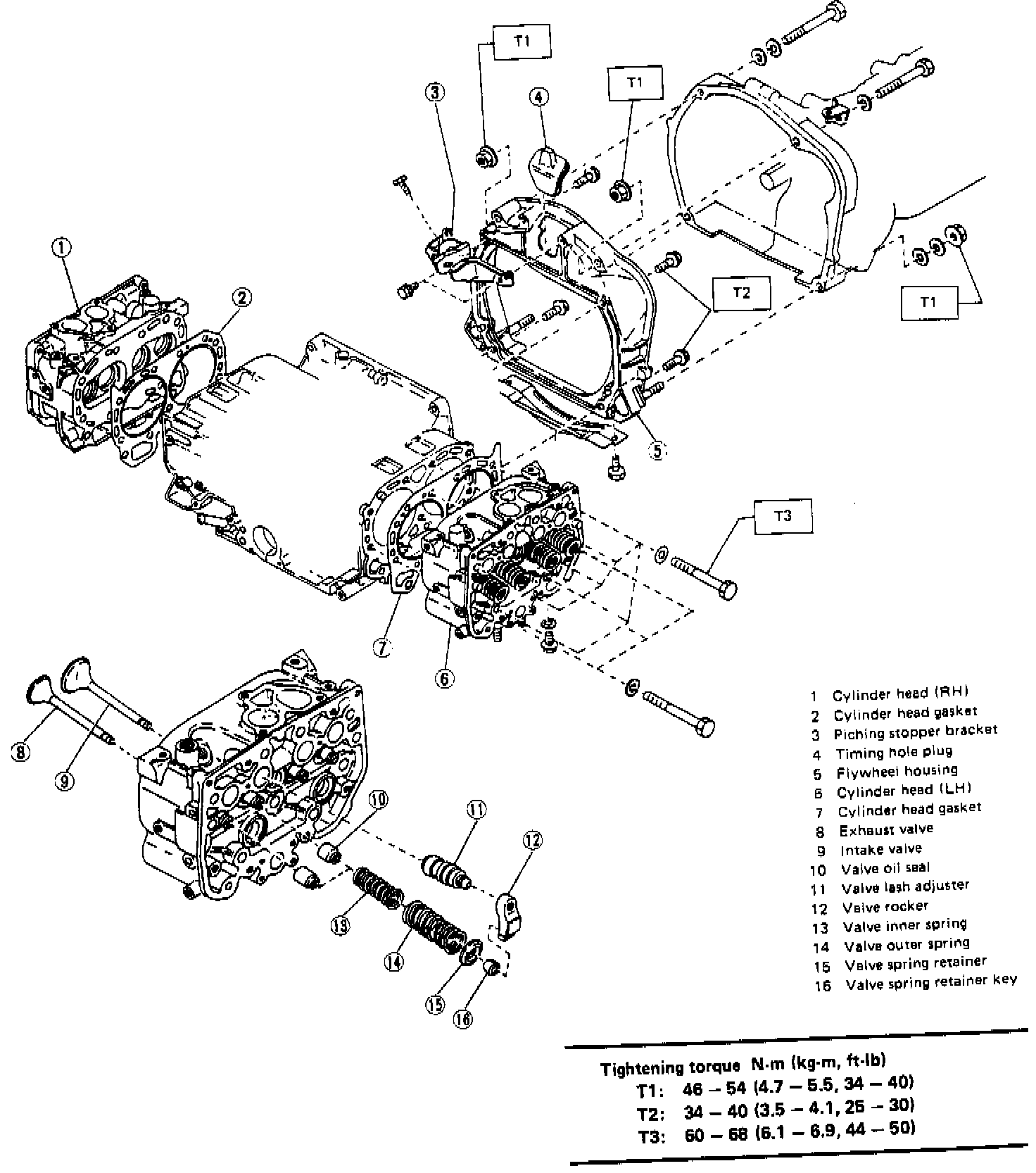

Cylinder Head And Flywheel Housing:






See TSB 02-85-91

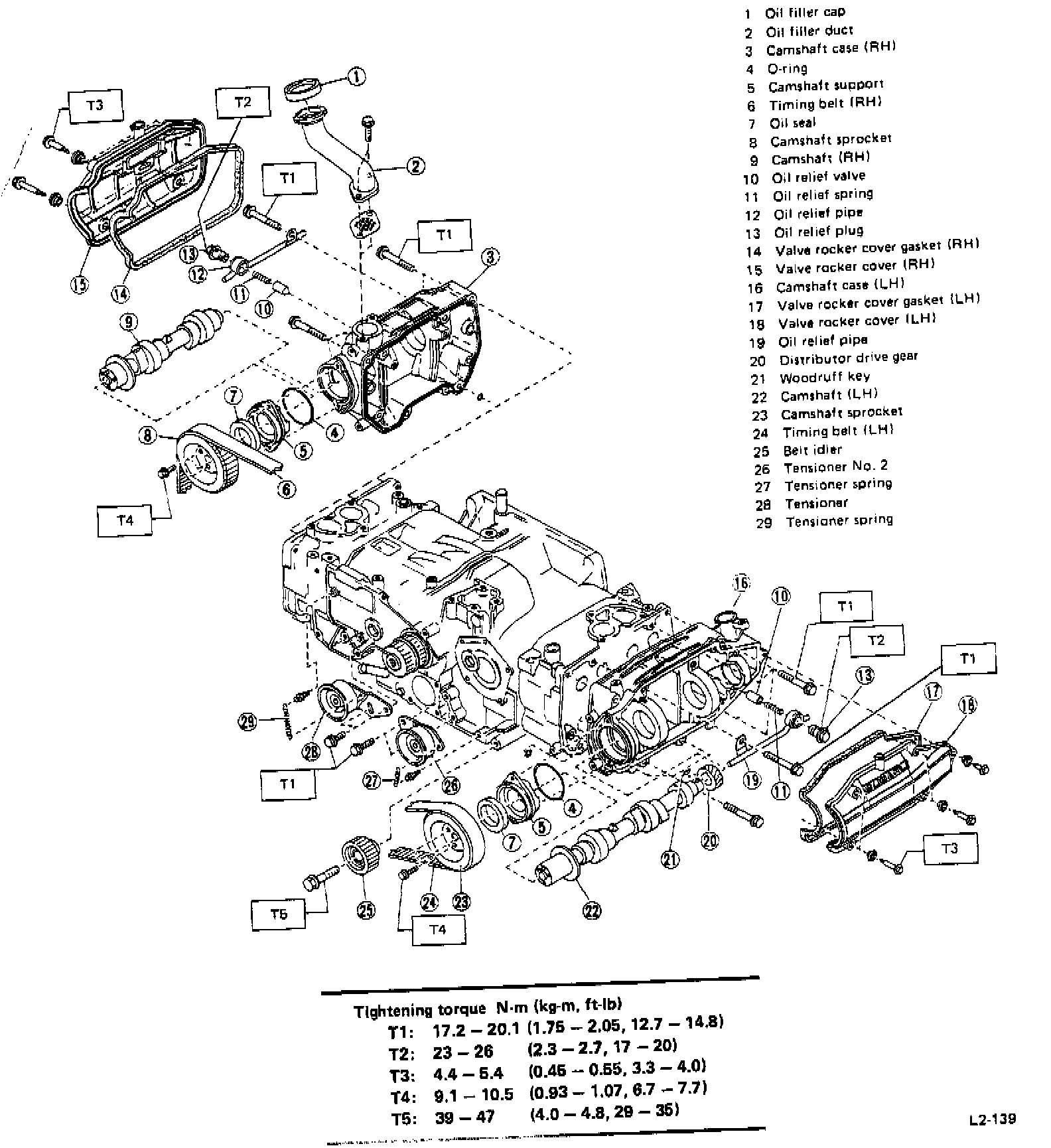

Camshaft And Timing Belt:
