Installation

2ZR-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: INSTALLATION

1. INSTALL MASS AIR FLOW METER

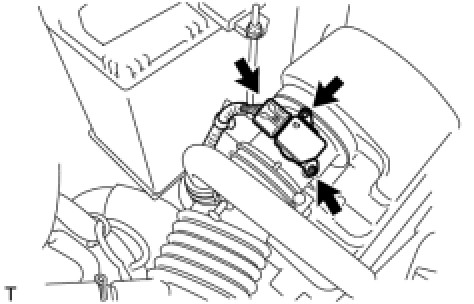

(a) Install the mass air flow meter with the 2 screws.





NOTICE:
Make sure that the O-ring is not cracked or jammed when installing.

(b) Connect the mass air flow meter connector.
