Torque Specifications





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

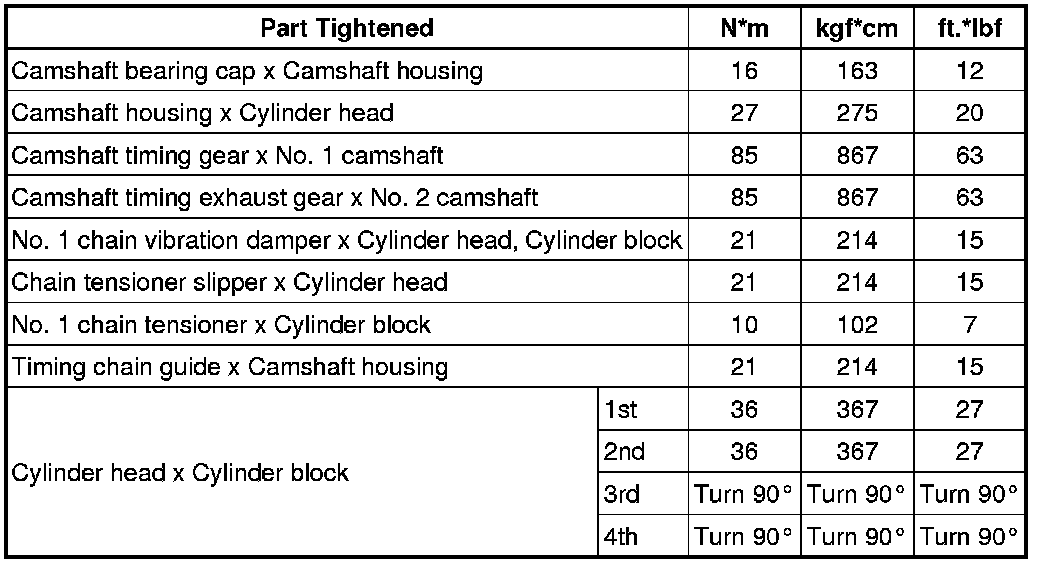

Camshaft

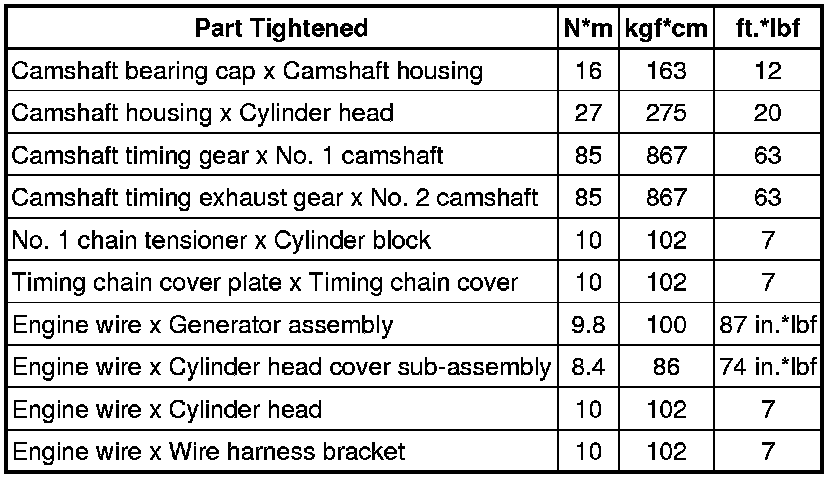

Cylinder Head Gasket

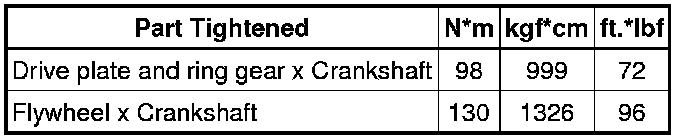

Engine Rear Oil Seal

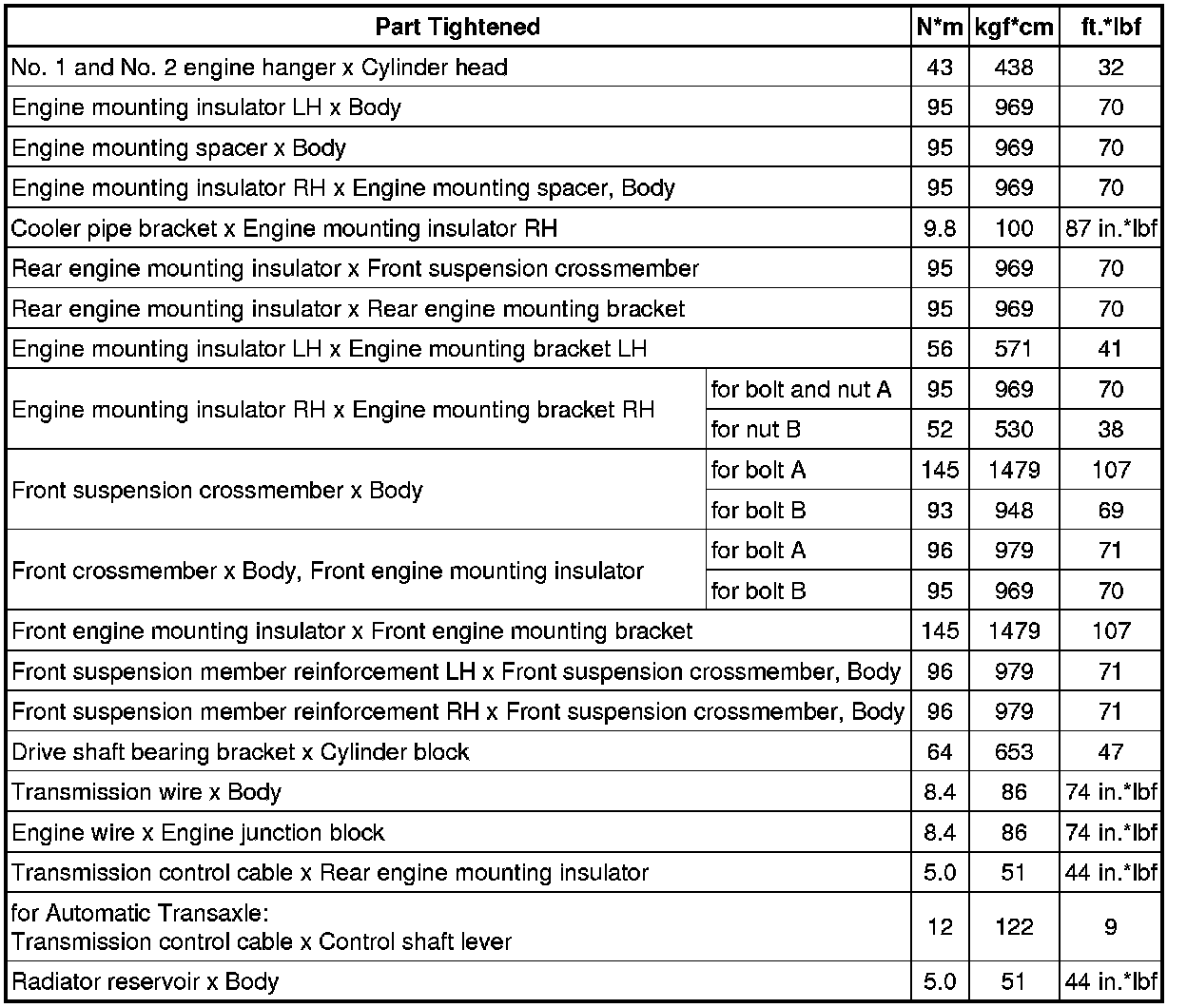

Engine Assembly

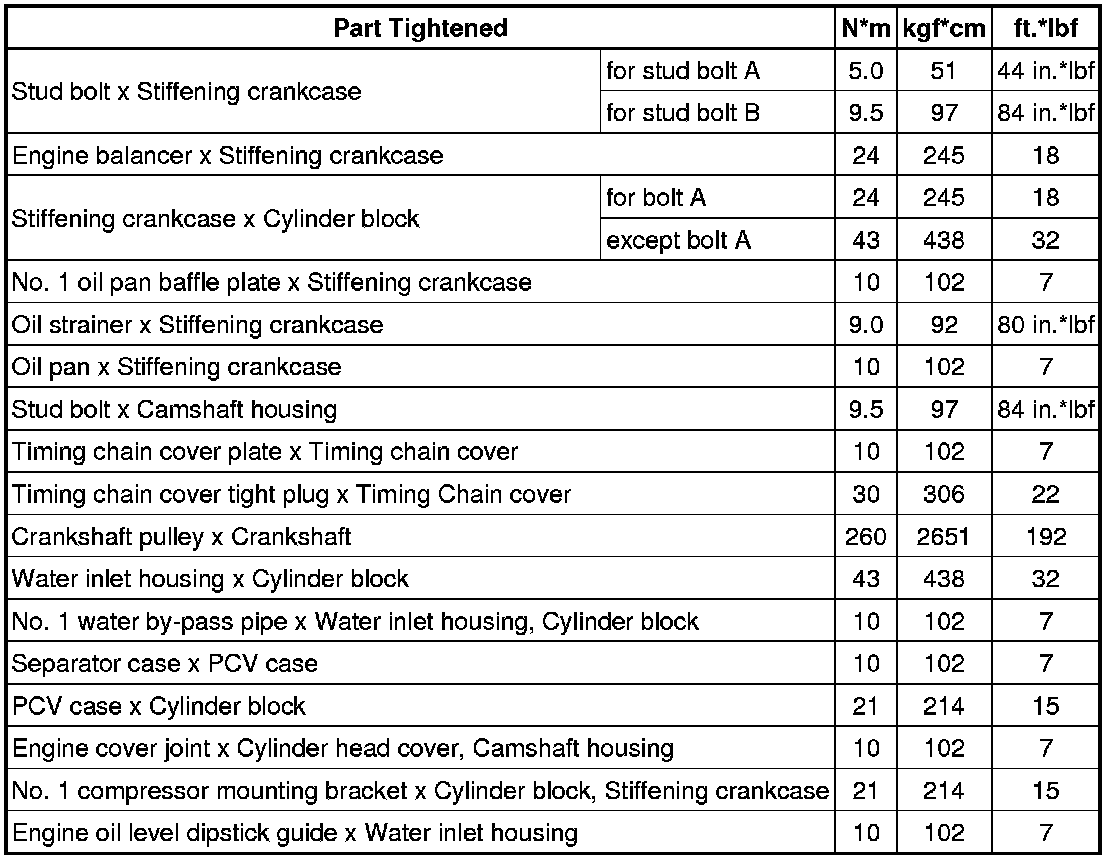

Engine Unit

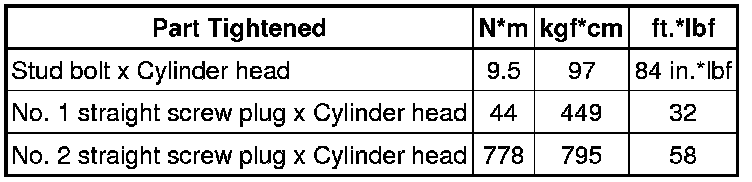

Cylinder Head

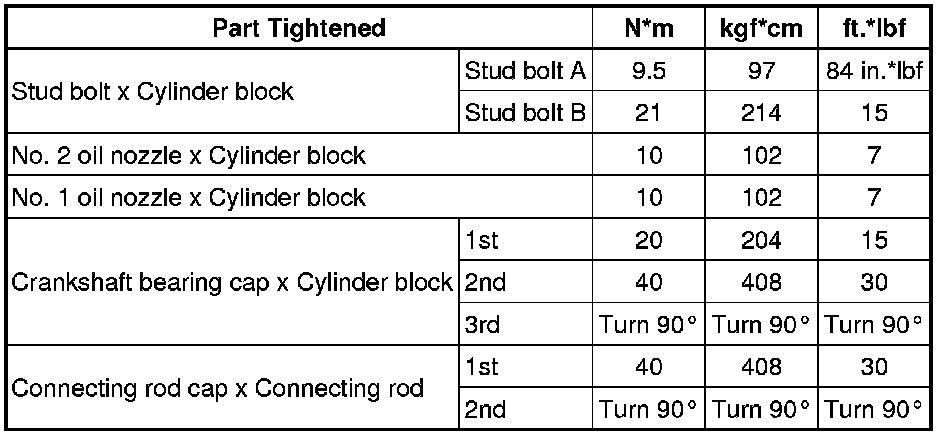

Cylinder Block
