Scion
>>
2011
>>
tC L4-2.5L (2AR-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Locations
Power Distribution Module: Locations

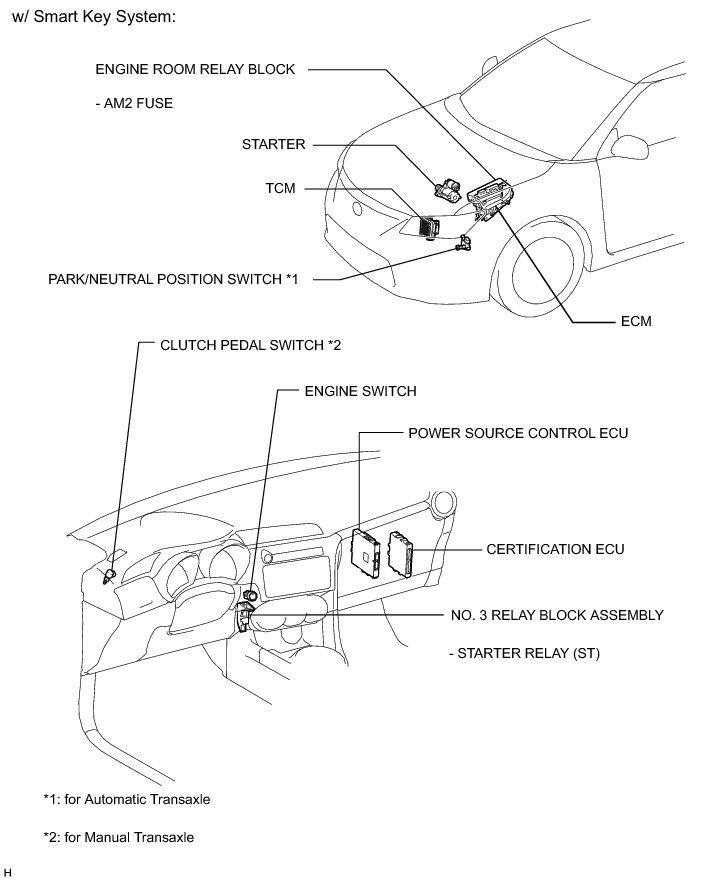

2AR-FE STARTING: STARTING SYSTEM: PARTS LOCATION
