VUE FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module
Component Connector End Views

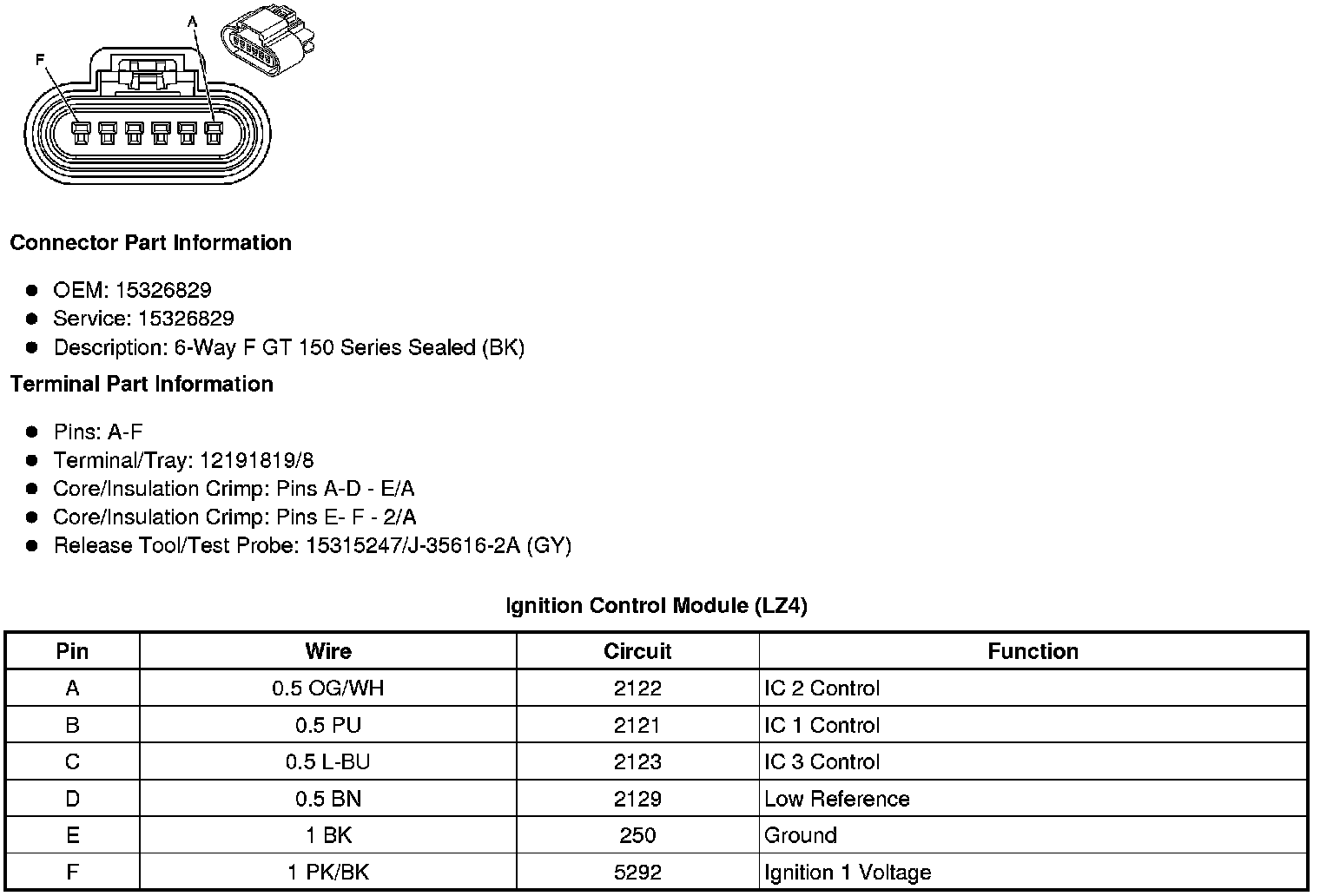

Ignition Control Module (ICM) (LZ4)
