Fuel Level Sensor: Locations

Wheels/Vehicle Underbody Component Views

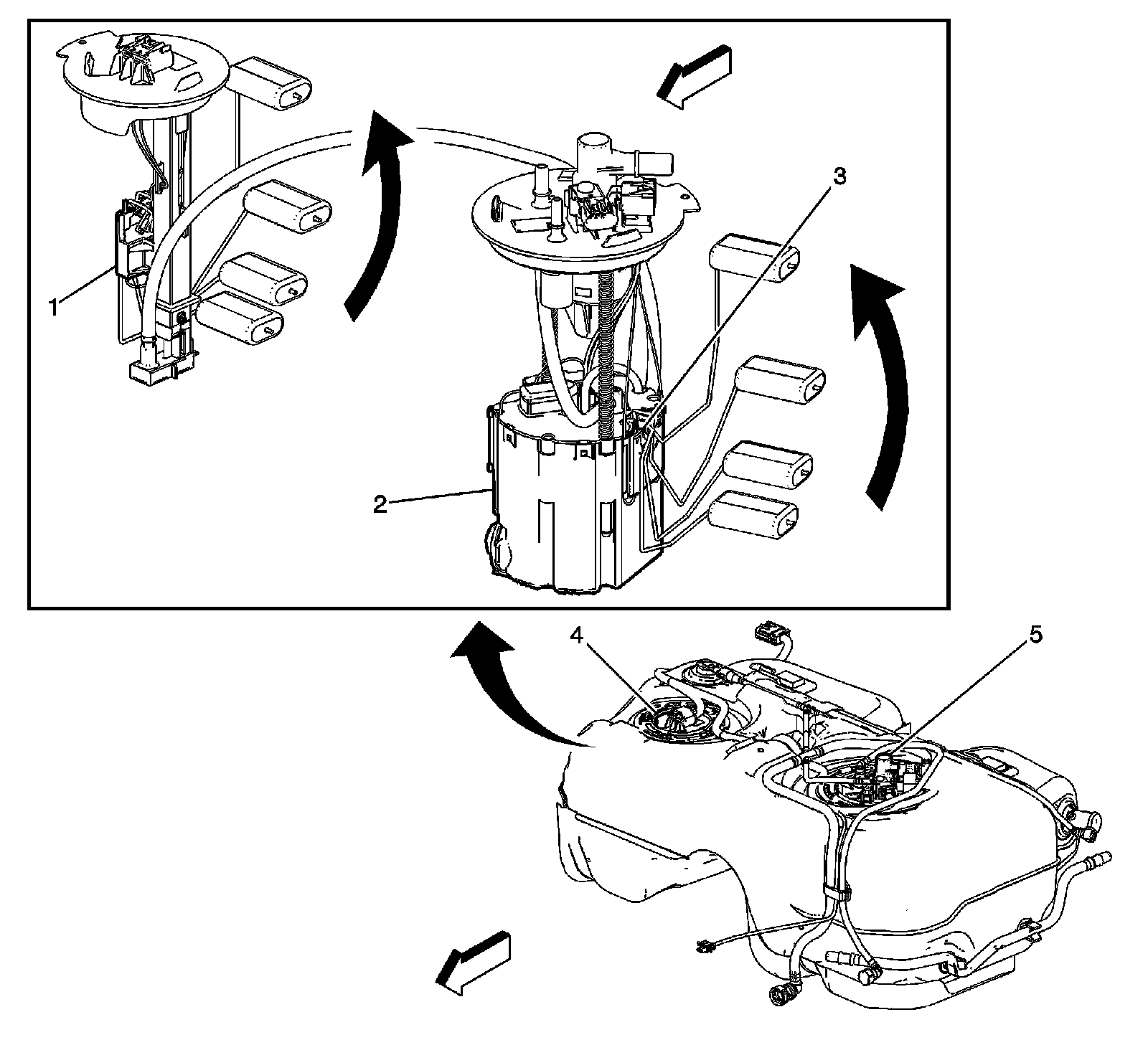

Fuel Tank - Components




1 - Fuel Level Sensor - Secondary
2 - Fuel Pump
3 - Fuel Level Sensor - Primary/Fuel Pump Motor
4 - Fuel Sender Assembly - Secondary
5 - Fuel Pump and Sender Assembly - Primary
