VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Control Module
Windshield Washer Control Module
Component Connector End Views

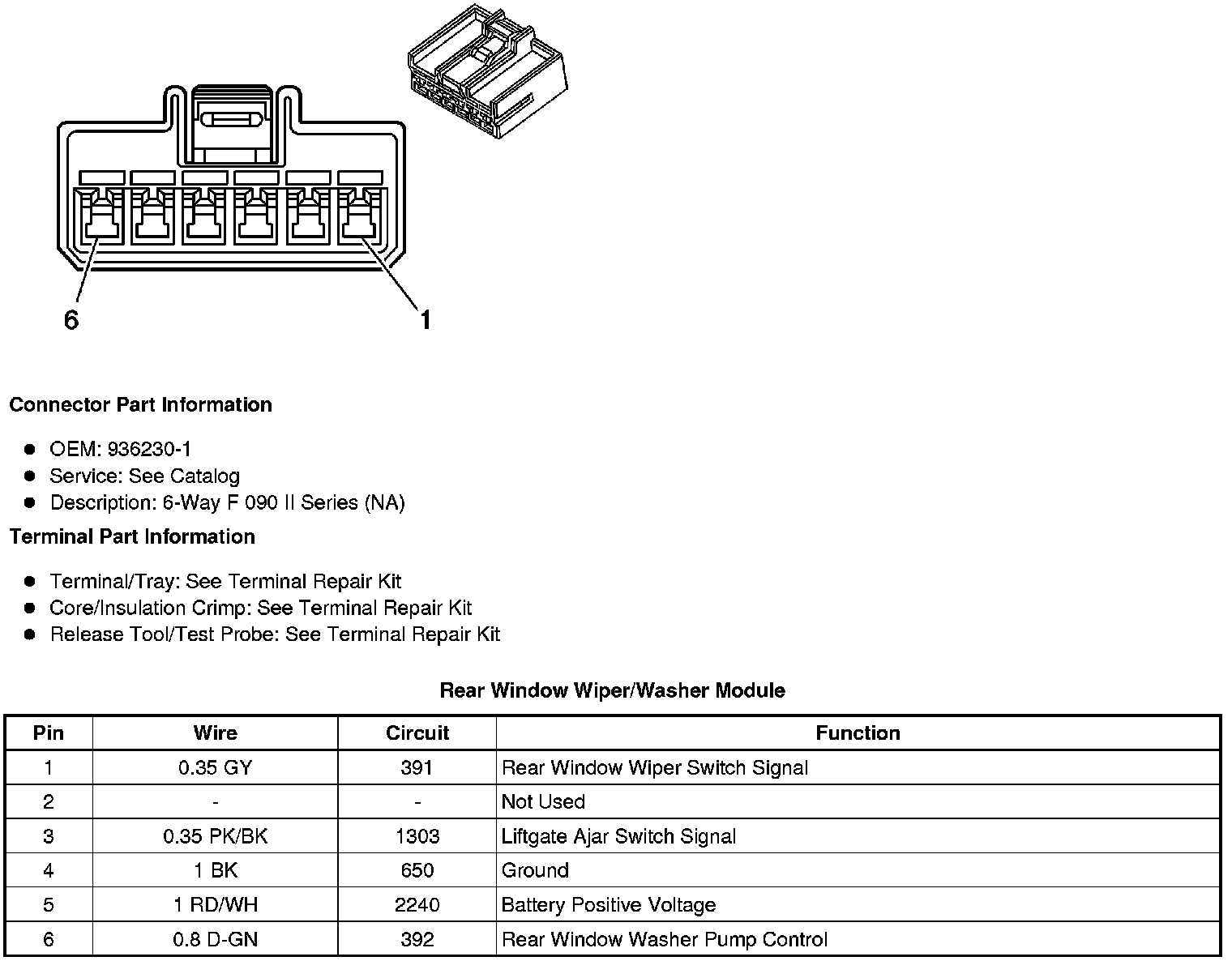

Rear Window Wiper/Washer Module
