Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer




Component Connector End Views

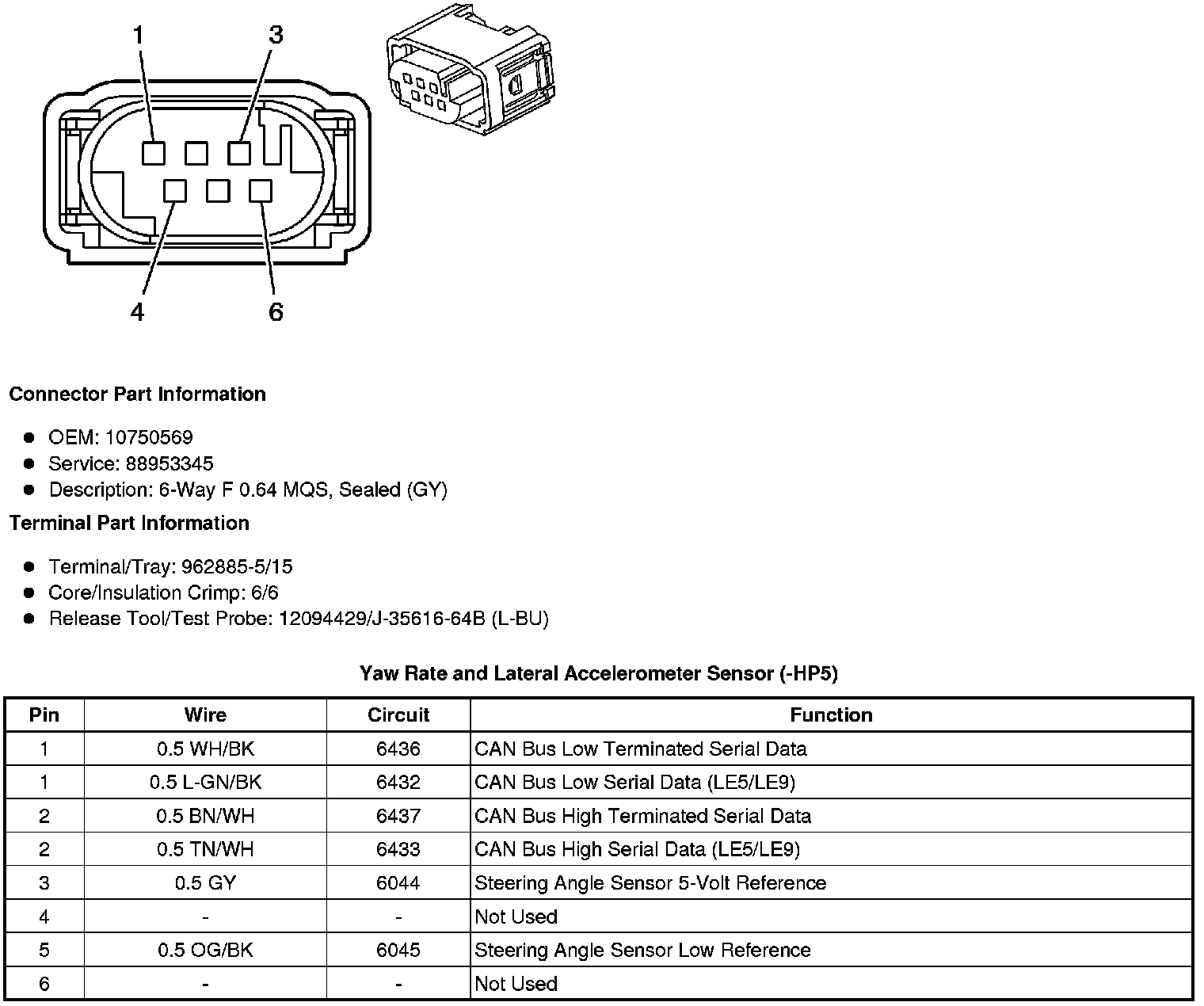

Yaw Rate and Lateral Accelerometer Sensor (-HP5)
