VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module
Component Connector End Views

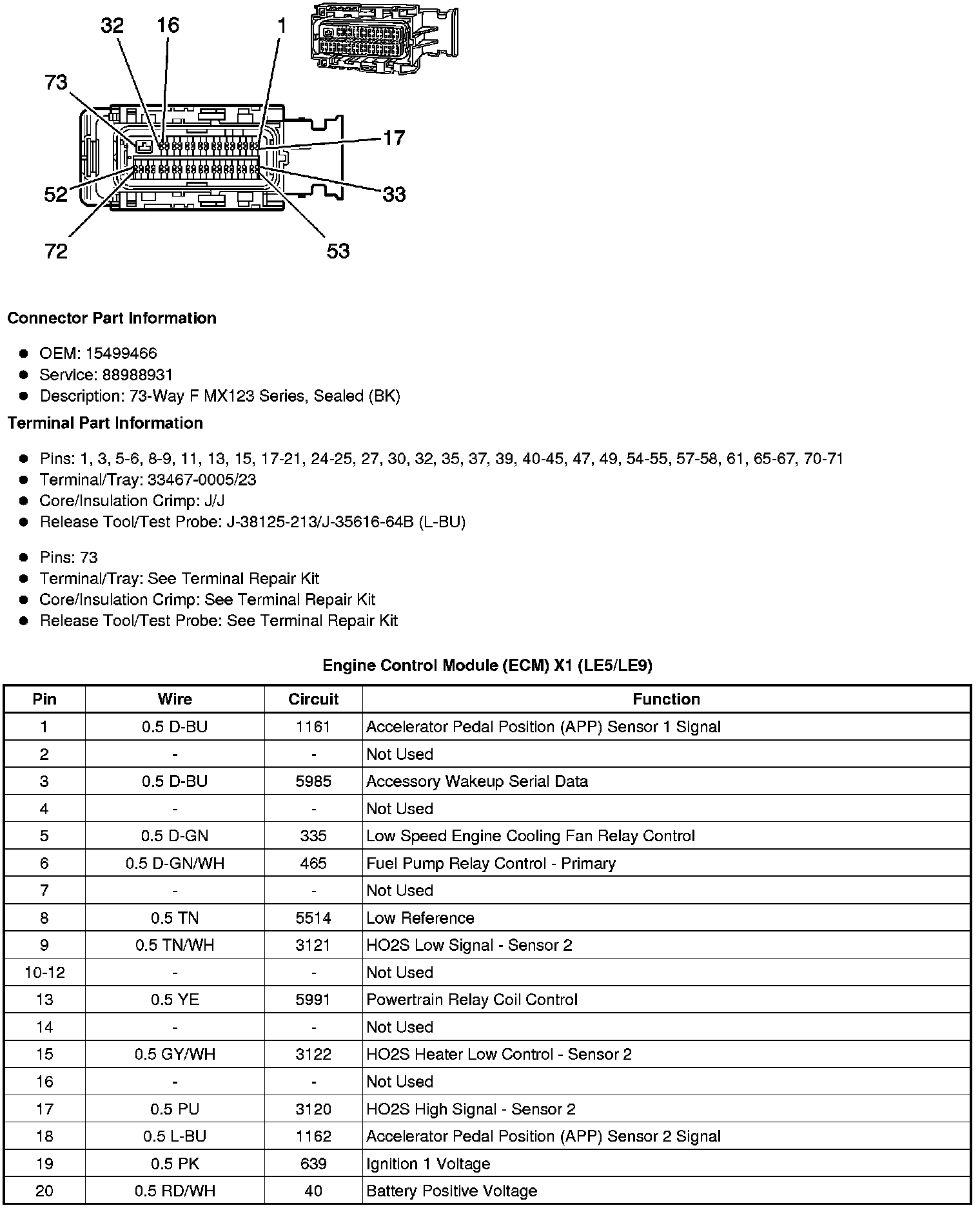

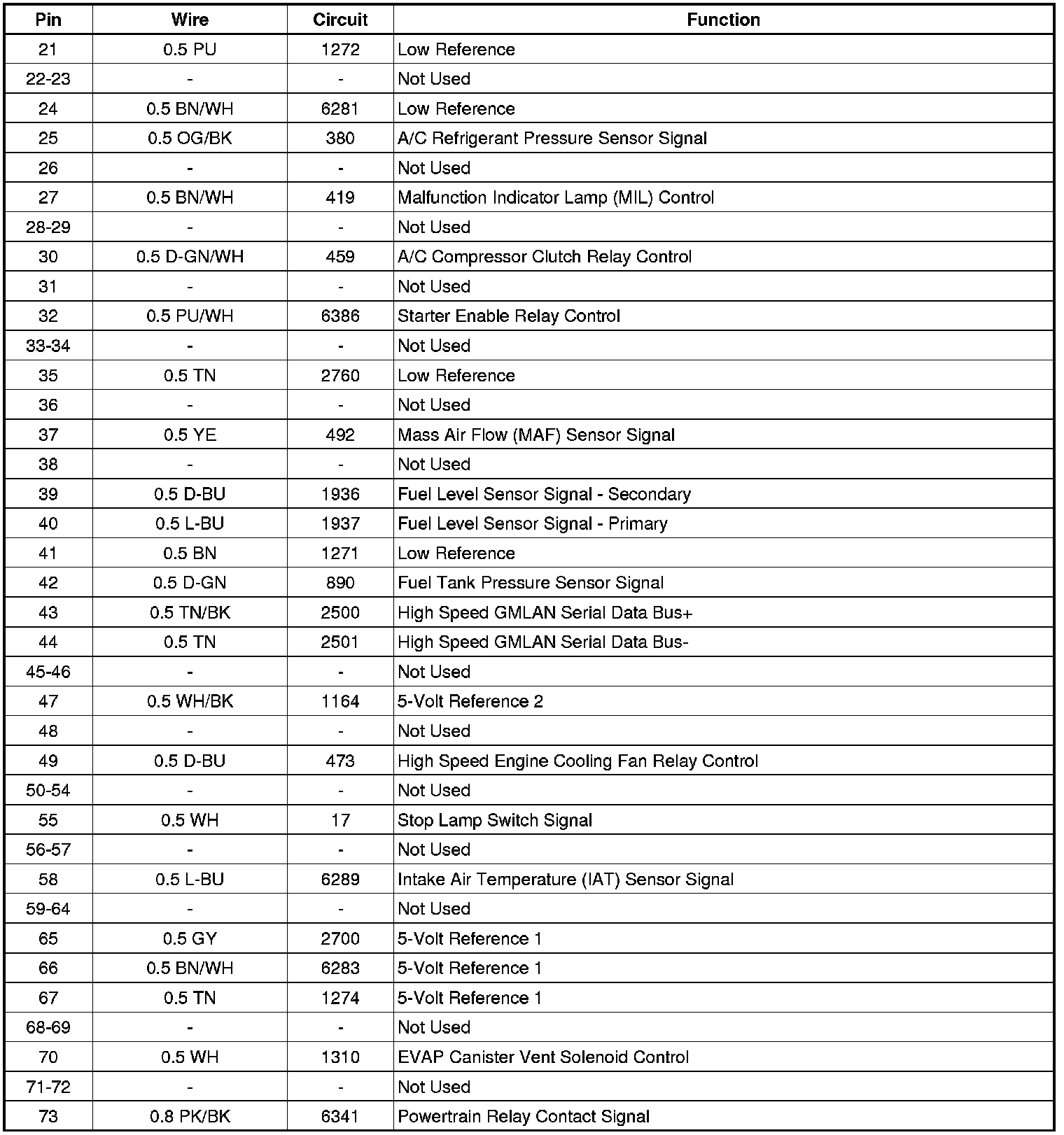

Engine Control Module (ECM) X1 (LE5/LE9)

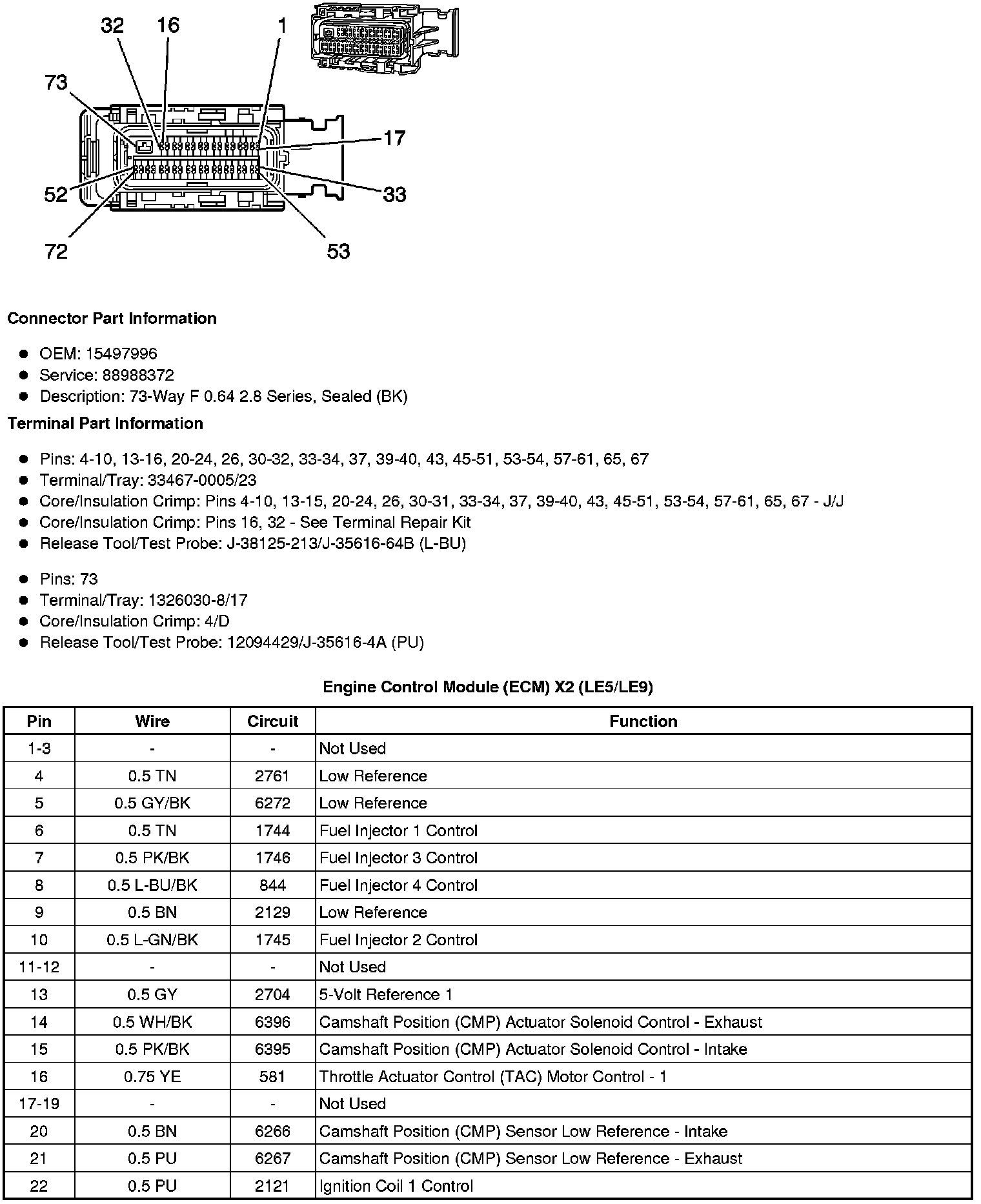

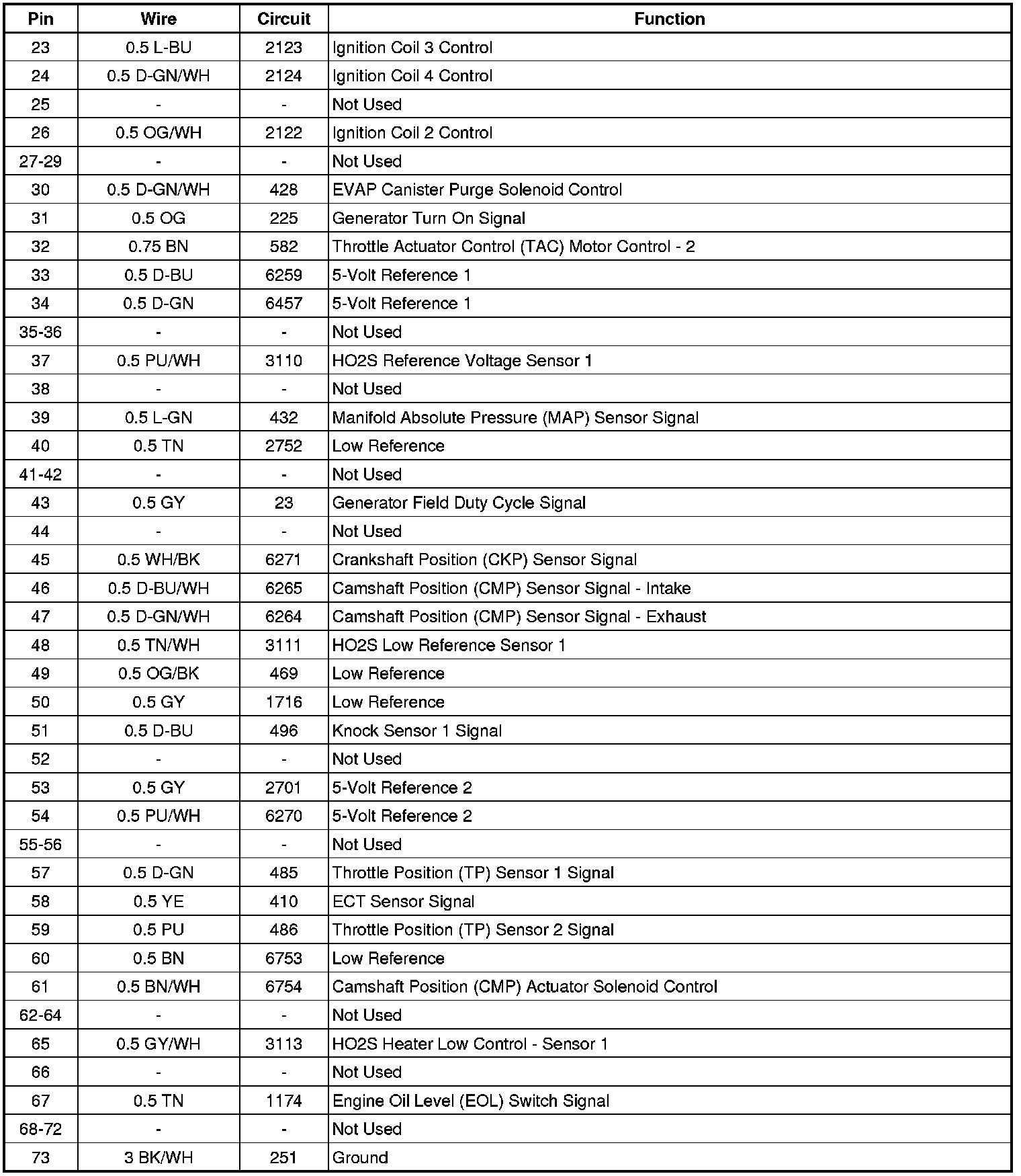

Engine Control Module (ECM) X2 (LE5/LE9)
