lemon-mirror
:
Home
>>
Saturn
>>
2009
>>
VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Throttle Control Module
Electronic Throttle Control Module
Component Connector End Views

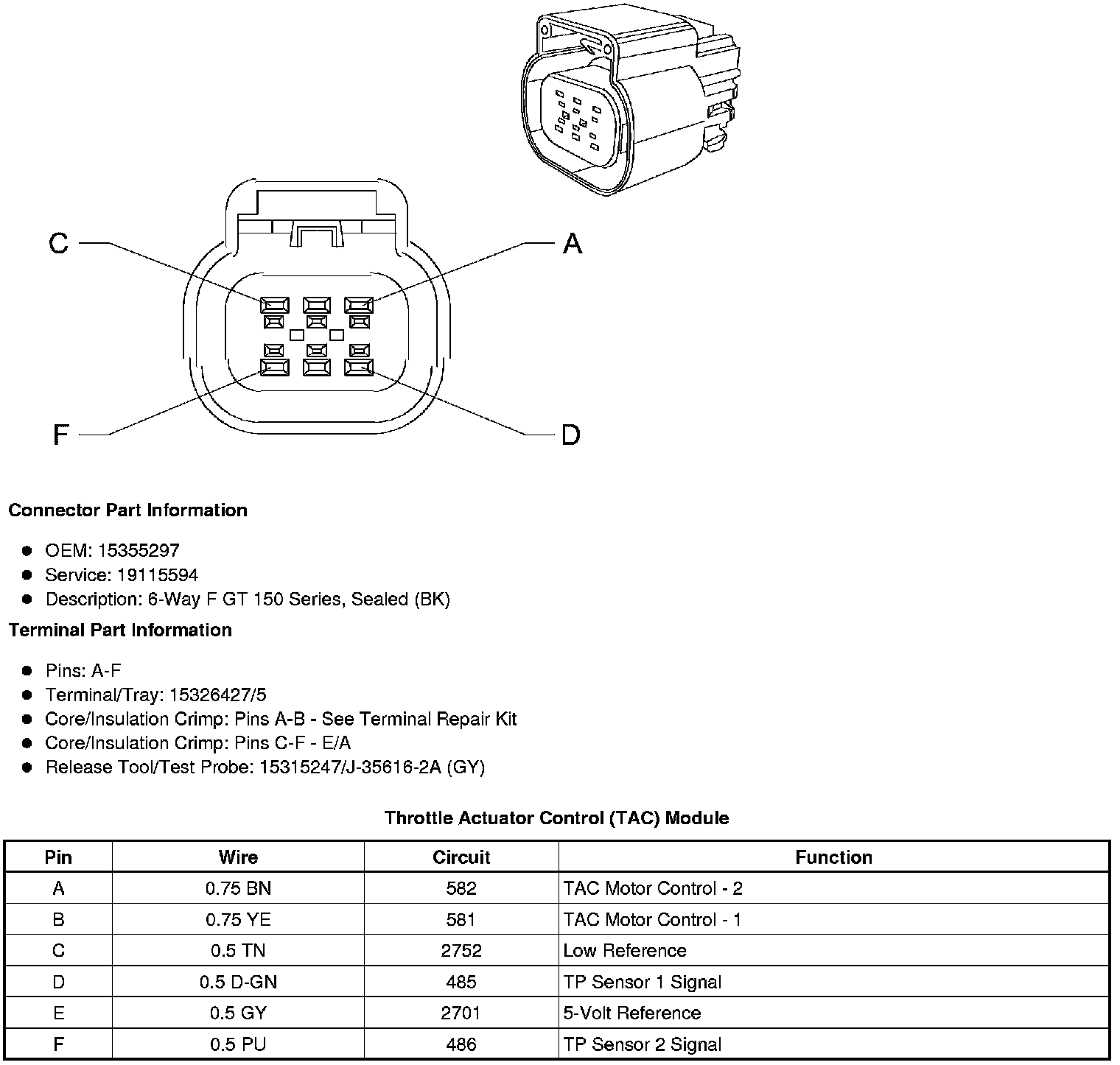

Throttle Actuator Control (TAC) Module
