Air Bag Control Module
Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM) (with APL/ATY)
Inflatable Restraint Sensing and Diagnostic Module (SDM) (without APL/ATY)
Component Connector End Views

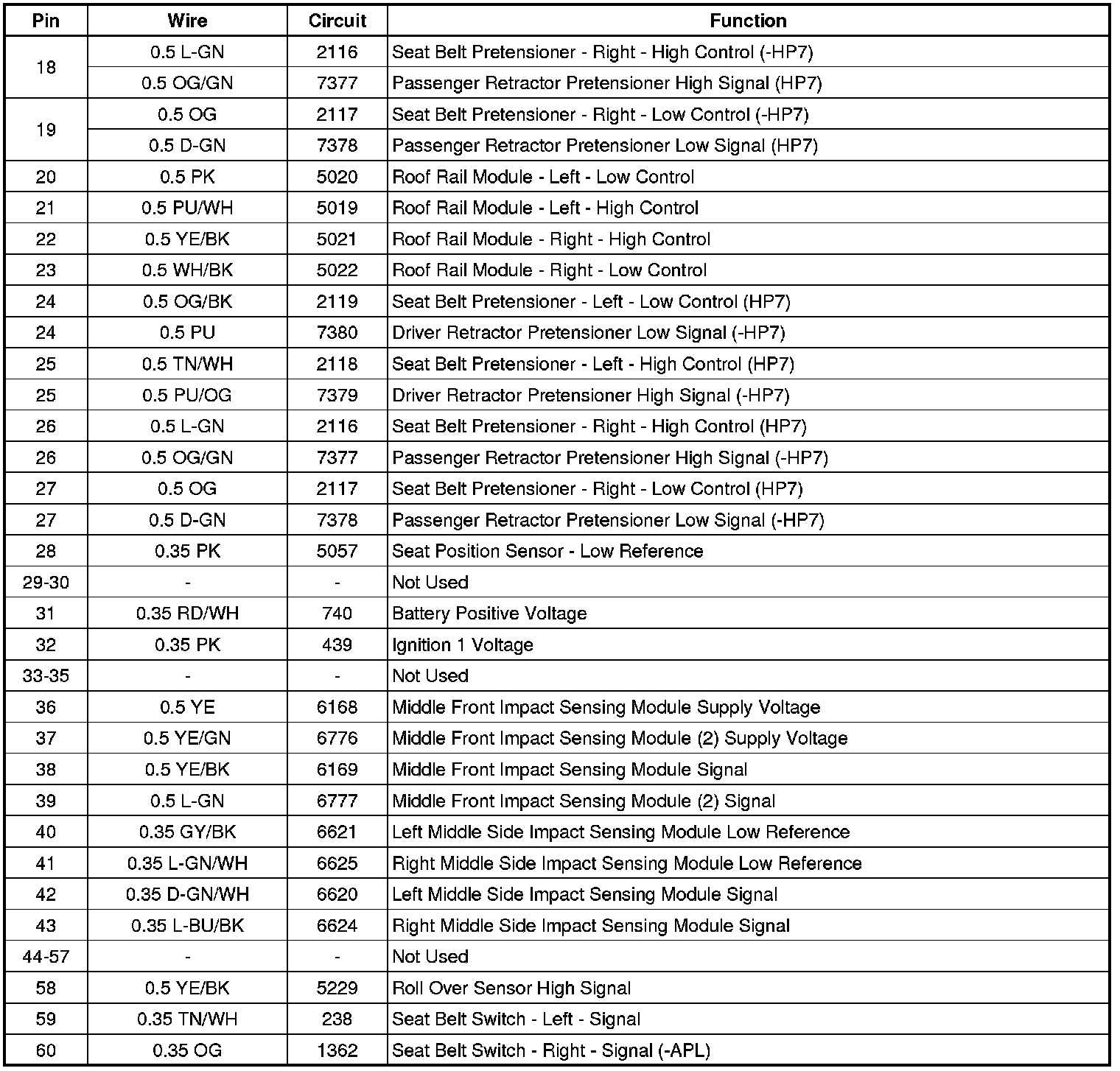

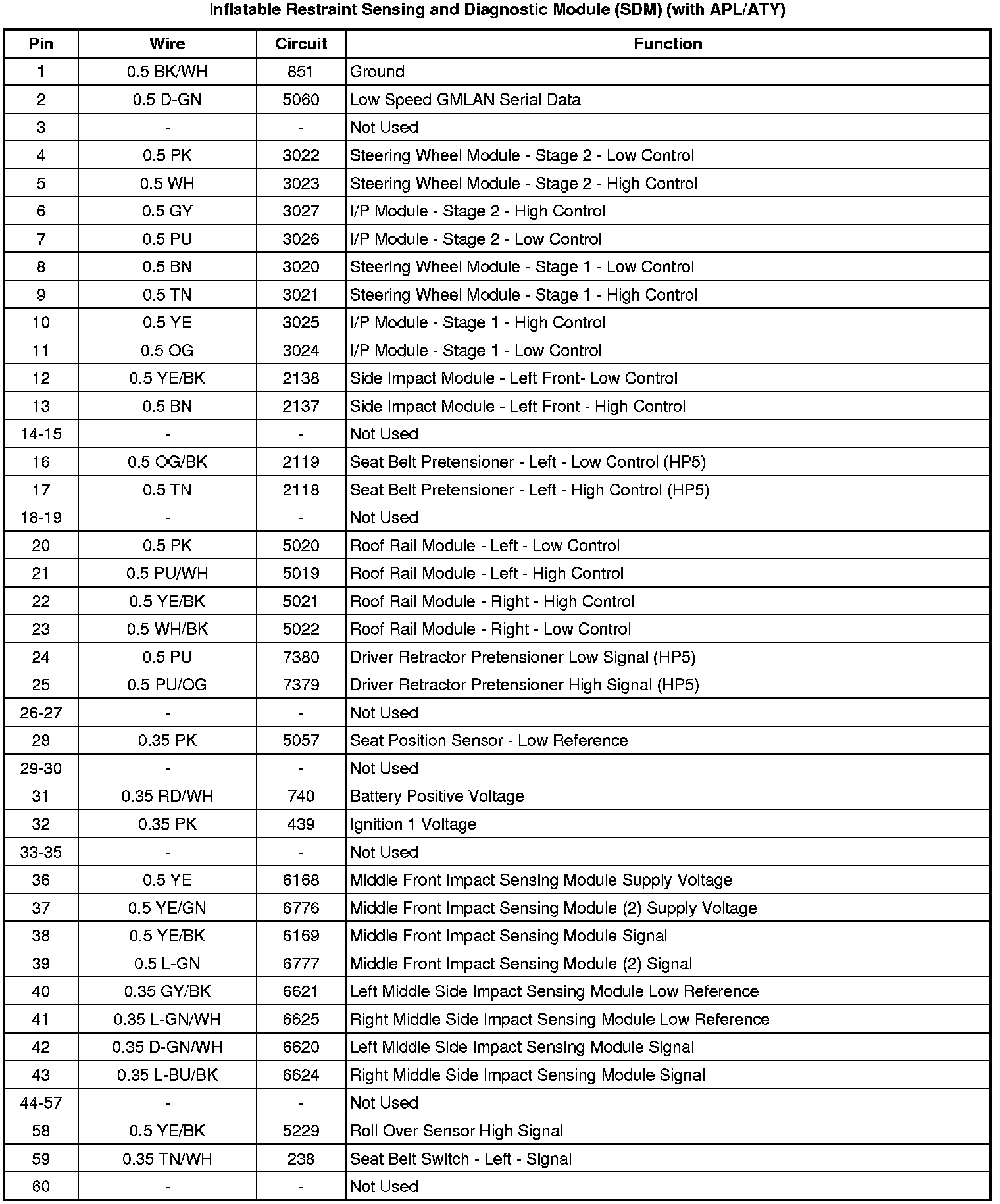

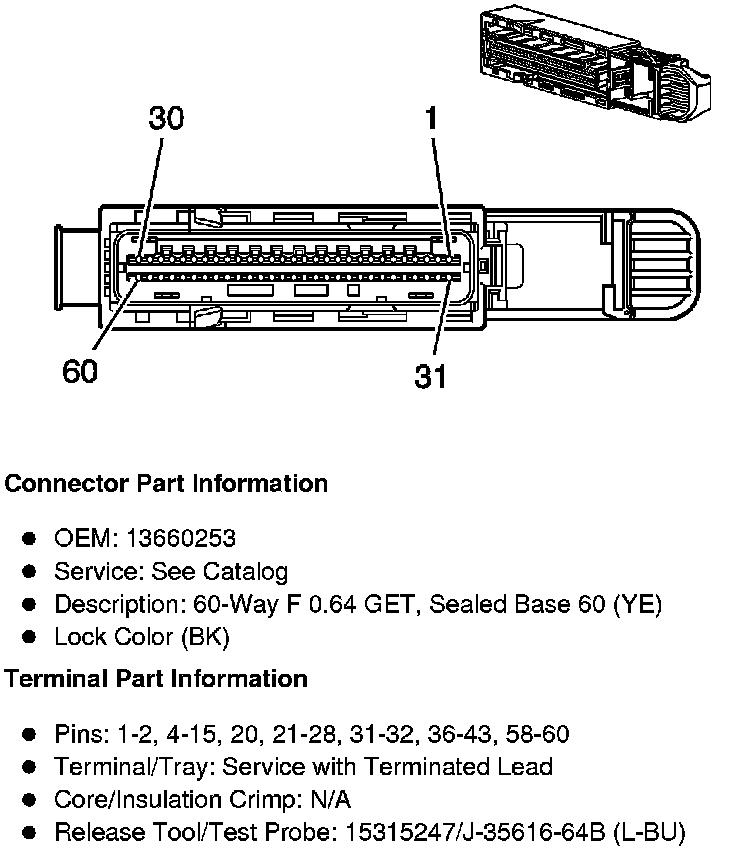

Inflatable Restraint Sensing and Diagnostic Module (SDM) (with APL/ATY)

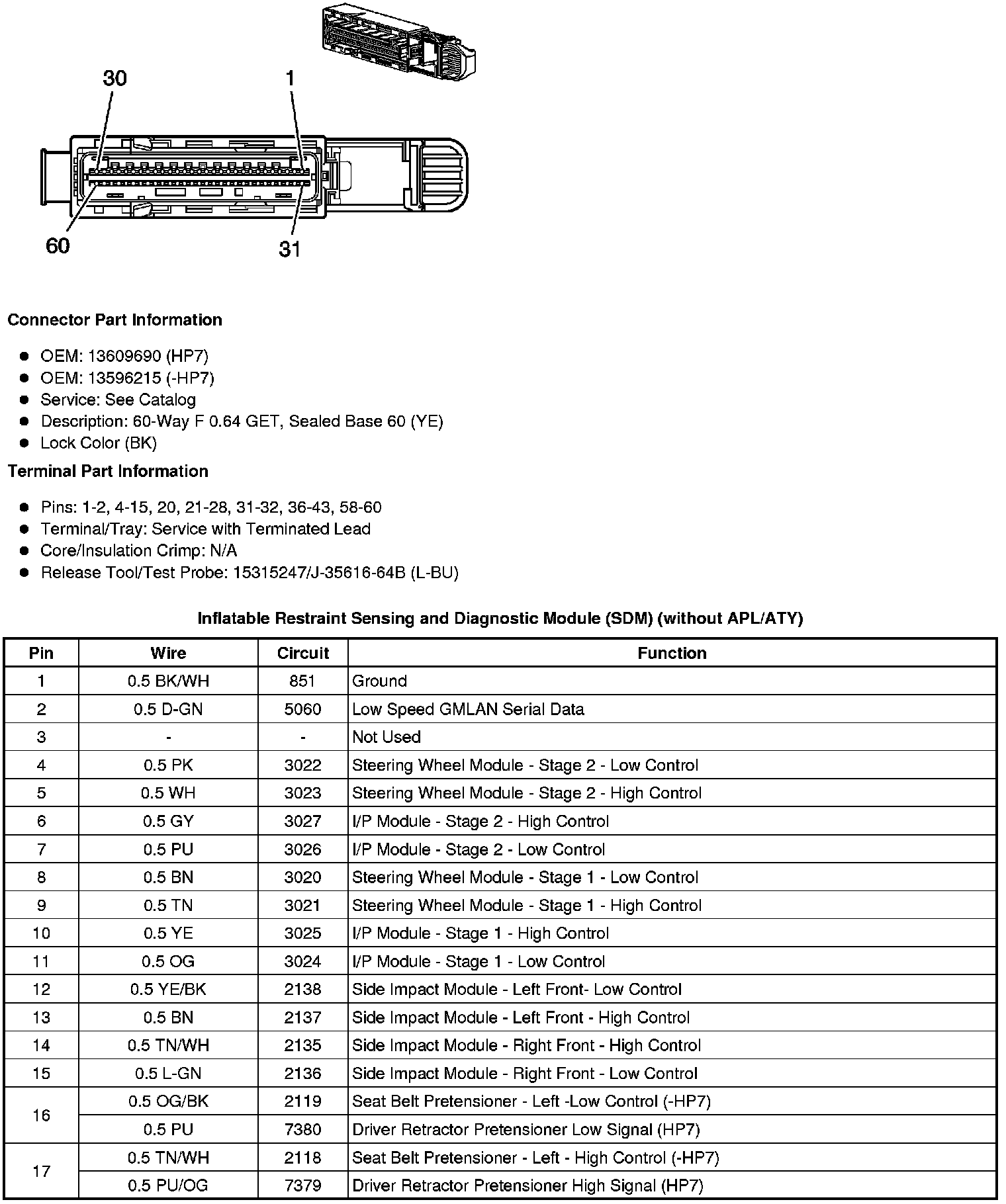

Inflatable Restraint Sensing and Diagnostic Module (SDM) (without APL/ATY)
