Drive Motor Control Module: Diagrams

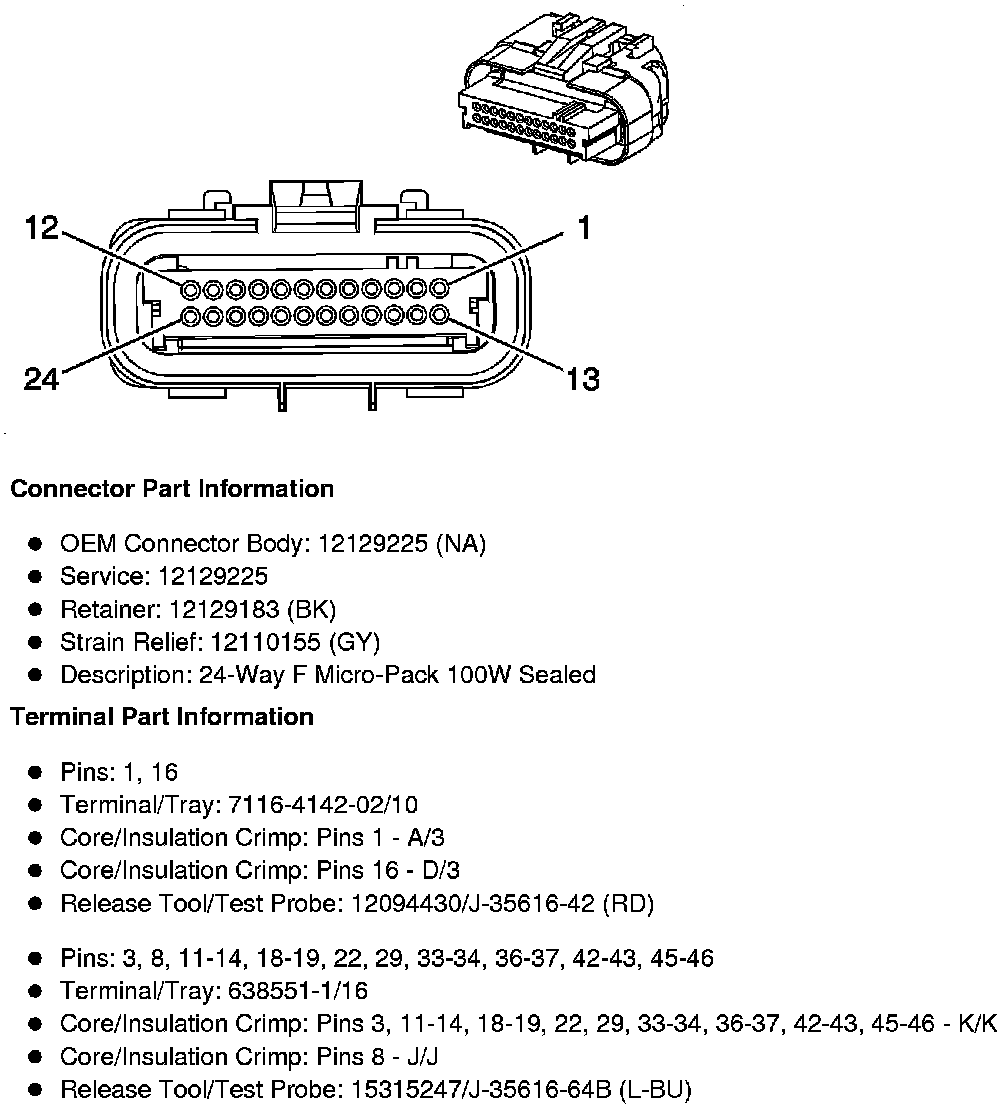

Component Connector End Views

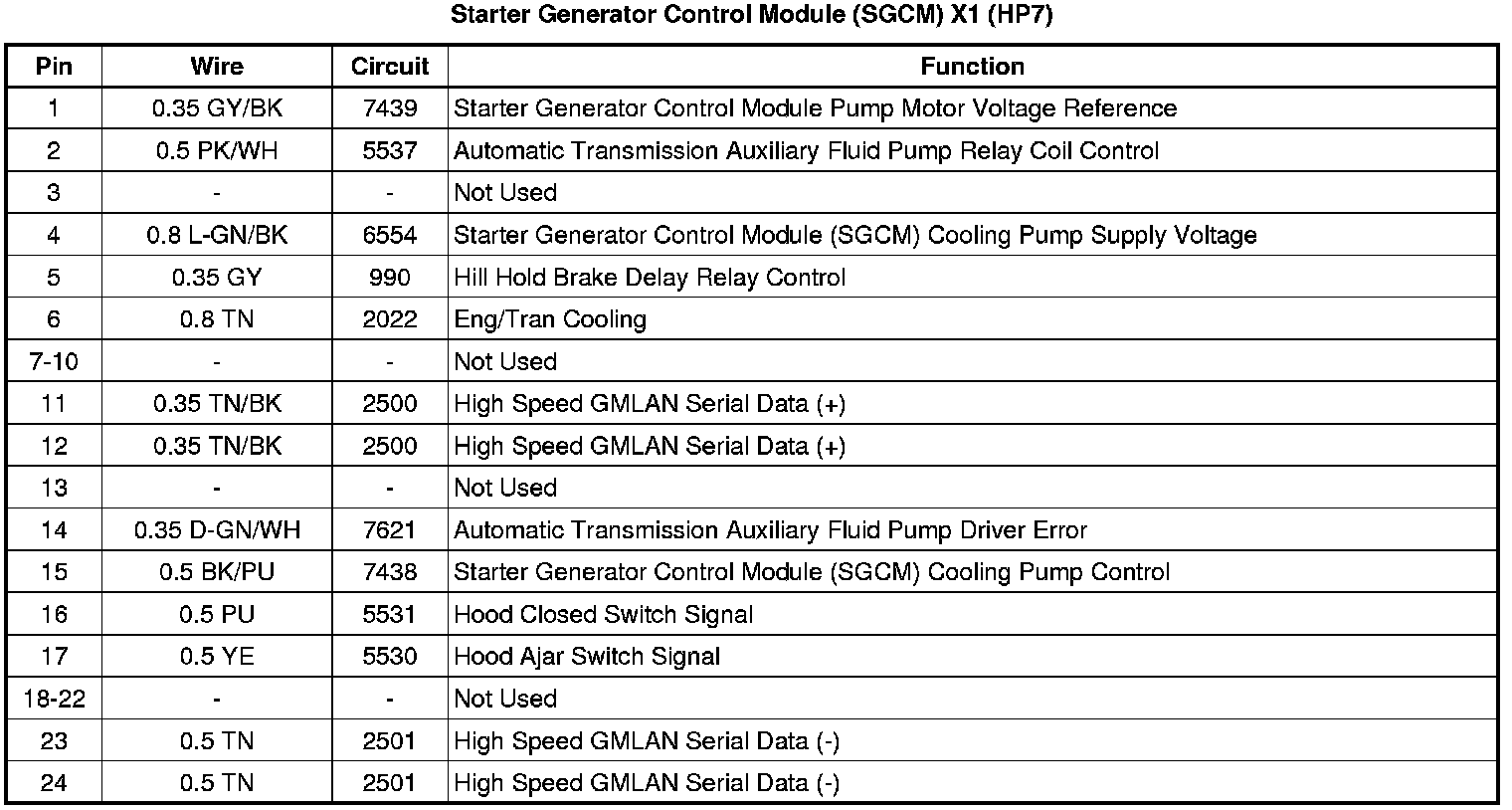

Starter Generator Control Module (SGCM) X1 (HP7)

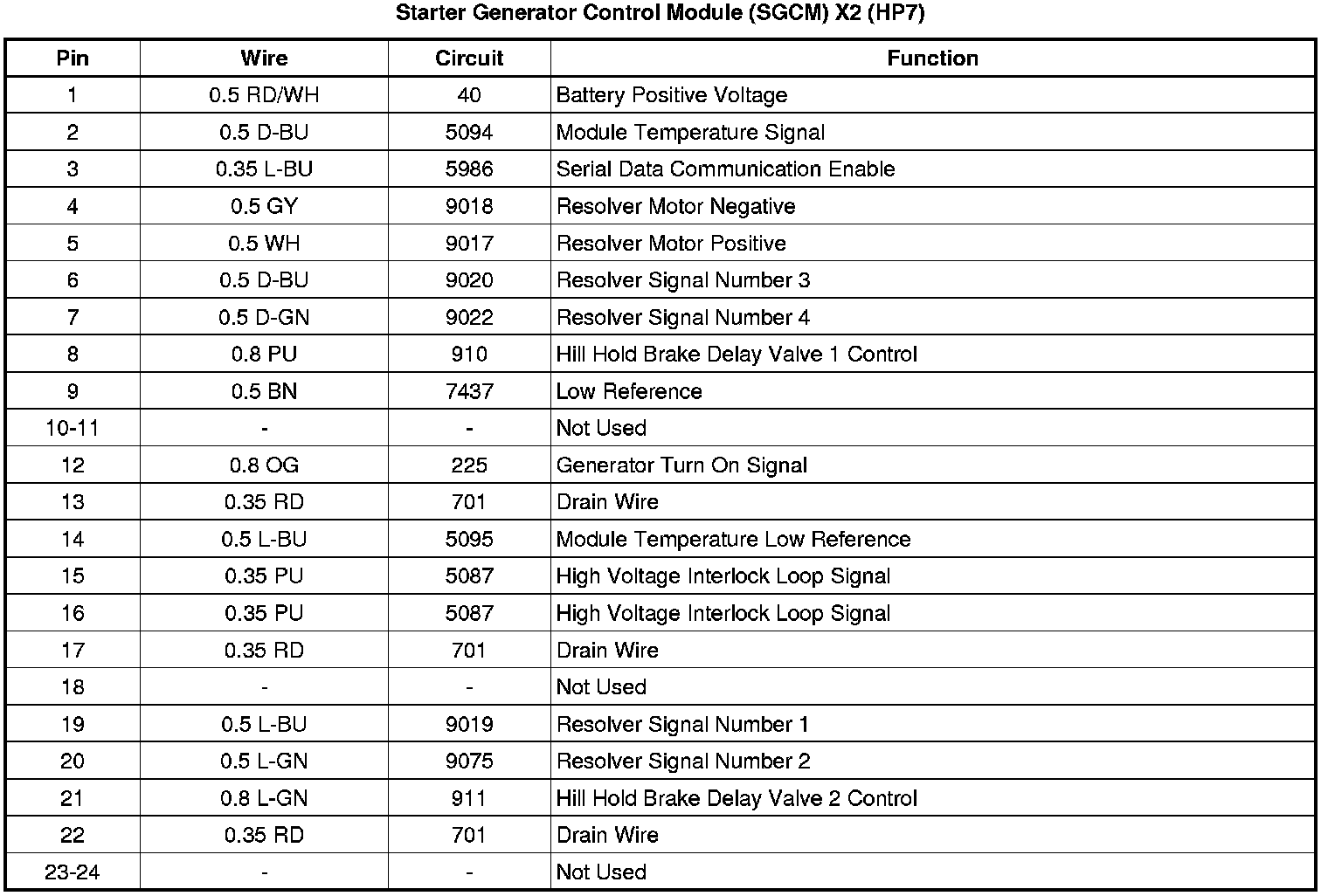

Starter Generator Control Module (SGCM) X2 (HP7)










Starter Generator Control Module (SGCM) X3 (HP7)










Starter Generator Control Module (SGCM) X4 (HP7)










Starter Generator Control Module (SGCM) X5 (HP7)
