Engine Control Module




Component Connector End Views

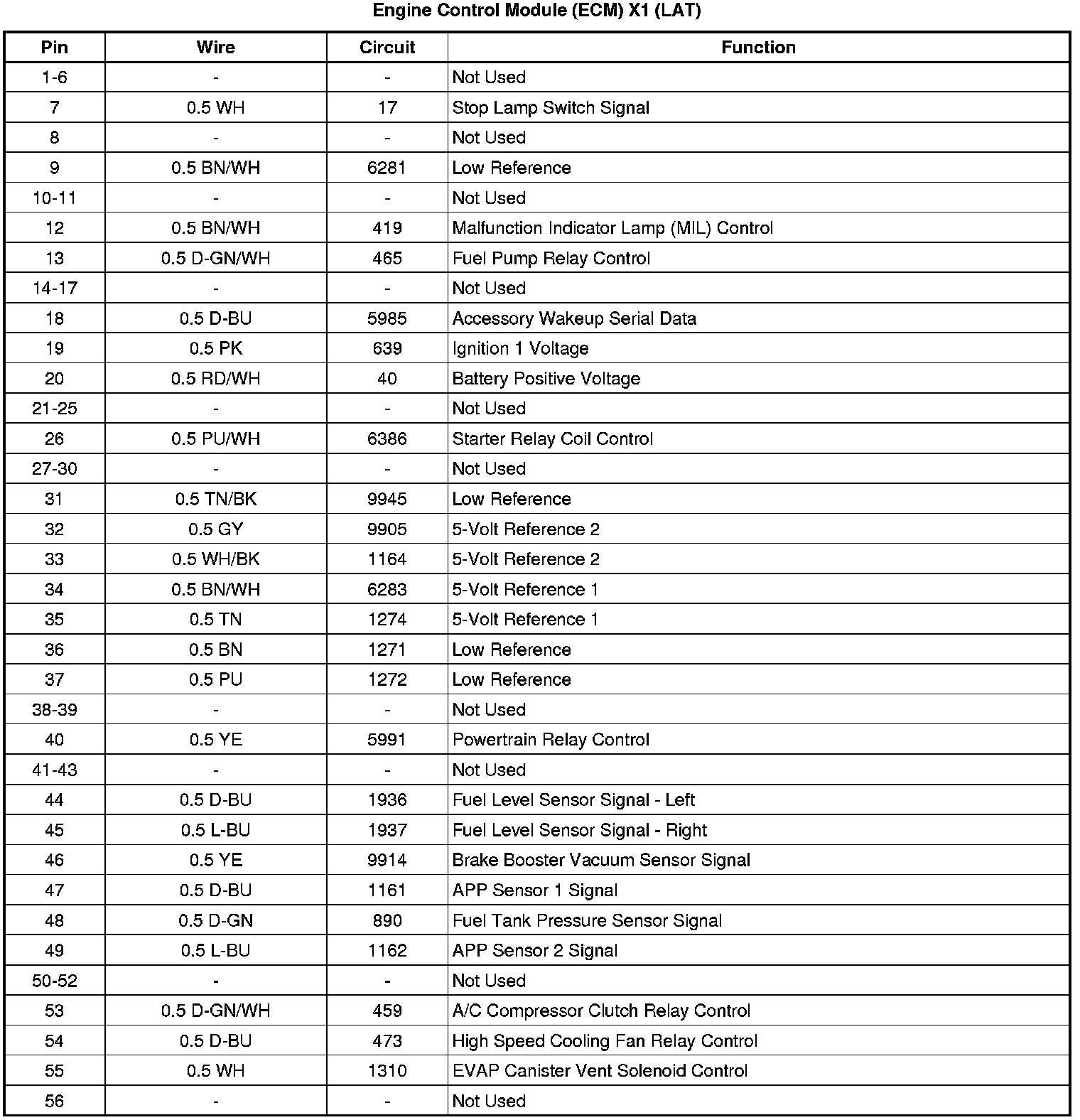

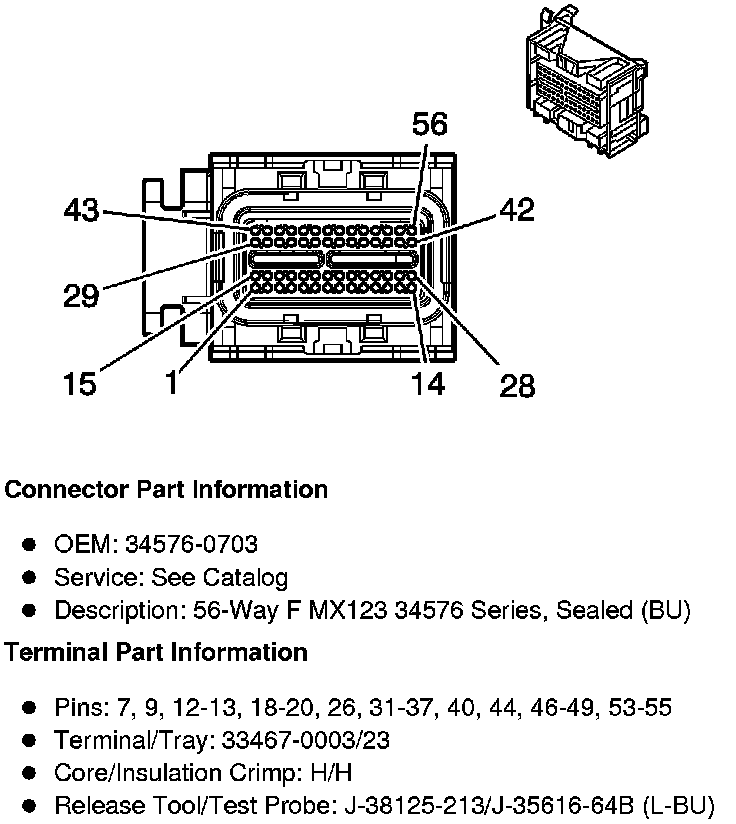

Engine Control Module (ECM) X1 (LAT)

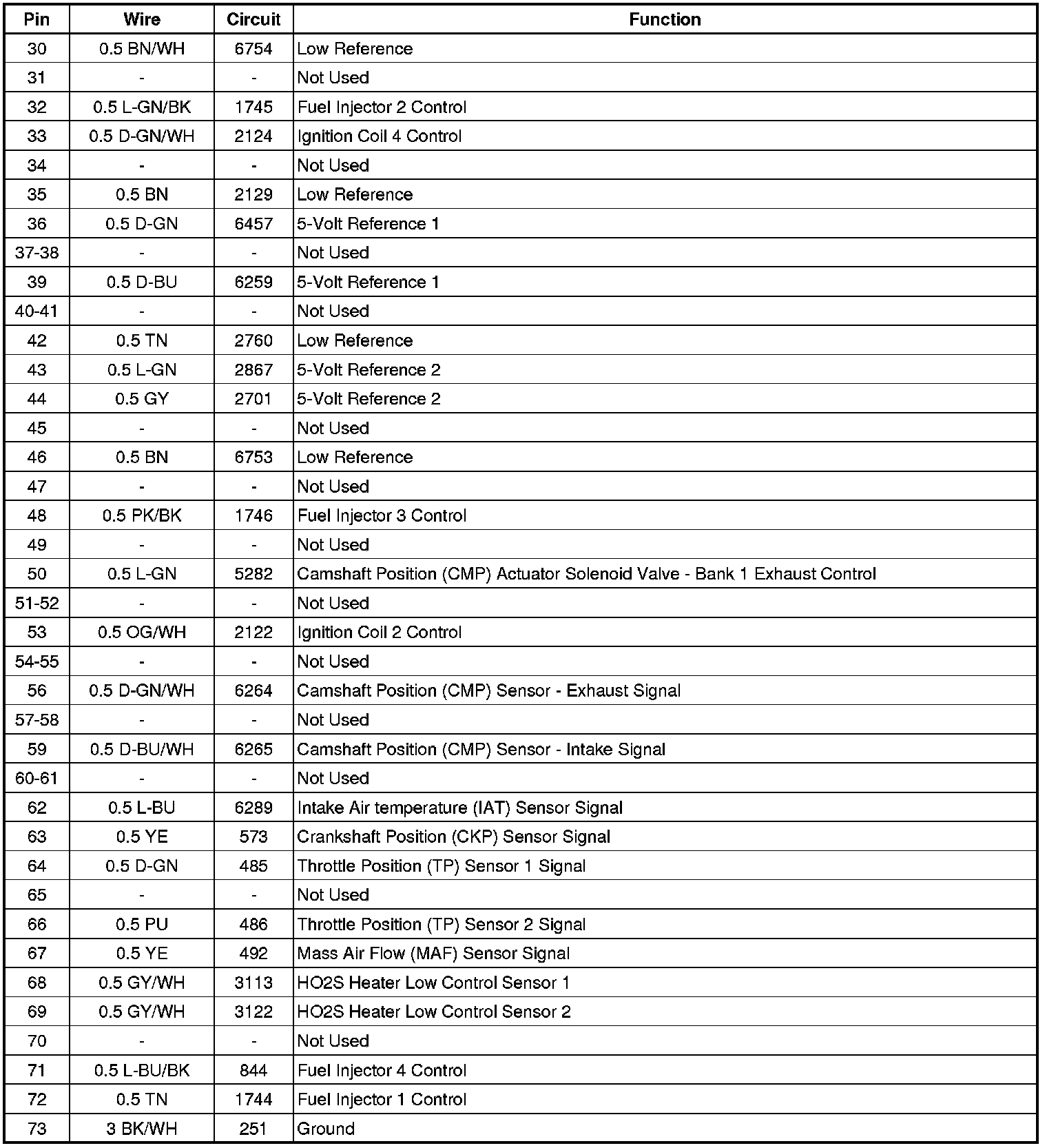

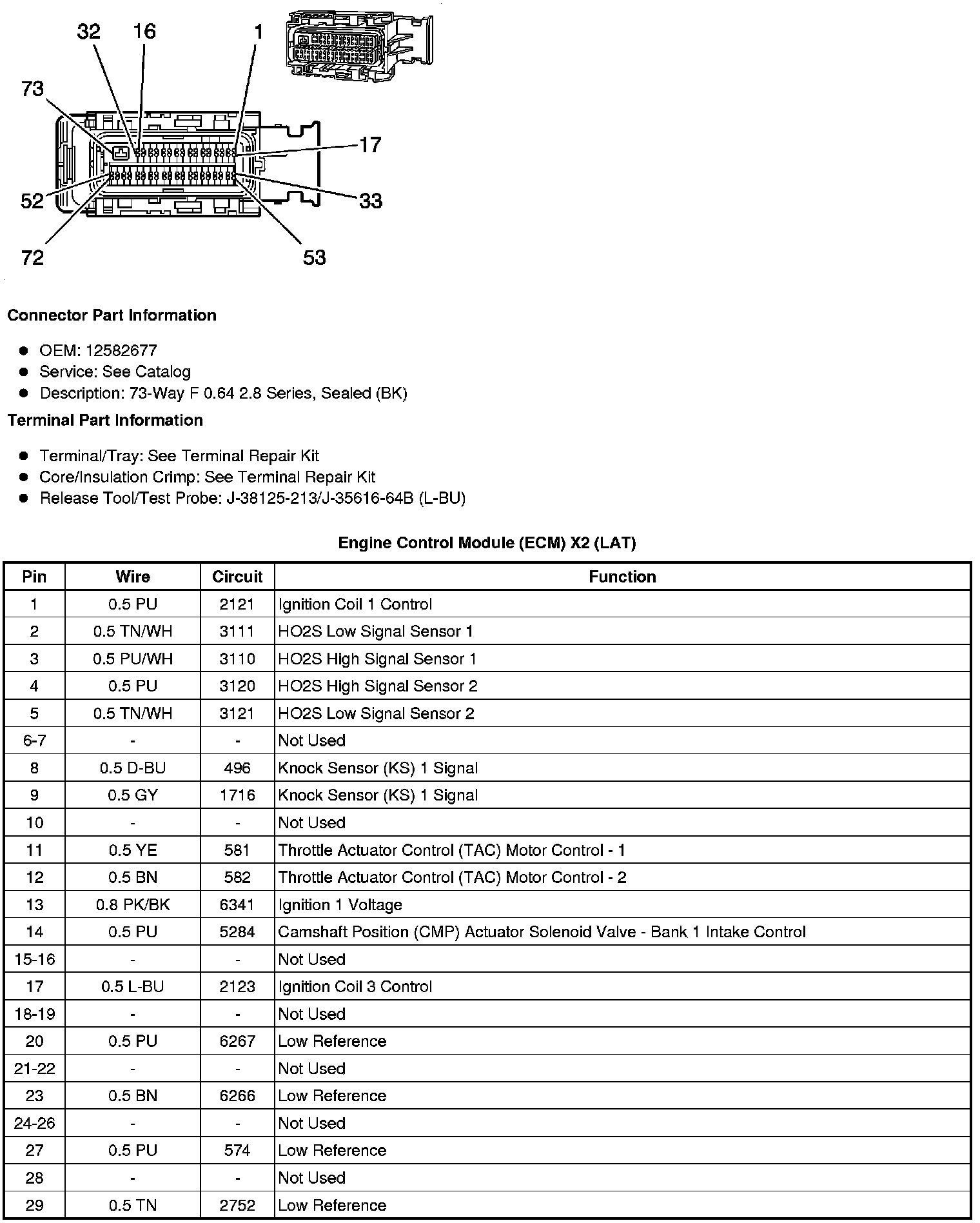

Engine Control Module (ECM) X2 (LAT)

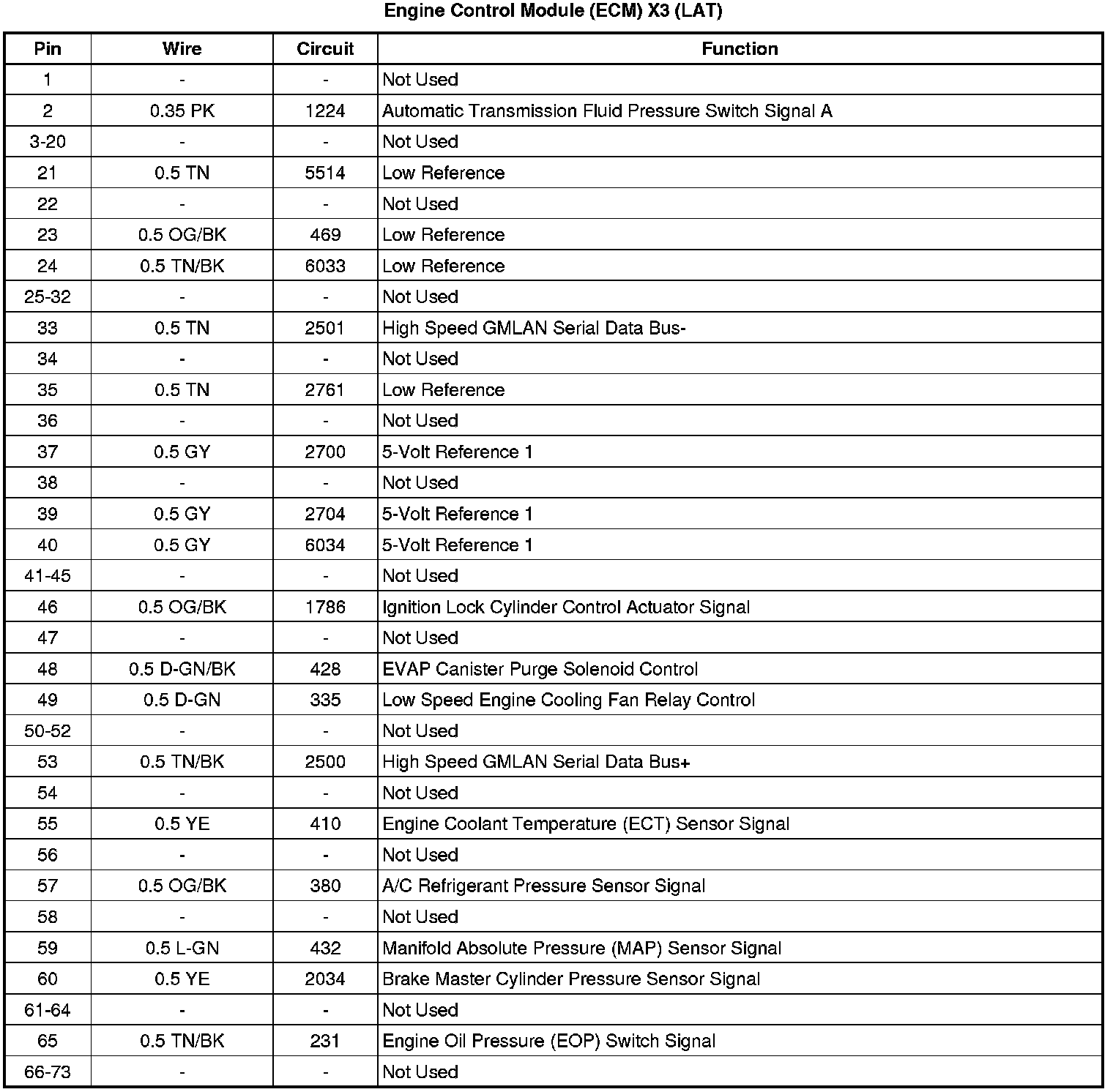

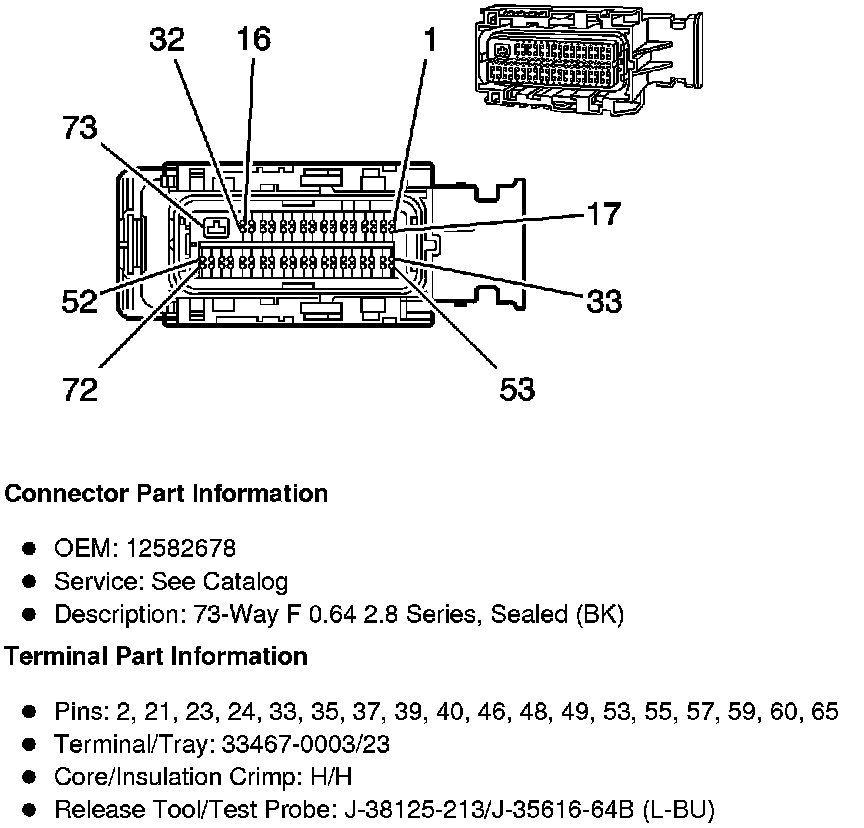

Engine Control Module (ECM) X3 (LAT)
