Control Module, A/T




Component Connector End Views

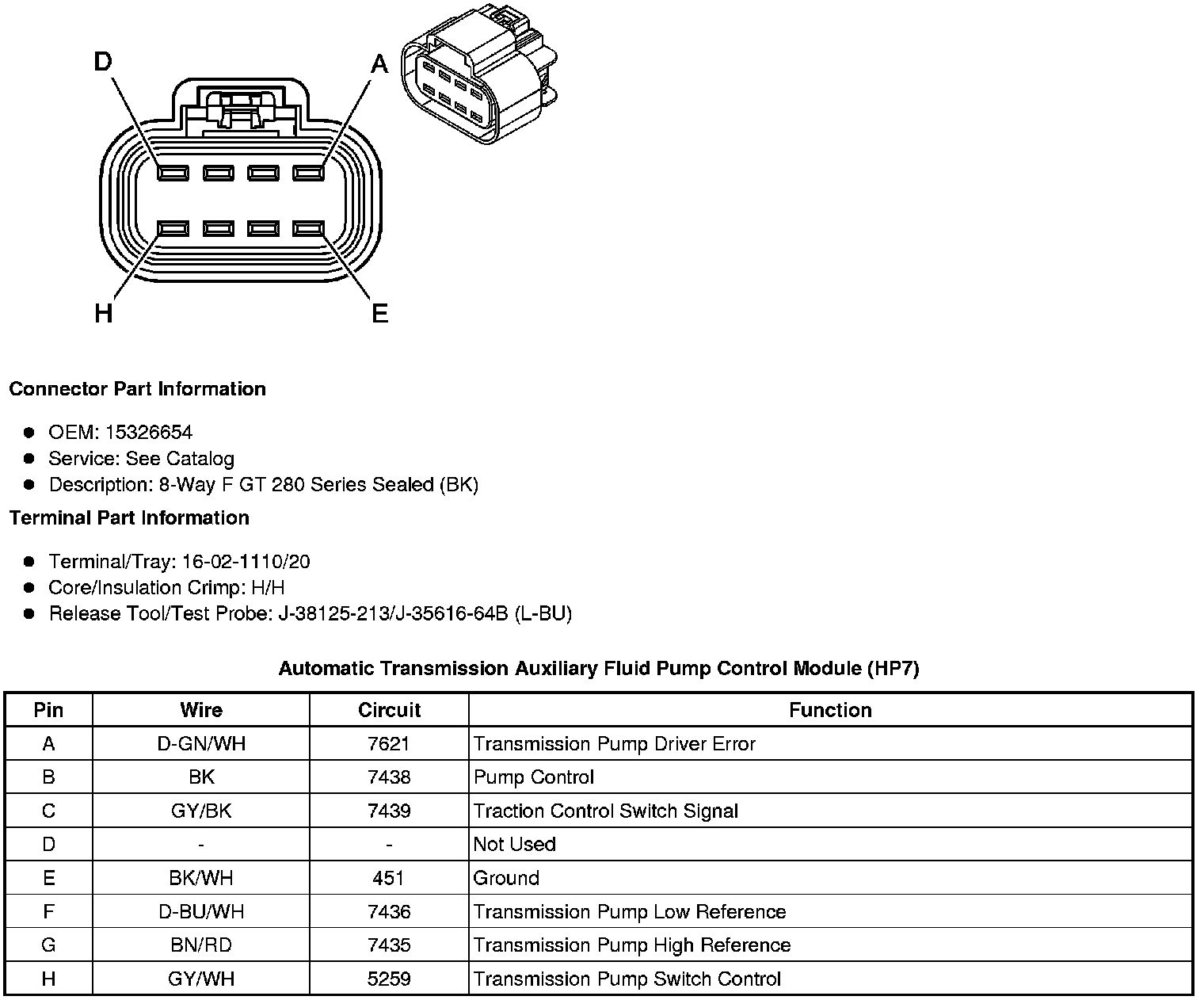

Automatic Transmission Auxiliary Fluid Pump Control Module (HP7)






Transmission Control Module (TCM) (ME7/MN5)
