Control Unit, Differential Lock




Component Connector End Views

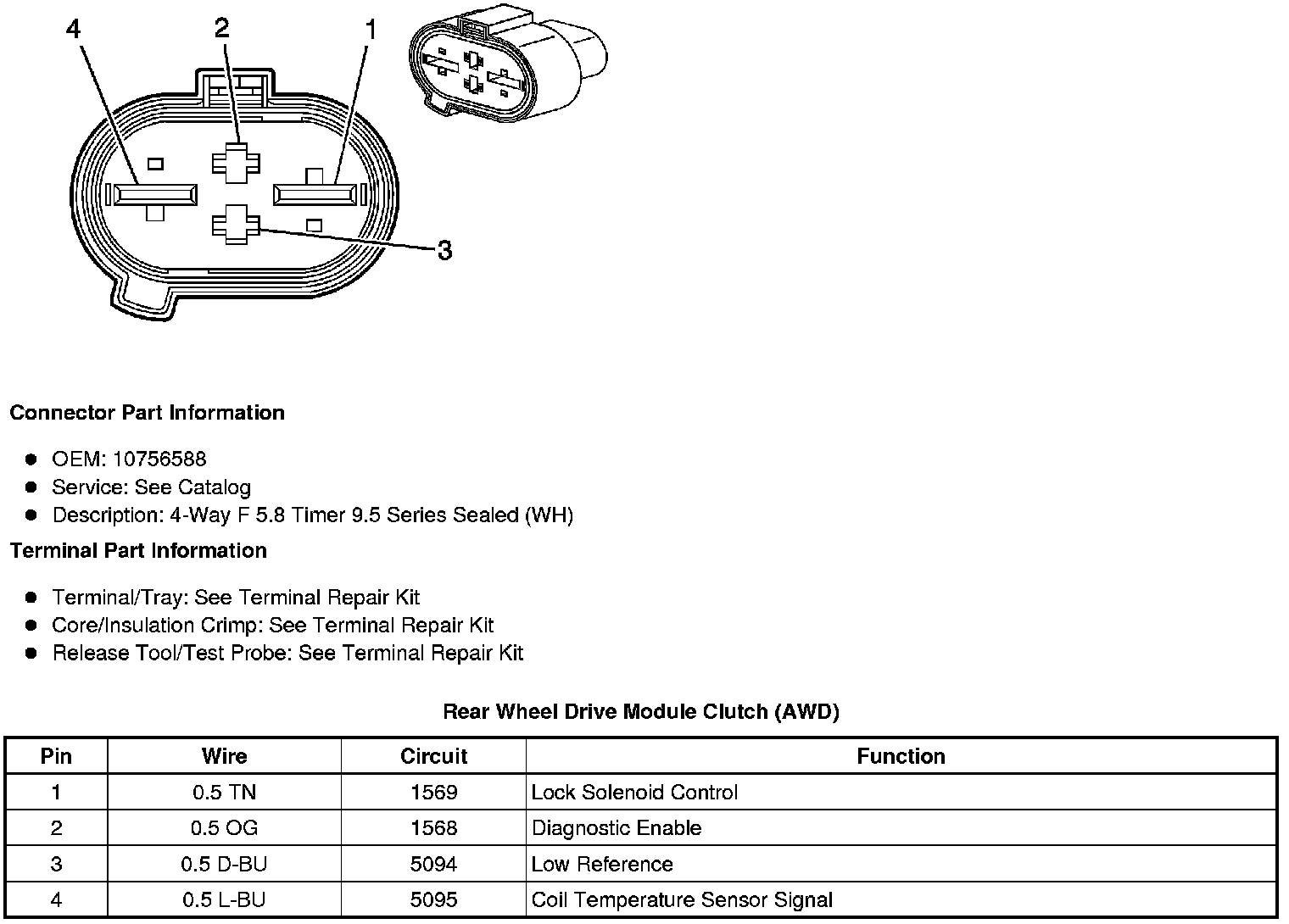

Rear Wheel Drive Module Clutch (AWD)

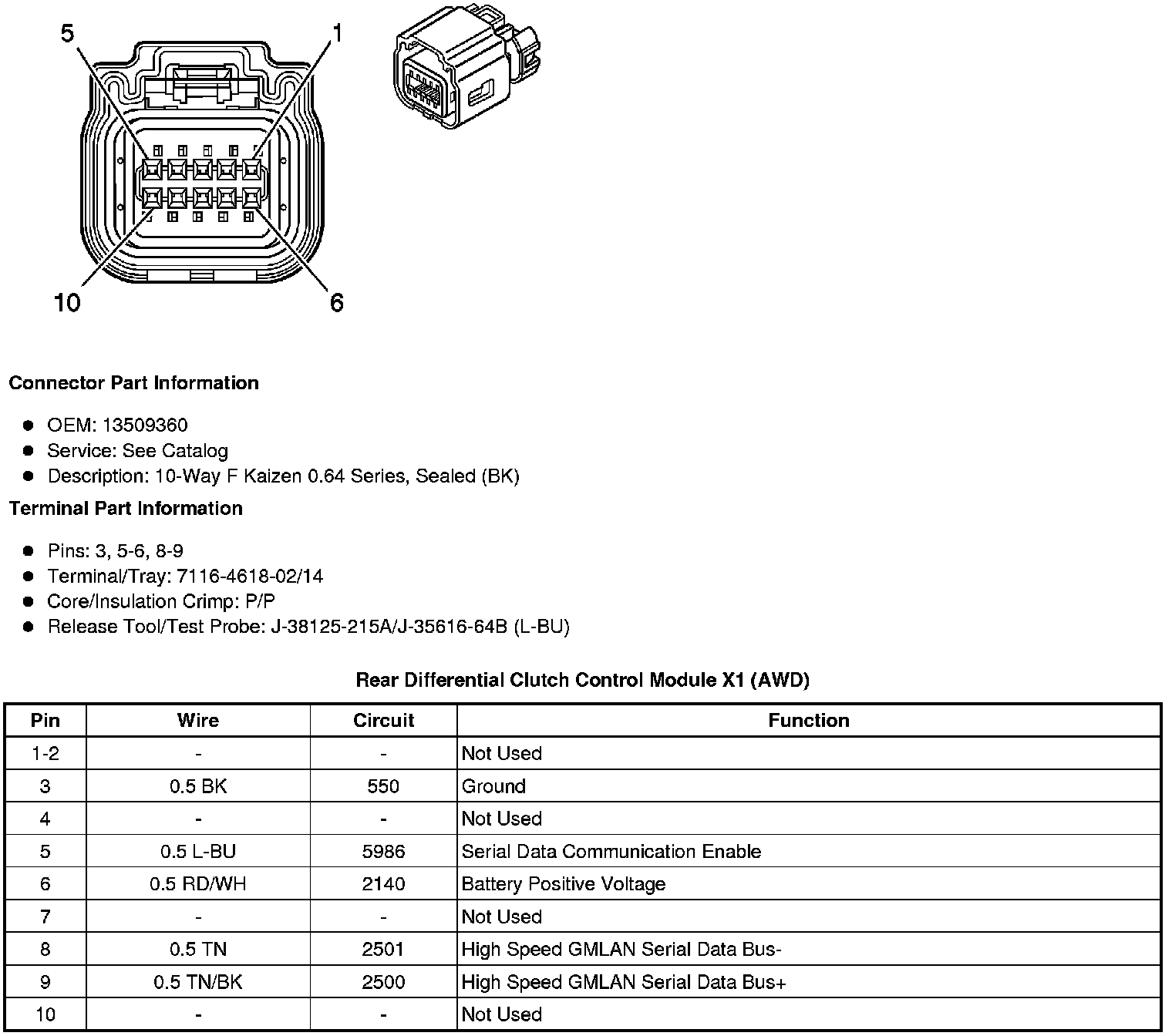

Rear Differential Clutch Control Module X1 (AWD)

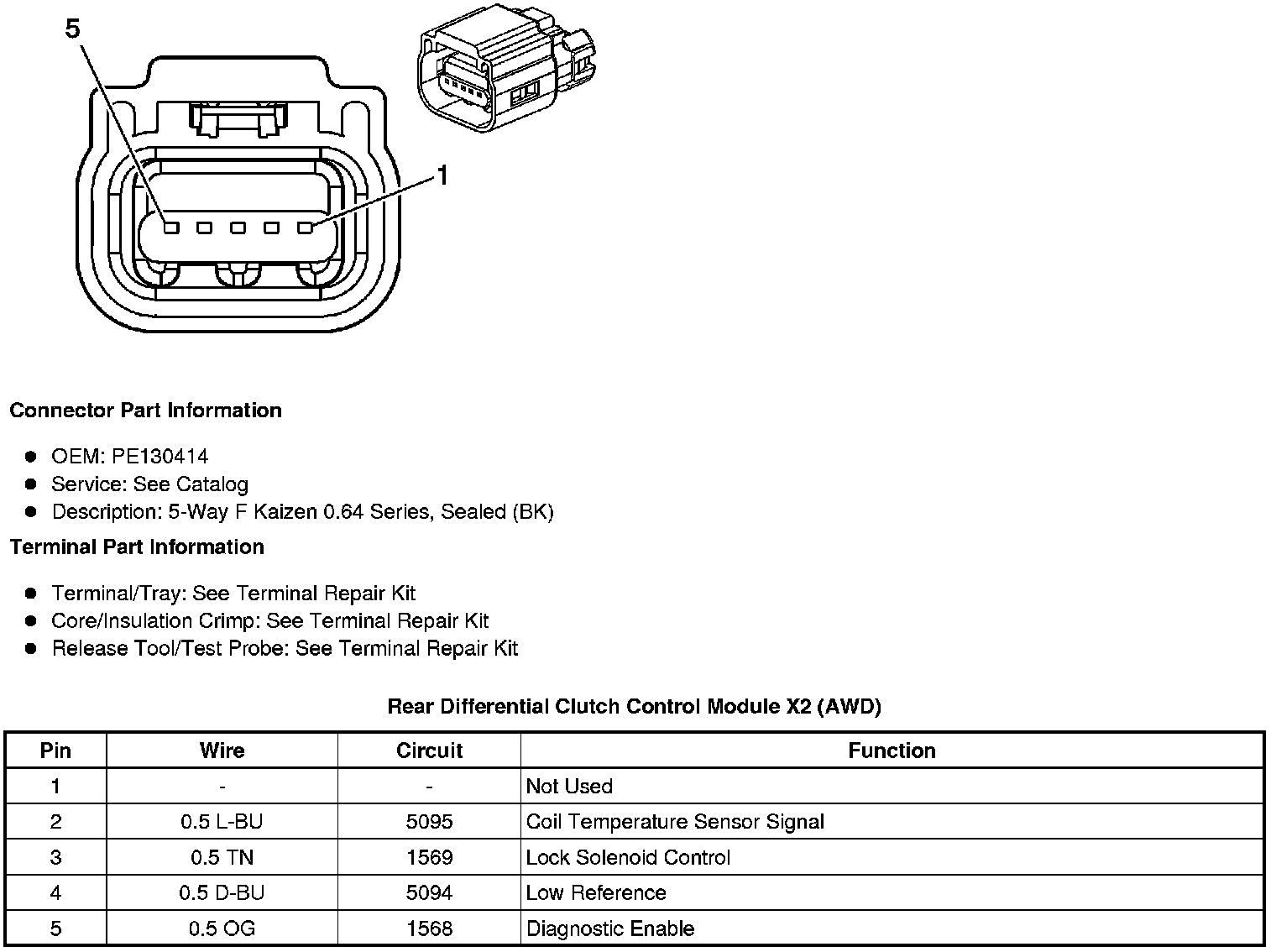

Rear Differential Clutch Control Module X2 (AWD)
