Steering Control Module
Component Connector End Views

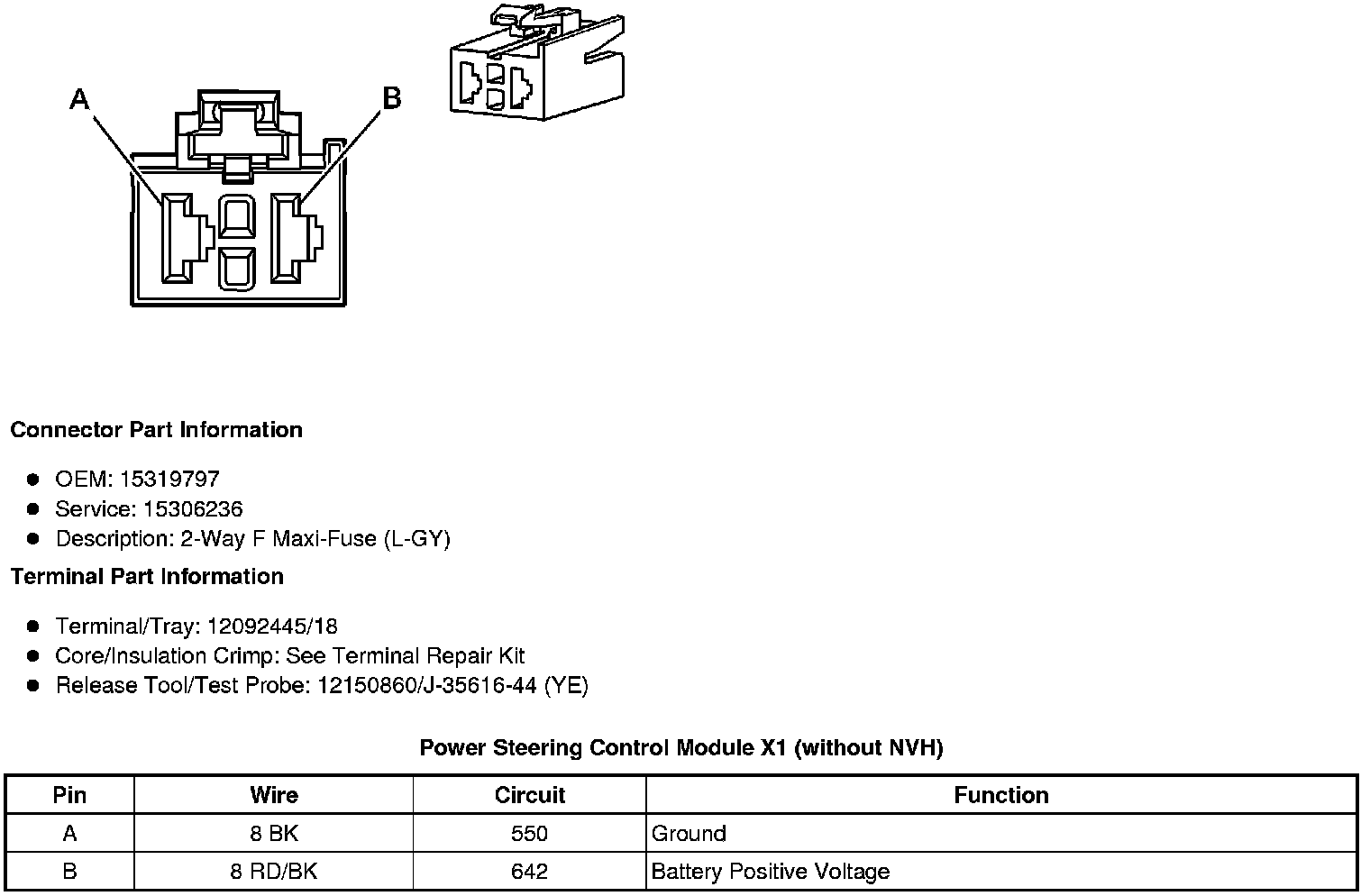

Power Steering Control Module X1 (without NVH)

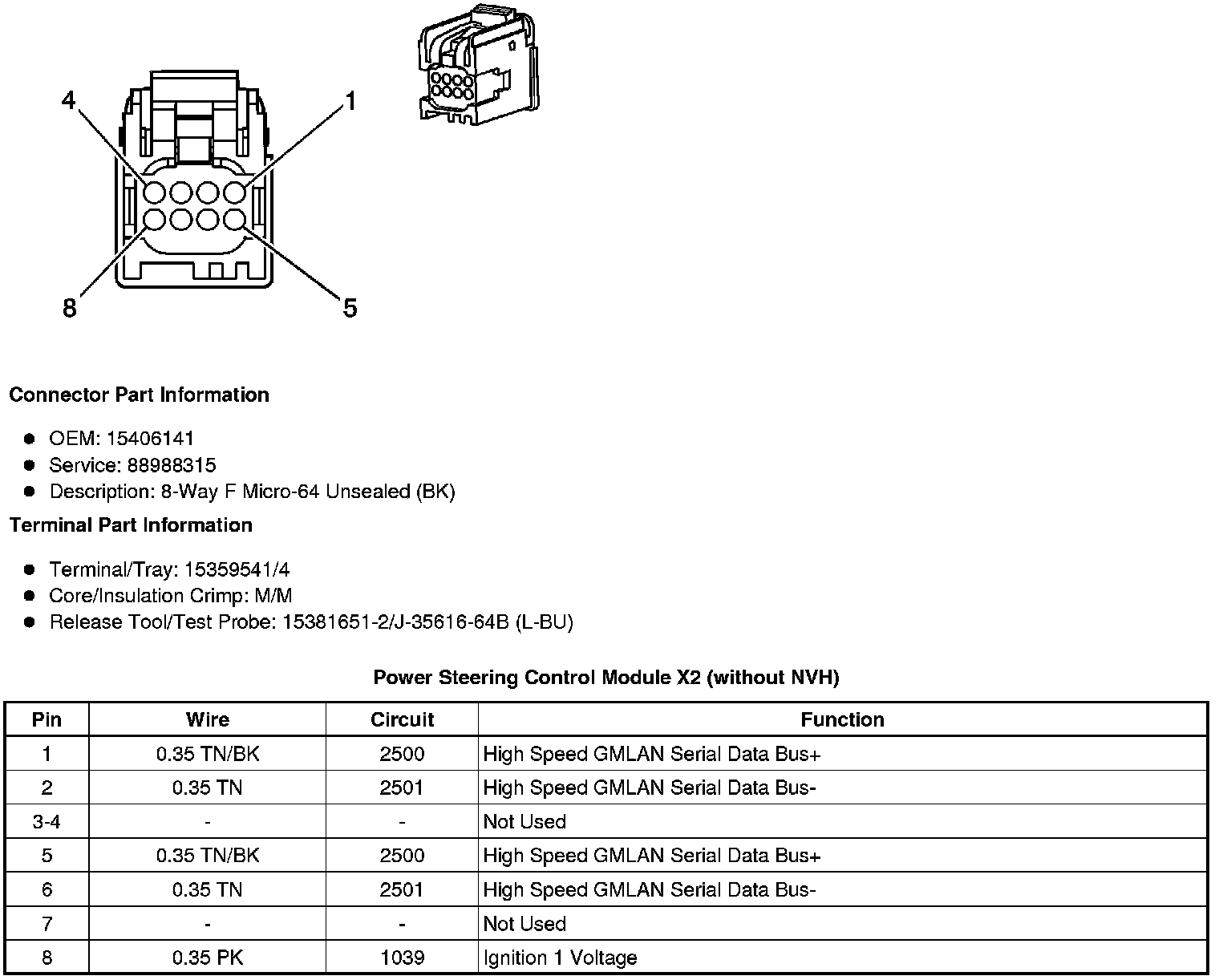

Power Steering Control Module X2 (without NVH)

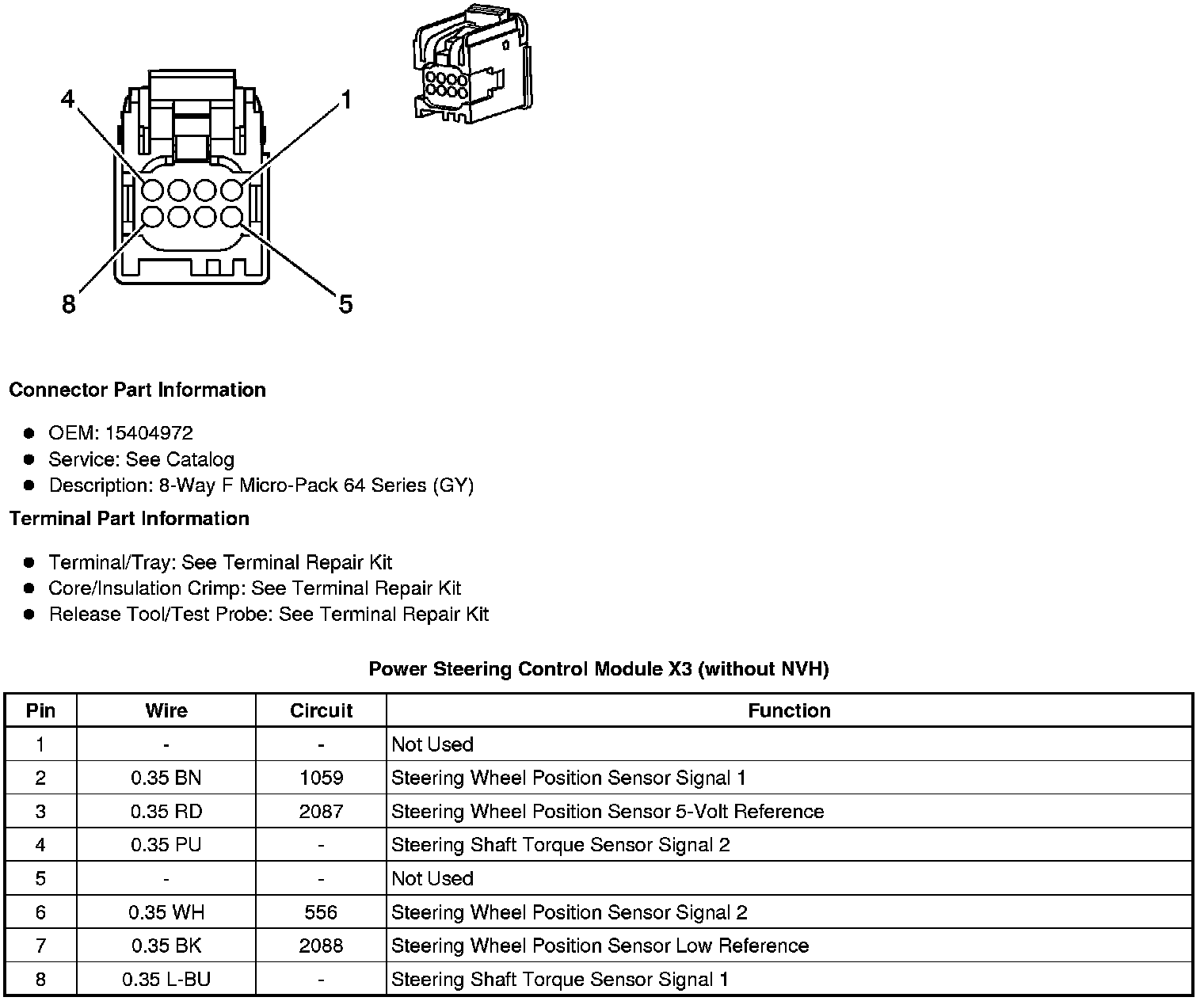

Power Steering Control Module X3 (without NVH)
Component Connector End Views
Power Steering Control Module X1 (without NVH)
Power Steering Control Module X2 (without NVH)
Power Steering Control Module X3 (without NVH)
