Home >> Saturn >> 2009 >> Aura L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module

Central Control Module




Component Connector End Views

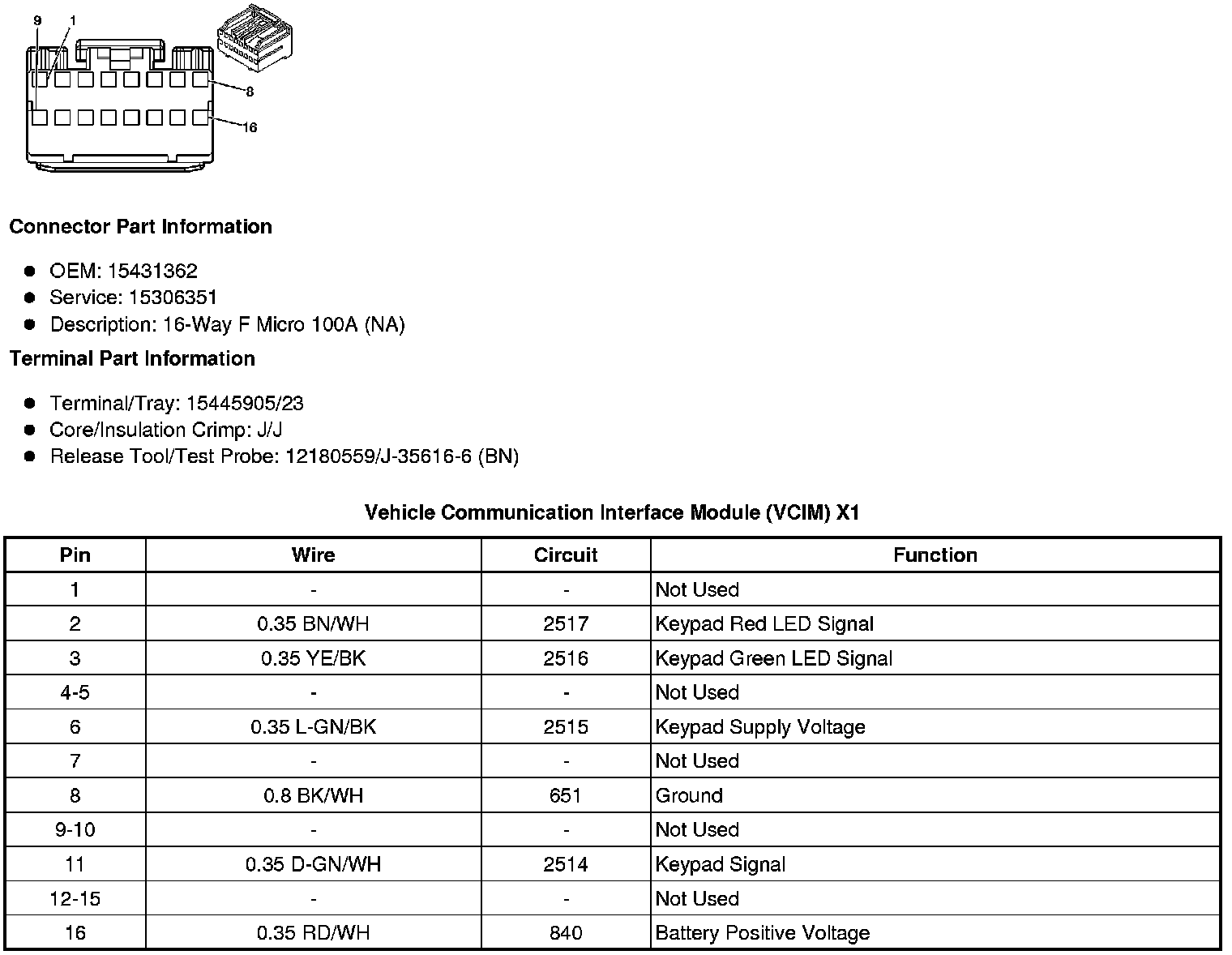

Vehicle Communication Interface Module (VCIM) X1

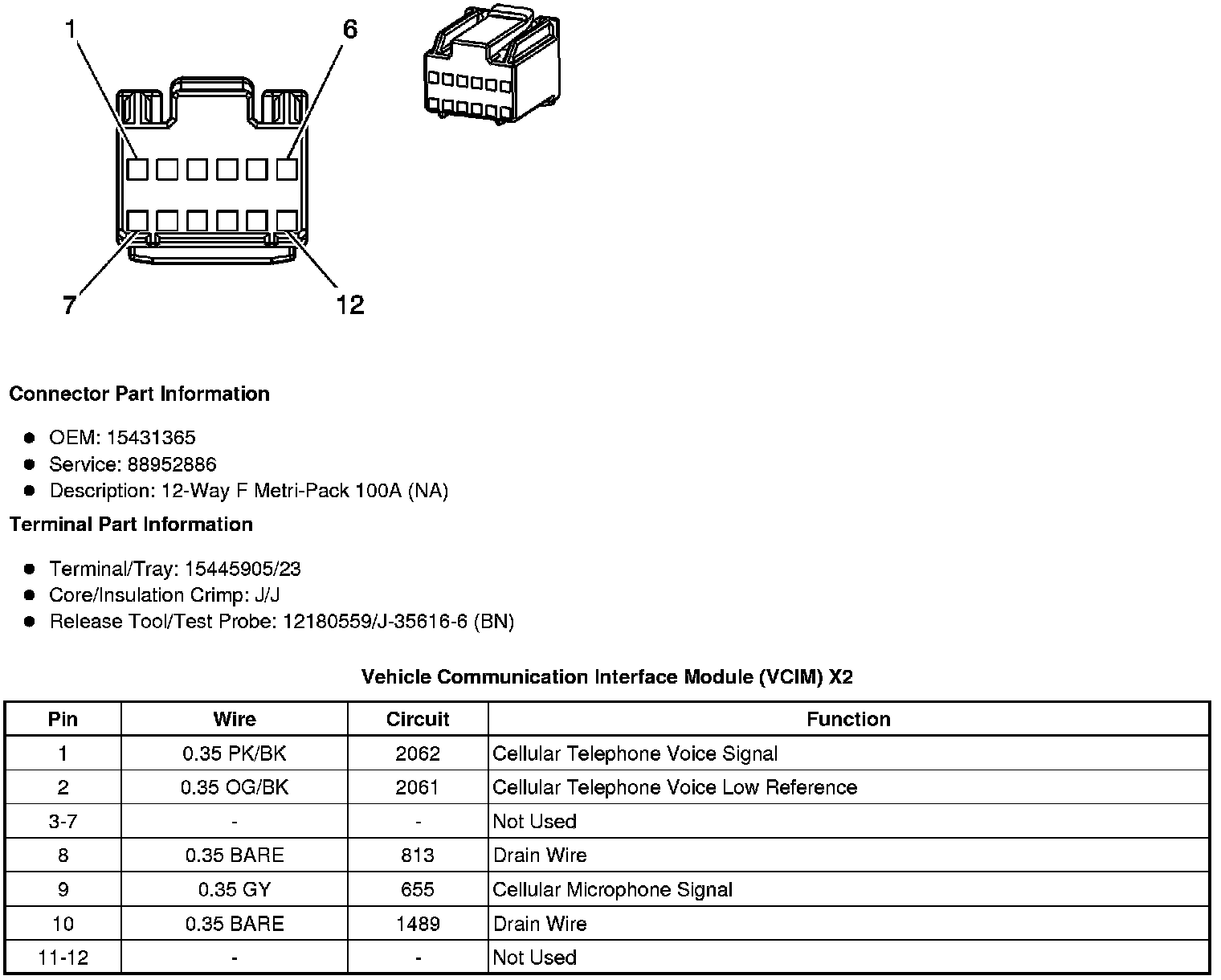

Vehicle Communication Interface Module (VCIM) X2

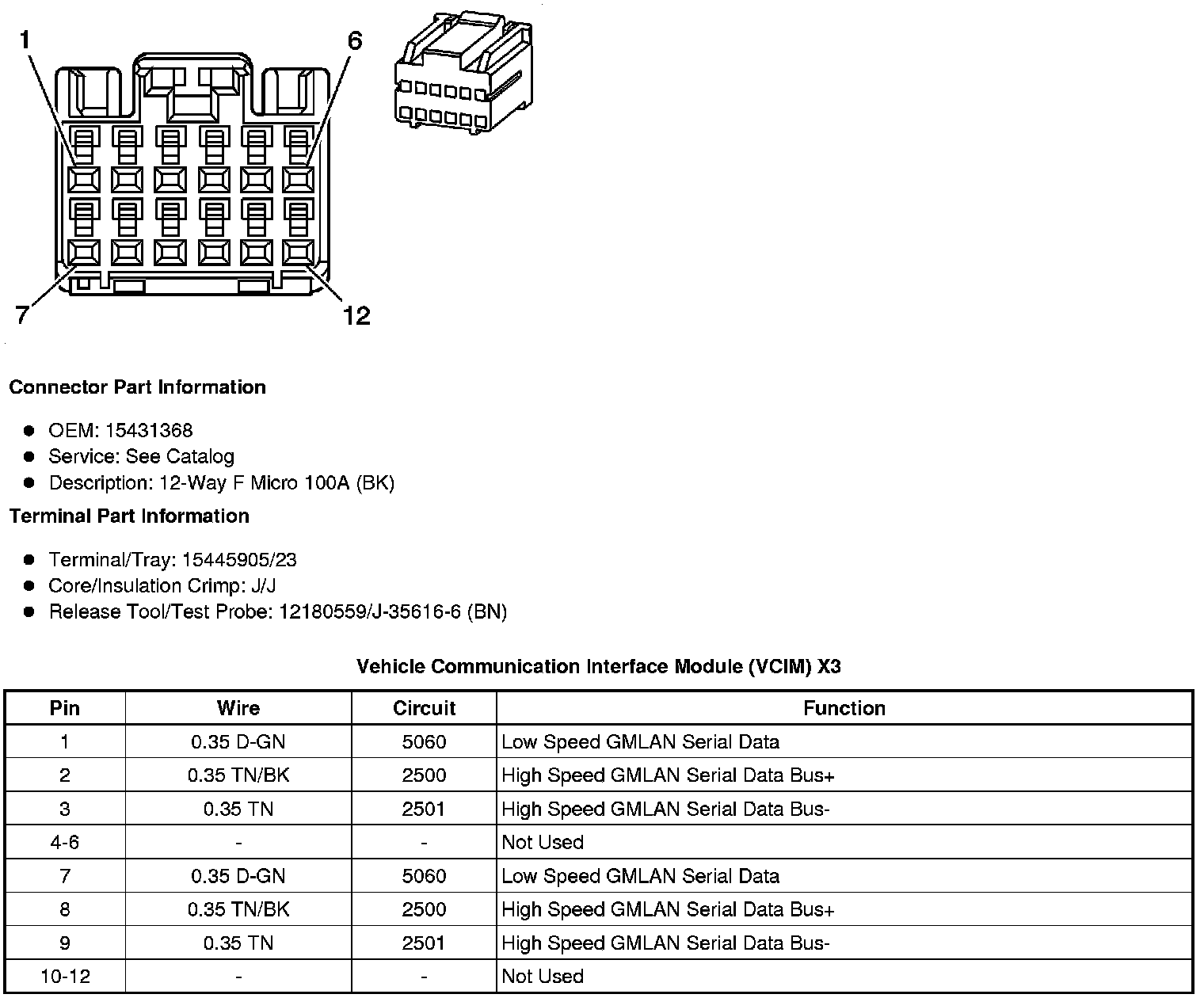

Vehicle Communication Interface Module (VCIM) X3
