Home >> Saturn >> 2009 >> Aura L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

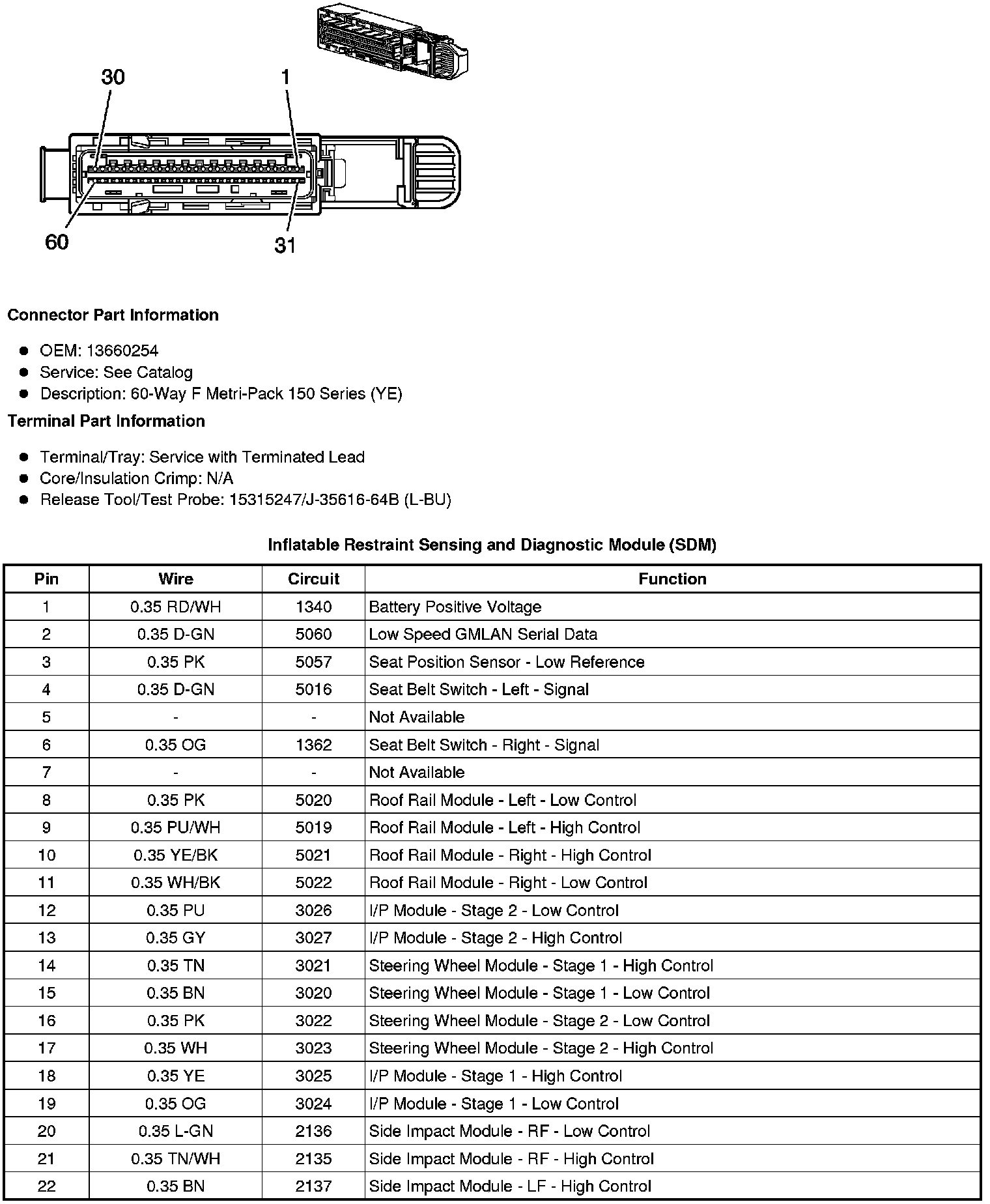

Component Connector End Views

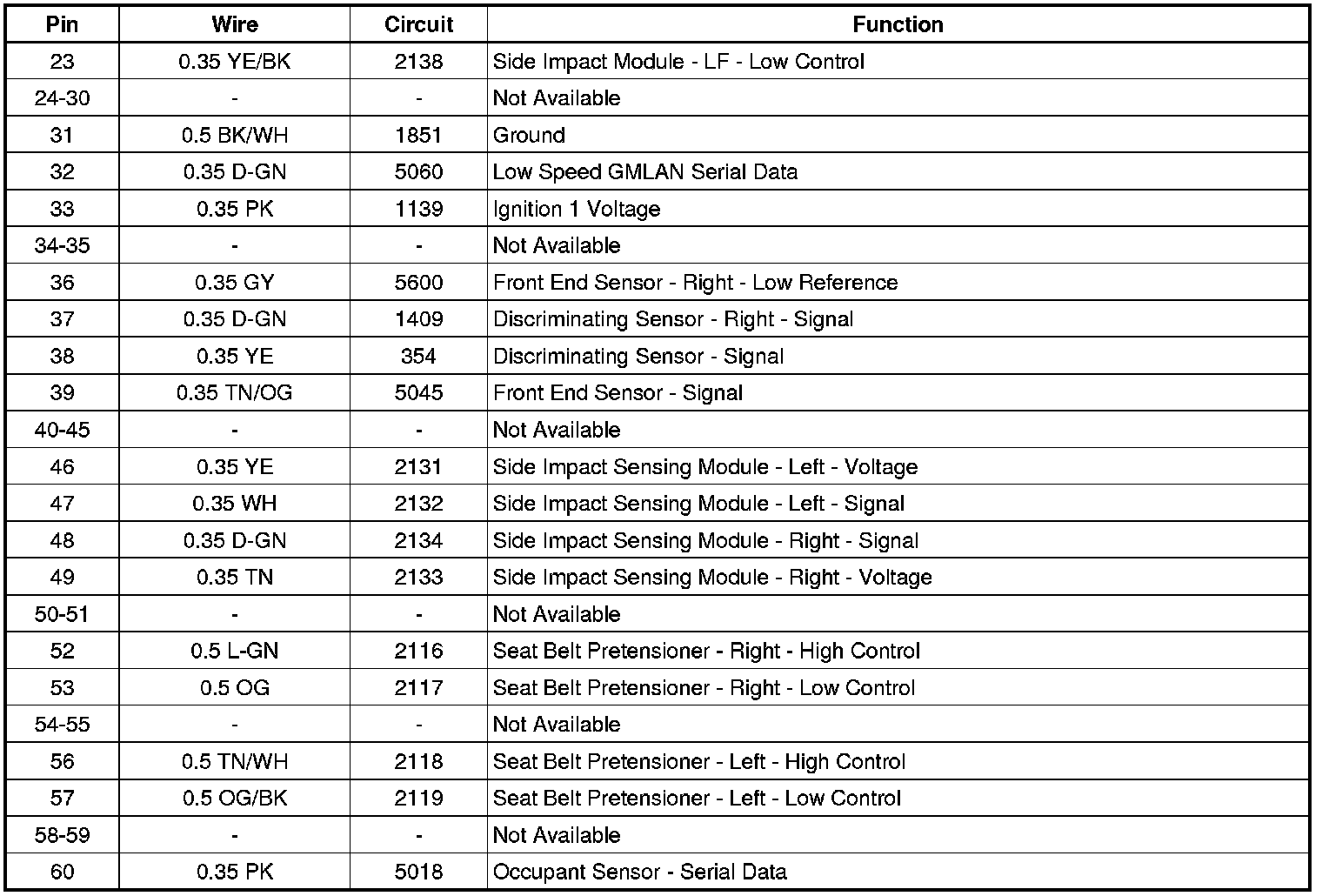

Inflatable Restraint Sensing and Diagnostic Module (SDM)
