Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

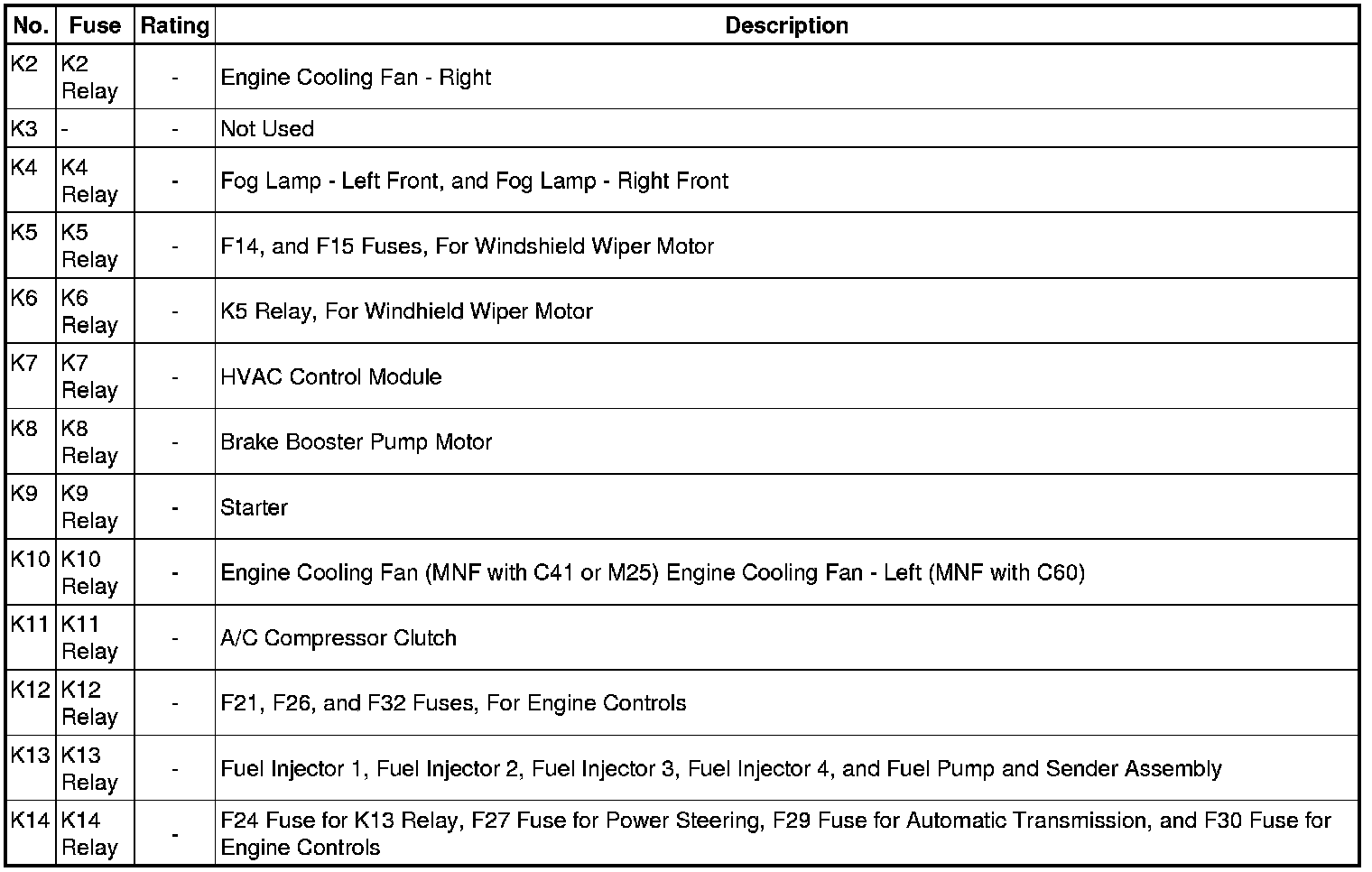

Electrical Center Identification Views

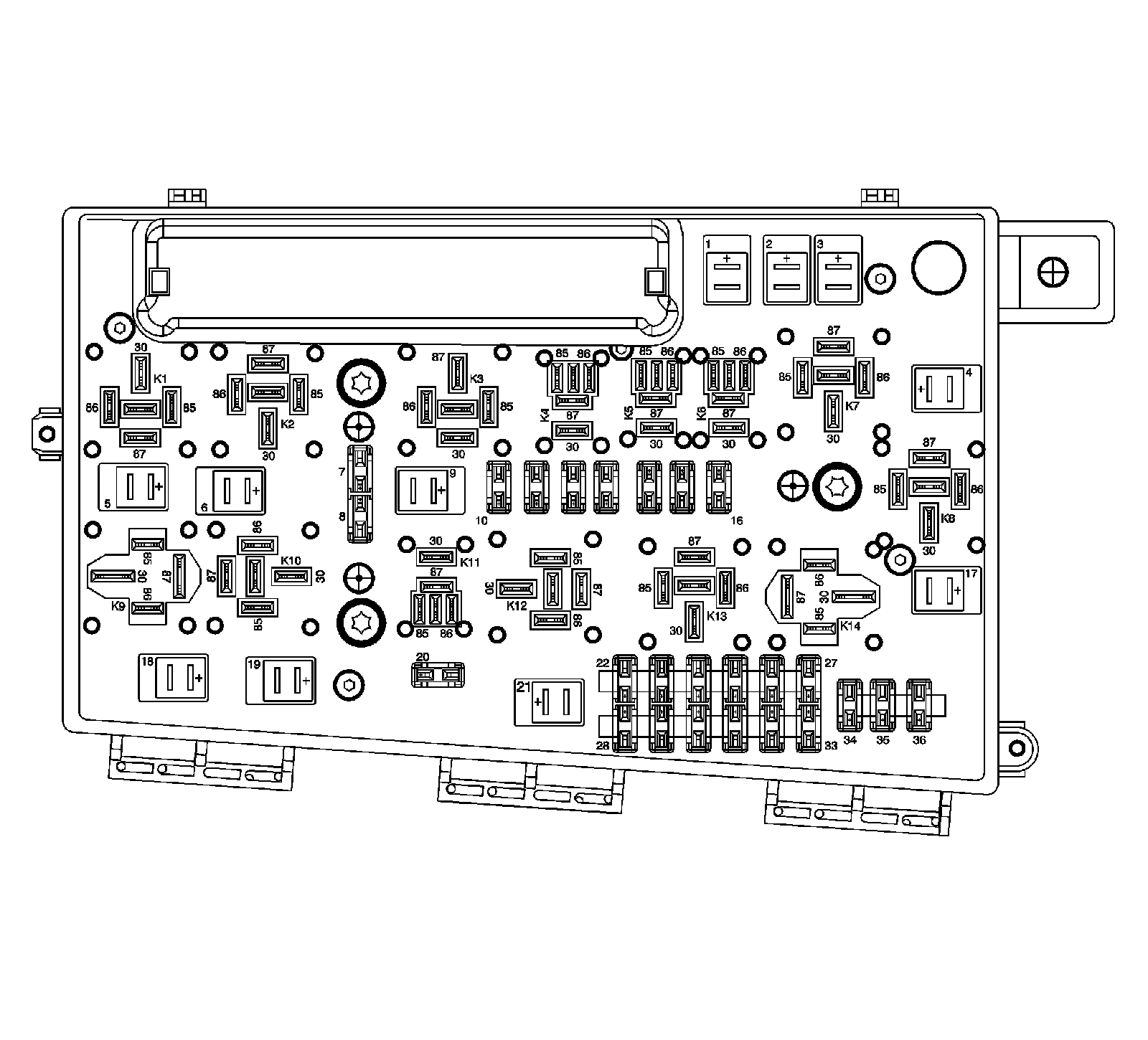

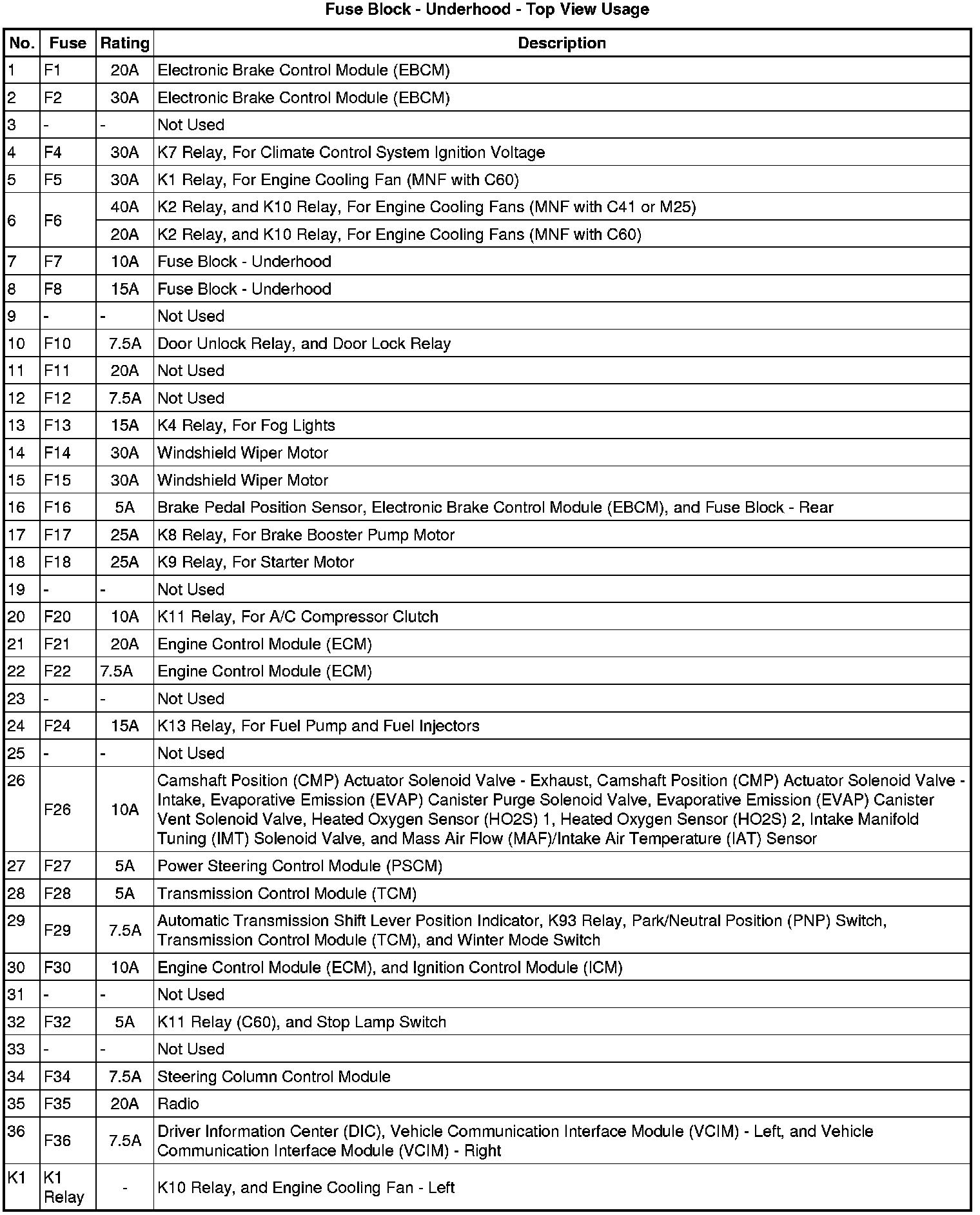

Fuse Block - Underhood - Top View
