Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor Replacement

Removal Procedure

1. Open the hood.

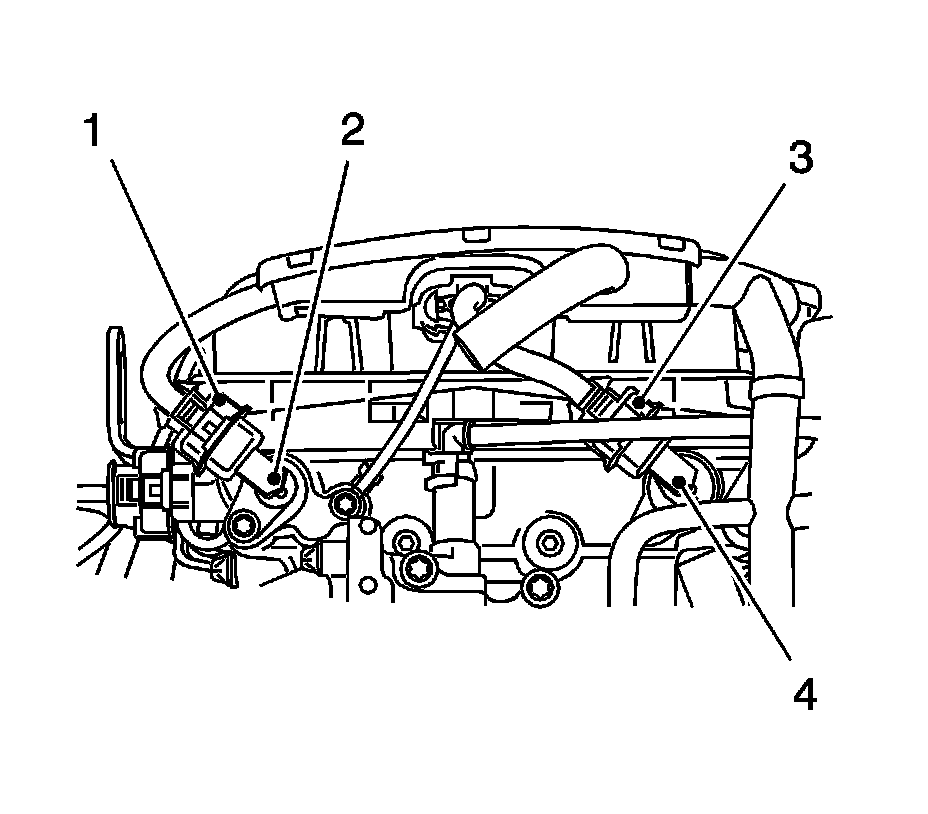

2. Remove the camshaft position sensor of the intake camshaft (2).

* Disconnect the wiring harness plug (1).
* Remove the bolt.

3. Remove the camshaft position sensor of the exhaust camshaft (4).

* Disconnect the wiring harness connector (3).
* Disconnect the wiring harness of the oxygen sensor from the bracket.
* Remove the bolt.

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the camshaft position sensor of the exhaust camshaft.

Tighten the bolt to 6 Nm (53 lb in).

* Connect the wiring harness of the oxygen sensor to the bracket.
* Install the wiring harness plug.

2. Install the camshaft position sensor, intake camshaft.

Tighten the bolt to 6 Nm (53 lb in).
Connect the wiring harness plug.
3. Close the hood.
