Air Flow Meter/Sensor: Diagrams

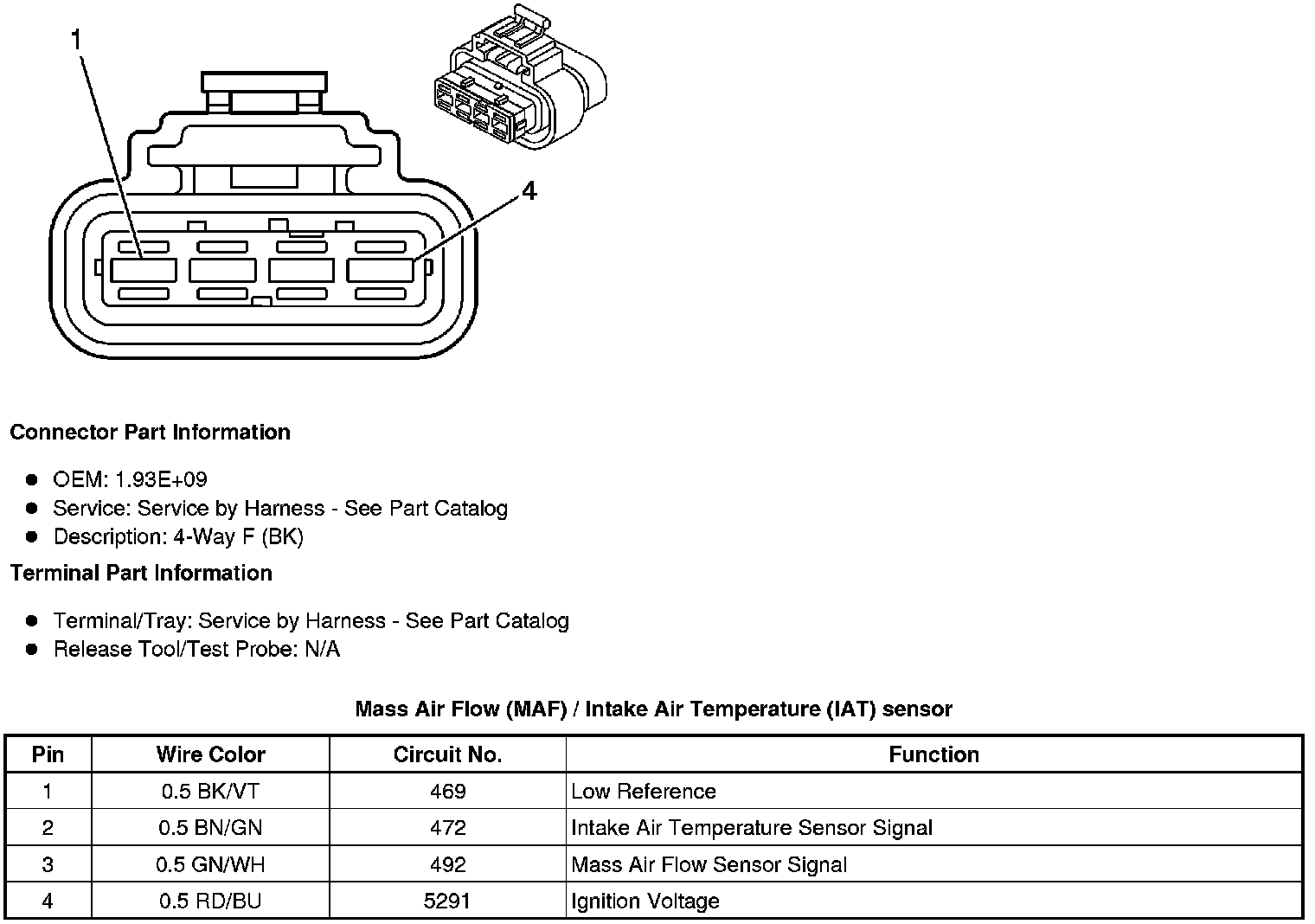

Component Connector End Views

Mass Air Flow (MAF) / Intake Air Temperature (IAT) sensor
