Variable Induction Position Sensor
Variable Induction Position Sensor
Component Connector End Views

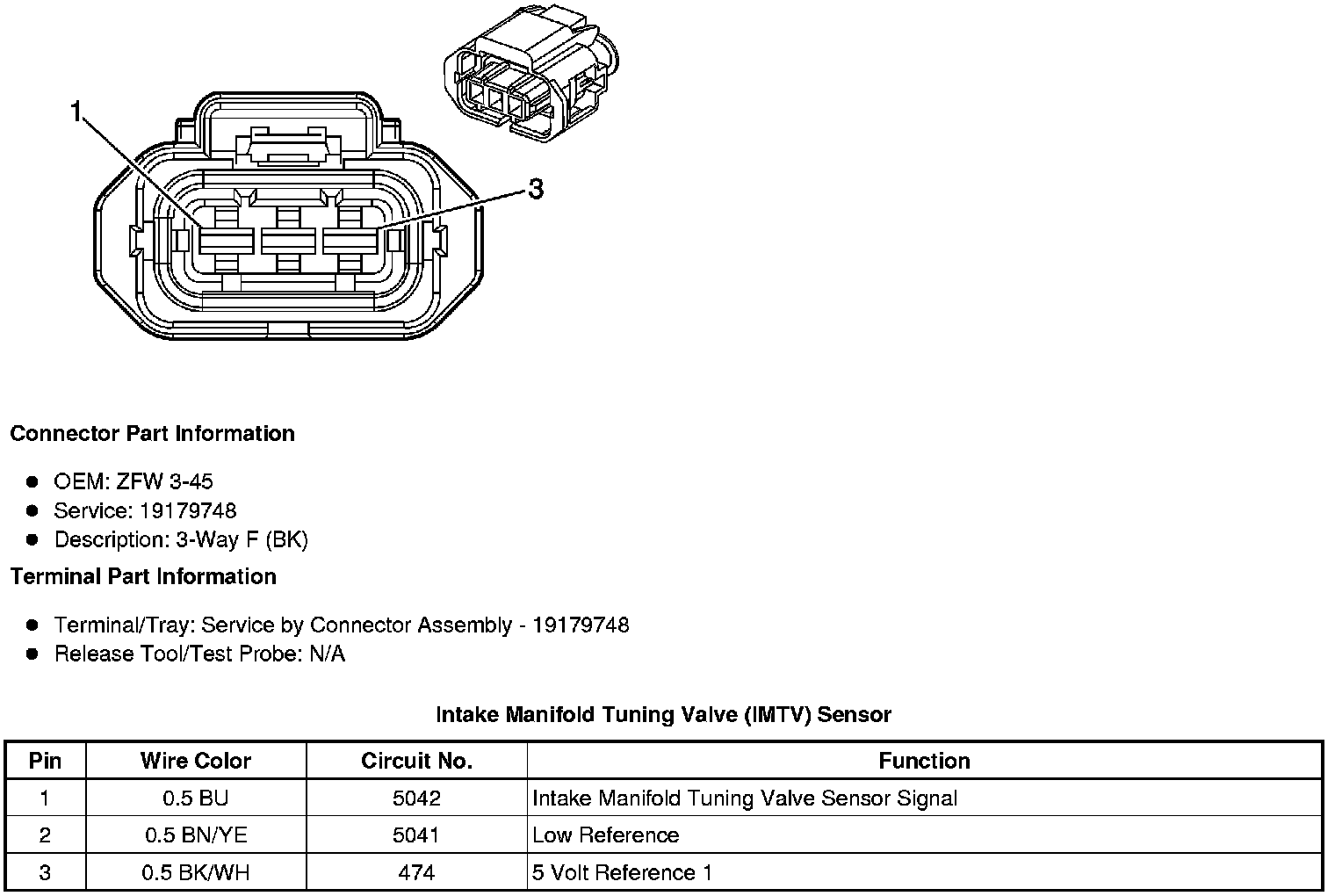

Intake Manifold Tuning Valve (IMTV) Sensor
