Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module




Component Connector End Views

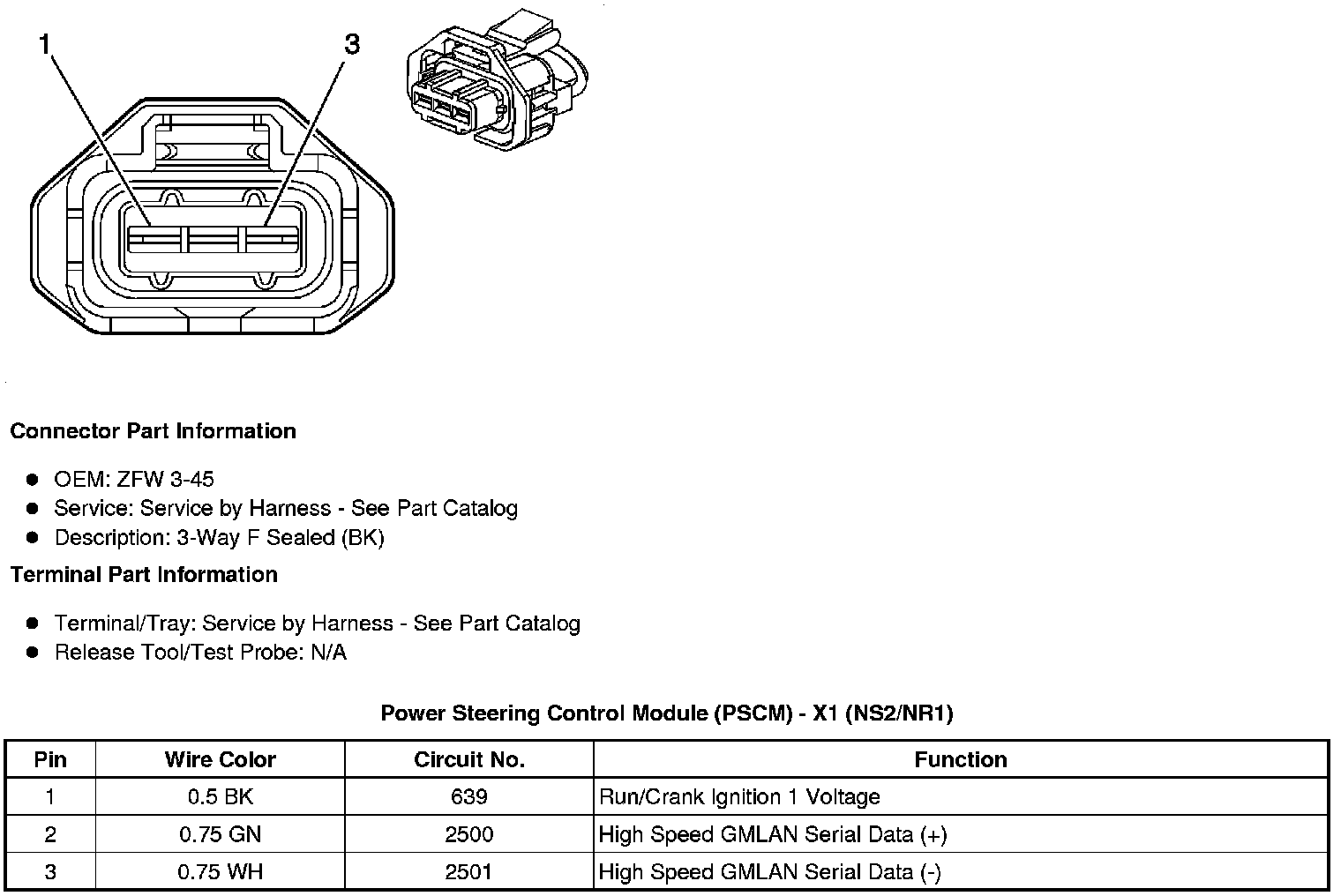

Power Steering Control Module (PSCM) - X1 (NS2/NR1)

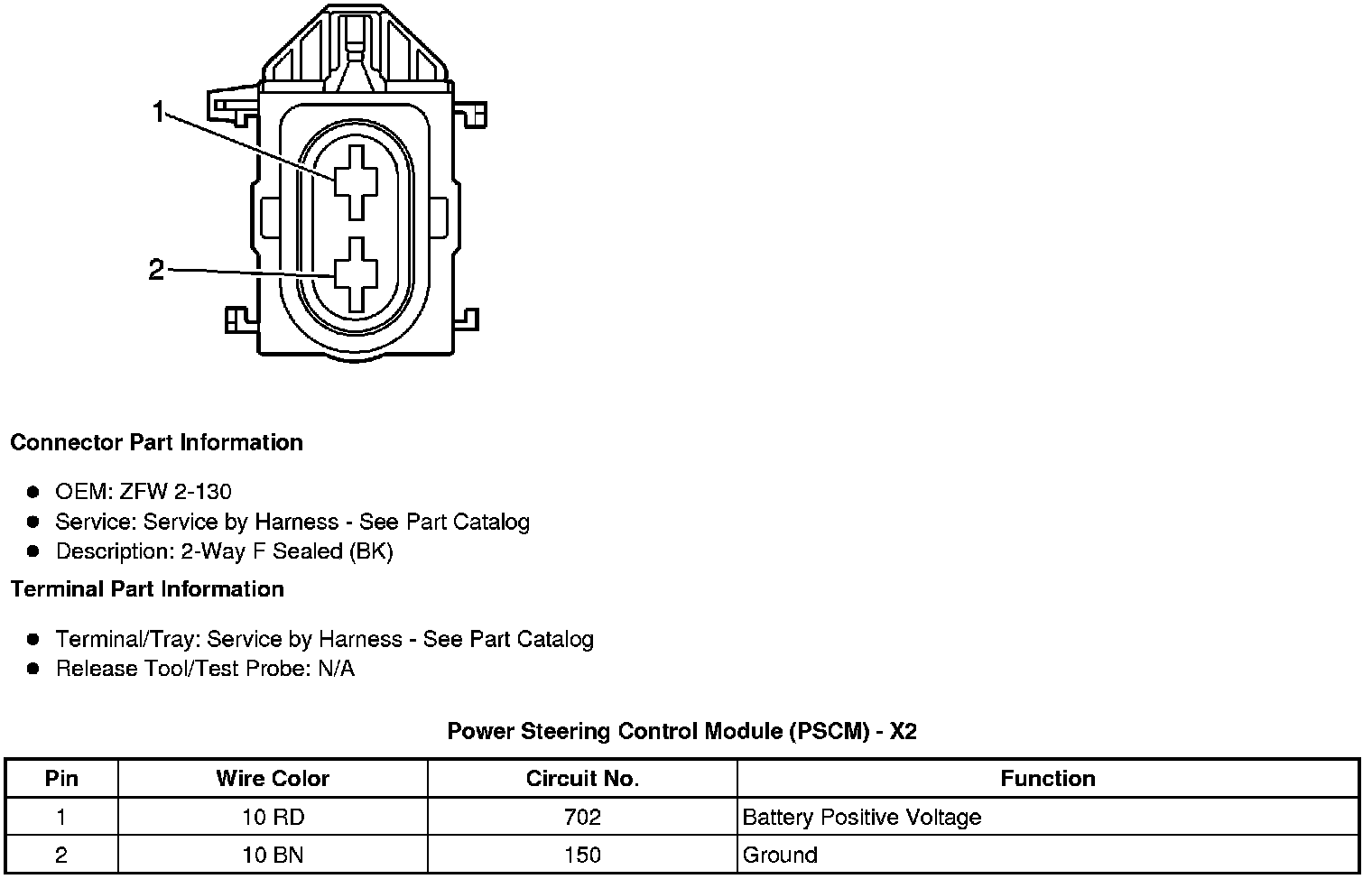

Power Steering Control Module (PSCM) - X2
