Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer

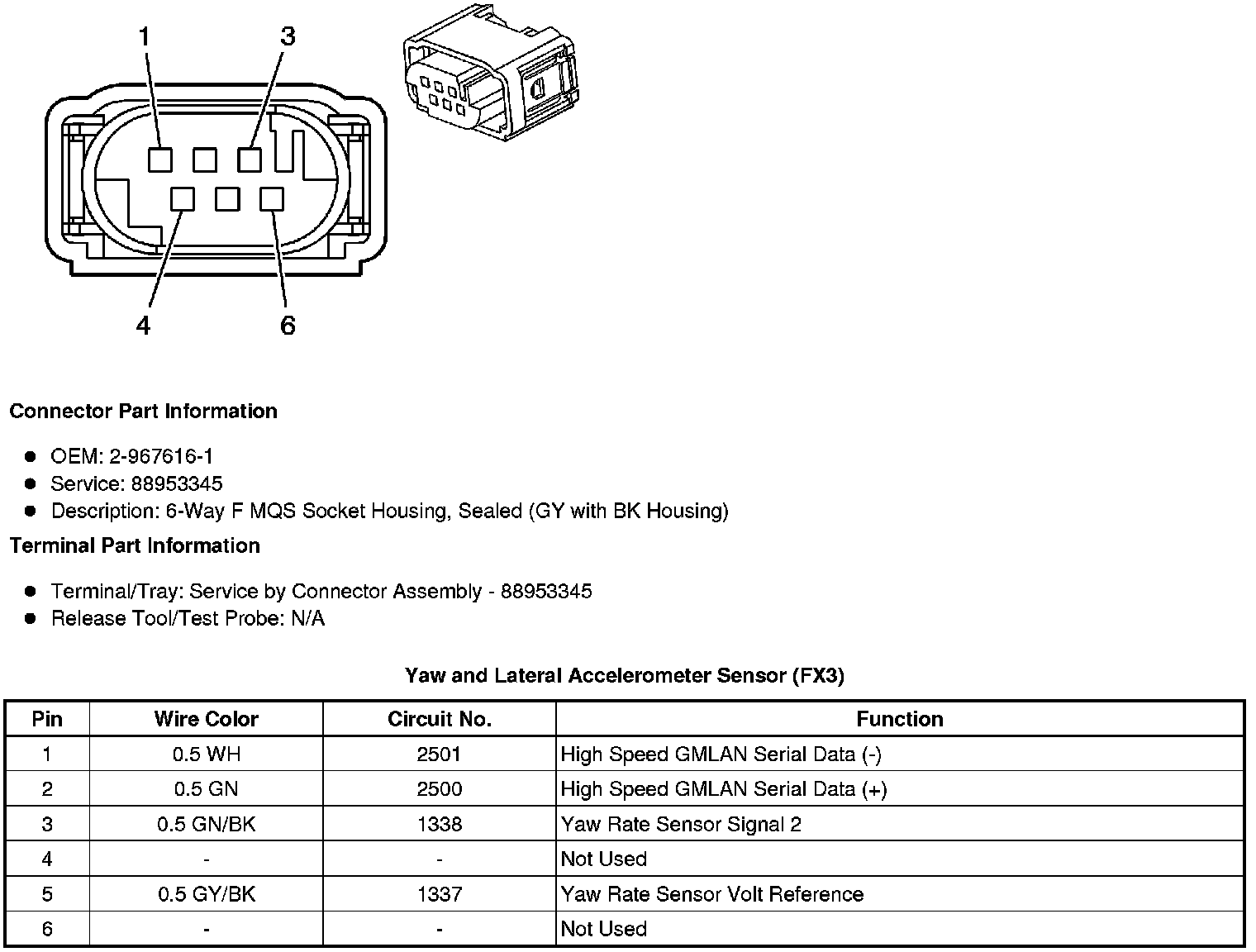

Component Connector End Views

Yaw and Lateral Accelerometer Sensor (FX3)
