Rear Toe Adjustment

Rear Toe Adjustment

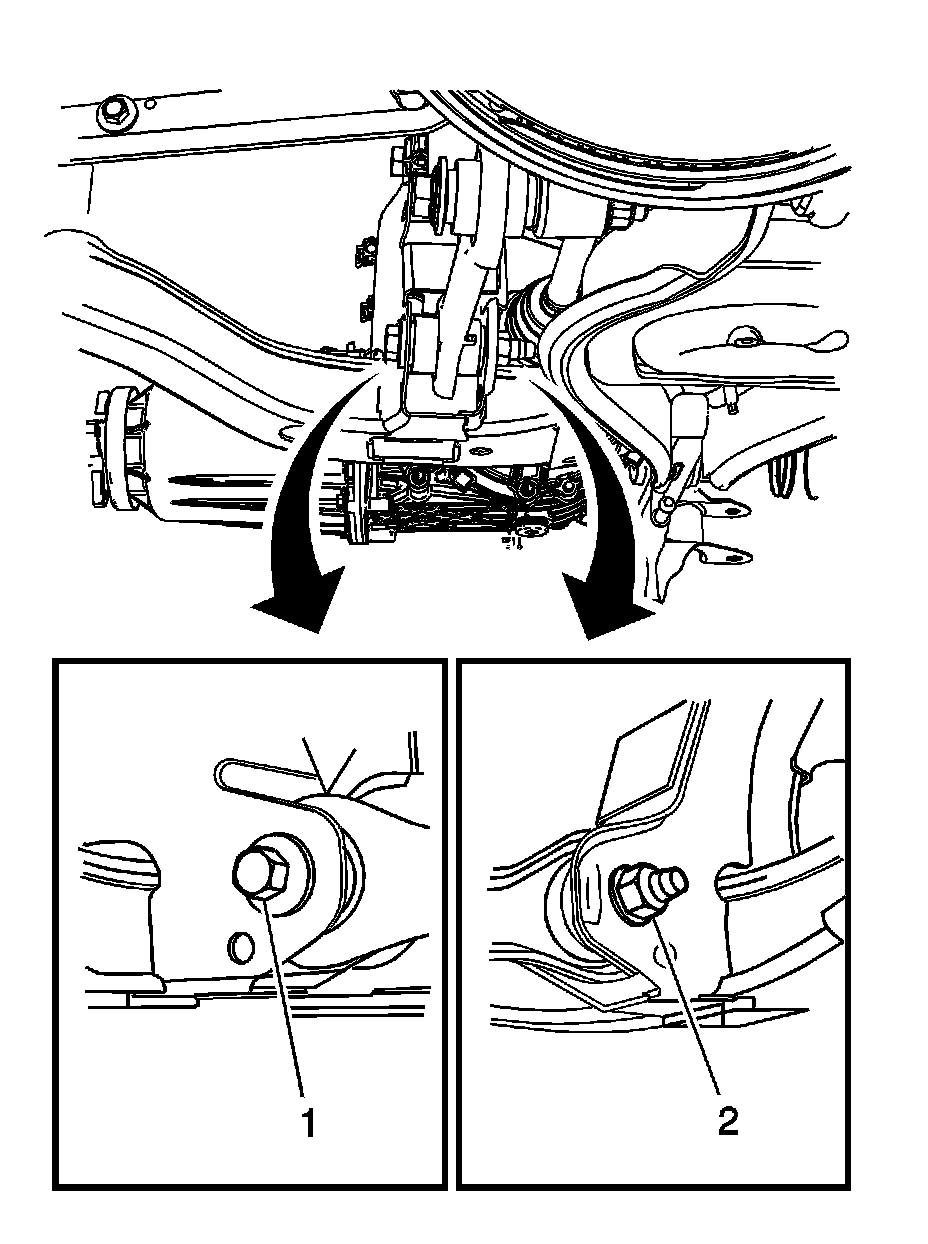

1. Loosen the adjustment link nut (2).
2. Rotate the adjustment link bolt (1) to adjust the toe setting.
3. Snug the adjustment link nut (2), do not tighten at this time.
4. Reinspect the rear toe specifications and adjust as necessary.
5. Hold the adjustment link bolt (1).

Notice: Refer to Fastener Notice (Fastener Notice) .

6. Tighten the adjustment link nut (2).

Tighten the adjustment link nut to 110 N.m (81 lb ft).

7. Repeat the procedure for the other rear wheel.
