VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>

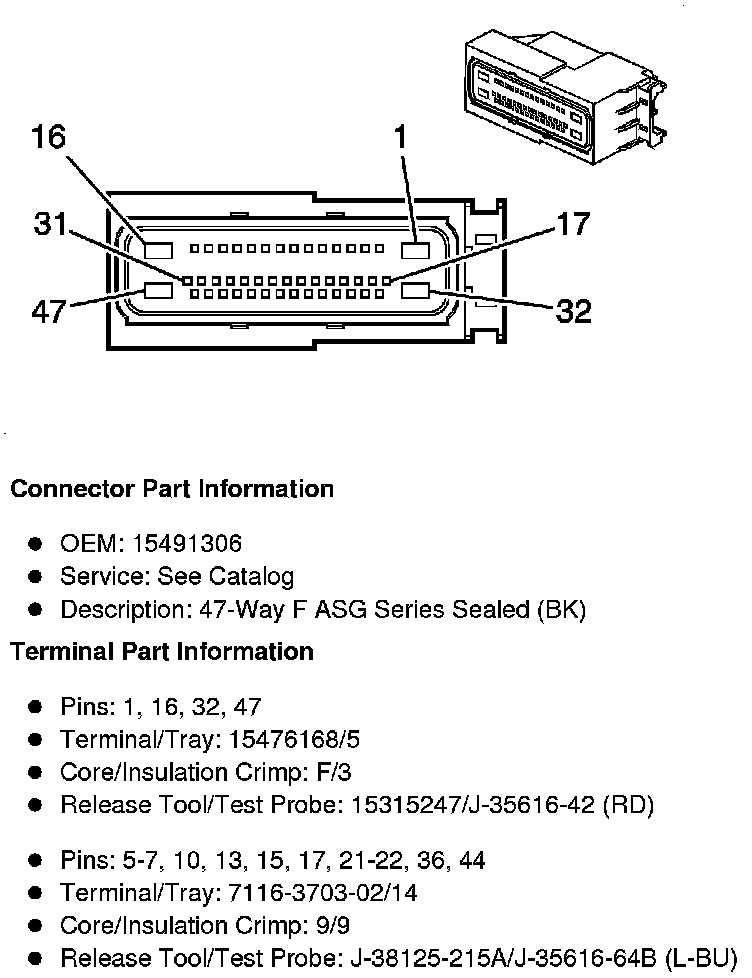

Connector Views
>>
Fuel Pressure Control Module

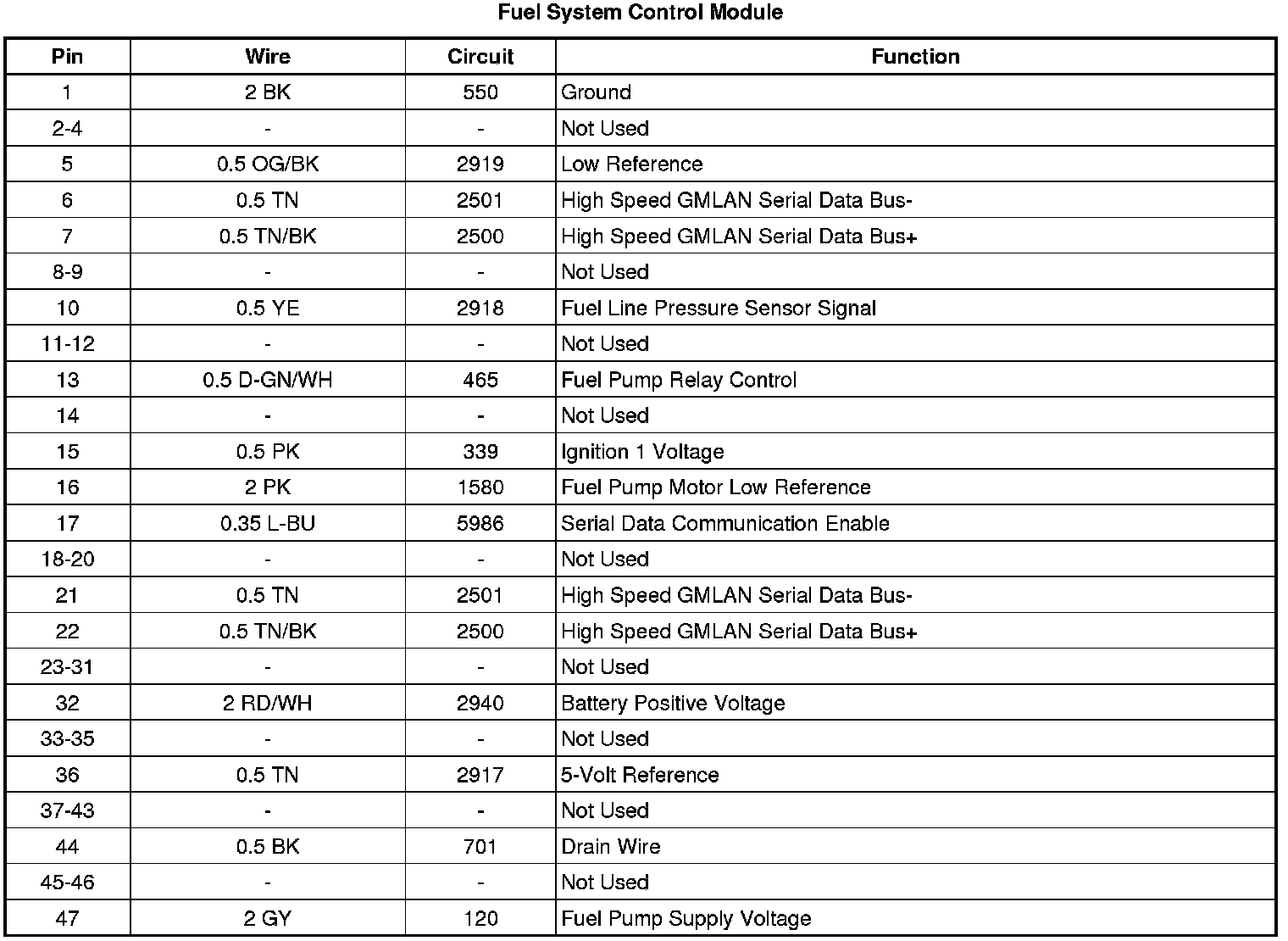

Fuel Pressure Control Module
Fuel Pump Flow Control Module
