Saturn
>>
2008
>>
VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
Control Unit, Differential Lock

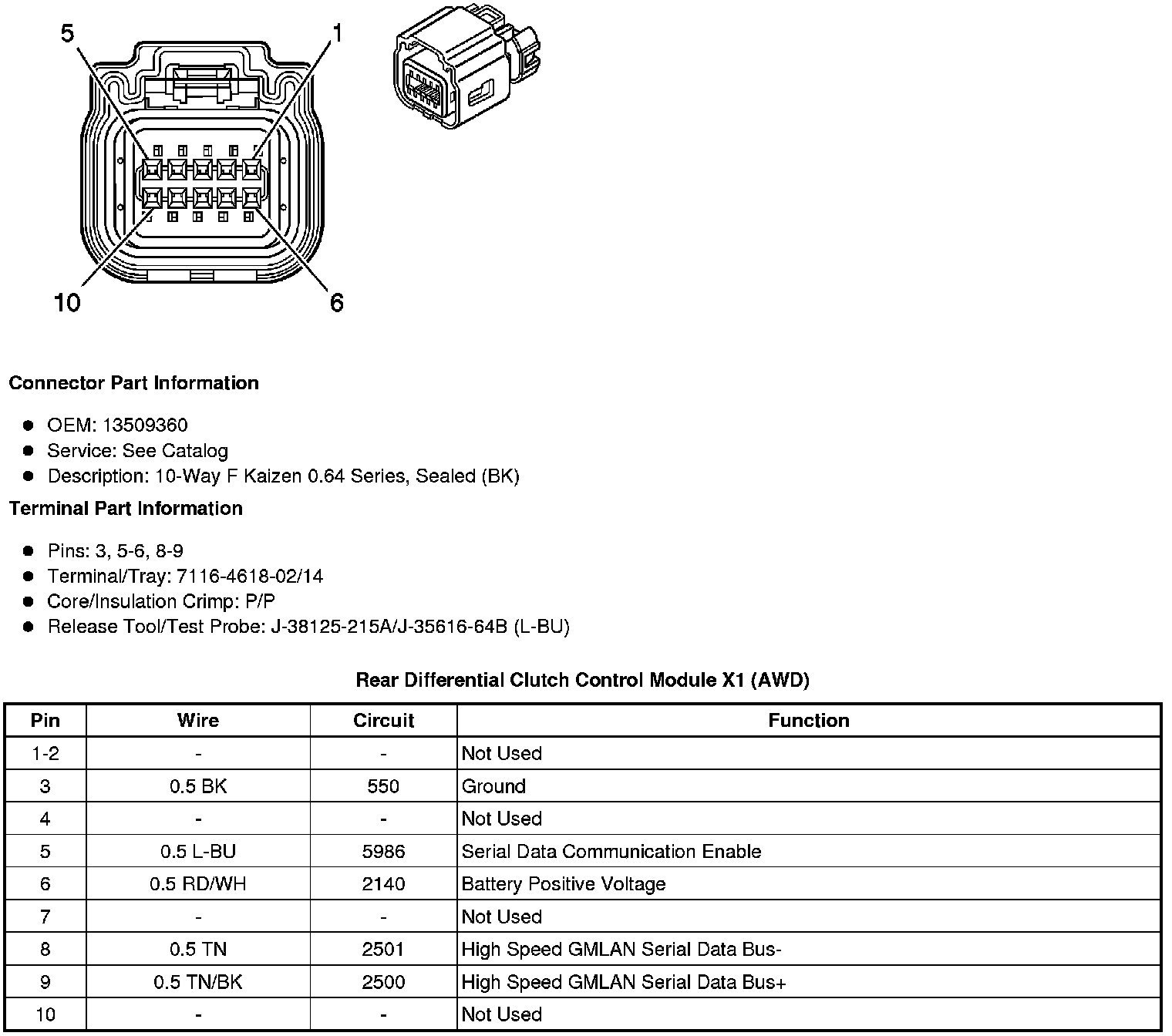

Rear Differential Clutch Control Module X1 (AWD)

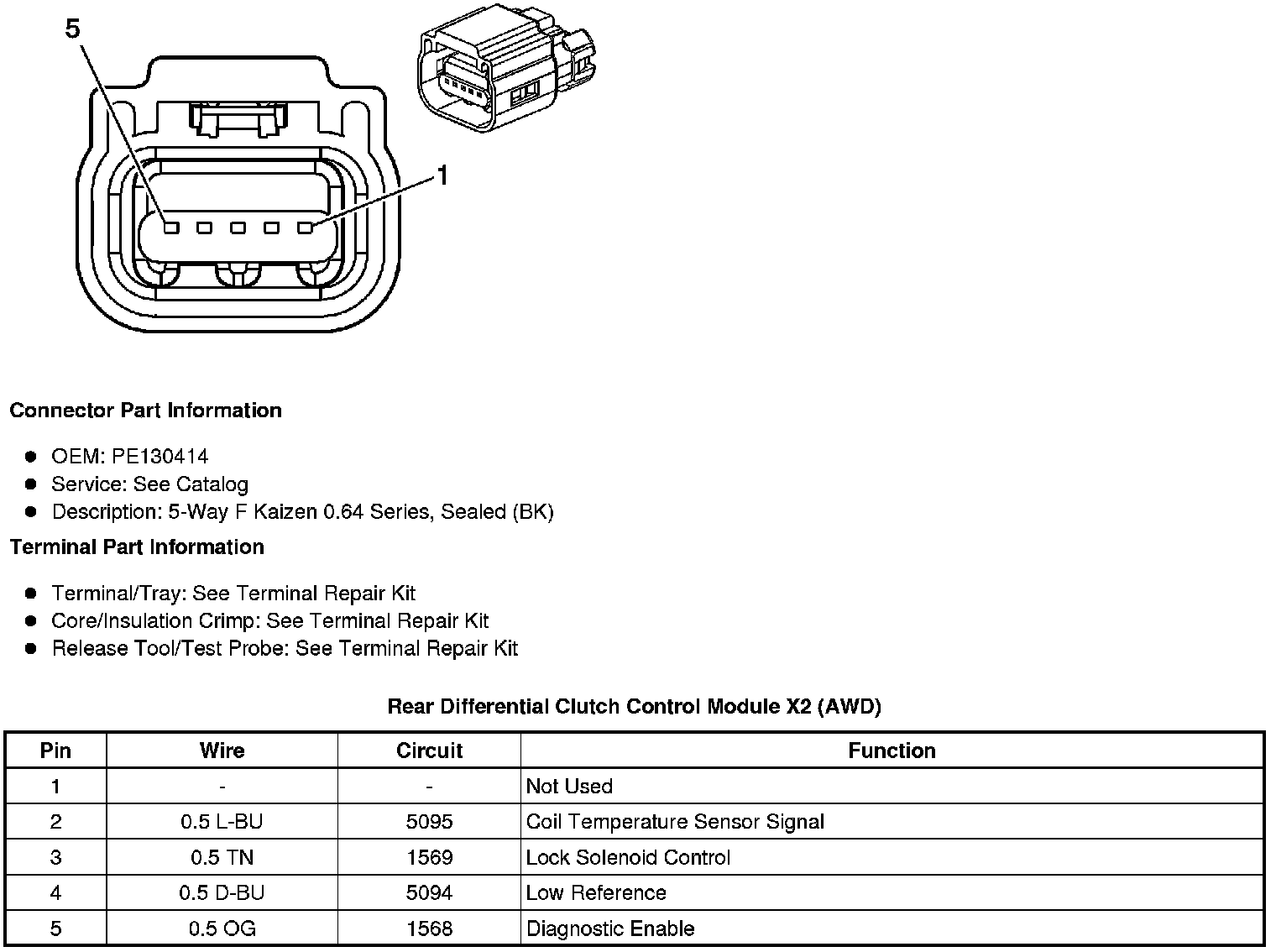

Rear Differential Clutch Control Module X2 (AWD)
