Transmission Position Sensor/Switch: Diagrams



Component Connector End Views

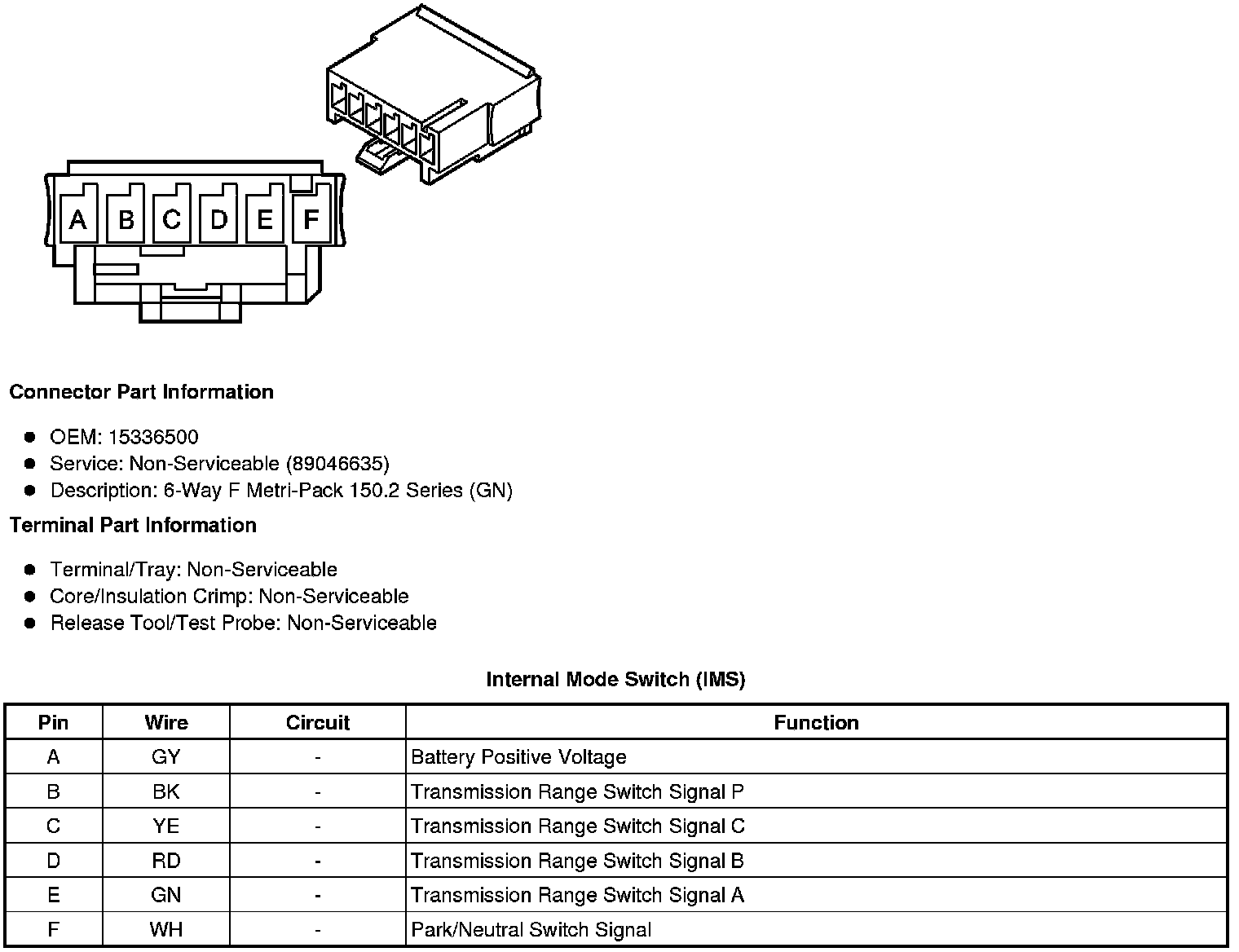

Internal Mode Switch (IMS)

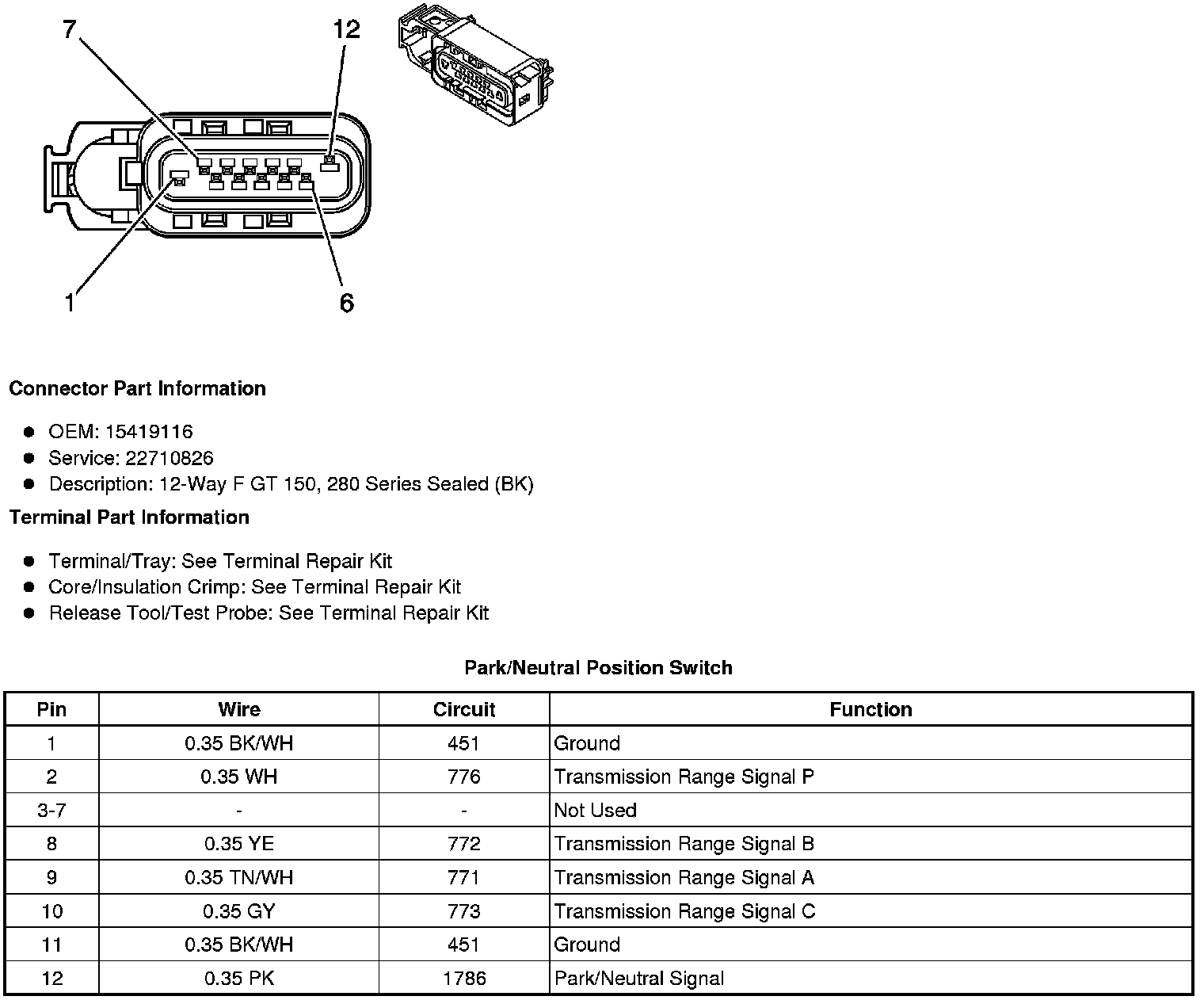

Park/Neutral Position Switch
