Fuel Level Sensor: Diagrams
Component Connector End Views
Fuel Pump and Sender Assembly (LAT)

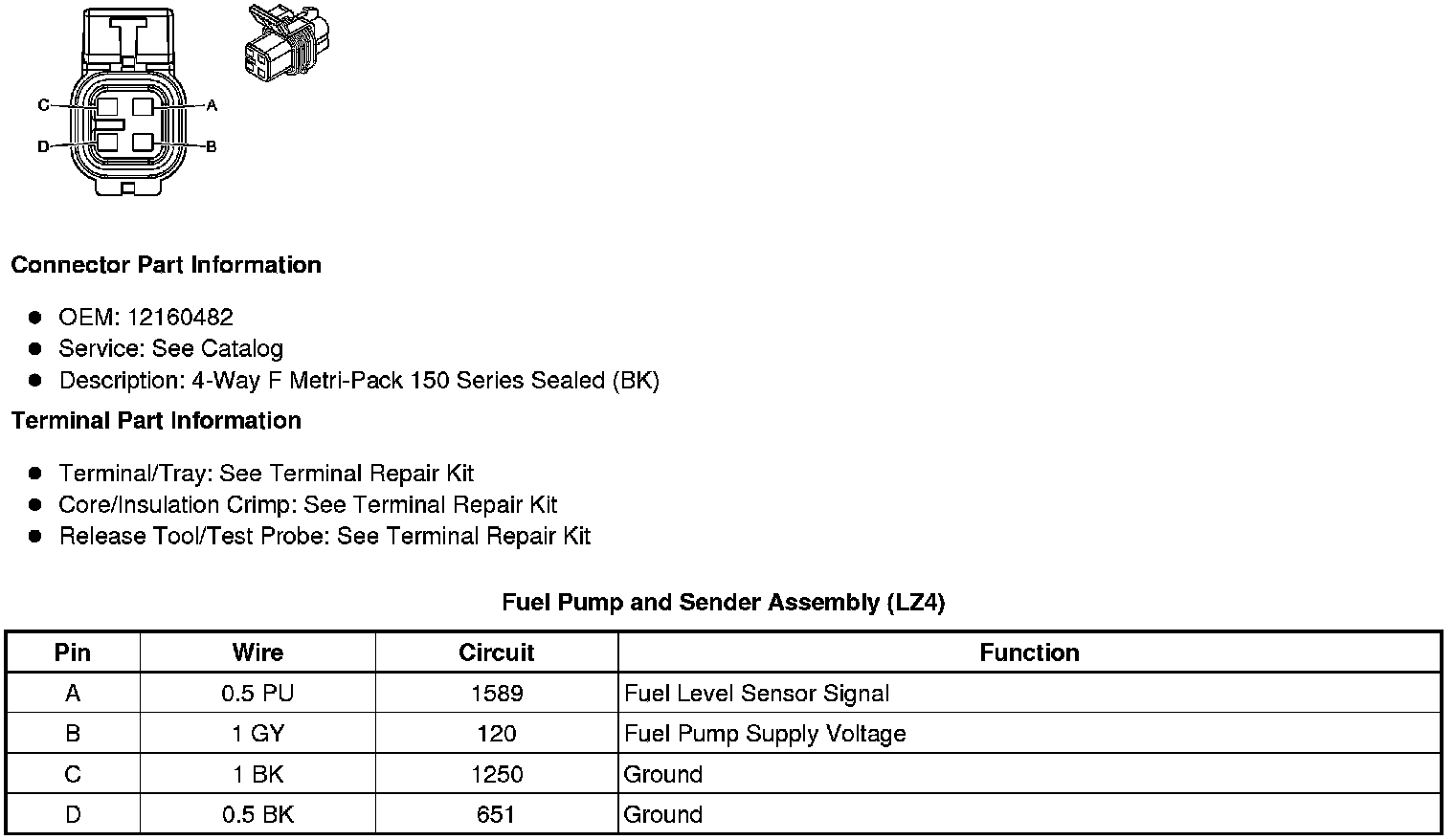

Fuel Pump and Sender Assembly (LZ4)
