Connector Views



Component Connector End Views

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LAT/LE5)

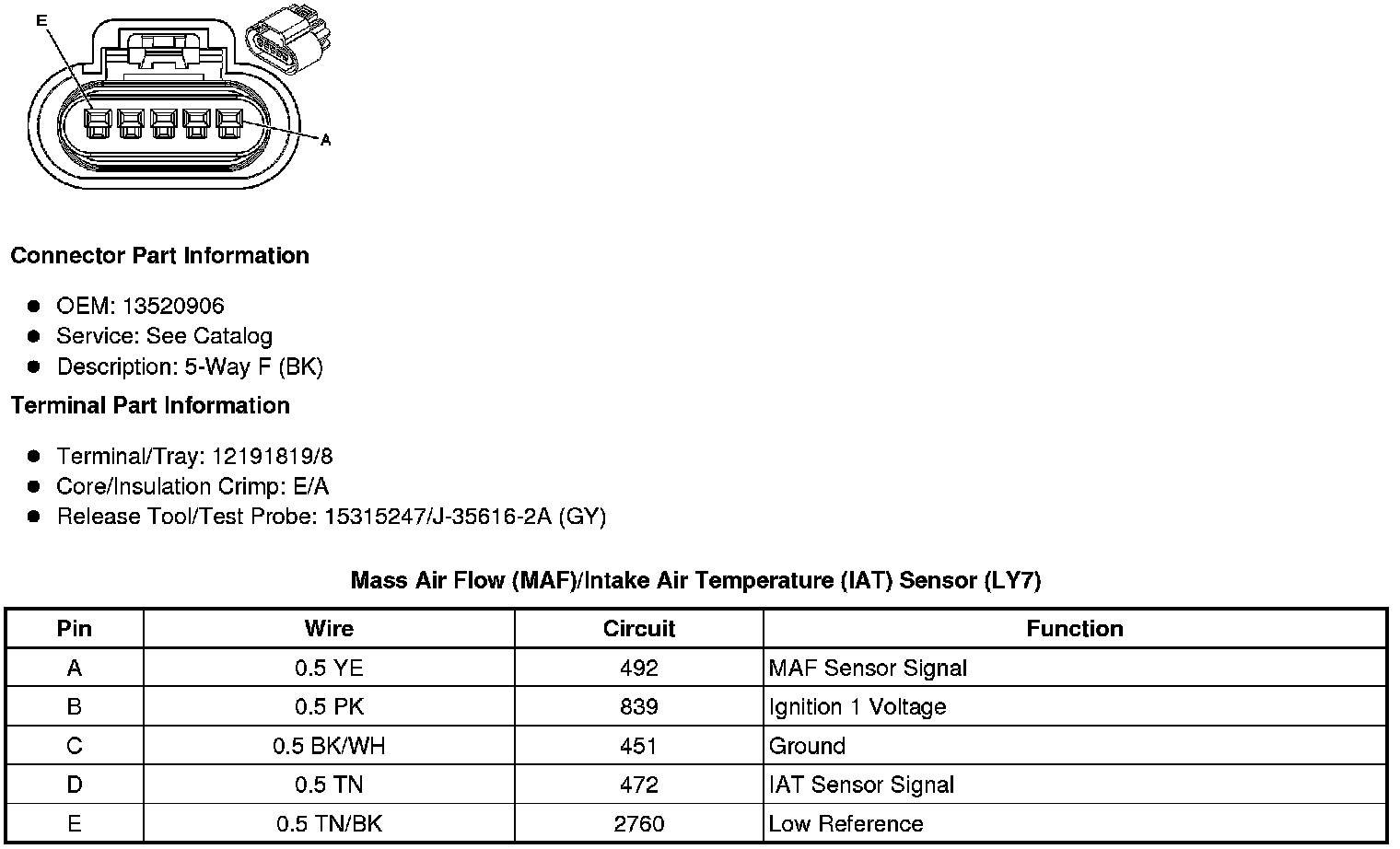

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LY7)






Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LZ4)
