Home >> Saturn >> 2008 >> Aura L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module



Component Connector End Views

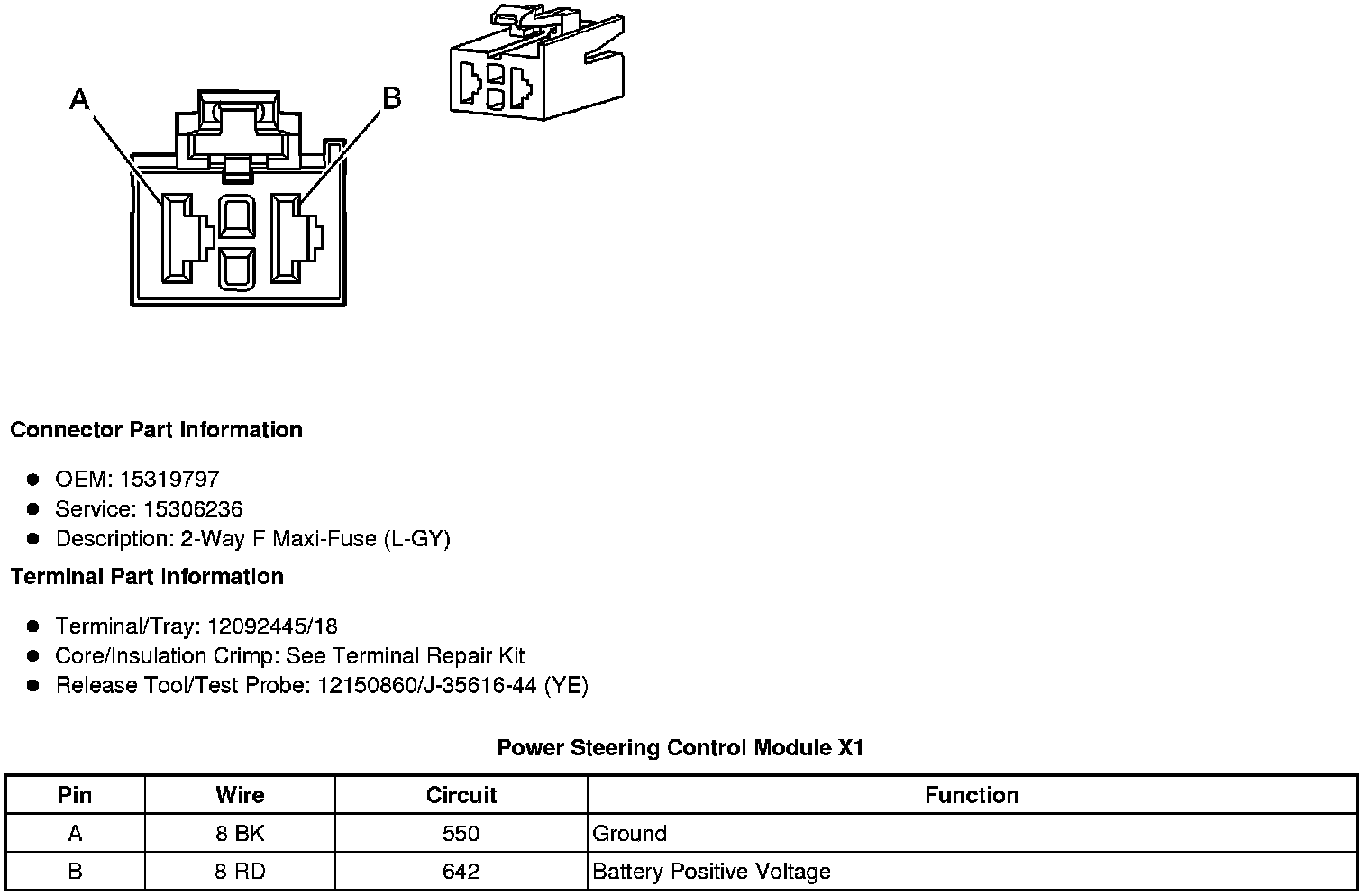

Power Steering Control Module X1

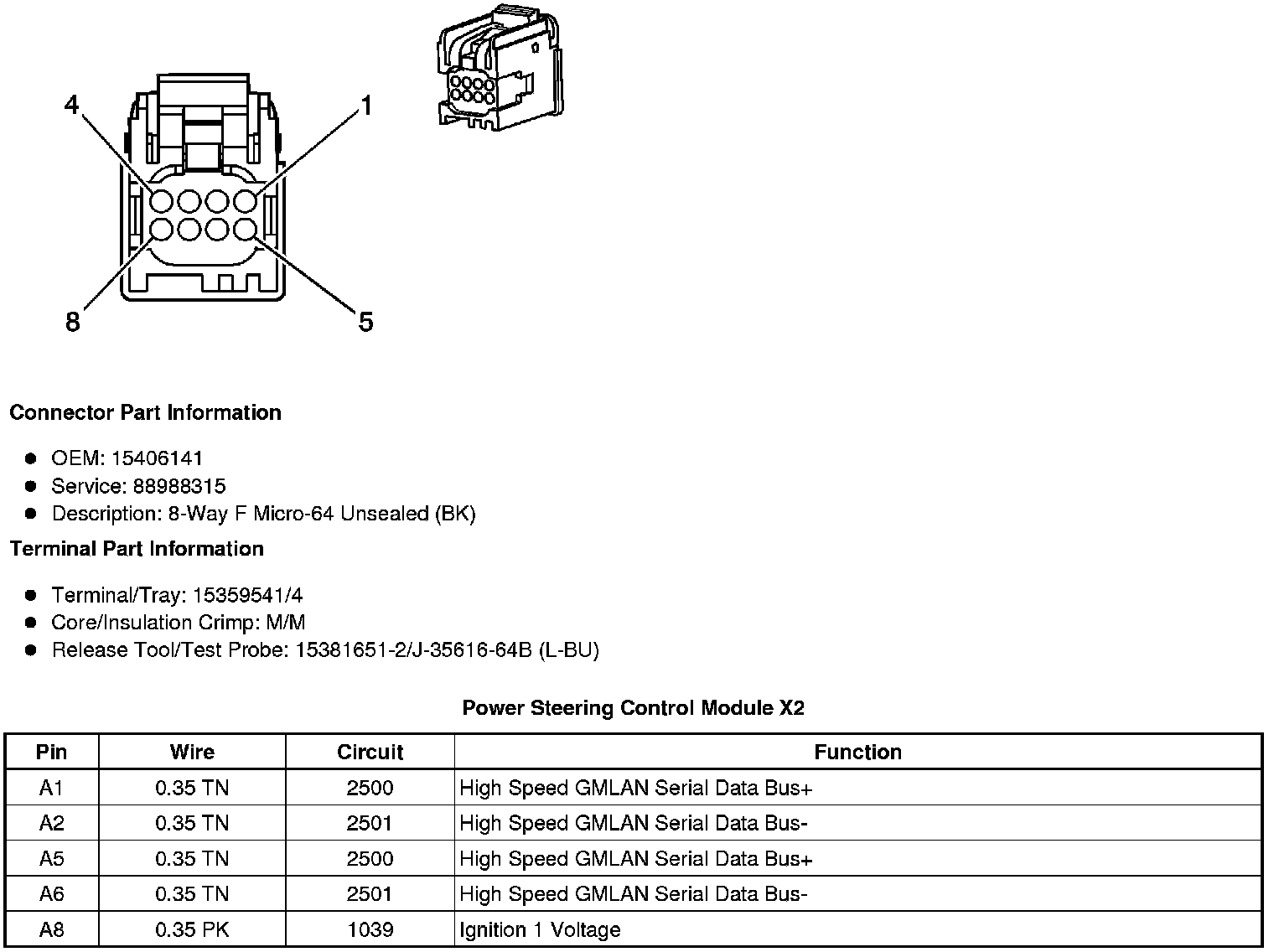

Power Steering Control Module X2

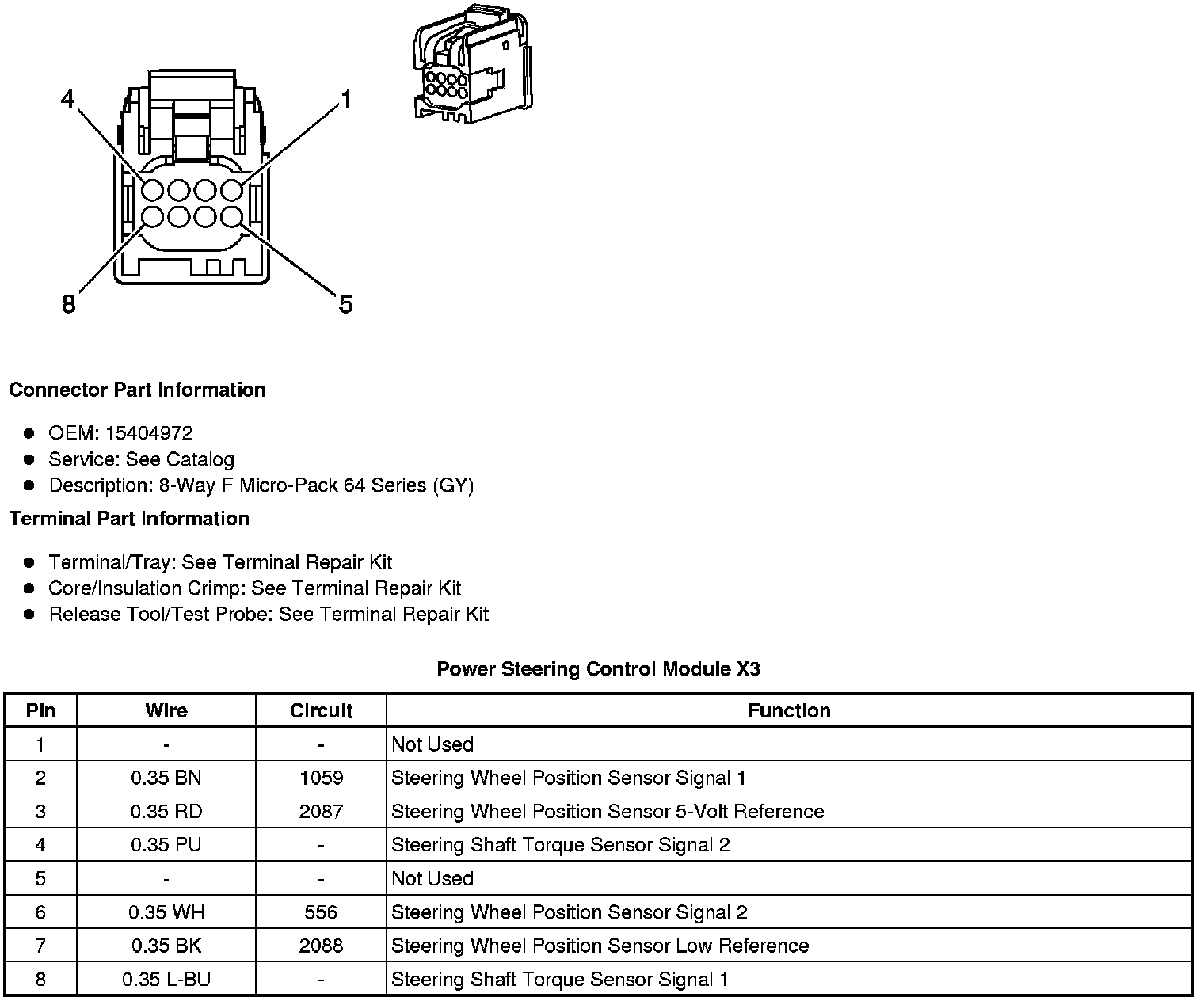

Power Steering Control Module X3
