Home >> Saturn >> 2008 >> Aura L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T



Component Connector End Views

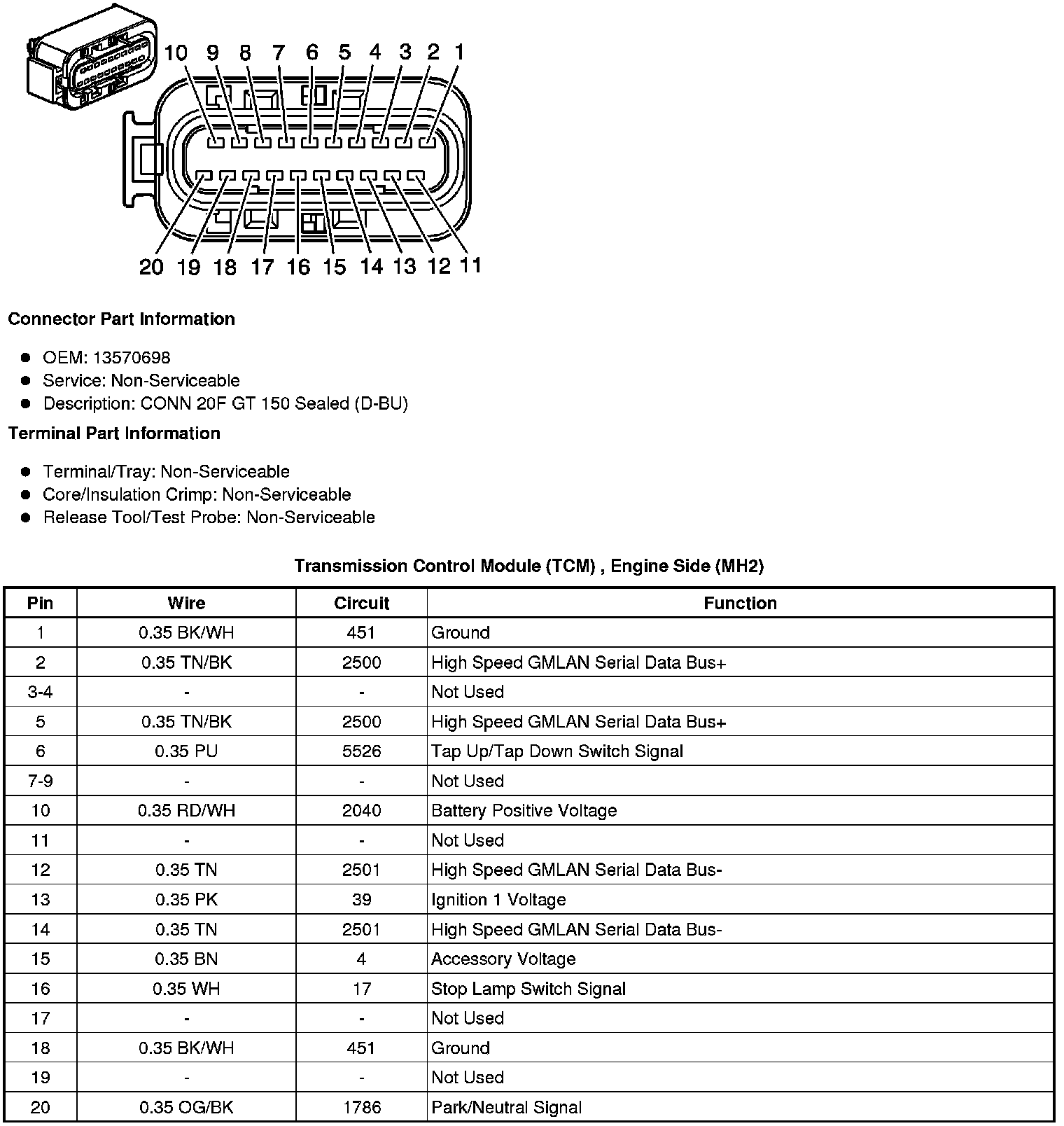

Transmission Control Module (TCM), Engine Side (MH2)

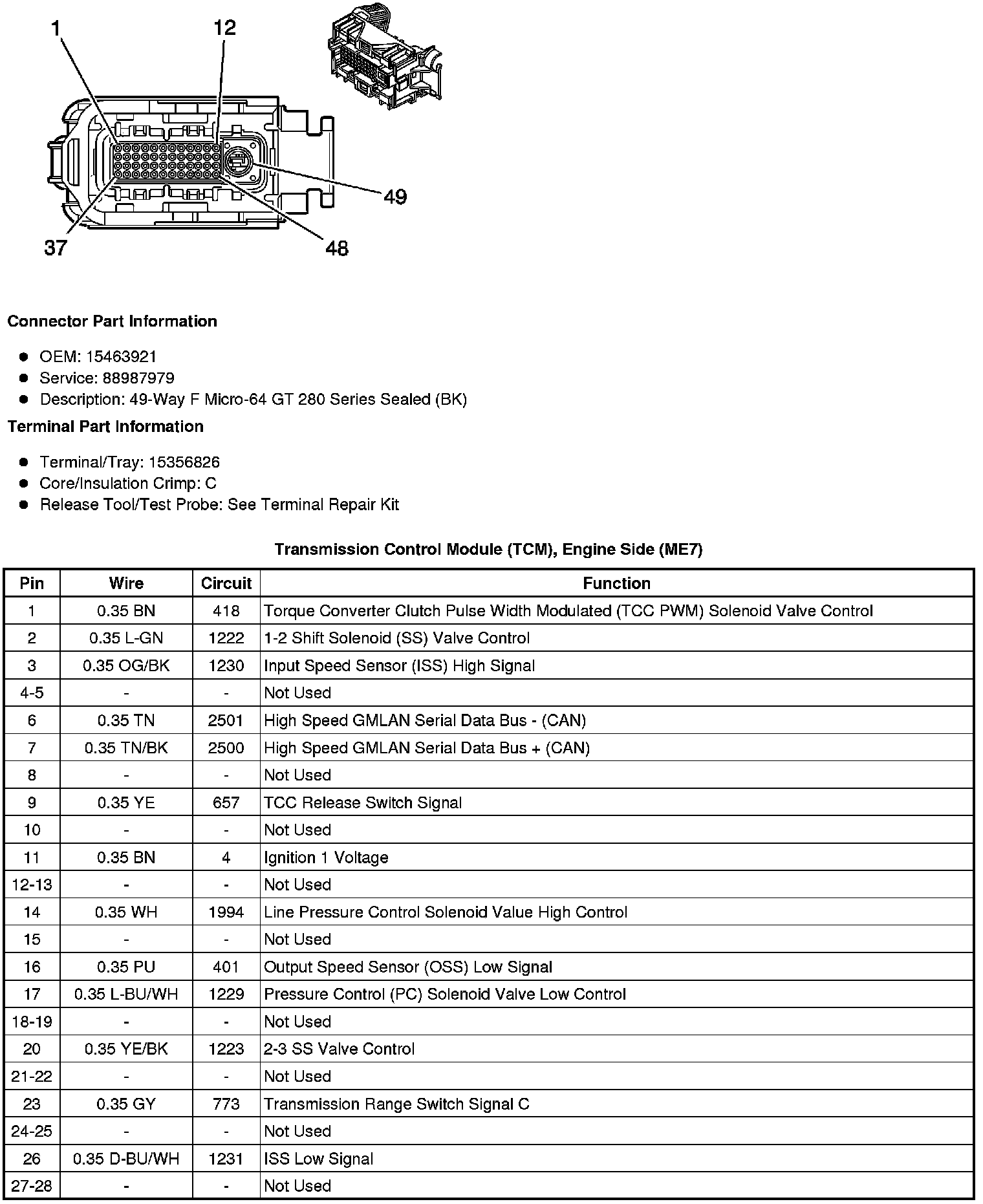

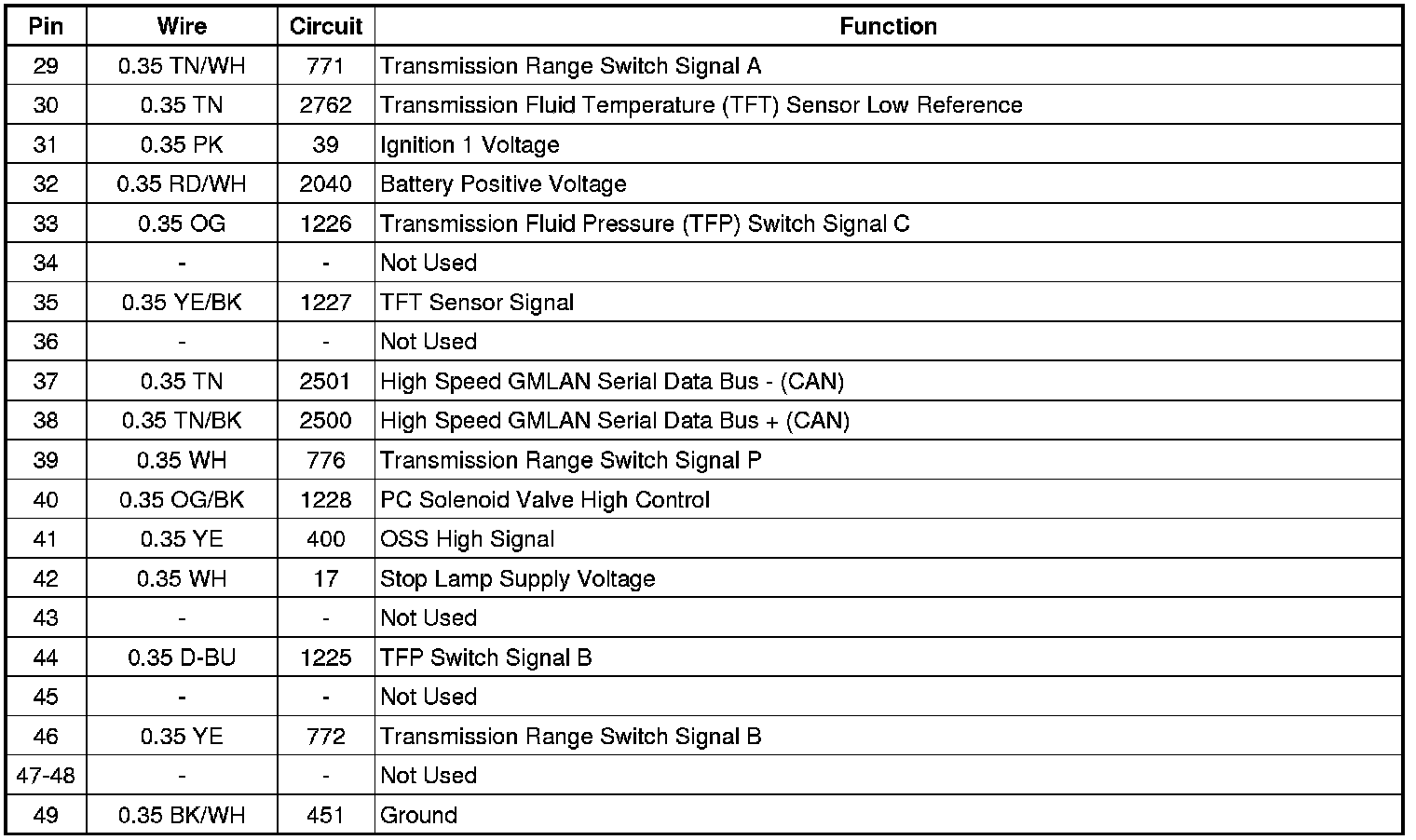

Transmission Control Module (TCM), Engine Side (ME7)

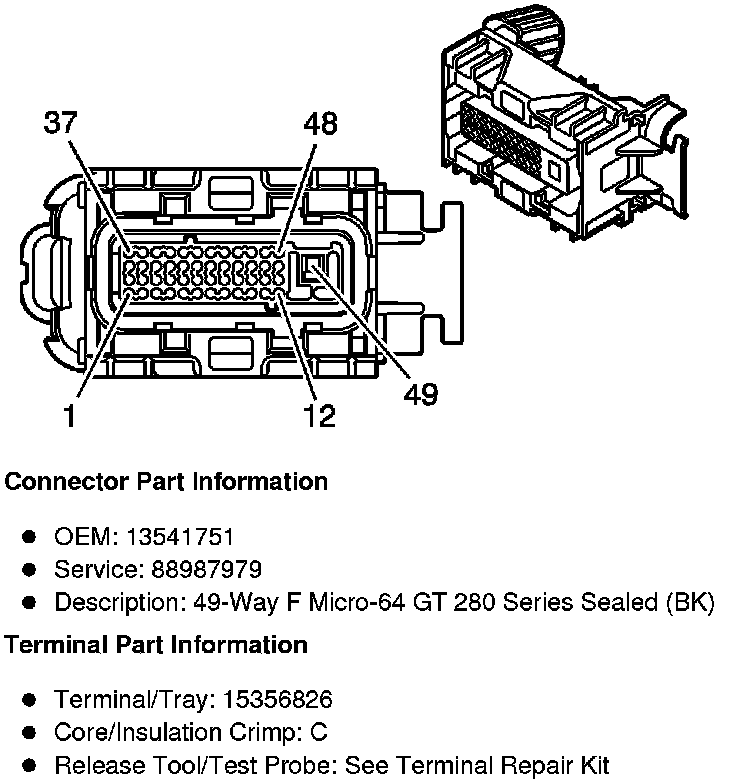

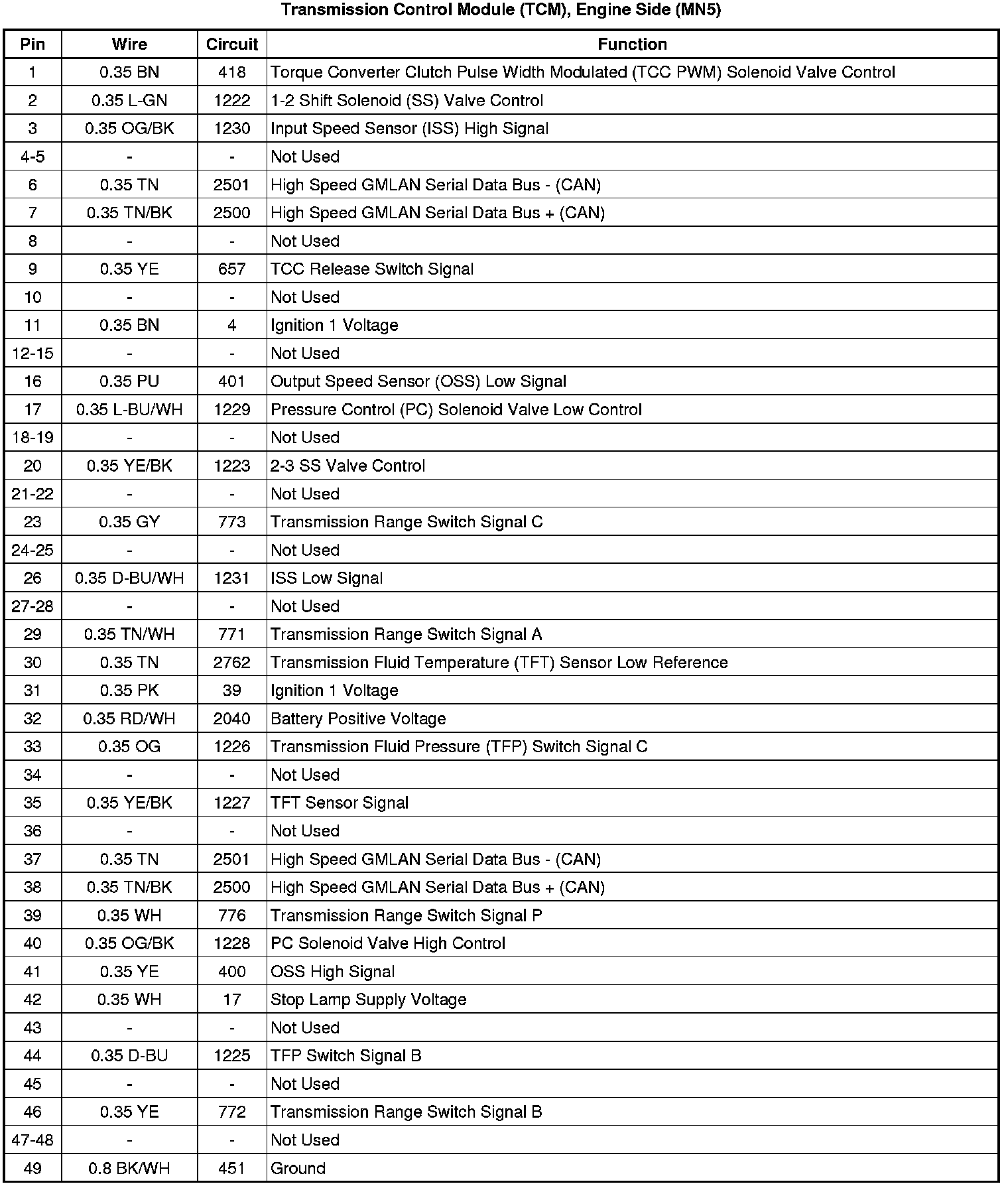

Transmission Control Module (TCM), Engine Side (MN5)
