Home >> Saturn >> 2008 >> Aura L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Powertrain Management >> Engine Control Module

Engine Control Module



Component Connector End Views

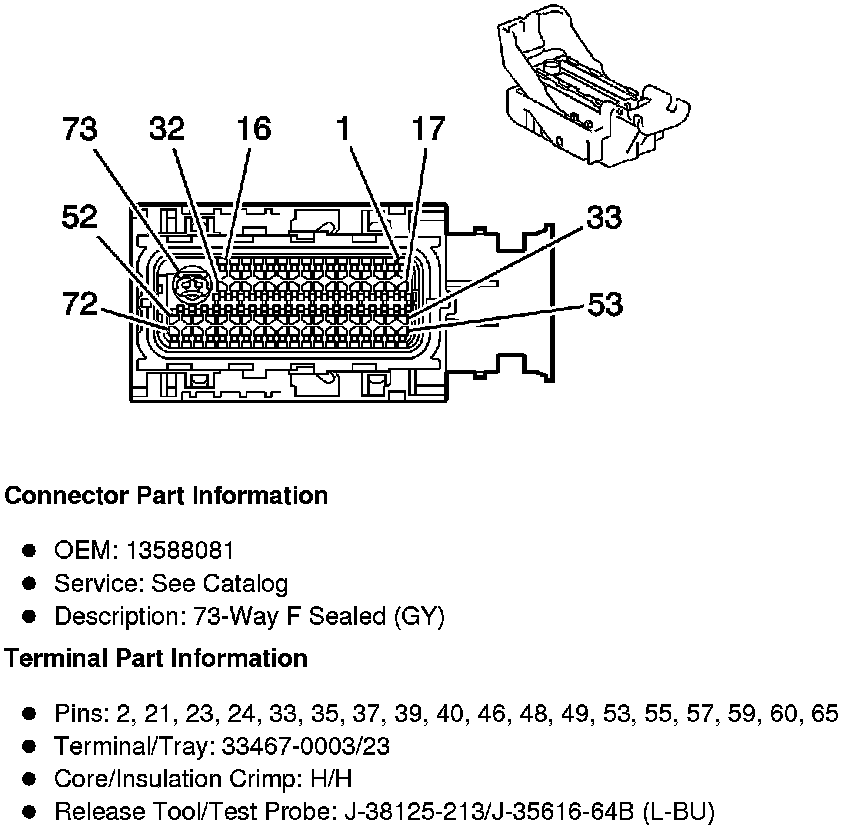

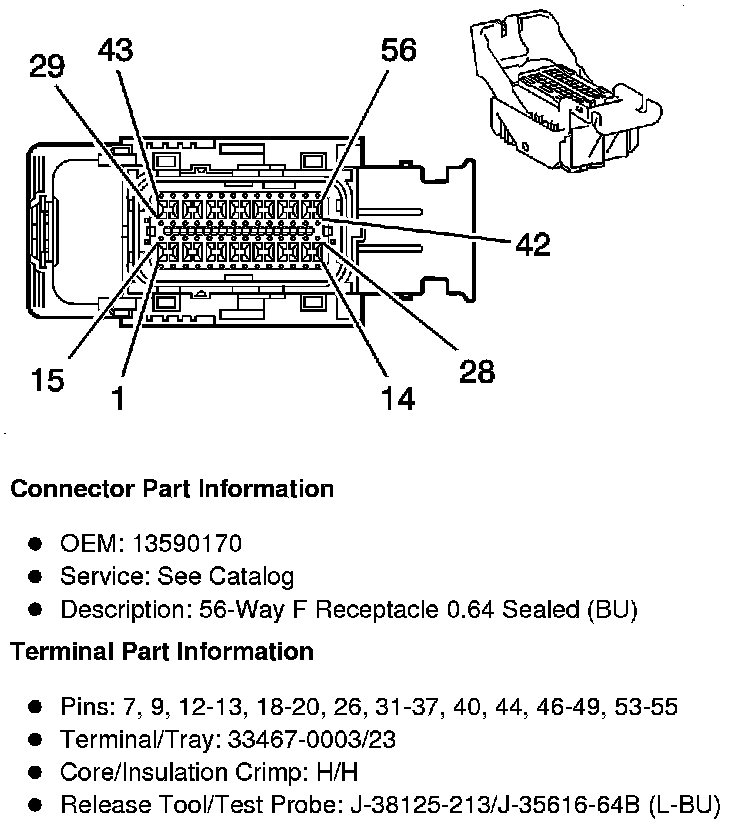

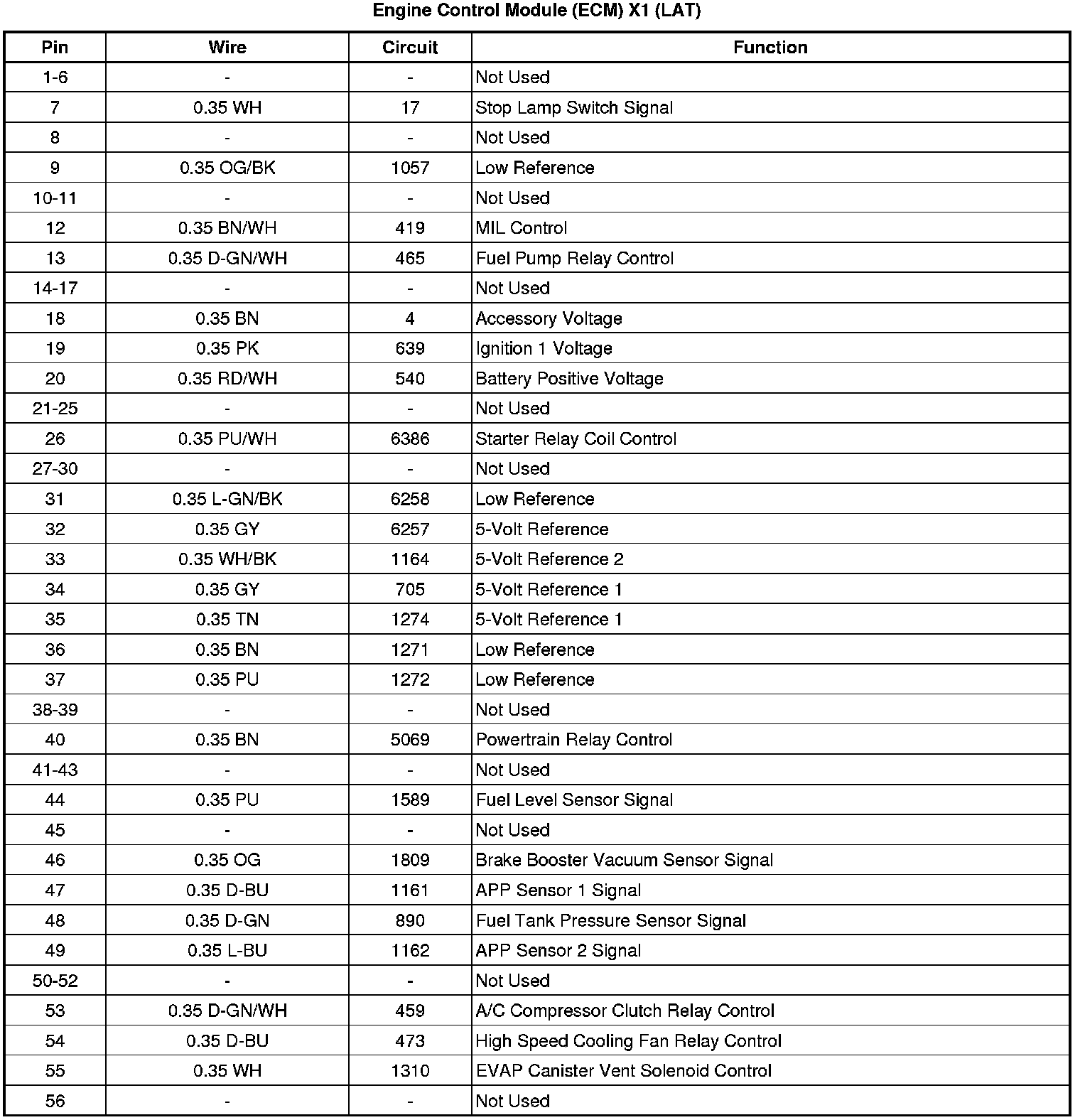

Engine Control Module (ECM) X1 (LAT)

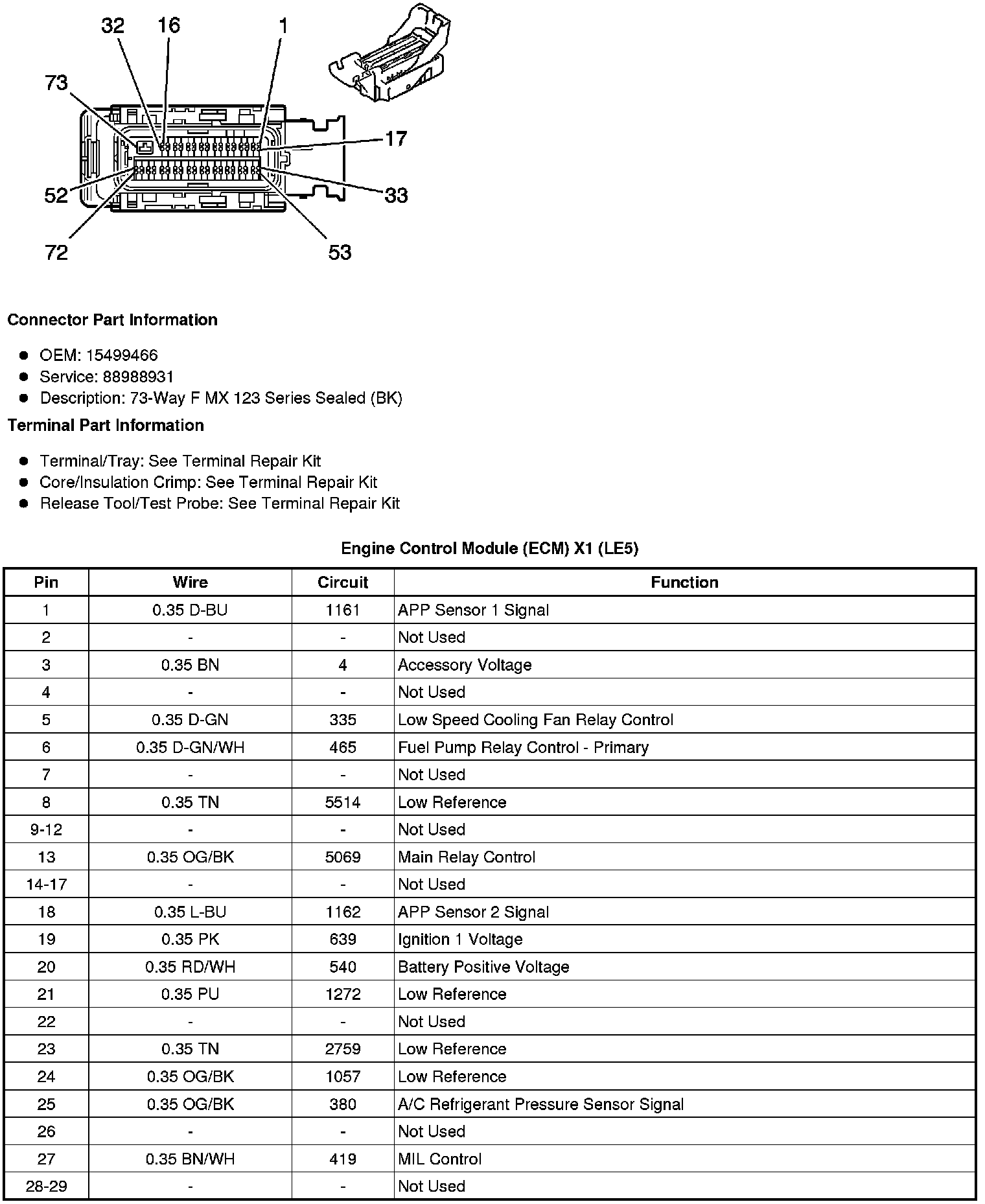

Engine Control Module (ECM) X1 (LE5)

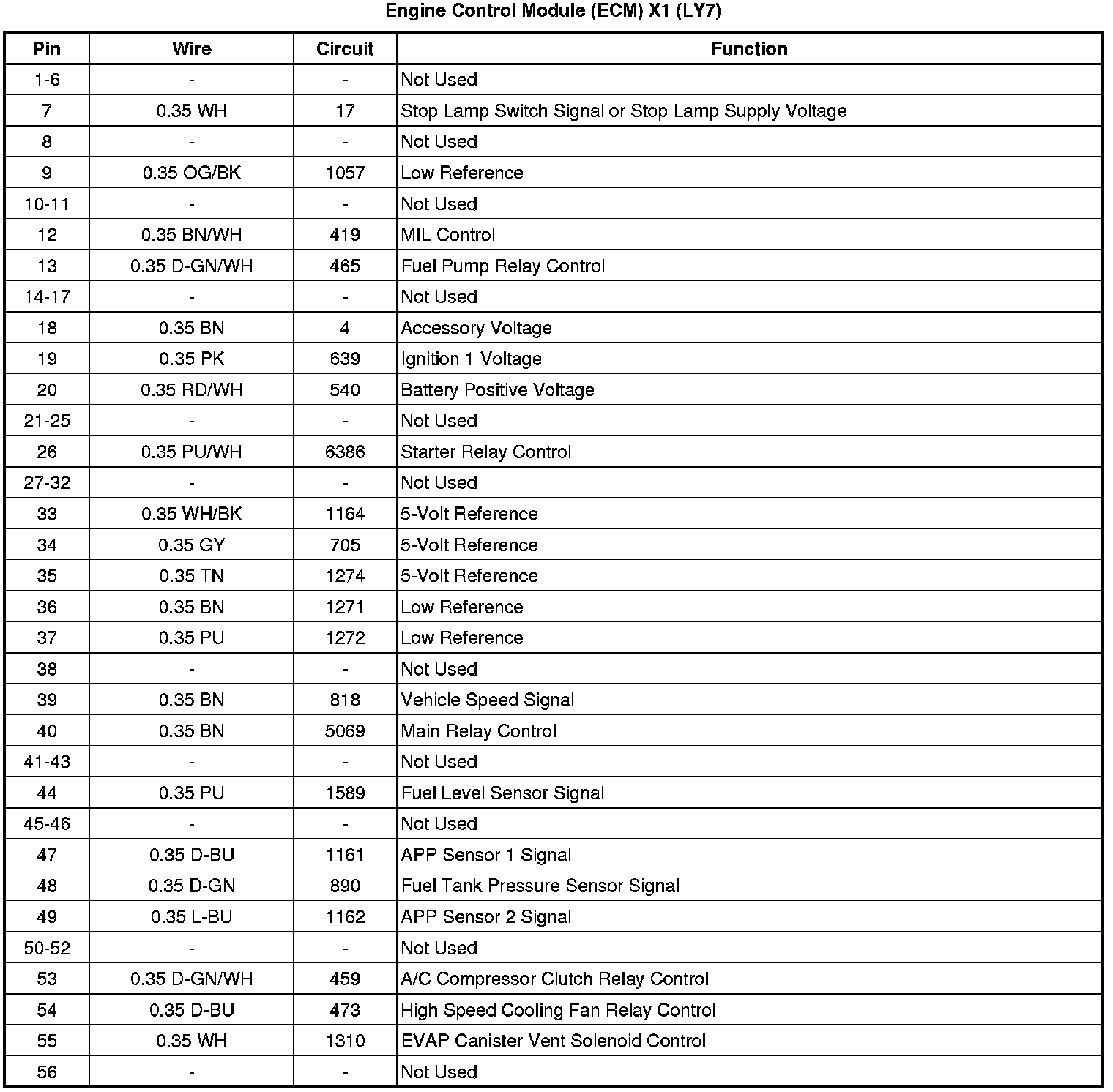

Engine Control Module (ECM) X1 (LY7)

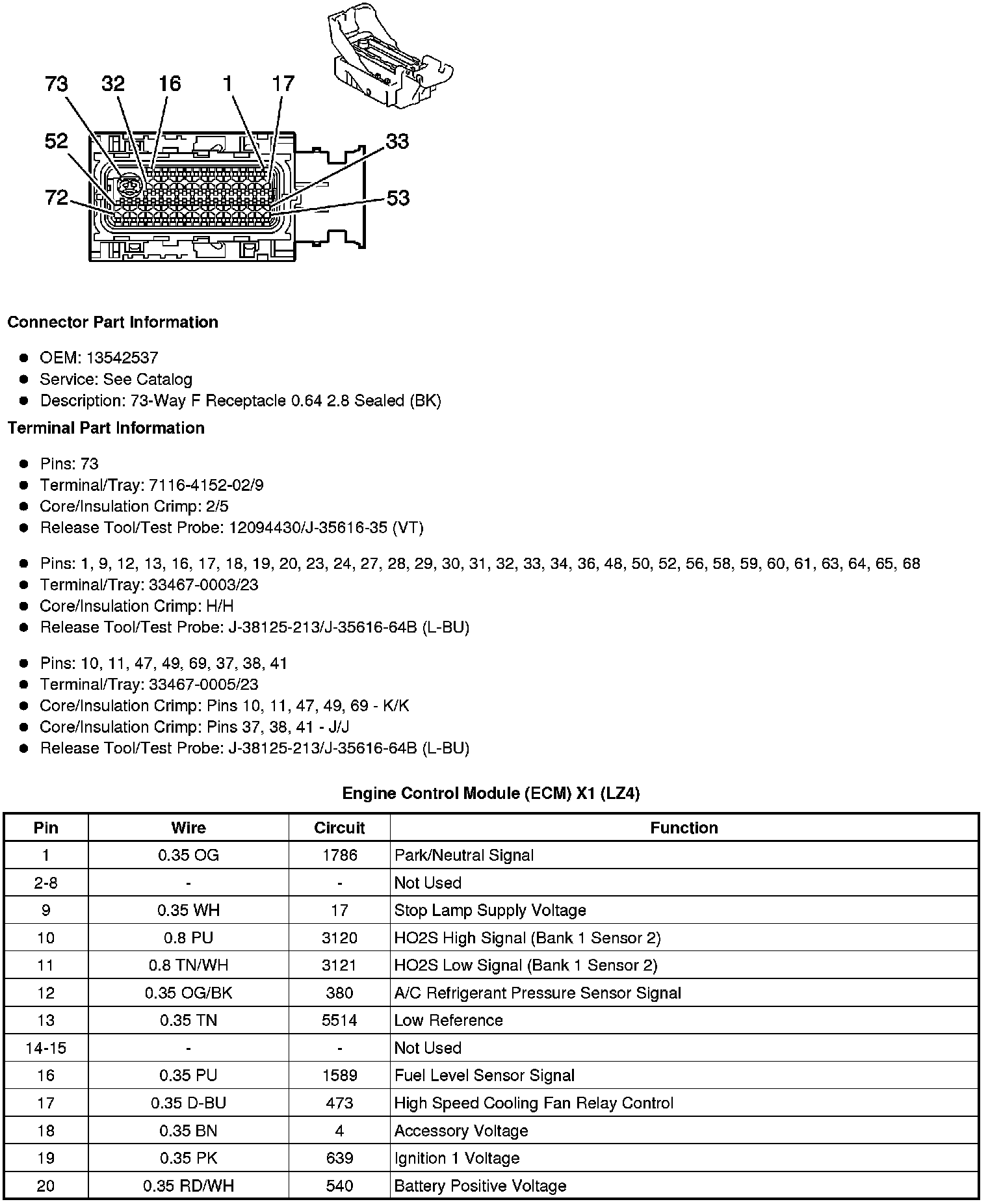

Engine Control Module (ECM) X1 (LZ4)

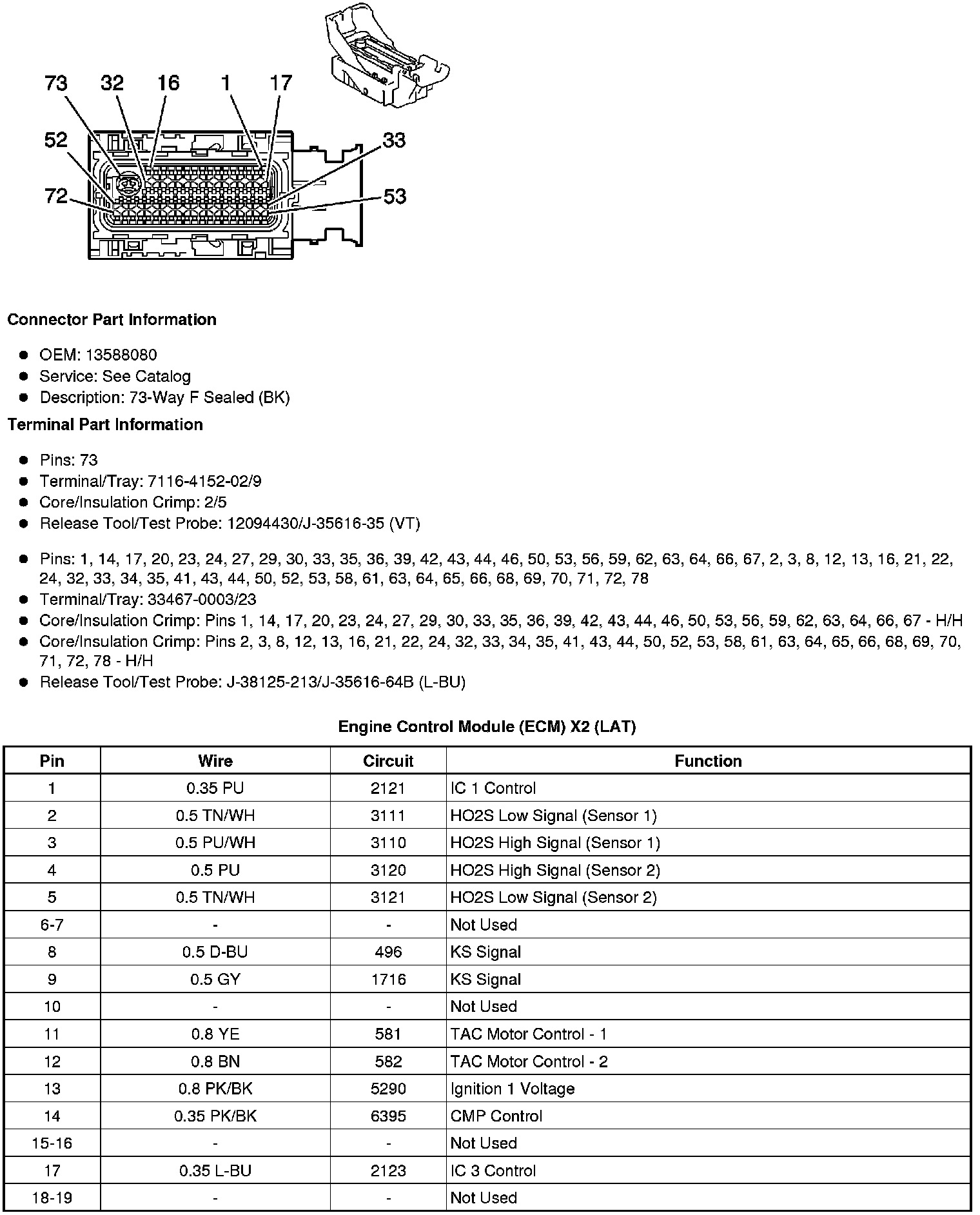

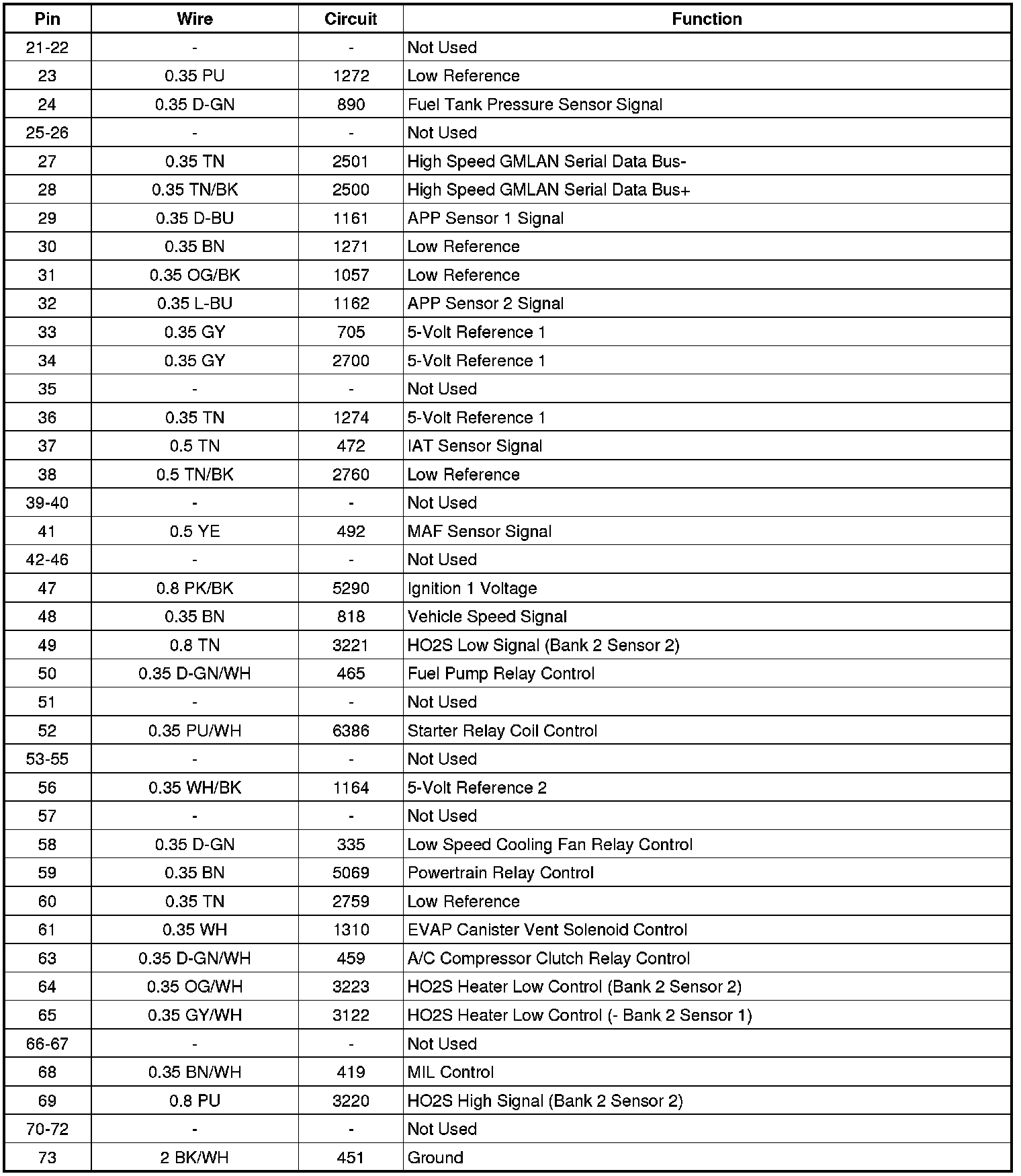

Engine Control Module (ECM) X2 (LAT)

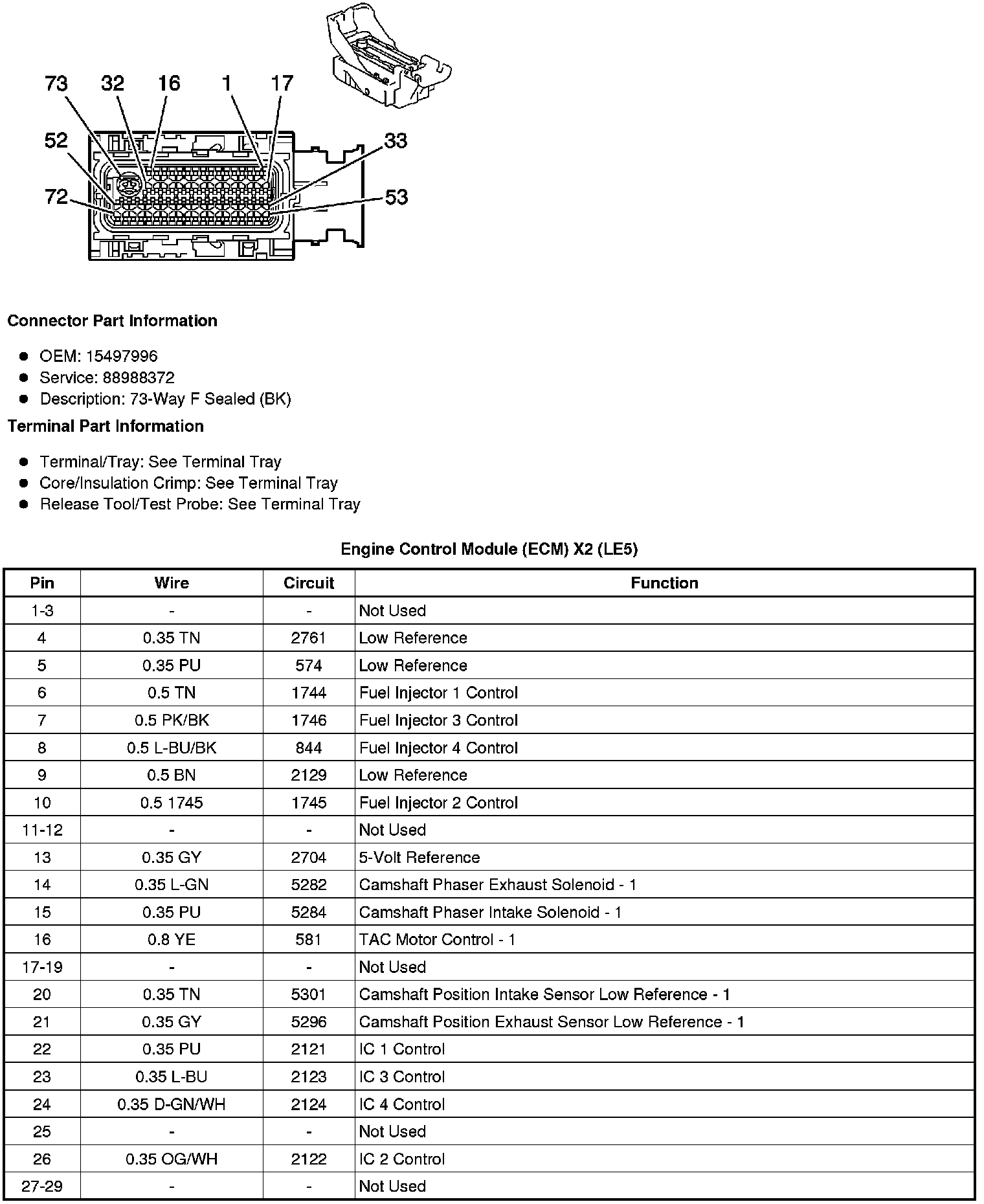

Engine Control Module (ECM) X2 (LE5)

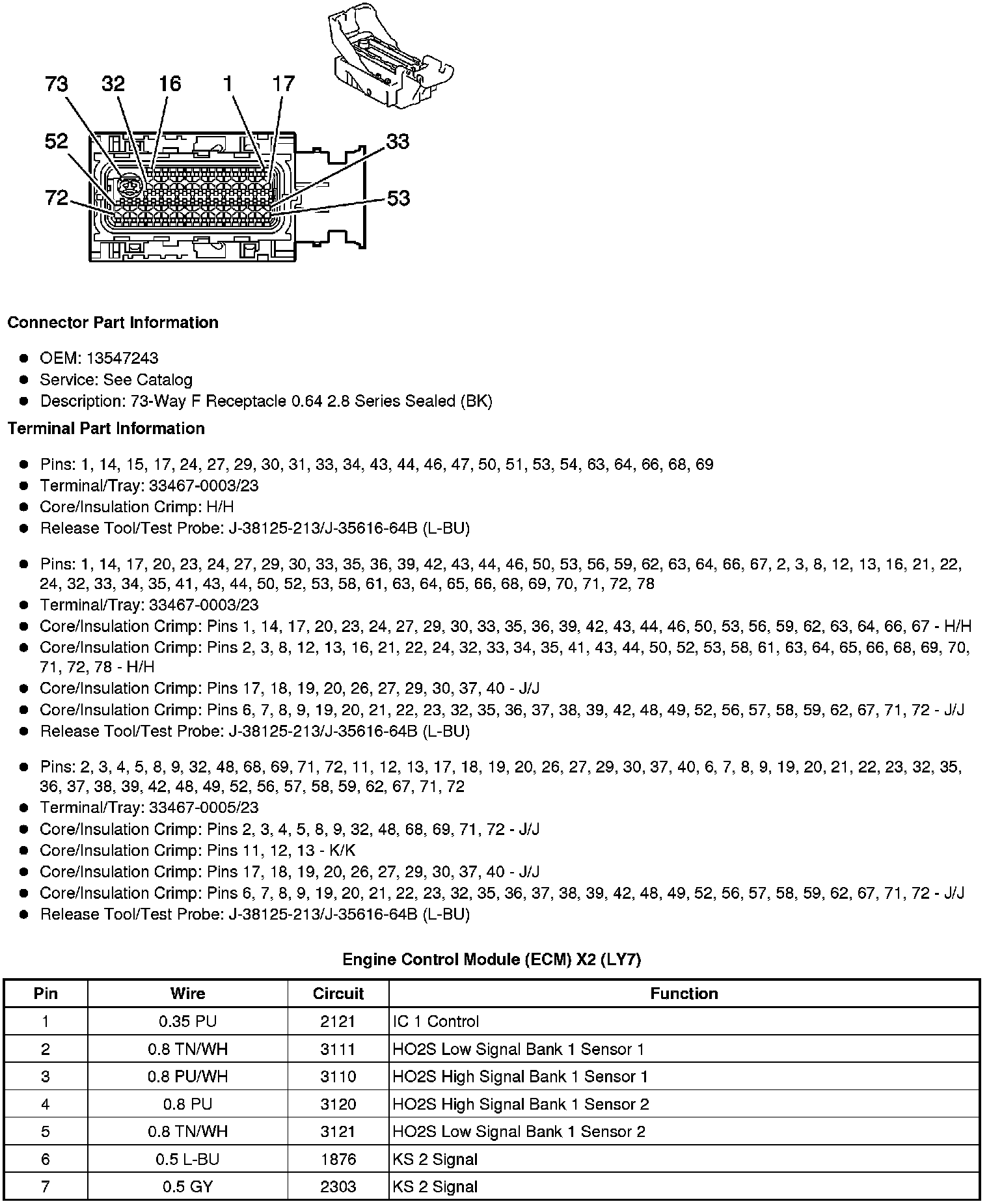

Engine Control Module (ECM) X2 (LY7)

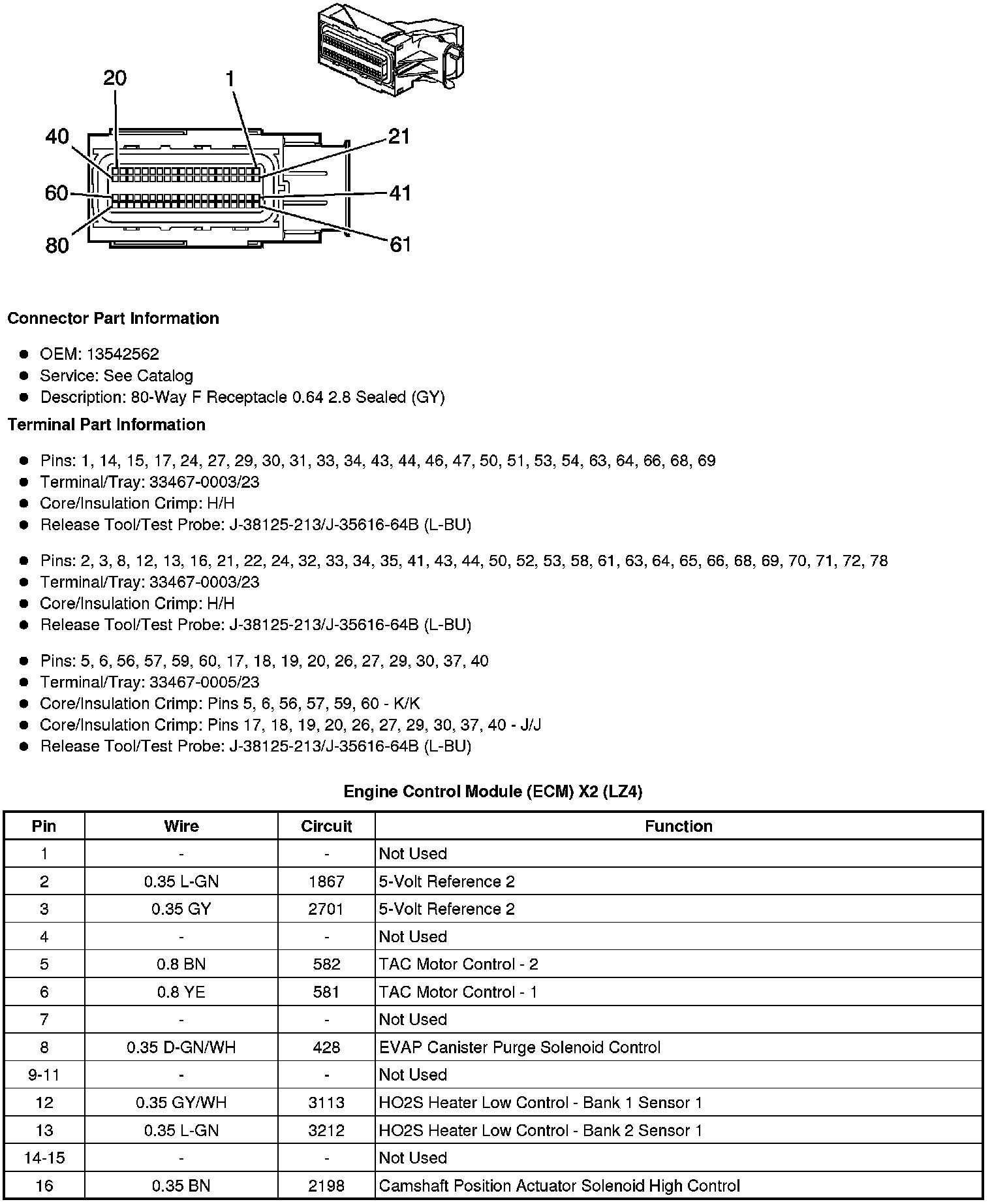

Engine Control Module (ECM) X2 (LZ4)

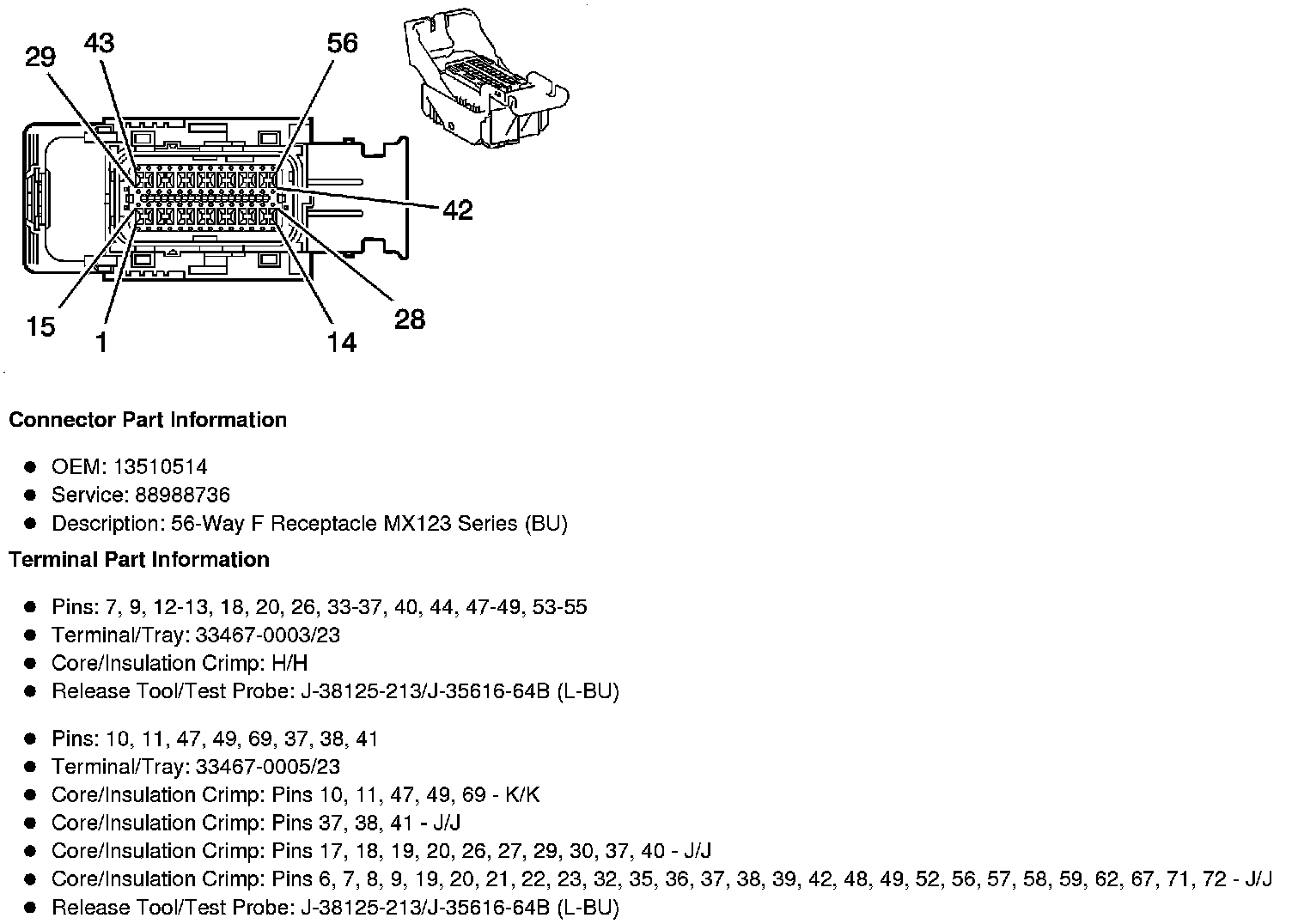

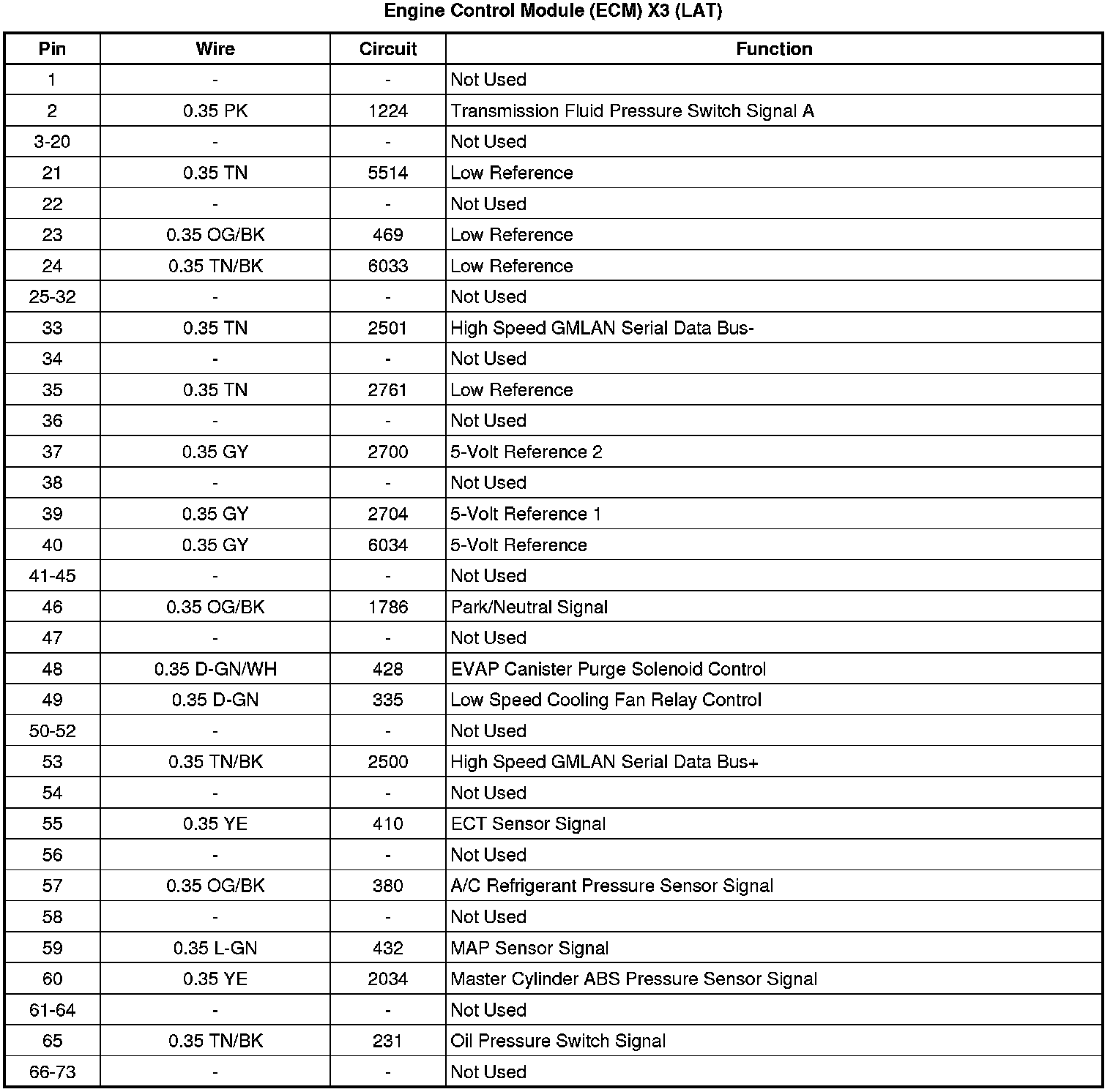

Engine Control Module (ECM) X3 (LAT)

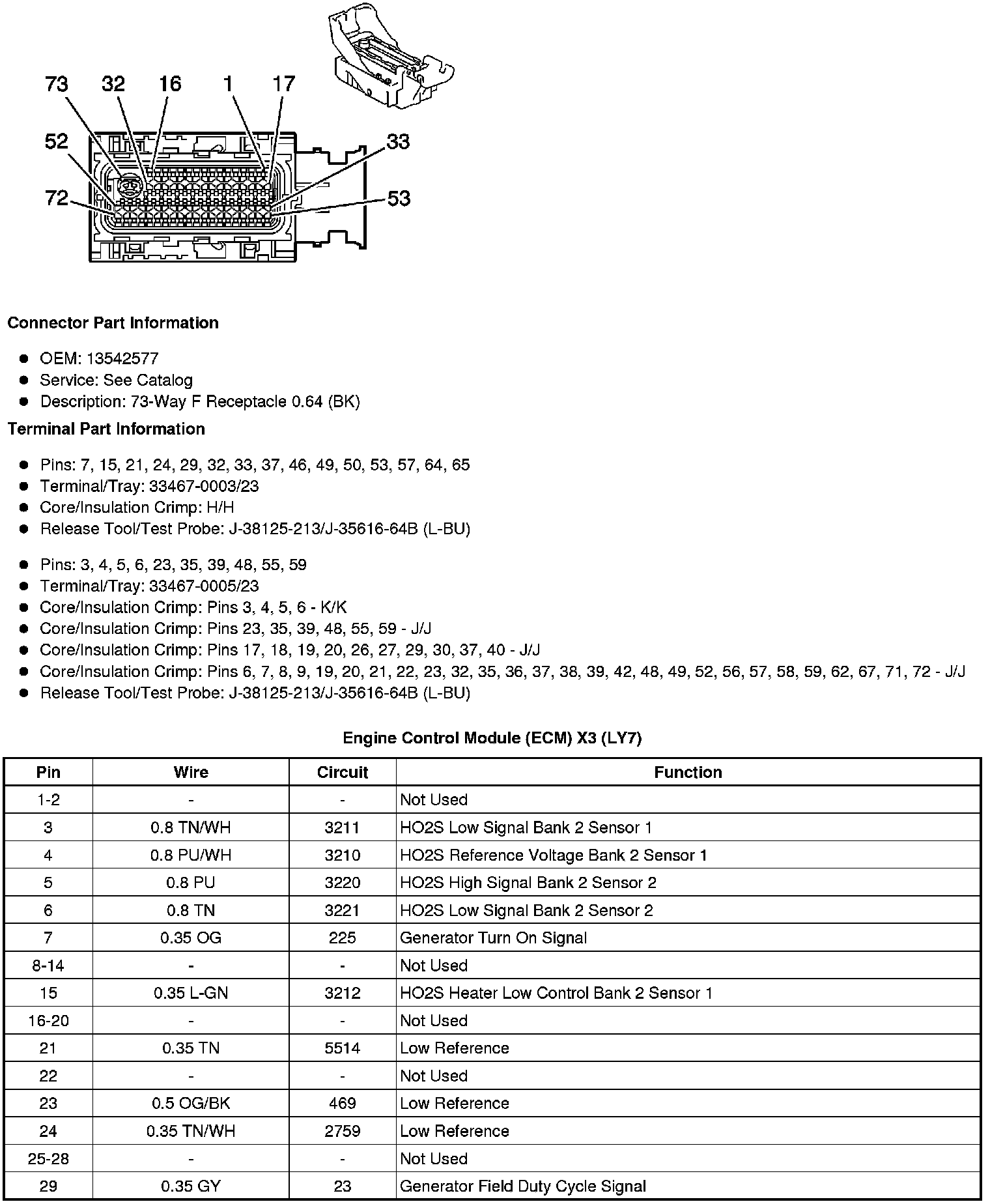

Engine Control Module (ECM) X3 (LY7)
