Home >> Saturn >> 2008 >> Astra L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Diagrams

Ignition Control Module: Diagrams

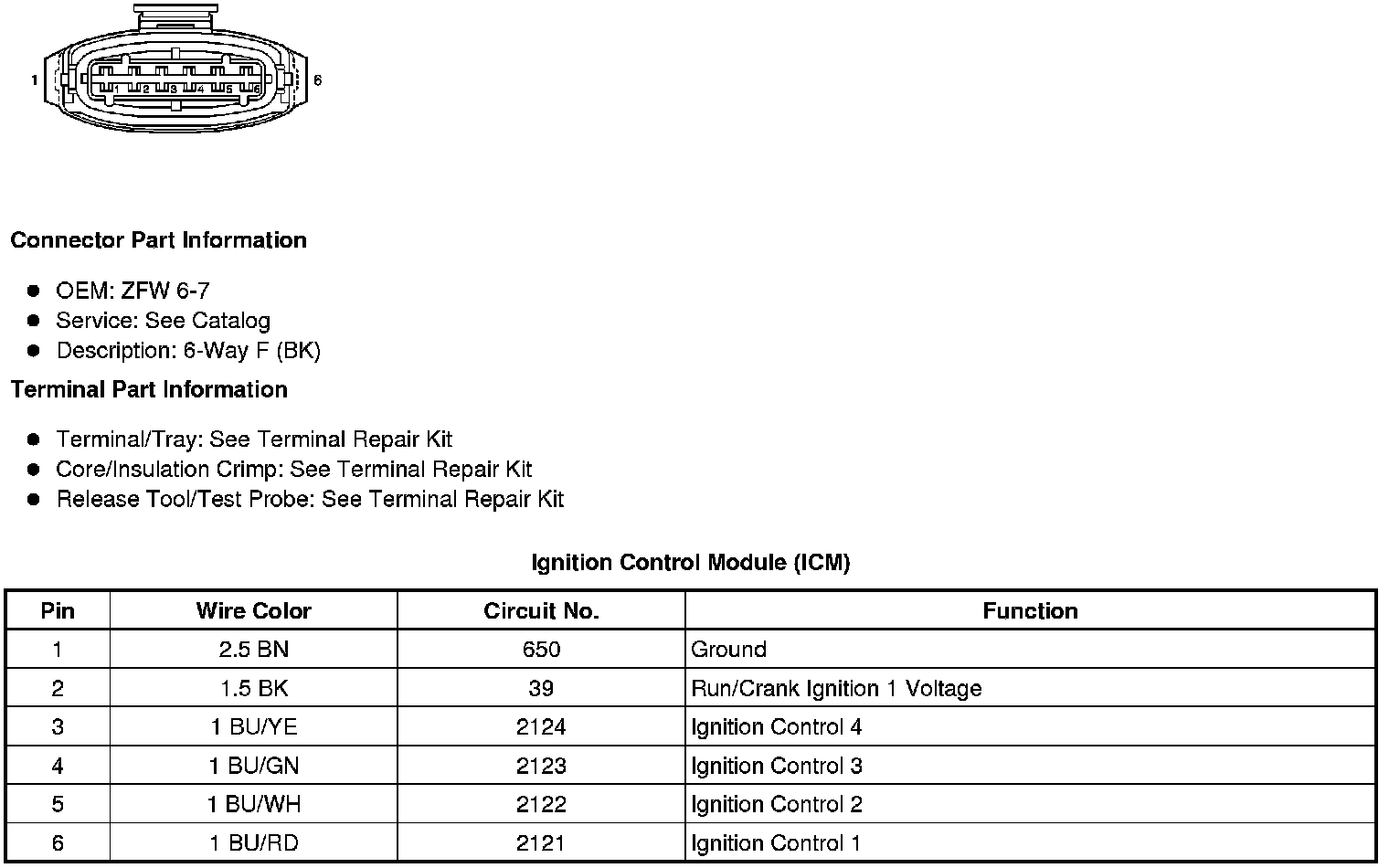

Component Connector End Views

Ignition Control Module (ICM)
