Home >> Saturn >> 2008 >> Astra L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

Accelerator Pedal Position Sensor: Diagrams

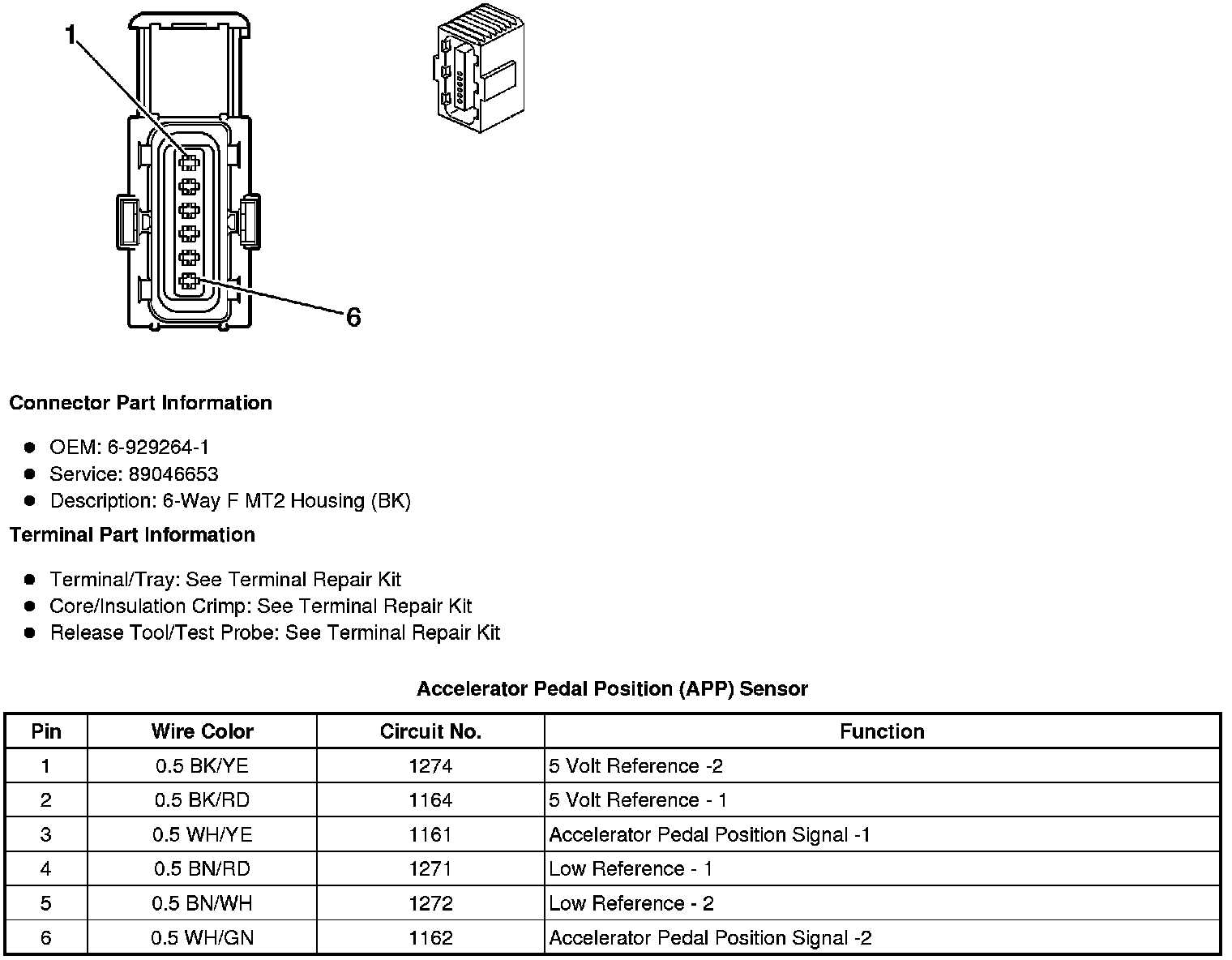

Component Connector End Views

Accelerator Pedal Position (APP) Sensor
