lemon-mirror
:
Home
>>
Saturn
>>
2008
>>
Astra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

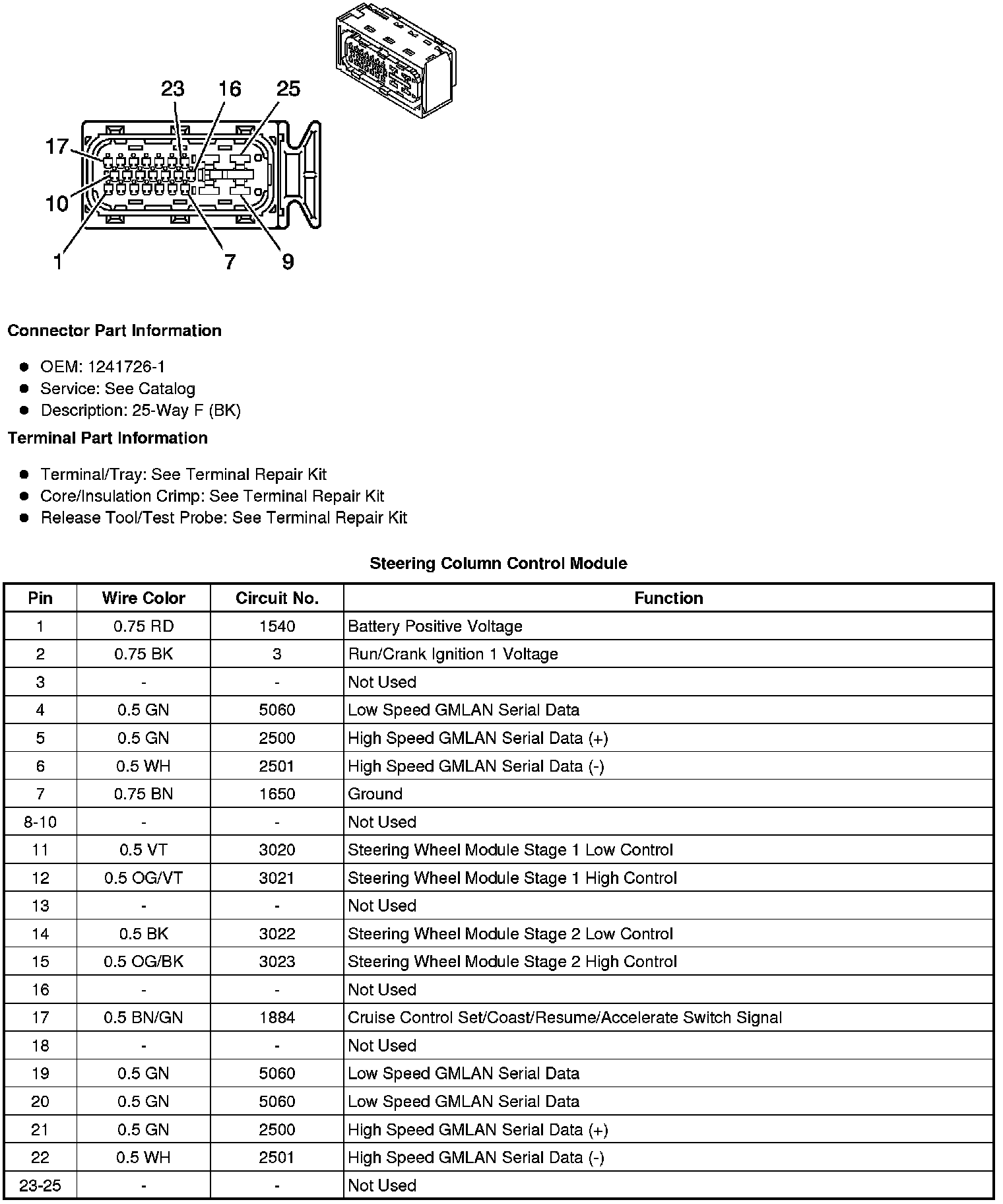

Steering Column Control Module
Steering Column Control Module
Component Connector End Views
Steering Column Control Module
