Home >> Saturn >> 2007 >> VUE FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module



Powertrain Control Module Connector End Views

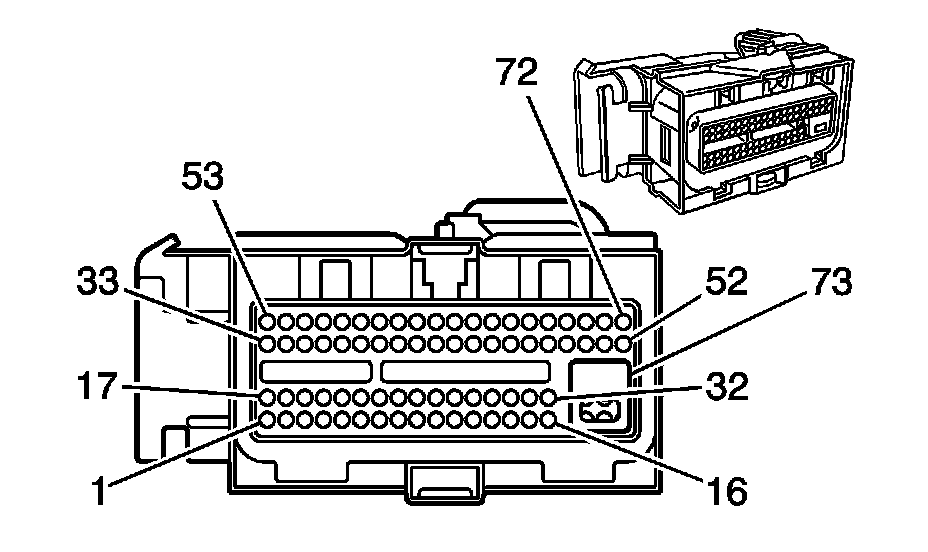

Powertrain Control Module (PCM) C1

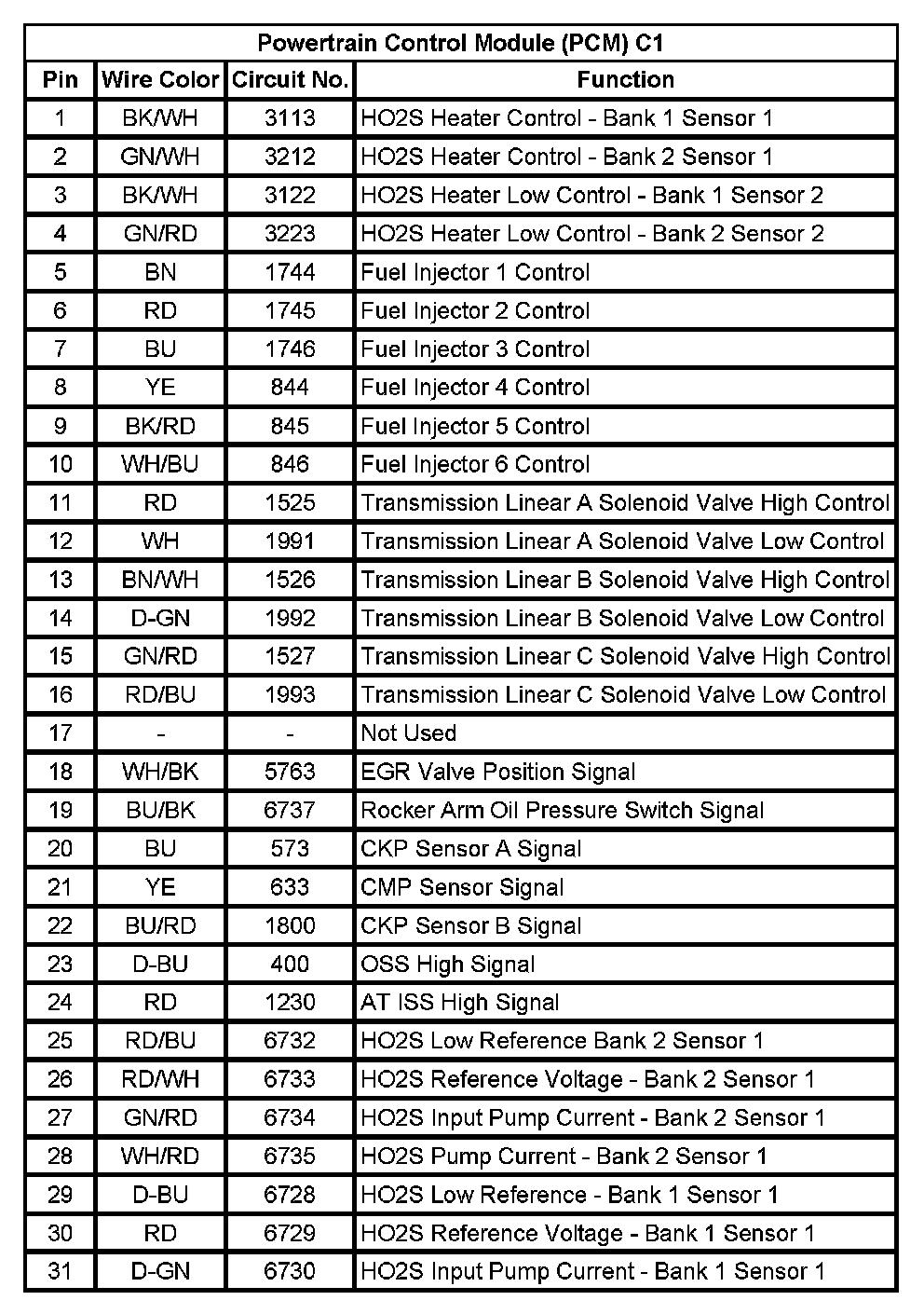

Powertrain Control Module (PCM) C1 (Pin 1 To 31):

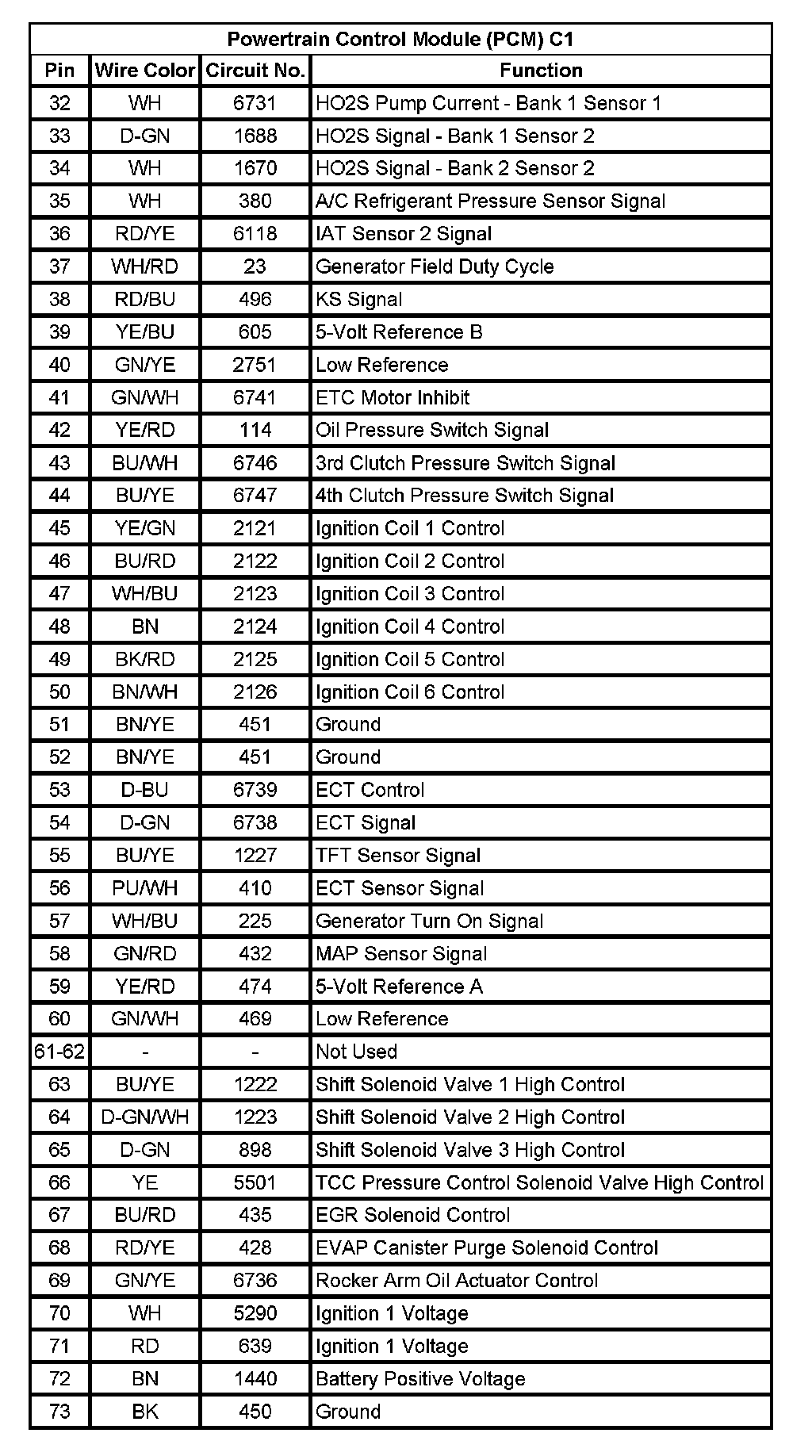

Powertrain Control Module (PCM) C1 (Pin 32 To 73):

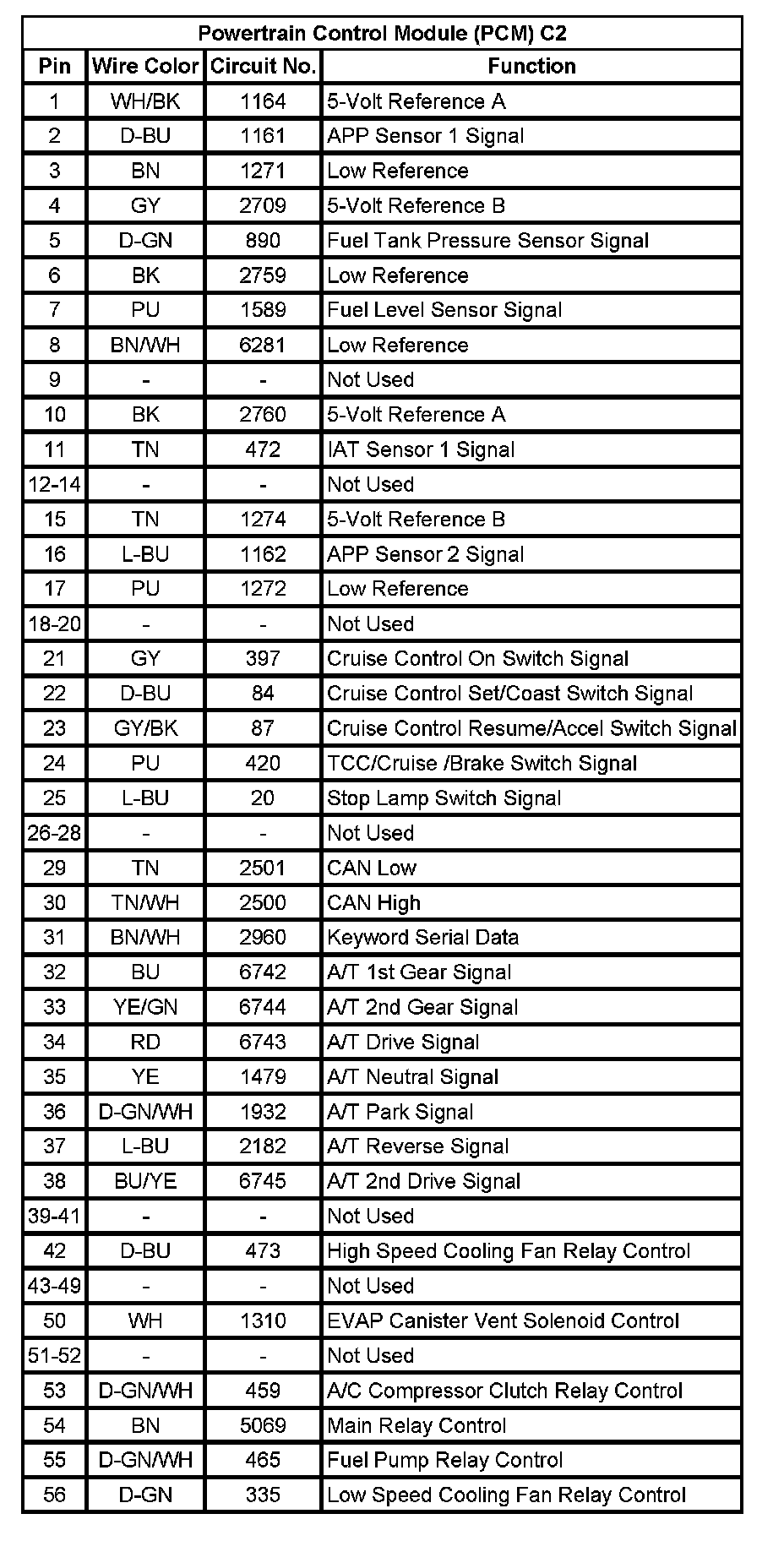

Powertrain Control Module (PCM) C2
