Home >> Saturn >> 2007 >> VUE FWD L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Drive Motor Control Module >> Diagrams

Drive Motor Control Module: Diagrams

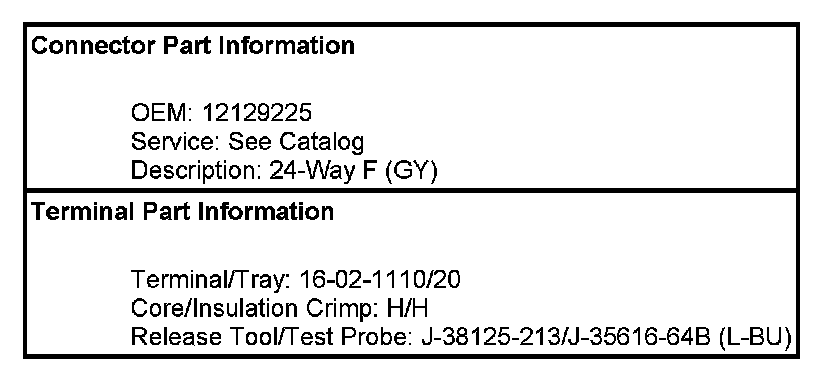

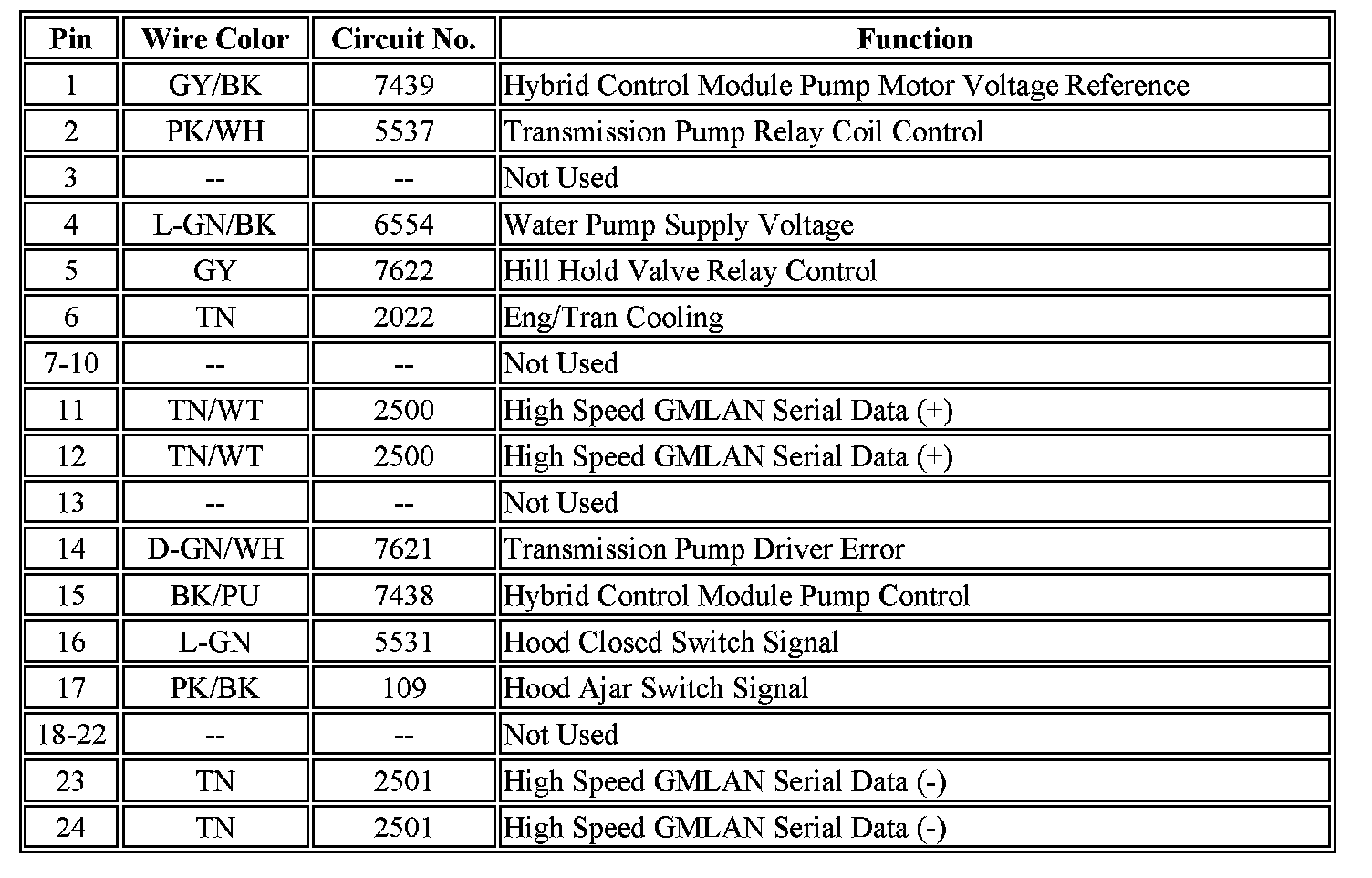

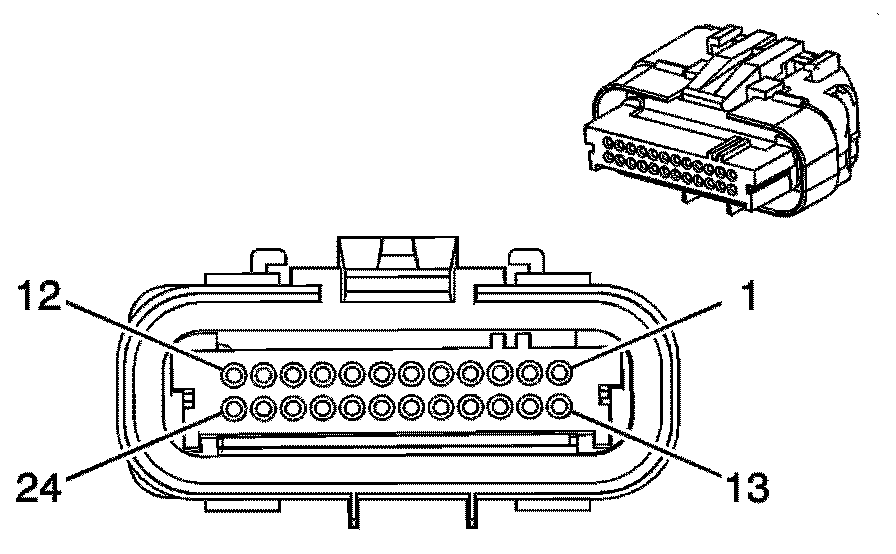

Starter Generator Control Module (SGCM) - C1

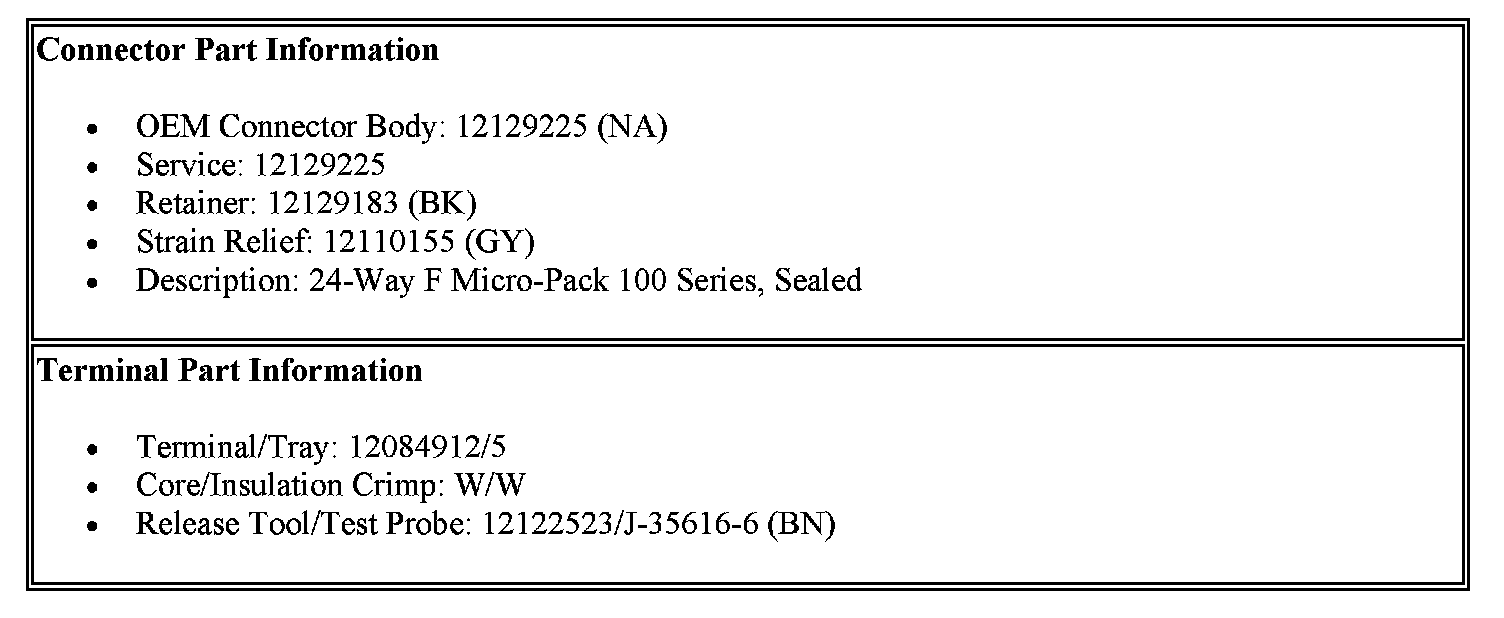

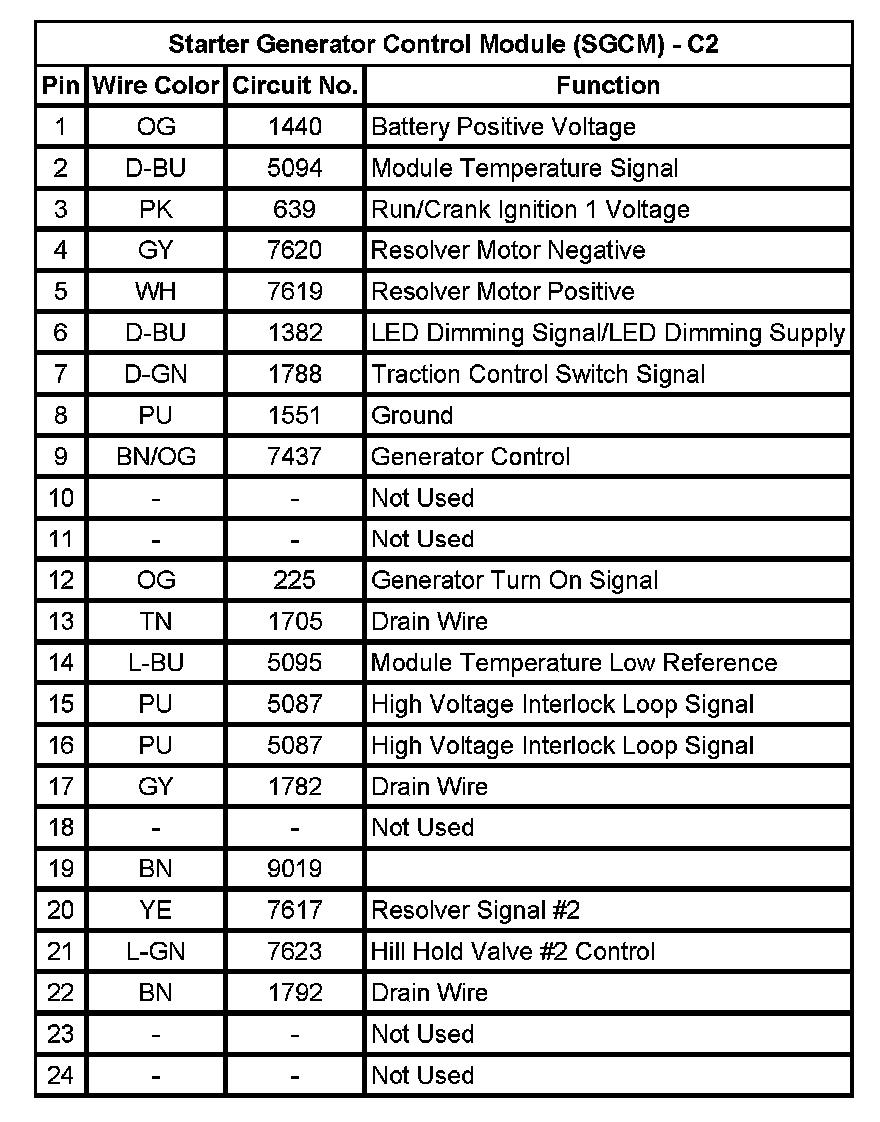

Starter Generator Control Module (SGCM) - C2
