Fuel Level Sensor: Diagrams

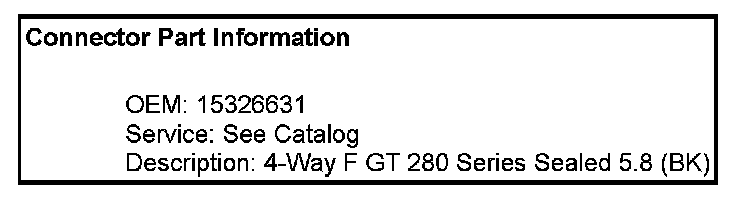

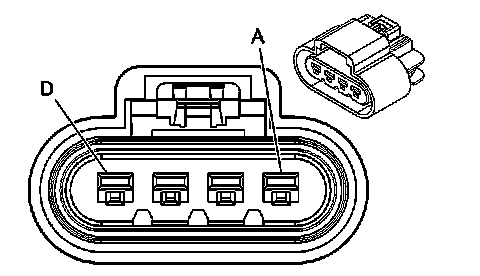

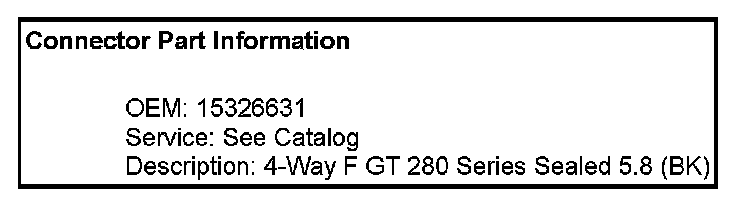

Engine Controls Connector End Views

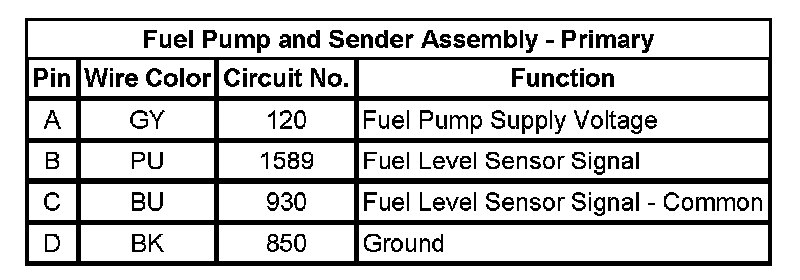

Fuel Pump and Sender Assembly - Primary

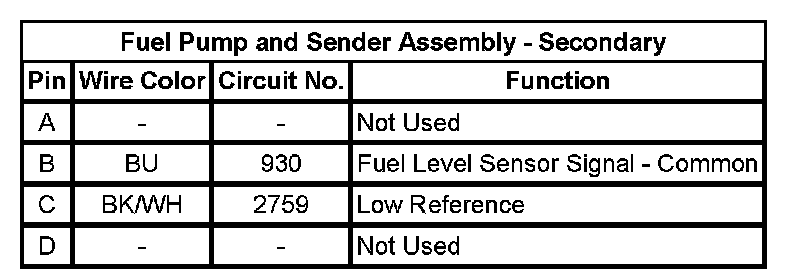

Fuel Pump and Sender Assembly - Secondary
