Engine Electrical Component Views

Engine Electrical Component Views

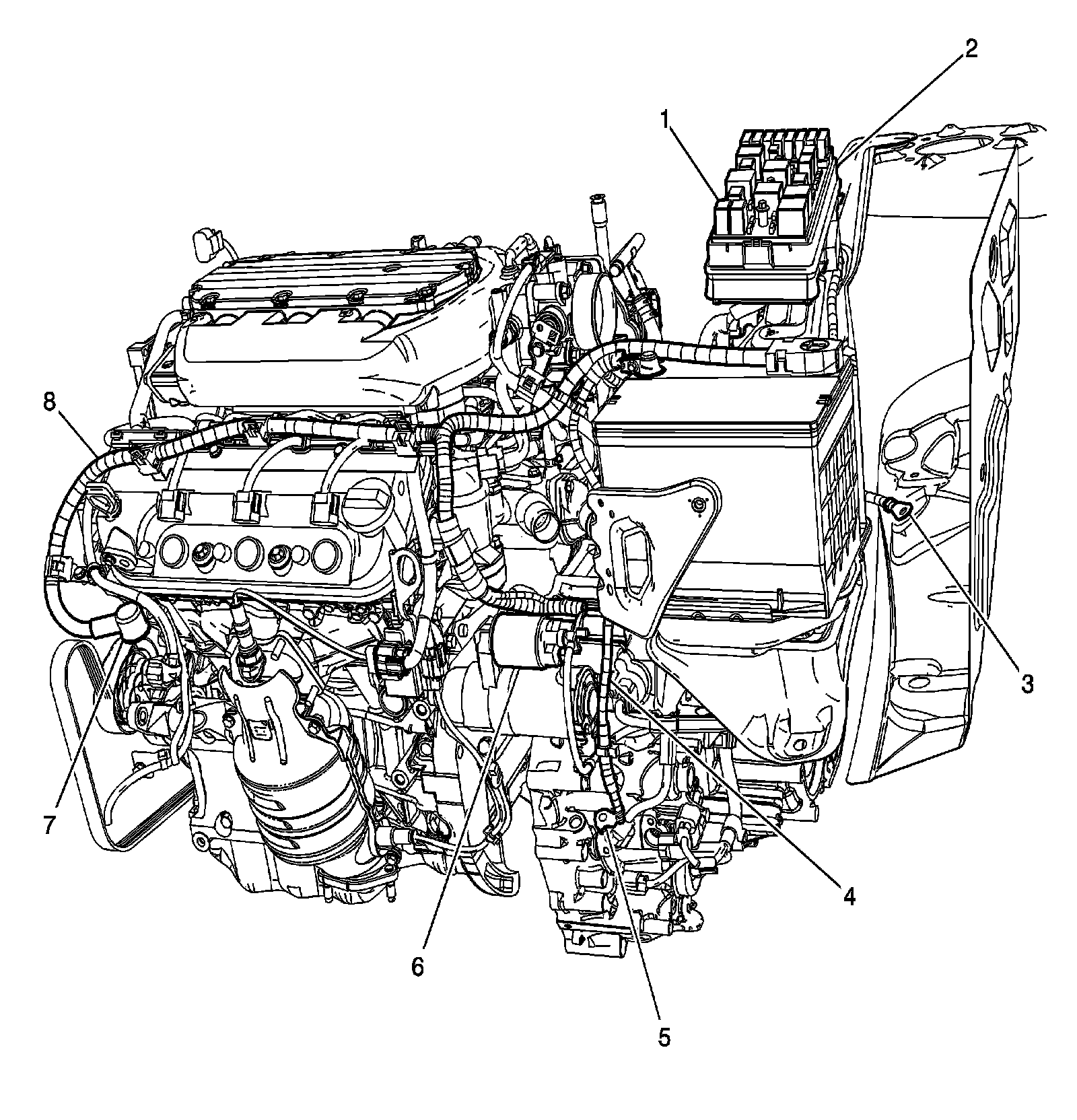

Engine - L61




1 - Fuse Block - Underhood
2 - Battery Positive Voltage (Stud)
3 - Battery
4 - G103
5 - Negative Battery Cable
6 - G105
7 - Battery Positive Cable
8 - Starter
9 - Generator

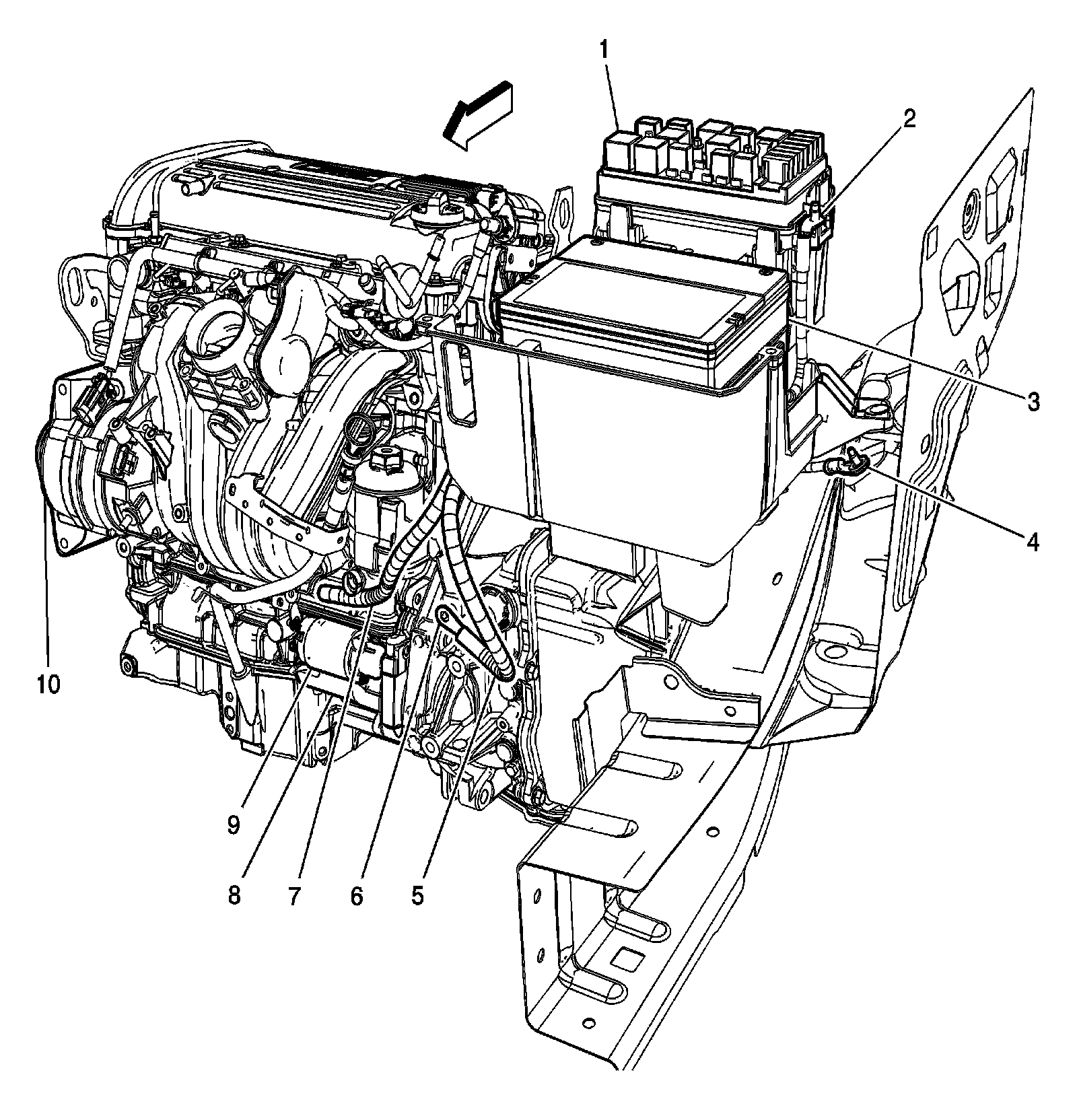

Engine - L66




1 - Fuse Block - Underhood
2 - Battery Positive Voltage (Stud)
3 - G105
4 - Negative Battery Cable
5 - G103
6 - Starter
7 - Generator Connector
8 - Battery Positive Cable
