Home >> Saturn >> 2007 >> VUE FWD L4-2.2L >> Repair and Diagnosis >> Maintenance >> Alignment >> Specifications >> Trim Height Specifications

Trim Height Specifications



Trim Height Specifications

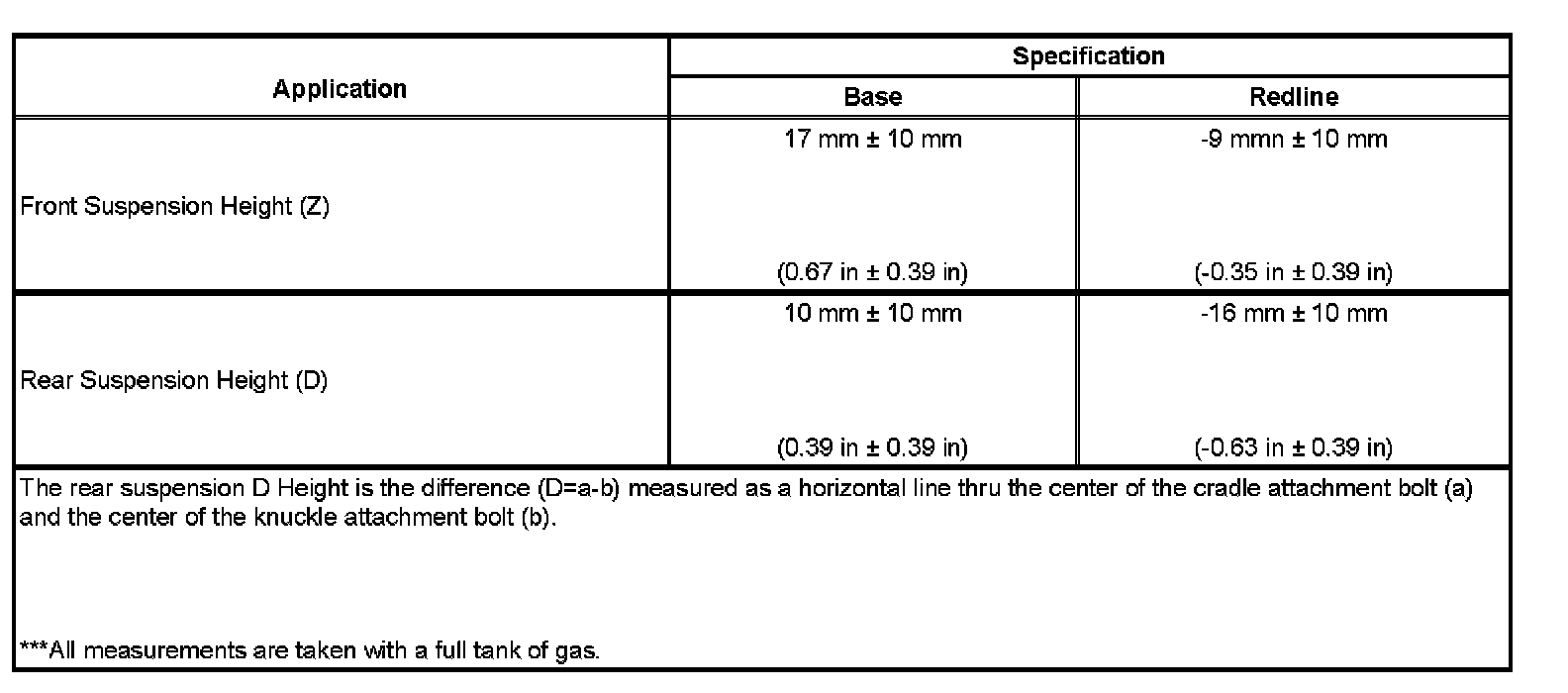

Trim Height Specifications:

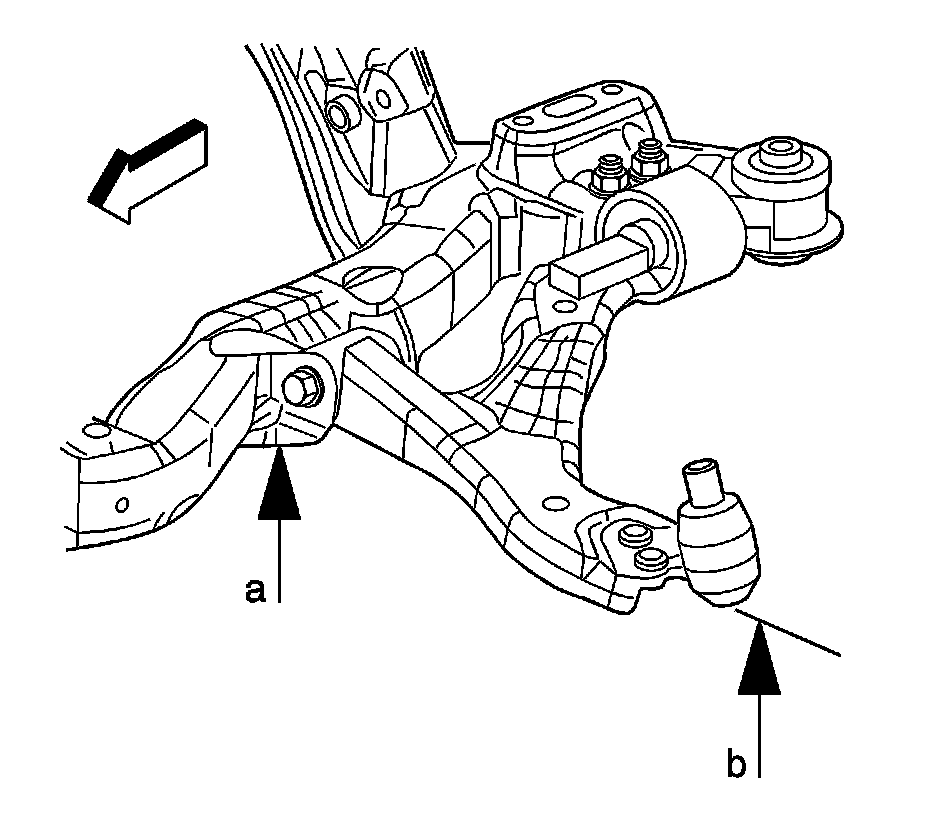

Measuring Z Height

Measuring Z Height:

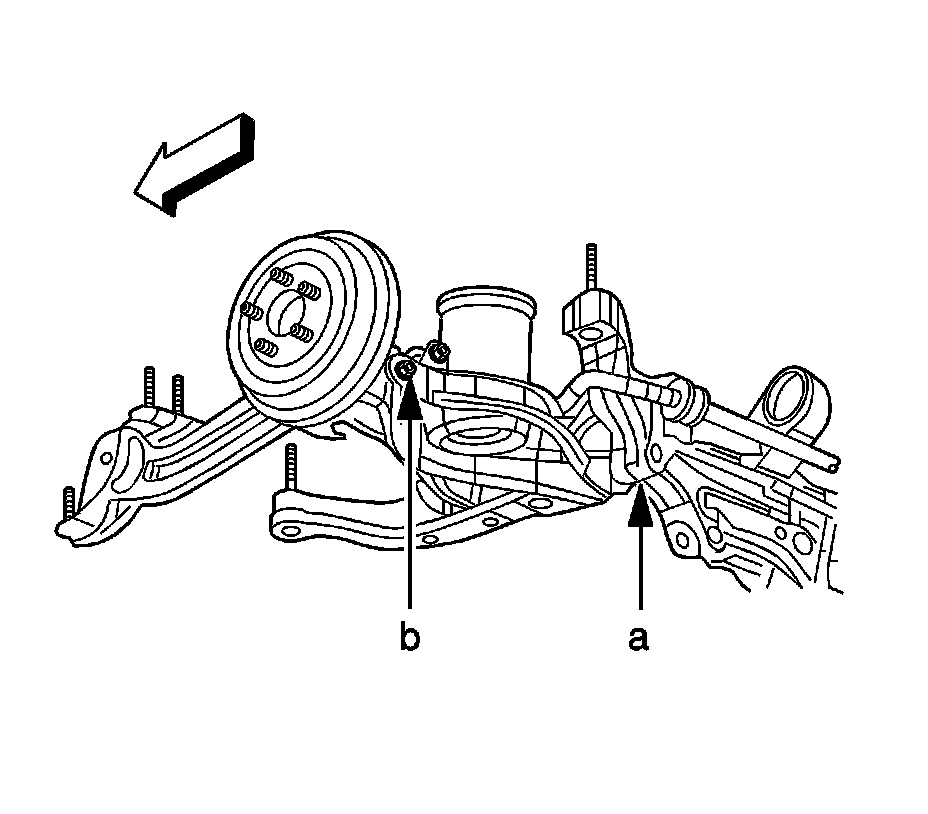

Measuring D Height

Measuring D Height:
